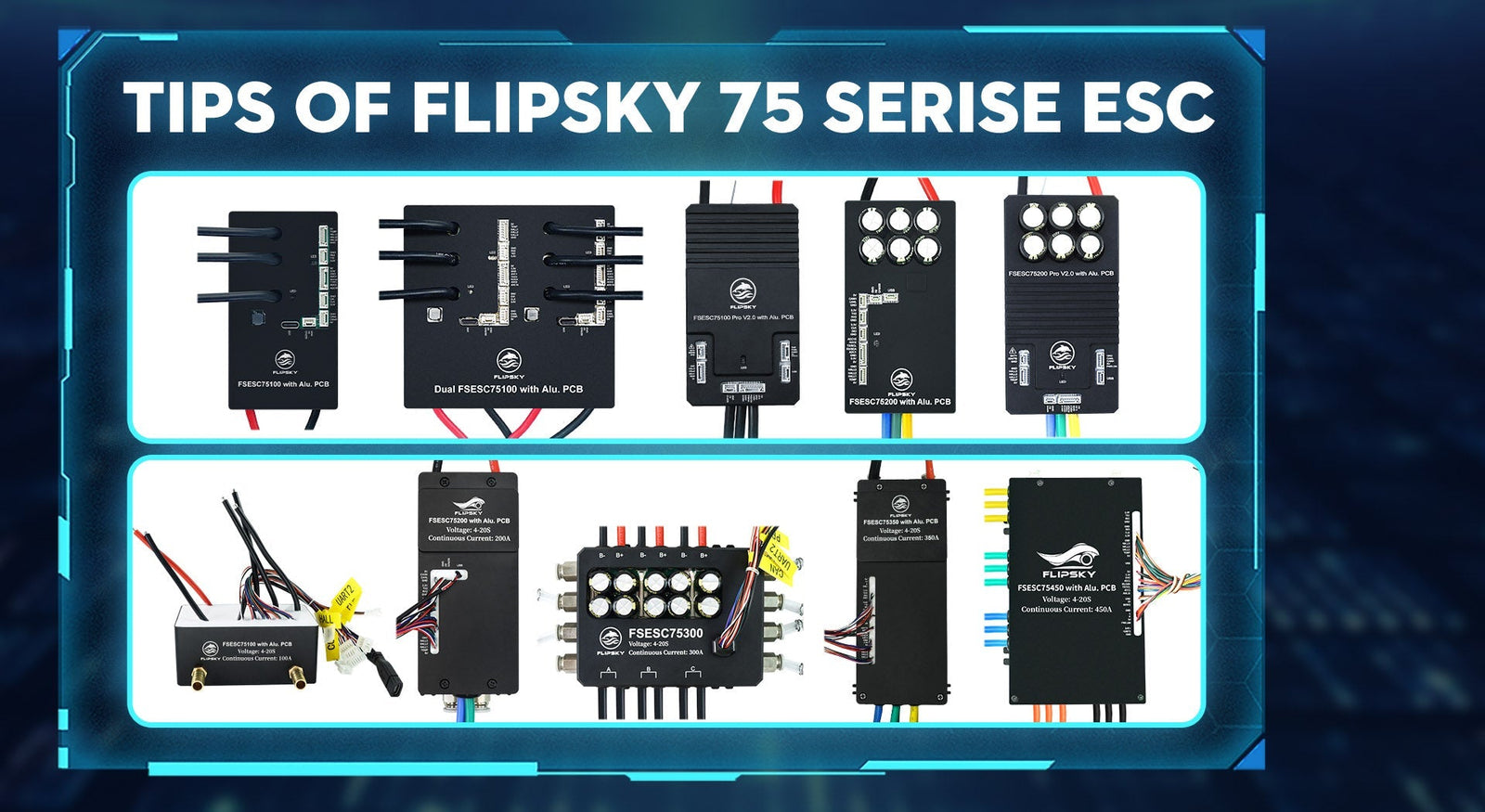

Differences Among FLIPSKY 75 Series ESCs

As more and more 75 series ESCs have been launching with different specifications and firmwares, some customers are confused or may be do some incorrect steps during parameters setting process. This article will focus on what you should pay attention to when doing parameters settings.

1. Nearly all 75 series ESCs are based on the opening source firmware 75_300_R2, which we have flashed firmware 5.2 before sending out. We suggest using this firmware as new firmwares are easy to damage the ESC. Also, please remember to turn off the phase filter as these escs (except for 75100 Pro V2.0 / 75200 Pro V2.0 / 75450 / 75300 / 75350 with phase filter) doesn't built with phase filter.

Here below the details FYI.



75100
(75V 100A)

75100
with Alu.Case

75100
 Pro

75100
V2.0

75100 pro V2.0

75200 with Alu.Case(84V)

Firmware

5.2

5.2

5.2

5.2

6.02

5.2

Continuous
Current(A)

80A

100A

100A

100A

100A

200A

Peak Current(A)

150A

250A

250A

250A

250A

400A

Voltage(V)

14-84V
(4-20S)

14-84V
(4-20S)

14-84V
(4-20S)

14-84V
(4-20S)

14-84V
(4-20S)

14-75V
(3-16S)

Bulit with BT
Module

No

No

Yes

No

Yes

No

Programmable

Yes

Yes

Yes

Yes

Yes

Yes

Regenerative
Capacity

Yes

Yes

Yes

Yes

Yes

Yes

Power ON/OFF
switch

No

No

No

Yes

Yes

No

Phase Filter

No

No

No

No

Yes

No



75200 Pro

75200 Pro V2.0

75200 water cooling(75V)

75450

75300

75350

Firmware

5.2

6.02

6.02

5.2

5.2

5.2

Continuous
Current(A)

50V/200A
75V/150A

50V/200A
75V/150A

200A

50V/450A
75V/350A

50V/300A
75V/200A

50V/350A
75V/250A

Peak Current(A)

400A

400A

300A

1200A

350A

800A

Voltage(V)

14-84V
(4-20S)

14-84V
(4-20S)

14-75V
(3-16S)

14-84V
(4-20S)

14-84V
(3-20S)

14-84V
(3-20S)

Bulit with BT
Module

Yes

Yes

No

No

No

No

Programmable

Yes

Yes

Yes

Yes

Yes

Yes

Regenerative
Capacity

Yes

Yes

Yes

Yes

Yes

Yes

Power ON/OFF
switch

No

Yes

No

No

No

No

Phase Filter

No

Yes

No

Yes

Yes

Yes



a. Please do not insert the remote receiver when do motor FOC settings to avoid signal influence. Download the related driver for your PC software for VESC_Tool and ESC recognition.

b. Except for 75100(75200)pro V2.0/75450/75300/75350 are built with phase filter, other escs don't have phase filters, so please turn off the phase filter when use new firmwares like 5.3, 6.00 or 6.02 etc. as below screenshot.

c. Please confirm your battery voltage, if over the default voltage max 72V, please do firmware upgrade and choose the no limit.

High voltage over 72V tips:https://flipsky.net/blogs/vesc-tool/flipsky-75-series-esc-firmware-5-3-to-set-up-voltage

New firmware tips:https://flipsky.net/blogs/vesc-tool/precautions-for-vesc-tool-after-upgrading-firmware-version-6-00-and-above

Bluetooth module new firmware tips:https://flipsky.net/blogs/vesc-tool/how-to-use-fsesc-75200-pro-l-vesc-firmware-5-3-l-tft-screen-for-e-scooter



2. Please do input setup for PPM or ADC mode after finishing the motor FOC settings in vesc_tool. If using the UART mode,then no need to do input settings after motor FOC setup via vesc_tool

a. If using our remotes, turn on the remote and enter into pairing mode until the screen blinking, and then insert the receiver to do pairing. Please do not plug the receiver before entering into the pairing mode.

For example VX4: https://www.youtube.com/watch?v=u8mz1xxcOTI

b. Please check the vesc_tool APP to Use "PPM" or "UART" and control type "Current"



c. Please do input setup throttle calibration in vesc_tool for PPM or ADC control. ADC1=throttle, GND, 3.3v, ADC2=brake. Remote setting tips FYI.

https://flipsky.net/blogs/vesc-tool/how-to-do-water-cooling-of-flipsky75-series-esc



3. Here is factory 5.2 firmware vesc_tool FYI.
Firmware 5.2 (no need of firmware upload and no choice of phase filter)
Android app firmware 5.2, vesc_tool 3.00:

https://1drv.ms/u/s!AnTbYaDLa7nwgSdPhLV-FqfBZri0?e=NTgBB7

-Windows app:

https://1drv.ms/u/s!AnTbYaDLa7nwgT_9fL_dobikZMtt?e=j4eHna



-Latest 6.02 mobile app:

https://1drv.ms/u/s!AnTbYaDLa7nwgnZBS-nK7oK3kYIv?e=Ss8p6k

-Windows app:

https://1drv.ms/u/s!AnTbYaDLa7nwgncaS43x-M0tz2uk?e=Hqahi8

-Mac app:

https://1drv.ms/u/s!AnTbYaDLa7nwgnjDPSizSRfpYhgO?e=BkNMyu



For more details, please review our official website and social channels.
https://flipsky.net/
https://www.youtube.com/c/FlipskyTech
https://www.instagram.com/flipsky_tech/
