Spec:

• Voltage range: 6-20S (25.2-84V)
• Max power: 3000W; Continuous power: 1500W
• Peak current: 70A; Continuous current: 30A
• Motor KV: 160KV
• Max spin speed(RPM): 8064
• Size: OD65*L111mm
• Shaft diameter: 10mm
• Motor pole: 6pcs; 3 pairs
• Motor stator slot: 12
• Waterproof rate: IP68
• Lead wires extension: 12AWGx1400mm

The thrust under the condition of reaching this voltage and current as below:

• 48.5V 2.7A 5KG
• 48.5V 8.2A 10KG
• 48.5V 18.2A 15KG
• 48.5V 20A 17KG
• 48.5V 25A 19KG
• 48.5V 30A 21KG
• 48.5V 35A 23KG

Drawing:

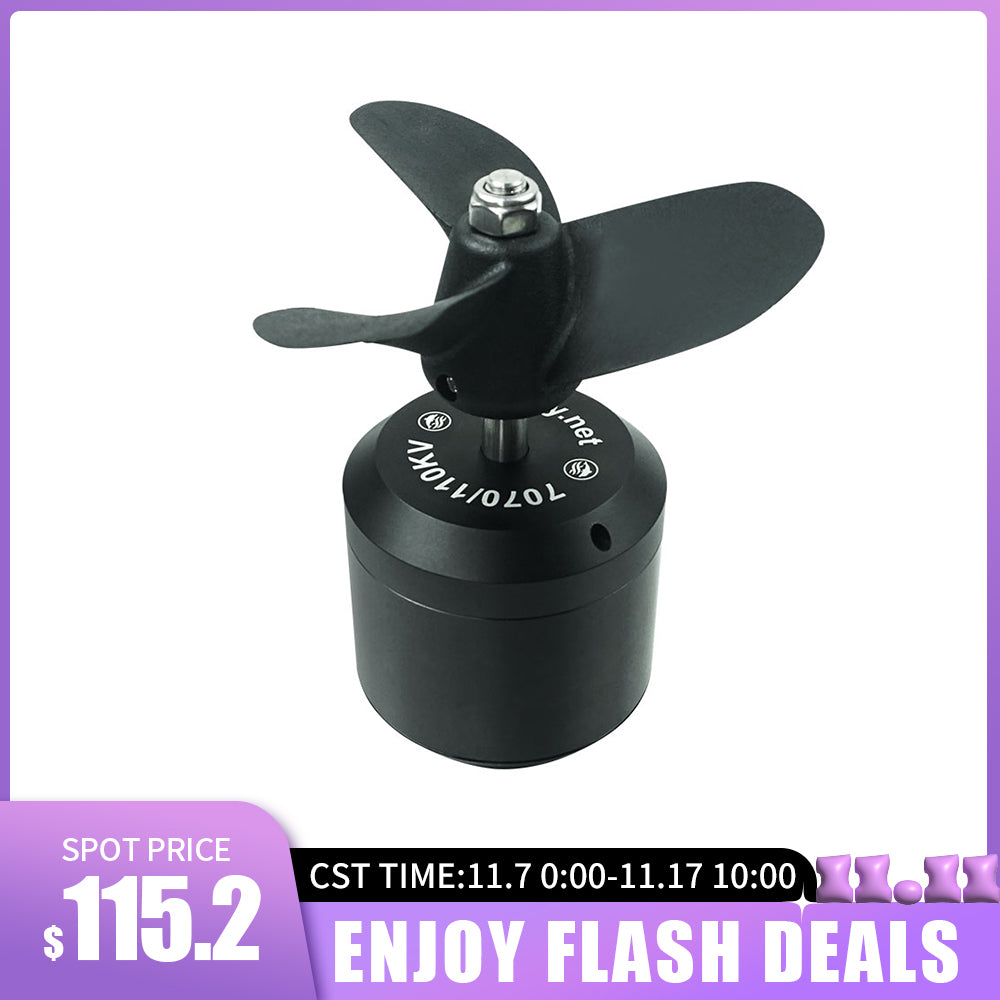

Spec:

• Max power : 4200W
• Motor KV:110KV
• Max Current: 100A
• Rated current:45A
• Voltage:6-20S
• Max torque : 9.5 N.M
• Rated torque：3.8 N.M
• Weight:1.08KG
• Resistance(R): 64.5mΩ
• Motor structure: 12N/14P
• Diameter *Length (mm): 70*70
• Shaft (mm): 10mm Round Shaft
• Bullet Connector: 4mm

Drawing:

Spec:

Motor Drawings:

Remark: This product will not come with cable .

Features:

• Type: Underwater Propeller Motor
•  Motor dimension: 50*85mm
• Waterproof level:IP28 grade waterproof
• Poles：28（please write 14 pairs when do setup)
• Max torque:1.5NM
• Weight:1.51b/0.68kg

Rerference information:

Features:

• Waterproof level:IP28 grade,it can work underwater.
• Material :316 stainless steel shaft

Spec:

• Maximum power:410W
• Motor diameter: 46mm
• Motor length: 50mm
• Mounting distance: 28mm
• Shaft diameter: 4.85mm
• Poles：28（please write 14 pairs when do setup)
• Torque: 0.9N.m
• Prop mounting distance: 25mm
• Weight:310g

What is the advantage of F4125：

1. Anti-corrosion, can be used in sea water.
2. IP28 grade waterproof, It can work underwater.

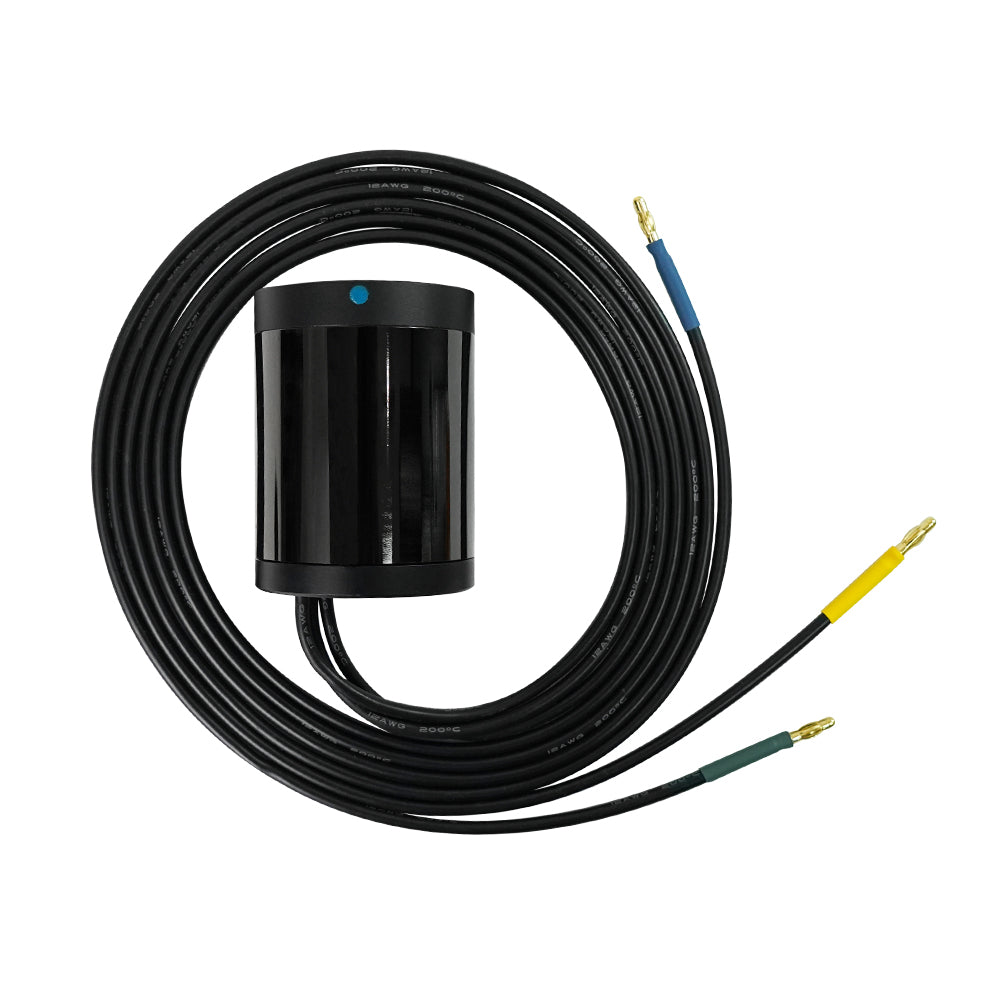

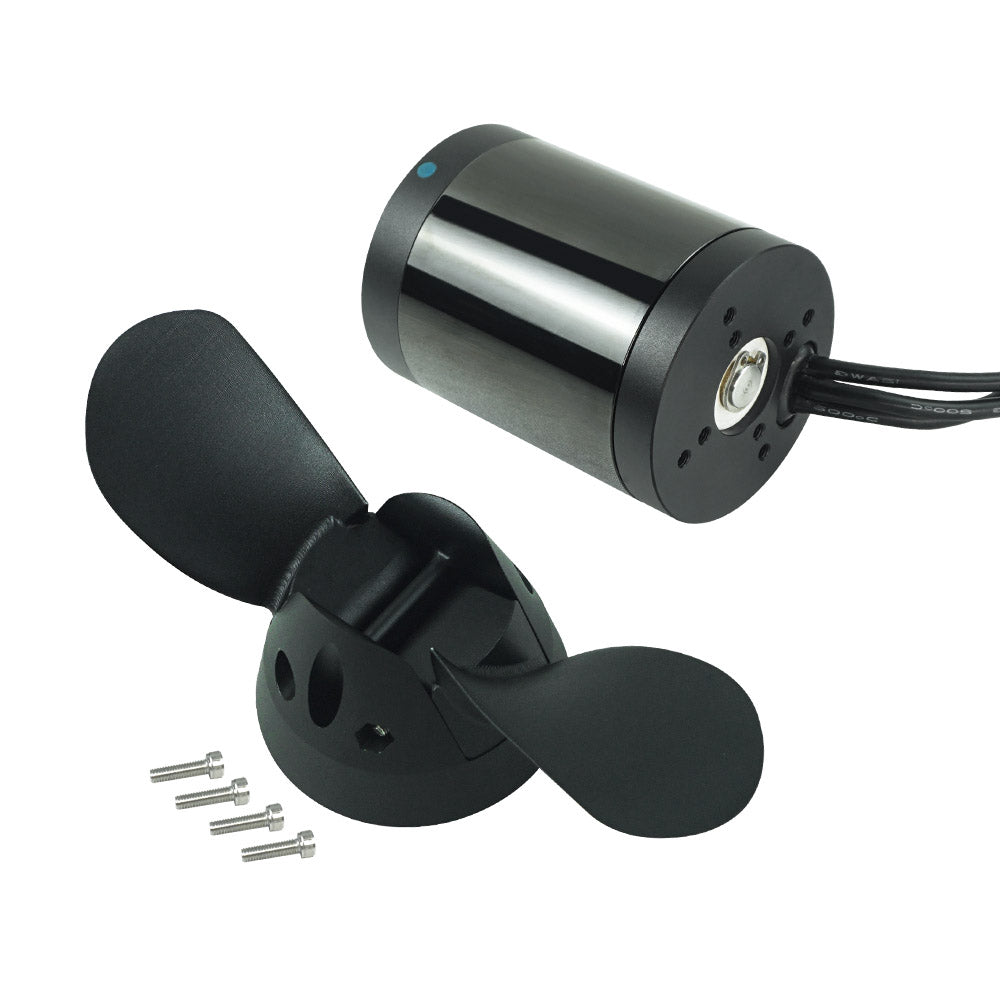

Features:

• KV:160KV
• Max Volts:12S
• Rated voltage:24V
• No-load current:＜ 1A
• Maximum load current:30A
• Rated power :500W
• Motor dimension: 50*62mm
• Poles：14（please write 7 pairs when do setup)

• Thrust ：5KG
• Current:12A
• Hole distance:φ 35
• Screw holes:4×M4
• Waterproof Level :IP68
• Motor wire: 12AWG

What is Advantages of Flipsky 5062 motor:

• Applying high thermal conductive material into the vacuum glue sealing coil for waterproof treatment, which can protect the copper wire and silicon steel sheet from seawater corrosion effectively.
• Adopting special stainless steel bearing and lubricating grease. Salt spray test can reach 144 hours.
•  The upper and lower positions of the magnets have the rings to lock the magnets and prevent the magnet from falling off.
• The motor shaft is made of 316 stainless steel, which can work in seawater for a long time.
•  The solder joints of the motor leads are potted inside the motor, which can meet the 200m suppression test.

Spec:

• Voltage range: 6-20S (25.2-84V)
• Max power: 3700W; Continuous power: 2000W
• Peak current: 100A;
• Motor KV: 130KV
• Size: OD65*L121mm
• Shaft diameter: 12mm*m8
• Max output torque:5.5N*M
• Waterproof rate: IP68
• Connectors:8mm plug
• Weight:1.62KG
• Structure:18N/P
• Lead wires extension: 8AWGx1400mm

ROUND WITH THREAD MOTOR DRAWINGS：

SPLINED SHAFT MOTOR DRAWINGS:

Spec:

• Dimension/mm:D85L135
• Shaft diameter/mm:Φ12
• KV(RPM/V):140KV
• Volt range :28~100.8V(6-24S)
• Max current/A :190
• Max power/W:8000
• Rate power/W:4000
• Operation voltage:8.5V
• Max torque@60%(N*M) : 21.8
• Waterproof level：IP68
• Max RPM: 10584
• Number of pole pairs:5pairs
• Current without sensor@8.4v: 1.5A
• Current with sensor@8.4v :
• Shaft extension length/mm:58
• Insulation voltage/leak current: 500V
• Extension wire length/mm:1300mm
• Wires:0.38mmx50mmx3.2mm
• Working temp.limit/℃ :120℃
• Construction:12N/10P
• Plug:10mm golden plug
• Weight:4.2KG

Motor Drawings:

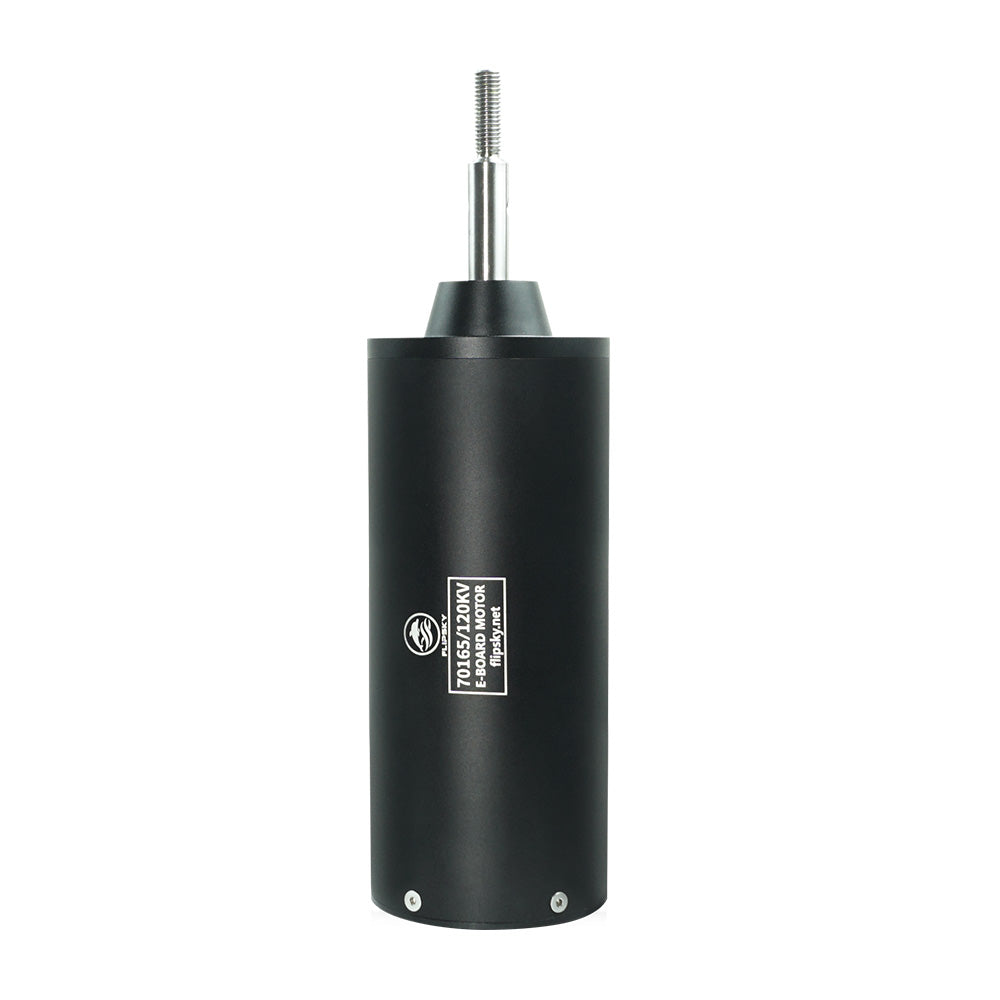

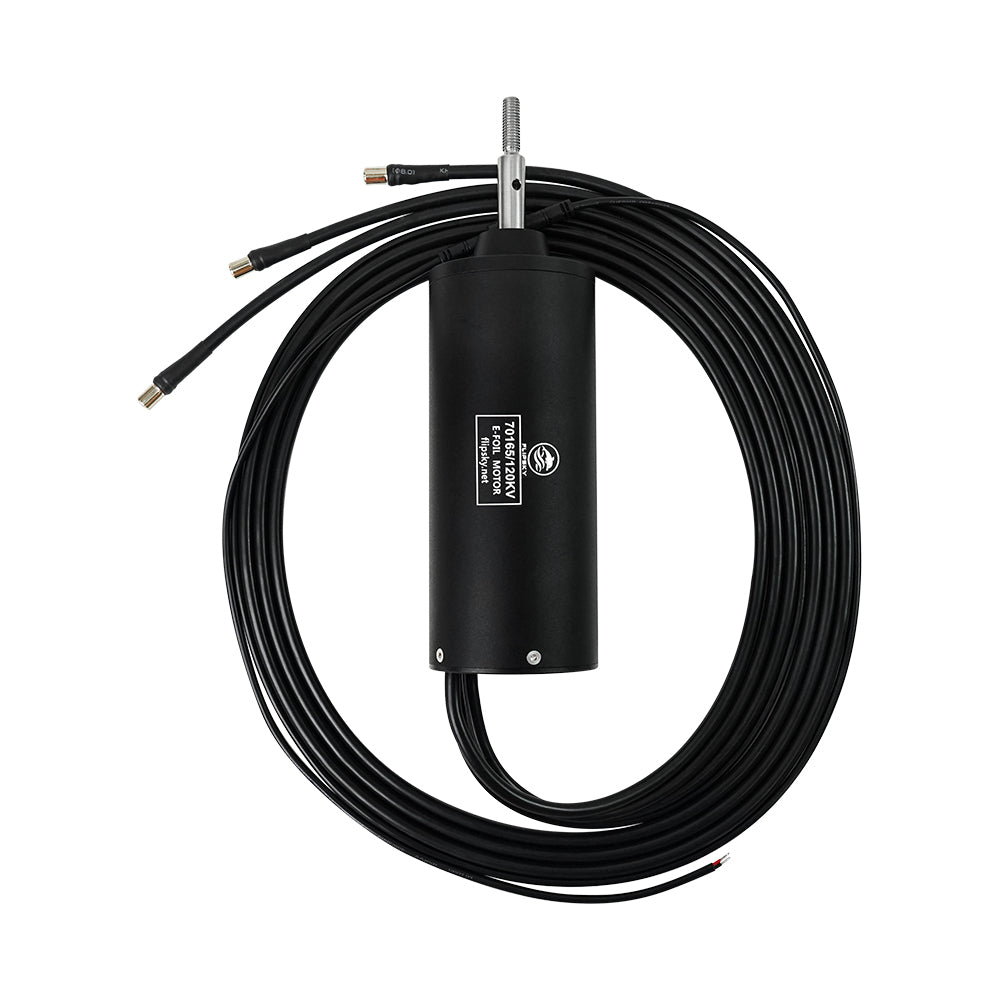

Product Spec:

• Voltage range: 6-20S (25.2-84V)

• Max Spin Speed(RPM): 16380

• KV(RPM/V): 120KV/100KV

• Max Power:6000W,rated power 3000W

• Peak current: 200A

• The number of pole: 6(please write 3 pairs when do setup)

• Max torque at 60%:9NM

• Demension: D65*L161mm

• Max working temperature: 120︒C

• Insulation voltage & leak current: AC500V/10MA/3S

• Lead wires extension: 8AWGx1300mm

• Waterproof level:IP68

• Weight:3kg

• Plug: 8.0mm

• Motor wire: 8AWG



The difference between the two shafts

Why upgrade from oil sealed to water/ceramic sealed)?

Add a ceramic ring in the middle, reduce the direct contact between the sealing ring and the bearing, extend the life of the bearing; improve the waterproof performance

Update Detail:

Water-seal has 2 parts as the following pictures
2 strong hardness ceramic run with each other and metal ring part spins together with shaft&ball bearing,
which can prevent the abration between shaft and water-seal, extend the motor lifespan with better IP rate.

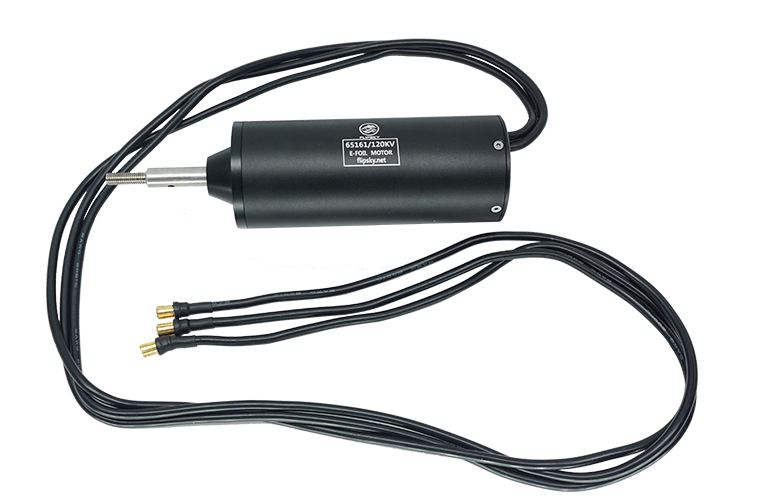

12mm round shaft with M8x1.25 thread (Sensorless)

12mm Splinded shaft ：

12MM ROUND WITH THREAD/NEW:

Application:

Efoil, Electric surfboard, Electric Hydrofoil,Foilsurf,Surffoil, RC Boat, Esurf, Jetski, Jetboard, etc.,
