Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Regular price
Sale price$130.00
-13 in stock
Spec:
Firmware: 6.02 (firmware update supported)
Size: L103mm*W58mm*H27.7mm
Voltage:14-84V (4-20S)
Current:100A Continuous
BEC:5V@1.5A
Support BLDC square wave mode control and FOC sine wave mode
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM,ADC,NRF,UART
Wire Size: 10AWG(75100 Pro)
Programmable: Yes
Regenerative Capacity: Yes
Phase Filter: Yes
Power Switch Button: Red
Wiring diagram:
Flipsky 75200 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Regular price
Sale price$198.00
-10 in stock
Spec:
Firmware: 6.02, supports firmware upgrade
Voltage: 14-84V (safe for 4-20S)
Continuous current: 50V/200A; 75V/150A (Values depend on the mounting,
ambient temperature and air/water circulation around the device!); Burst: 300A
BEC: 5V@1A
Support Modes: DC, BLDC, FOC (sinusoidal)
ERPM: 150000
Communication Ports: USB, CAN, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Source Support: PPM, ADC, NRF, UART
Supported Sensorless: Yes
Regenerative capacity: Yes
Programmable via VESC_TOOL: Yes
Size:130x68x41mm
Motor/power wire size: 8 AWG
Phase Filter: Yes
Power Switch Button: Red
Feature:
Adjustable protection against: low voltage protection, high voltage protection,over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
Support various control modes: Current / Duty cycle / Speed / PID control modes.
Support the function of balancing car by connecting the IMU module through the
IIC interface; support inertial measurement unit modules such as MPU9250,
MPU9150, MPU6050, LSM6DS3, BMI160.
CPU:32F405 with frequency 168MHz
Aluminum PCB with good heat dissipation to expand life span.
75200 Pro V2.0 aluminum substrate single drive: supports single serial port function,and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time),and built with power on/off switch.
Wiring diagram:
Flipsky 75100 75V 100A Single ESC Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Regular price$85.00
-844 in stock
Warm tips:
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Remark:Please be careful to limit the Absolute Maximum Current below 200A. HERE
Specs:
Voltage:14-84V (4-20S)
Continuous Current:100A
Max Current:120A
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
BEC:5V@1A
Modes:DC, BLDC, FOC (sinusoidal)
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM,ADC,NRF,UART
Wire Size: 12AWG
Size:L85mm*W50.7mm*H33.8mm
Programmable: Yes
Regenerative Capacity: Yes
Feature:
Two COMM ports, UART bluetooth module, IMU,screen display or remote controller supportable.
Based on VESC, programmable via vesc_tool with overheat and overcurrent protection.
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Here below video and blog links FYI. YouTube:Click here Blog:Click here
Package included:
FS75100*1pcs USB cable*1pcs Hall sensor adapter (6pins)*1pcs Manual*1pcs
Wiring diagram:
Detail size:
Video:
Flipsky 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Regular price
Sale price$105.00
-362 in stock
Warm tips:
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Please be careful to limit the Absolute Maximum Current below 250A,setting page
Specs:
75100 Size:L103mm*W58mm*H18.5mm+5.9mm USB TYPE
Voltage:14-84V (4-20S)
Current:100A Continuous,burst 120A
BEC:5V@1.5A
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM,ADC,NRF,UART
Wire Size: 12AWG(75100)
Programmable: Yes
Regenerative Capacity: Yes
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Here below video and blog links FYI. YouTube:Click here Blog:Click here
Detail:
Wiring diagram:
75100 With Aluminum Case
75100 With Water Cooling Enclosure:

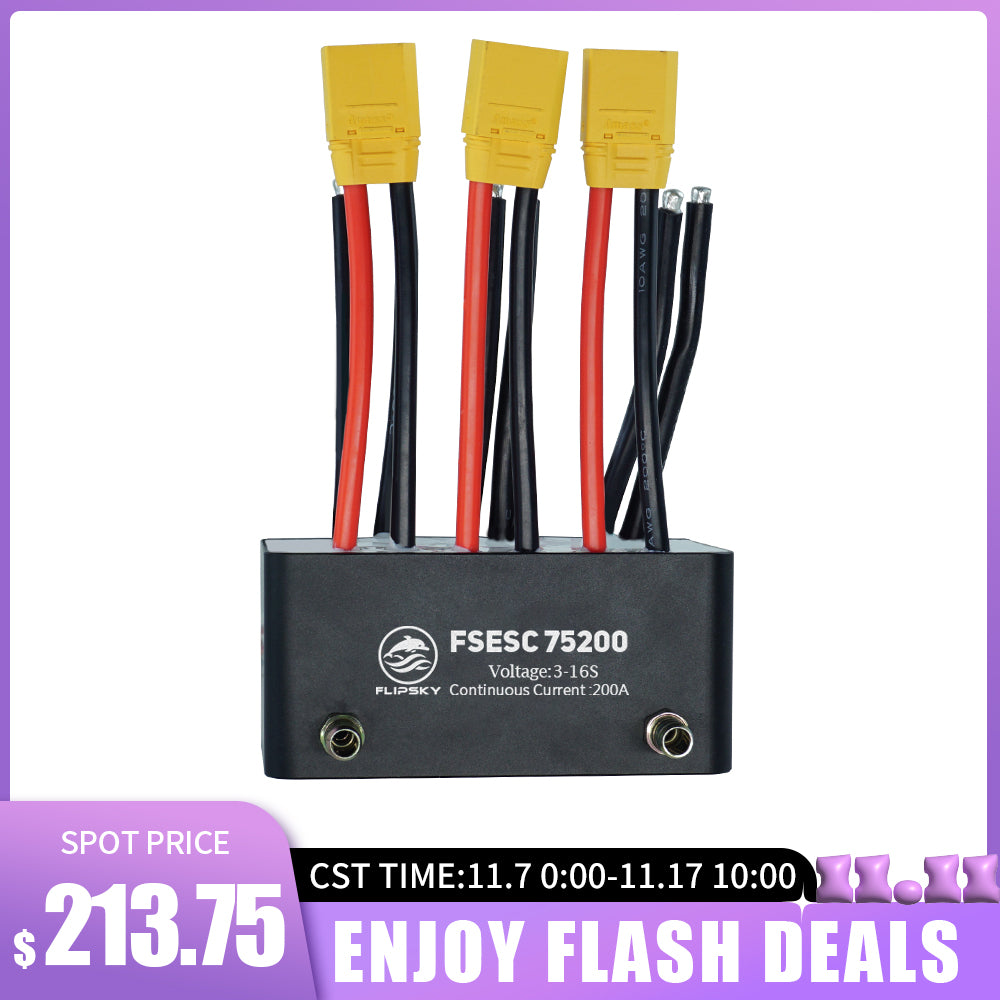

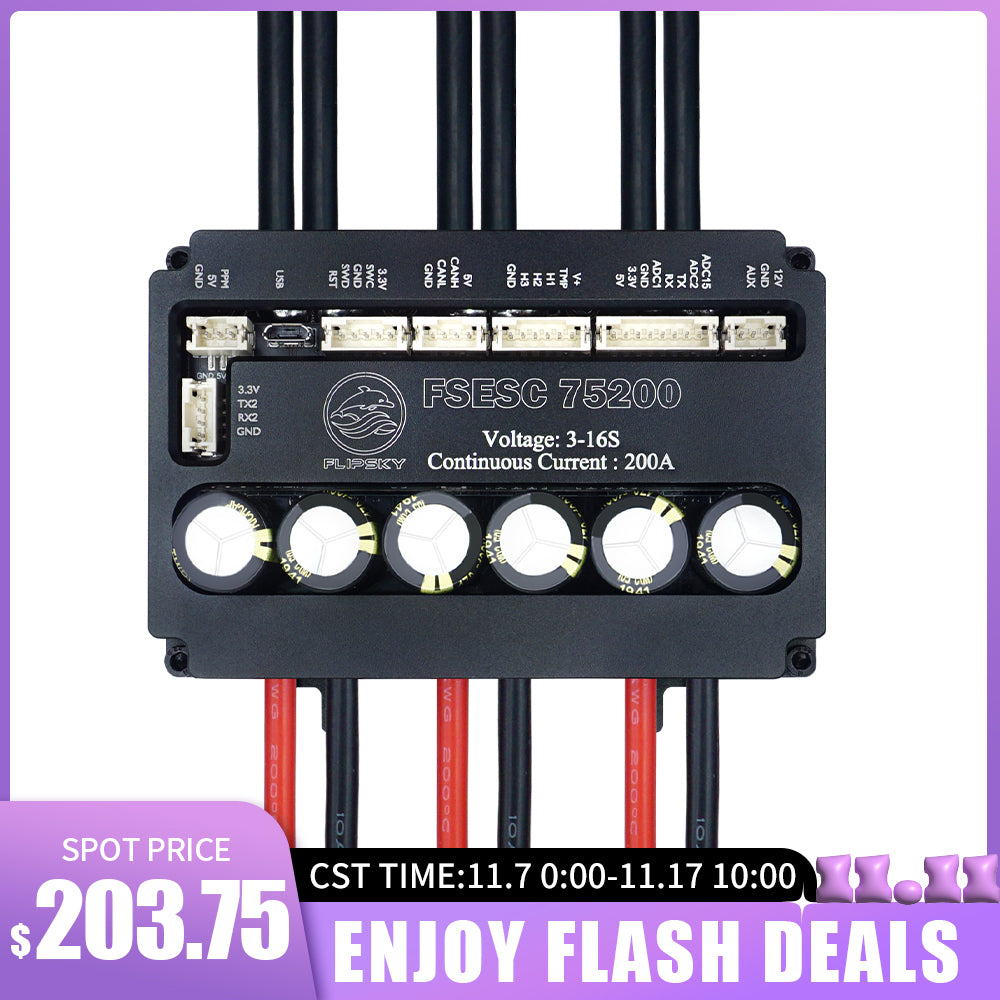

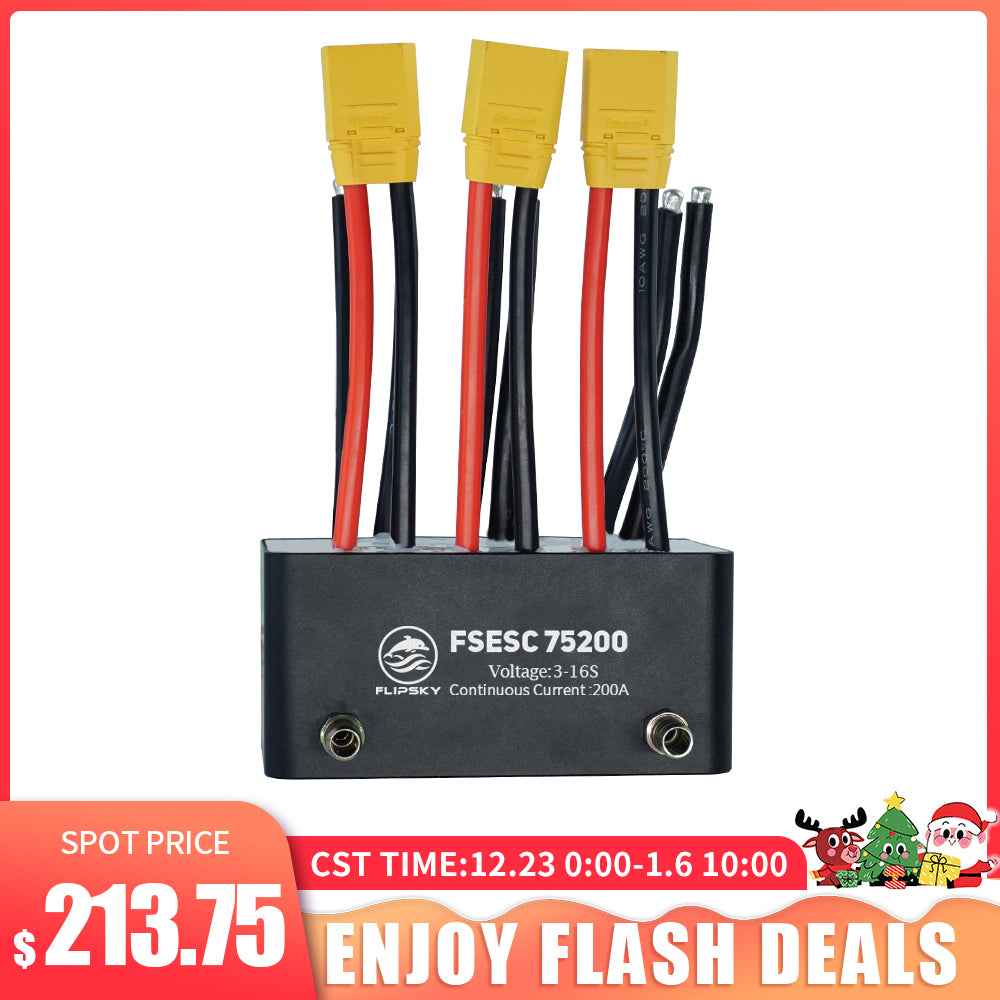

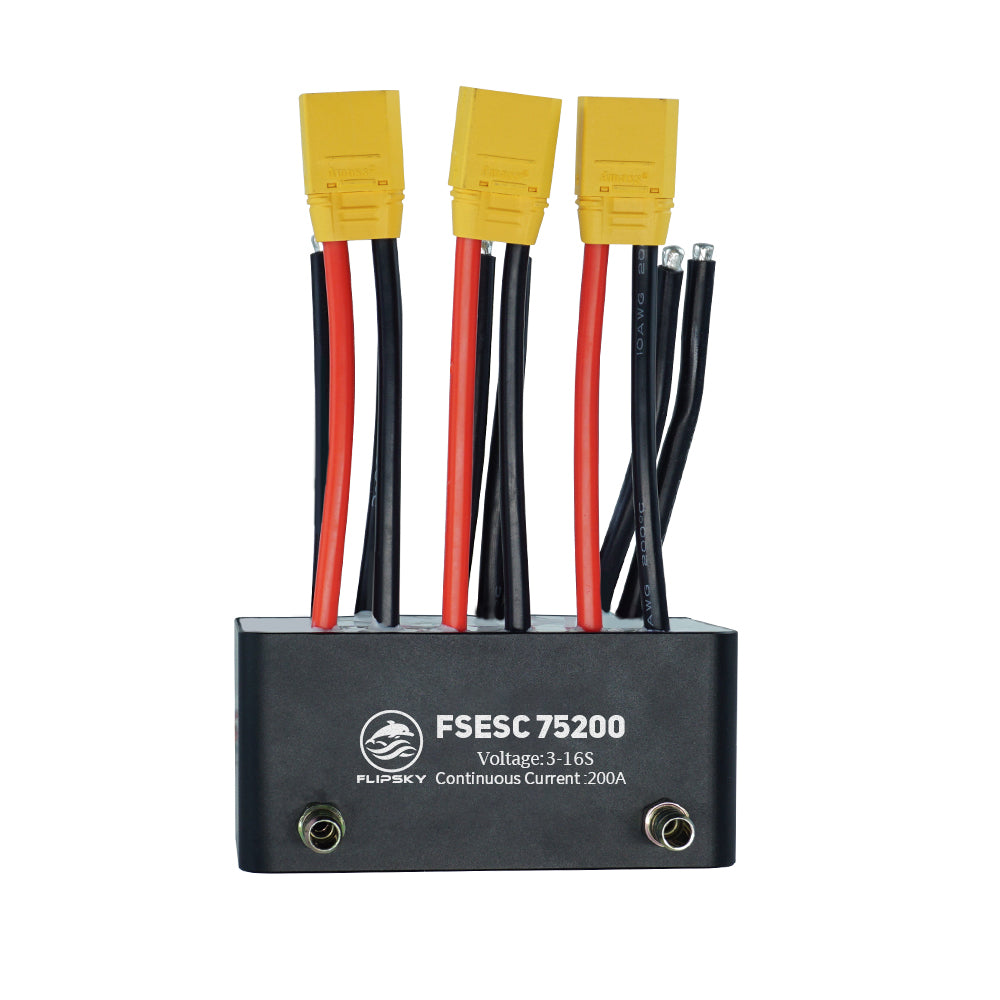

Flipsky FSESC 75200 75V High Current 200A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot
Regular price
Sale price$285.00
-38 in stock
Spec:
Voltage:14-75V( safe for 3-16S)
Continuous Current : 200A
Max Current :300A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000
Feature:
Regenerative braking
Sensored or sensorless operation + hybrid mode
Configurable RPM-, current-, voltage- and power limits
Input source: PPM, Analog, NRF Nyko Kama Nunchuck
Communication ports: USB, CAN, UART
Throttle curve and ramping for all input sources
Seamless 4-quadrant operation
Motor revolution, ampere hour, watt hour counting
Real-time data analysis and readout through the communication port.
Adjustable protection against:
Low input voltage
High input voltage
High motor current
High input current
High regenerative braking current (separate limits for the motor and the input)
High RPM (separate limits for each direction)
Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
Motor wire: 8AWG
Power cable: 10AWG
Waterproof level(with water cooling enclosure):IP67
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Here below video and blog links FYI. YouTube:Click here Blog:Click here
More Detail:
Wiring Diagram With Aluminum Case:
Wiring Diagram With Water Cooling Enclosure:
Flipsky 75200 Pro 84V High Current With Aluminum PCB Based on VESC For Fighting Robot Surfboard AGV Robot
Regular price$192.00
-49 in stock
Warm tips:
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Specs:
Firmware: 5.2, supports firmware upgrade
Voltage: 14-84V (safe for 4-20S)
Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
BEC: 5V@1A
Support Modes: DC, BLDC, FOC (sinusoidal)
ERPM: 150000
Communication Ports: USB, CAN, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Source Support: PPM, ADC, NRF, UART
Supported Sensorless: Yes
Regenerative capacity: Yes
Programmable via VESC_TOOL: Yes
75200 Pro Size:130x67.7x39..4mm
Motor/power wire size: 8 AWG
Features:
1. 75200 aluminum substrate single drive: MOS tube temperature detection is abnormal (minimum display temperature at low temperature is about 30°C) 2. 75200Pro aluminum substrate single drive: MOS tube temperature detection is normal (hardware has been optimized for the problem that the minimum display temperature is about 30°C at low temperature)
3. 75200 aluminum substrate single drive: support dual serial port function 4. 75200Pro aluminum substrate single drive: supports single serial port function, and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time)
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Here below video and blog links FYI. YouTube:Click here Blog:Click here
Wiring diagram:
Flipsky FSESC 75300 84V High Current 350A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot
Regular price$248.00
-40 in stock
Warm tips:
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Spec:
Voltage:14-84V( safe for 3-20S)
Continuous Current : 50V/300A,75V/200A
Max Current :350A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000
Size:178*100*45mm((Including the height of water pipes and electrolytic capacitors)
Feature:
Regenerative braking
The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
Sensored or sensorless operation + hybrid mode
Configurable RPM-, current-, voltage- and power limits
Input source: PPM, ADC, NRF,UART,PAS
Communication ports: USB, CAN, UART,SPI,IIC
Throttle curve and ramping for all input sources
Seamless 4-quadrant operation
Motor revolution, ampere hour, watt hour counting
Real-time data analysis and readout through the communication port.
Adjustable protection against:
Low input voltage
High input voltage
High motor current
High input current
High regenerative braking current (separate limits for the motor and the input)
High RPM (separate limits for each direction)
Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
Motor wire: 8AWG
Power cable: 8AWG
Waterproof level(with water cooling enclosure):IP67
Flipsky 75100 Pro With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Regular price$125.00
-55 in stock
Warm tips:
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Please be careful to limit the Absolute Maximum Current below 250A,setting page
Specs:
75100 Pro Size: L103mm*W58mm*H27.7mm
Voltage:14-84V (4-20S)
Current:100A Continuous,burst 120A
BEC:5V@1.5A
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM,ADC,NRF,UART
Wire Size: 10AWG(75100 Pro)
Programmable: Yes
Regenerative Capacity: Yes
Newly upgraded:
Change connection wires from 12Awg to 10Awag.
More sensitive temperature detection function
Integrated bluetooth module design
Size & design upgraded
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Here below video and blog links FYI. YouTube:Click here Blog:Click here
Flipsky 75100 V2.0 With Aluminum PCB With Power Key Switch Button Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Regular price
Sale price$117.00
-16 in stock
75100 With Alu. PCB V2.0 is based on VESC 75 series, programmable via vesc_tool3.0 (firmware5.2) with overheat and over current protection, regenerative braking capacity. It's designed with aluminum case, with good heat dissipation and max working voltage can be 20S, 84V. Also, 75100 With Alu. PCB V2.0: supports single serial port function, and integrates power on / off switch and key switch for Ebike / Escooter etc.
Specs:
Size: 103X58X24mm
Voltage:14-84V (4-20S)
Continuous Current: 100A
Peak Current: 250A
Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer)
BEC: 5V@1A
Modes: DC,BLDC,FOC(sinusoidal)
Control Interface Ports: USB,CAN,UART
Supported Sensors: ABI,HALL,AS5047,AS5048A
Input Set Support: PPM,ADC,NRF,UART
Wire Size: 12AWG
Programmable: Yes
Regenerative Capacity: Yes
Power Switch Button: Red
Wiring diagram:
Flipsky Dual 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Regular price$216.00
-116 in stock
Warm tips:
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Please be careful to limit the Absolute Maximum Current below 250A,setting page
Specs:
Dual 75100 Size:L107mm*W103mm*H18.5mm
Voltage:14-84V (4-20S safe)
Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting and ambient temperature around the device!
BEC:5V@1A
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM,ADC,NRF,UART
Wire Size: 12AWG
Programmable: Yes
Regenerative Capacity: Yes
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Here below video and blog links FYI. YouTube:Click here Blog:Click here
Detail:
Wiring diagram:
Flipsky 75200 84V High Current With Aluminum PCB Based on VESC For Fighting Robot Surfboard AGV Robot
Regular price
Sale price$176.00
-144 in stock
Warm tips:
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Specs:
Firmware: 5.2, supports firmware upgrade
Voltage: 14-84V (safe for 4-20S)
Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
BEC: 5V@1A
Support Modes: DC, BLDC, FOC (sinusoidal)
ERPM: 150000
Communication Ports: USB, CAN, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Source Support: PPM, ADC, NRF, UART
Supported Sensorless: Yes
Regenerative capacity: Yes
Programmable via VESC_TOOL: Yes
75200 Size:130x67.7x40.1mm(Including alu. case)
Motor/power wire size: 8 AWG
Features:
1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection. 2.Support various control modes: Current / Duty cycle / Speed / PID control modes. 3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160. 4.CPU:32F405 with frequency 168MHz 5.Aluminum PCB with good heat dissipation to expand life span. 6.Two COMM ports: UART bluetooth module, screen display or remote controller supportable.
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Here below video and blog links FYI. YouTube:Click here Blog:Click here
Wiring diagram:

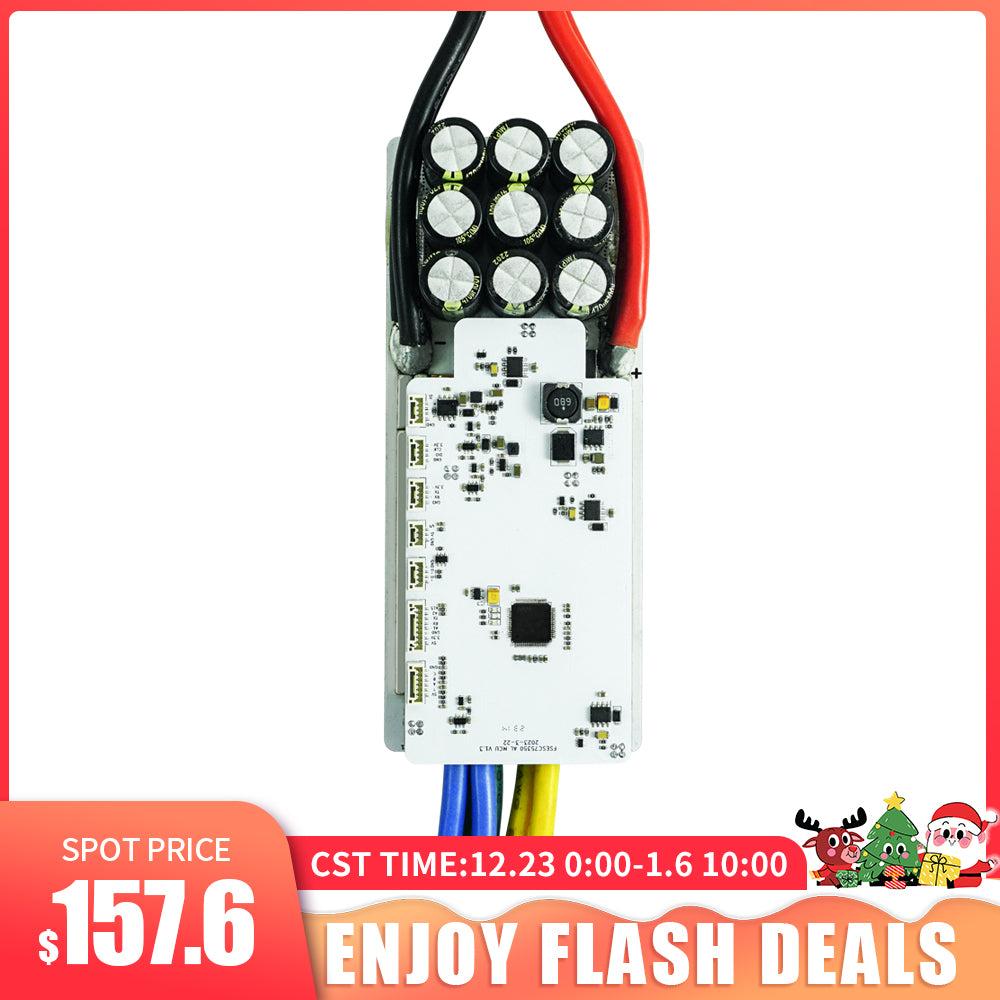

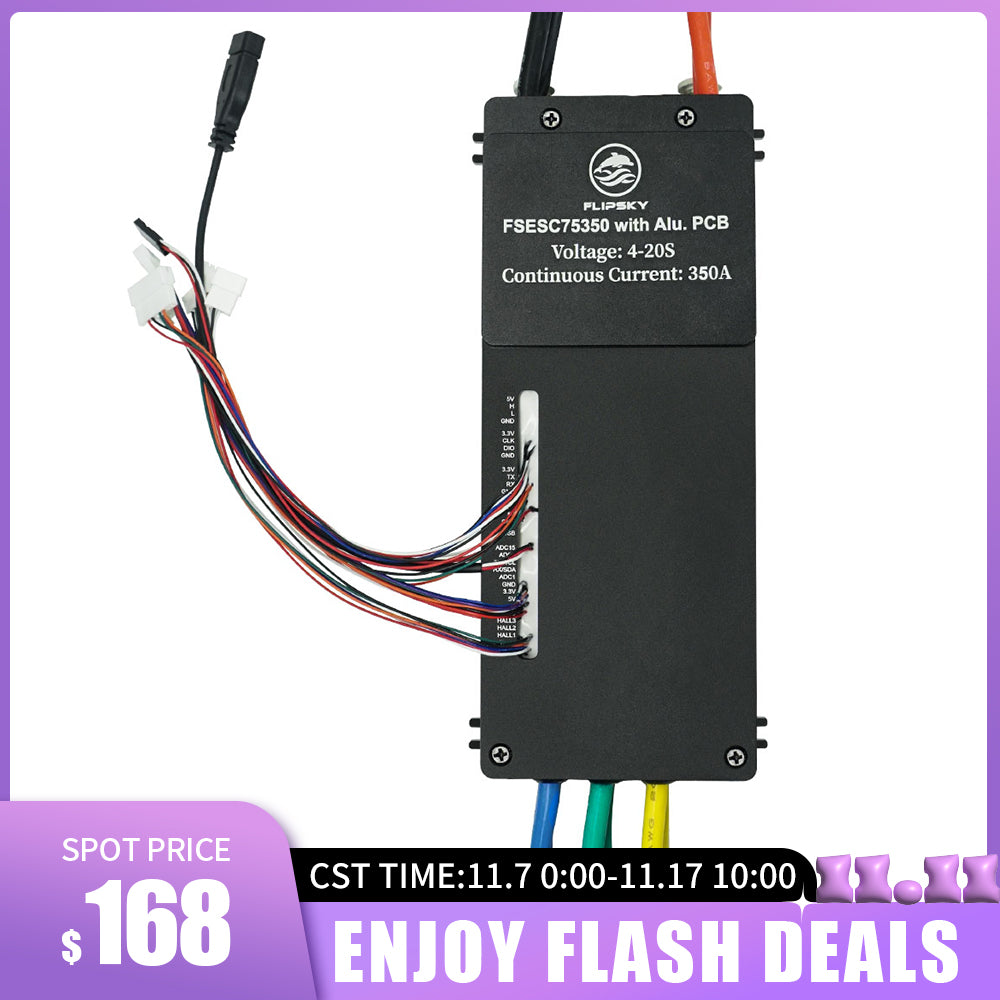

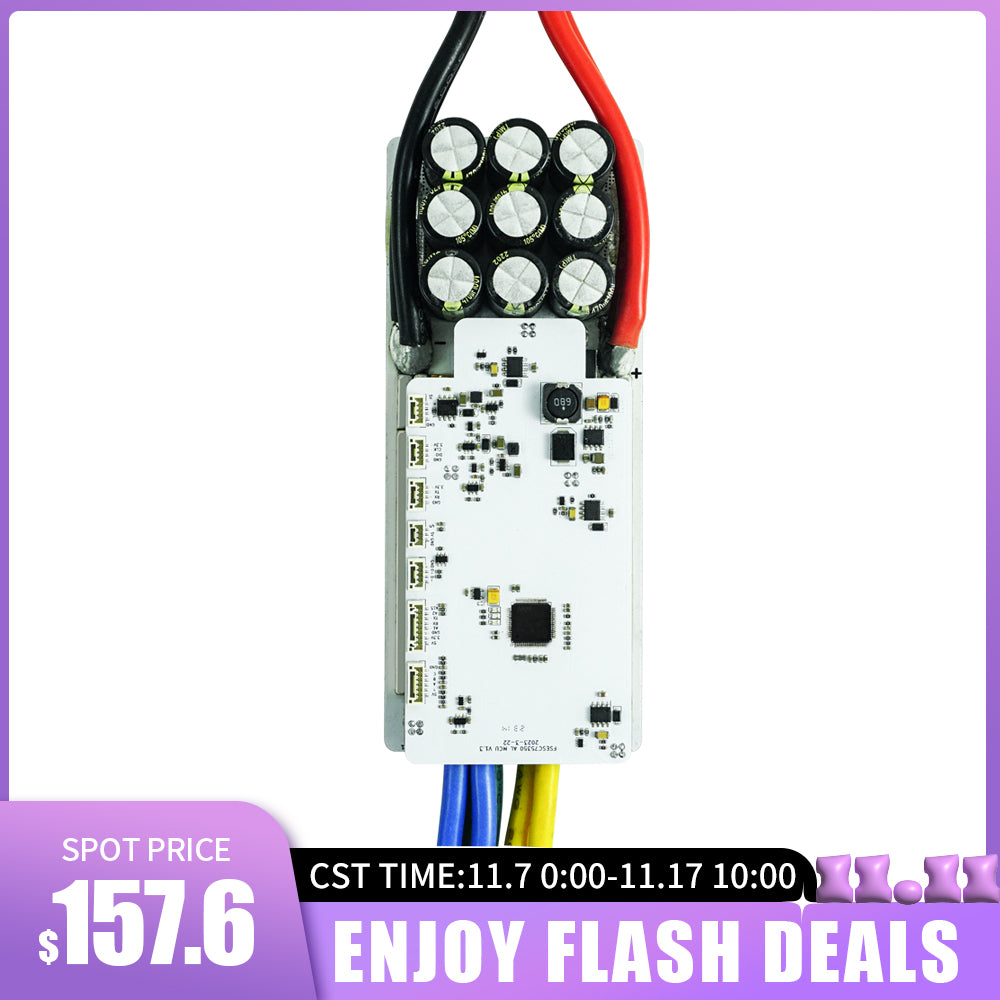

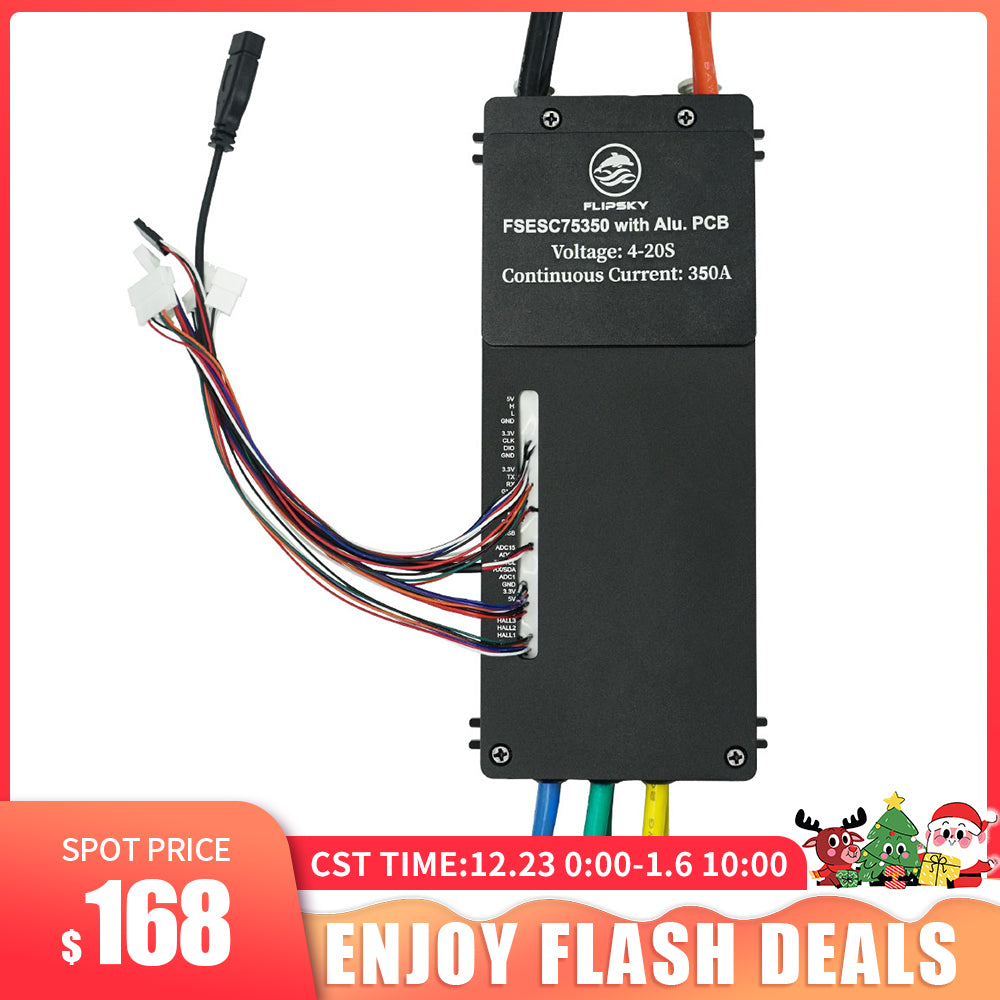

Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot
Regular price
Sale price$221.00
-86 in stock
Spec
Voltage:14-84V( safe for 3-20S)
Continuous Current : 50V/350A,75V/250A
Max Current :800A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000
Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors)
Feature:
Regenerative braking
The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
Sensored or sensorless operation + hybrid mode
Configurable RPM-, current-, voltage- and power limits
Input source: PPM, ADC, NRF,UART,PAS
Communication ports: USB, CAN, UART,SPI,IIC
Throttle curve and ramping for all input sources
Seamless 4-quadrant operation
Motor revolution, ampere hour, watt hour counting
Real-time data analysis and readout through the communication port.
Adjustable protection against:
Low input voltage
High input voltage
High motor current
High input current
High regenerative braking current (separate limits for the motor and the input)
High RPM (separate limits for each direction)
Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
Motor wire: 8AWG
Power cable: 8AWG

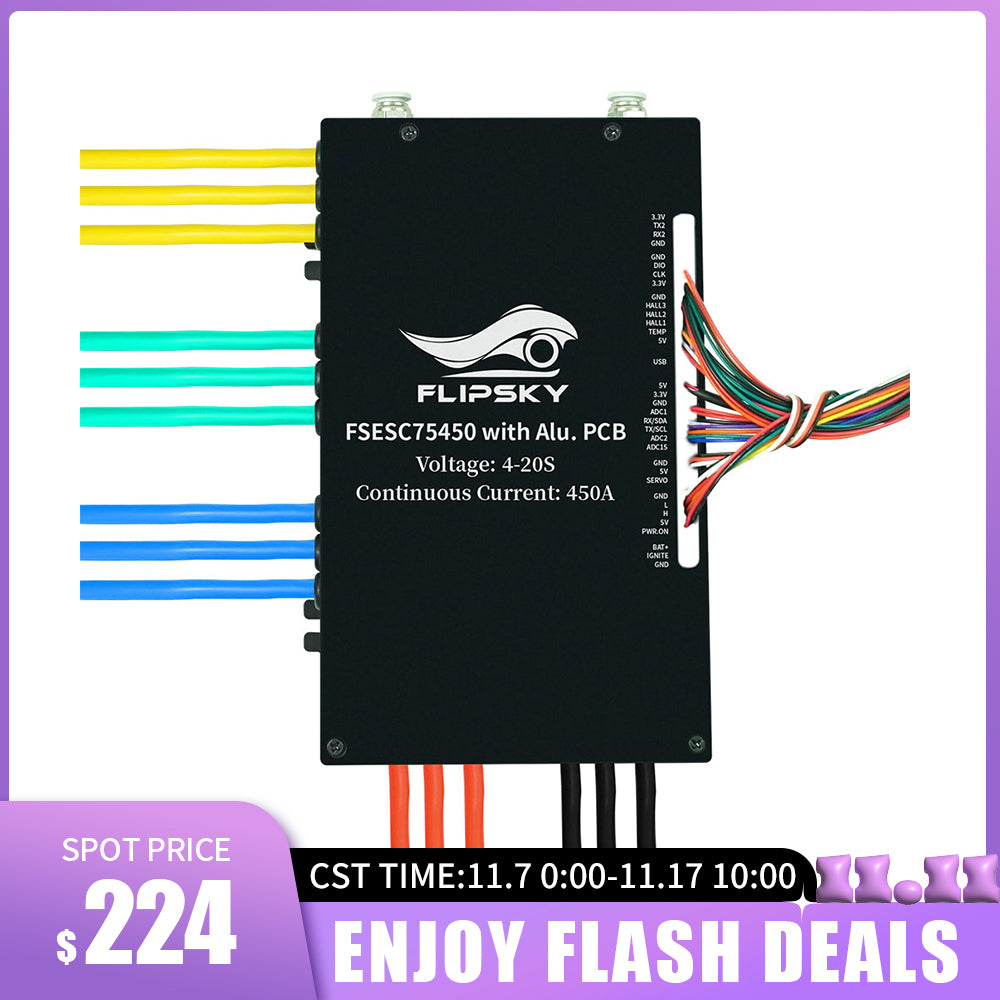

Waterproof level(with water cooling enclosure):IP67
