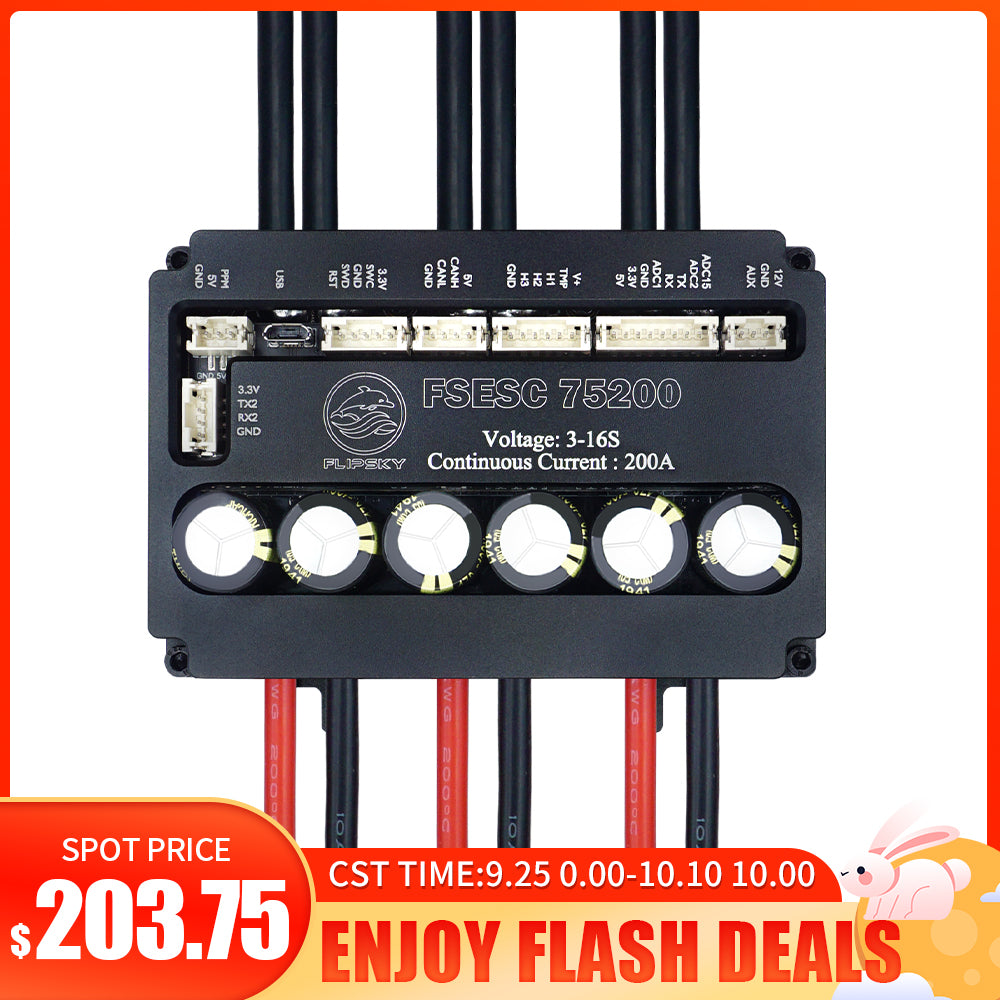

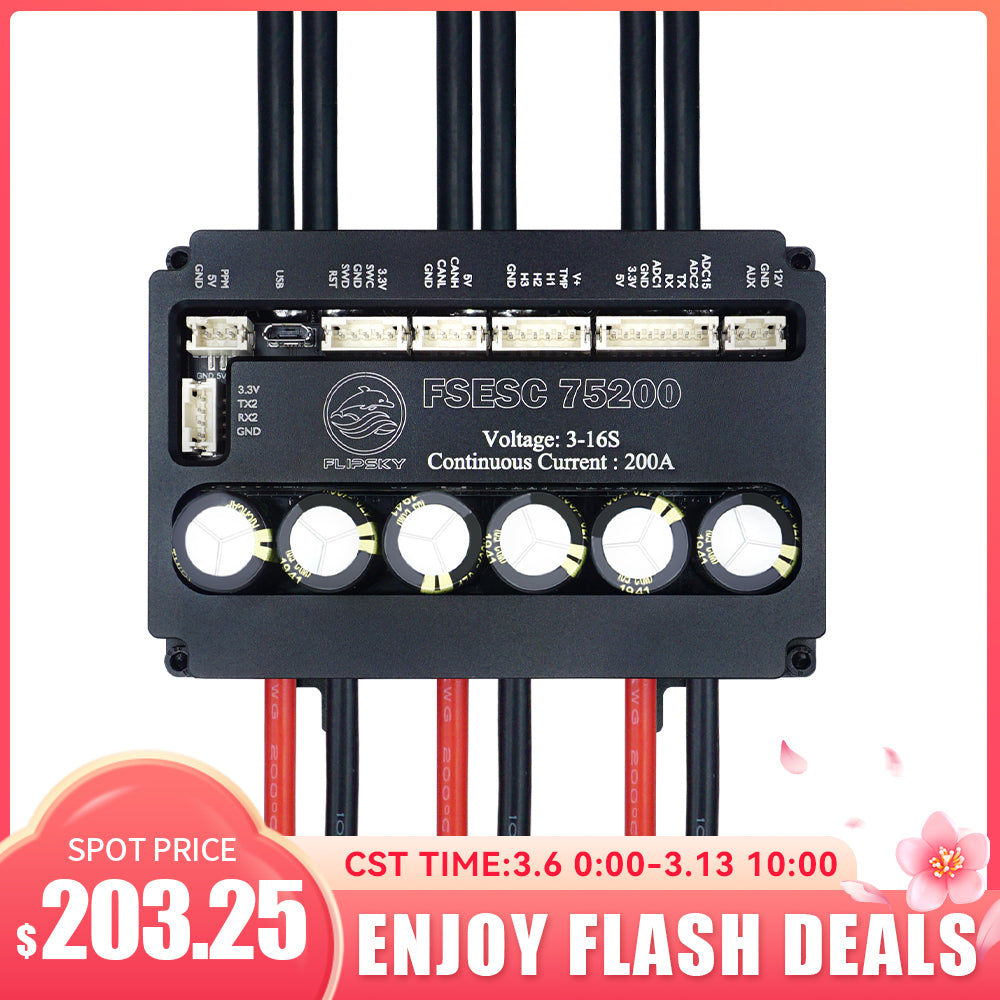

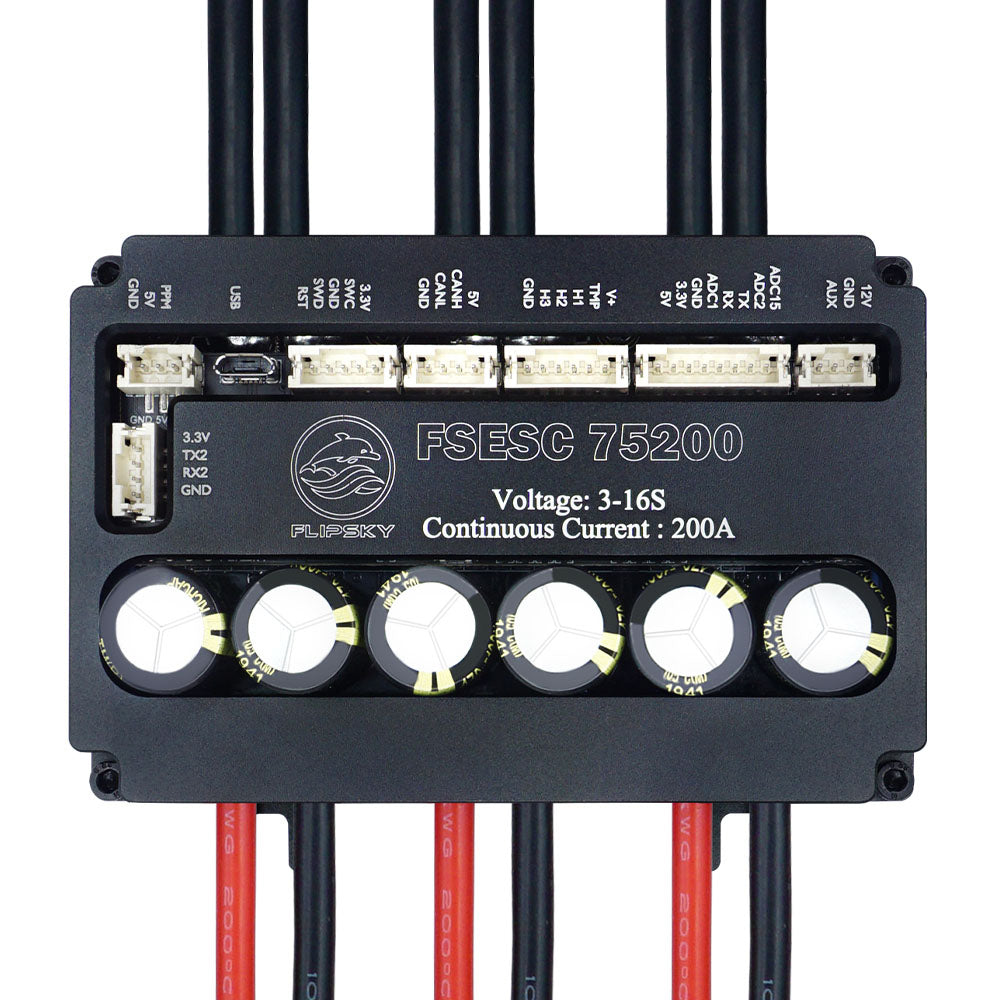

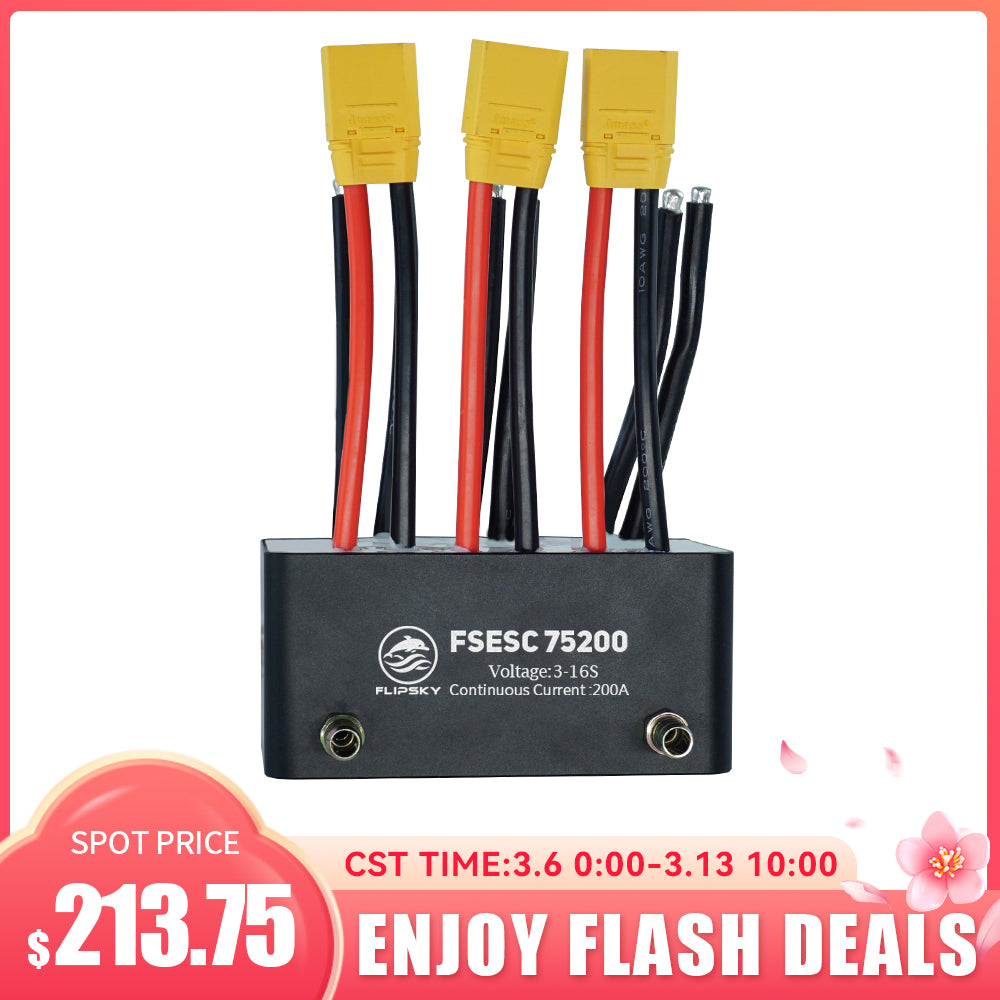

Spec:

• Firmware: 6.02 (firmware update supported)
• Voltage:14-75V( safe for 3-16S)
• Continuous Current : 200A
• Max Current :300A
• Supported sensors: ABI, HALL, AS5047,AS5048A

• EPRM:150000
• Phase filter: No

Feature:

• Regenerative braking
• Sensored or sensorless operation + hybrid mode
• Configurable RPM-, current-, voltage- and power limits
• Input source: PPM, Analog, NRF Nyko Kama Nunchuck
• Communication ports: USB, CAN, UART
• Throttle curve and ramping for all input sources
• Seamless 4-quadrant operation
• Motor revolution, ampere hour, watt hour counting
• Real-time data analysis and readout through the communication port.
• Adjustable protection against:
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current (separate limits for the motor and the input)
• High RPM (separate limits for each direction)
• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
• Motor wire: 8AWG
• Power cable: 10AWG
• Waterproof level(with water cooling enclosure):IP67

Warm tips:

More Detail:

Wiring Diagram With Aluminum Case:

Wiring Diagram With Water Cooling Enclosure:

Spec

• Voltage:14-84V( safe for 3-20S)
• Continuous Current : 50V/350A,75V/250A
• Max Current :800A
• Supported sensors: ABI, HALL, AS5047,AS5048A

• EPRM:150000
• Phase filter: Yes
• Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors)

Feature:

• Regenerative braking
• The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
• Sensored or sensorless operation + hybrid mode
• Configurable RPM-, current-, voltage- and power limits
• Input source: PPM, ADC, NRF,UART,PAS
• Communication ports: USB, CAN, UART,SPI,IIC
• Throttle curve and ramping for all input sources
• Seamless 4-quadrant operation
• Motor revolution, ampere hour, watt hour counting
• Real-time data analysis and readout through the communication port.
• Adjustable protection against:
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current (separate limits for the motor and the input)
• High RPM (separate limits for each direction)
• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
• Motor wire: 8AWG
• Power cable: 8AWG
• Waterproof level(with water cooling enclosure):IP65

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

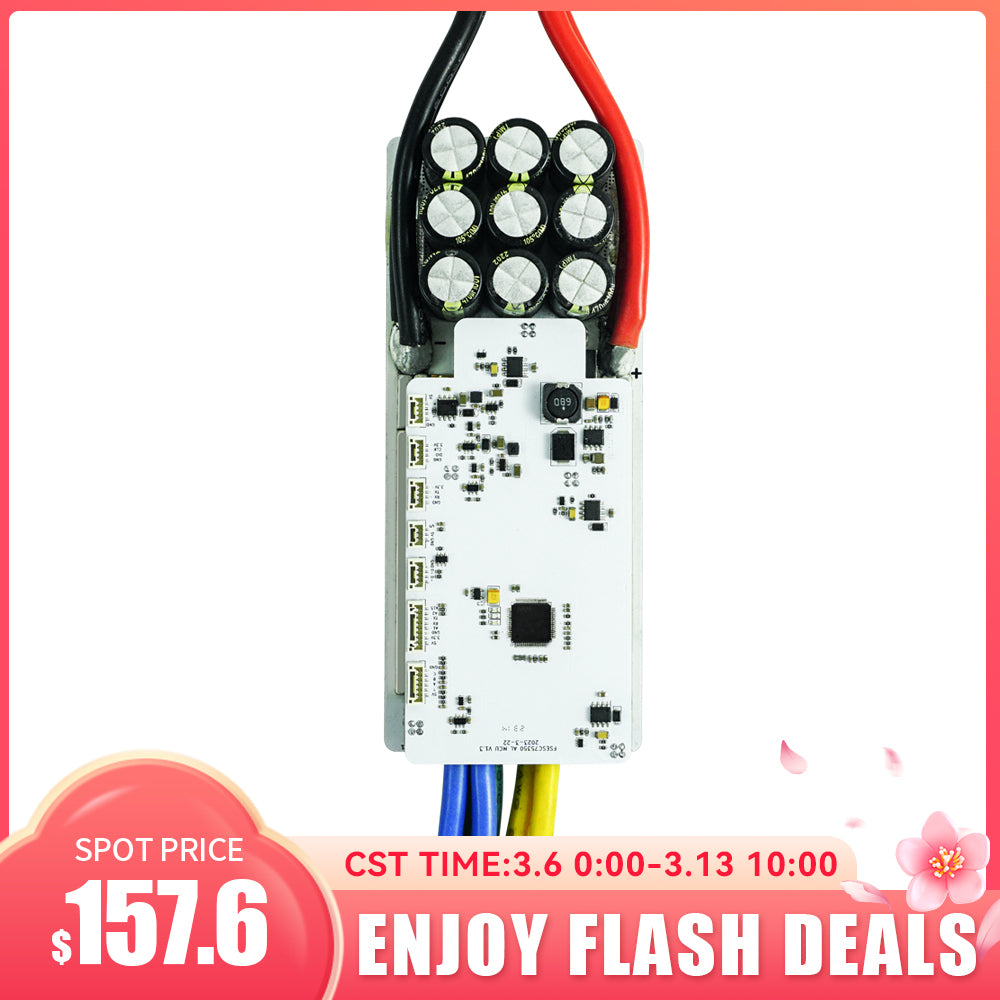

Spec:

• Firmware: 5.2, supports firmware upgrade
• Voltage:14-84V( safe for 3-20S)
• Continuous Current : 50V/300A,75V/200A
• Max Current :350A
• Supported sensors: ABI, HALL, AS5047,AS5048A

• EPRM:150000
• Phase filter: Yes
• Size:178*100*45mm((Including the height of water pipes and electrolytic capacitors)

Feature:

• Regenerative braking
• The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
• Sensored or sensorless operation + hybrid mode
• Configurable RPM-, current-, voltage- and power limits
• Input source: PPM, ADC, NRF,UART,PAS
• Communication ports: USB, CAN, UART,SPI,IIC
• Throttle curve and ramping for all input sources
• Seamless 4-quadrant operation
• Motor revolution, ampere hour, watt hour counting
• Real-time data analysis and readout through the communication port.
• Adjustable protection against:
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current (separate limits for the motor and the input)
• High RPM (separate limits for each direction)
• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
• Motor wire: 8AWG
• Power cable: 8AWG
• Waterproof level(with water cooling enclosure):IP67

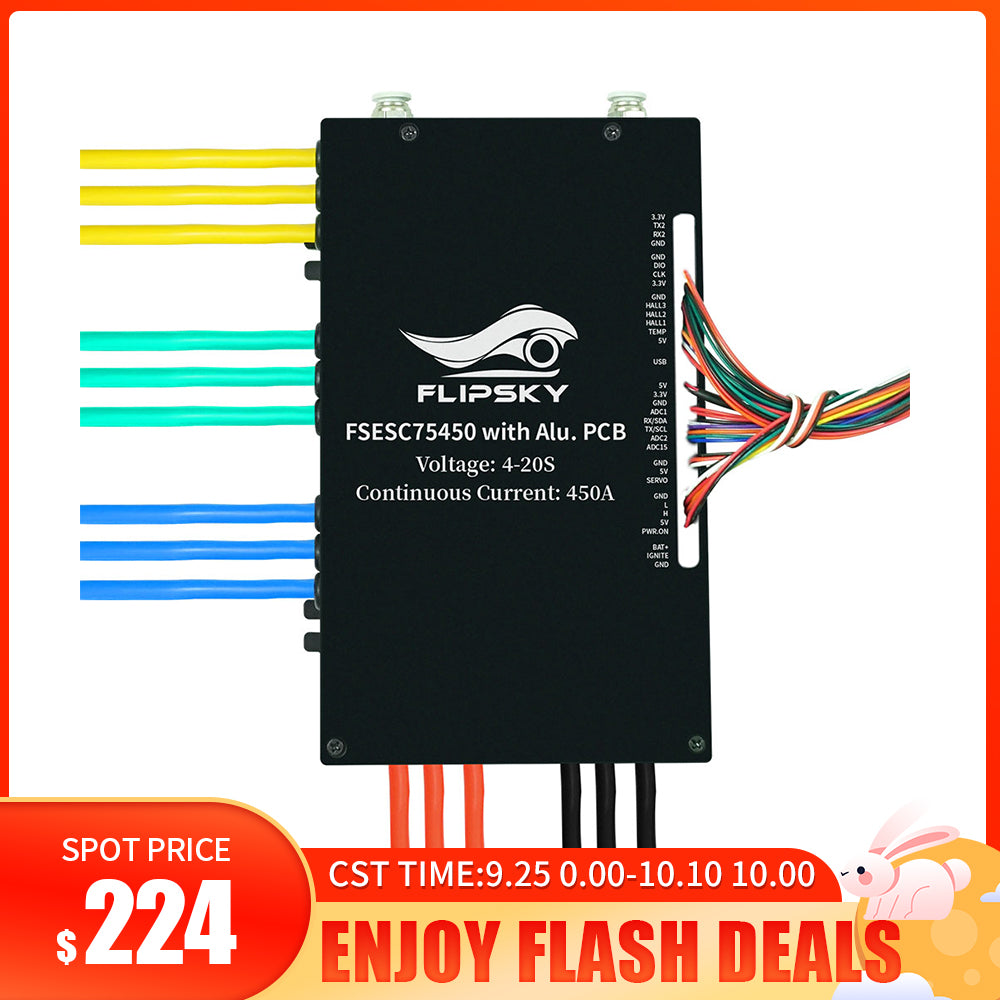

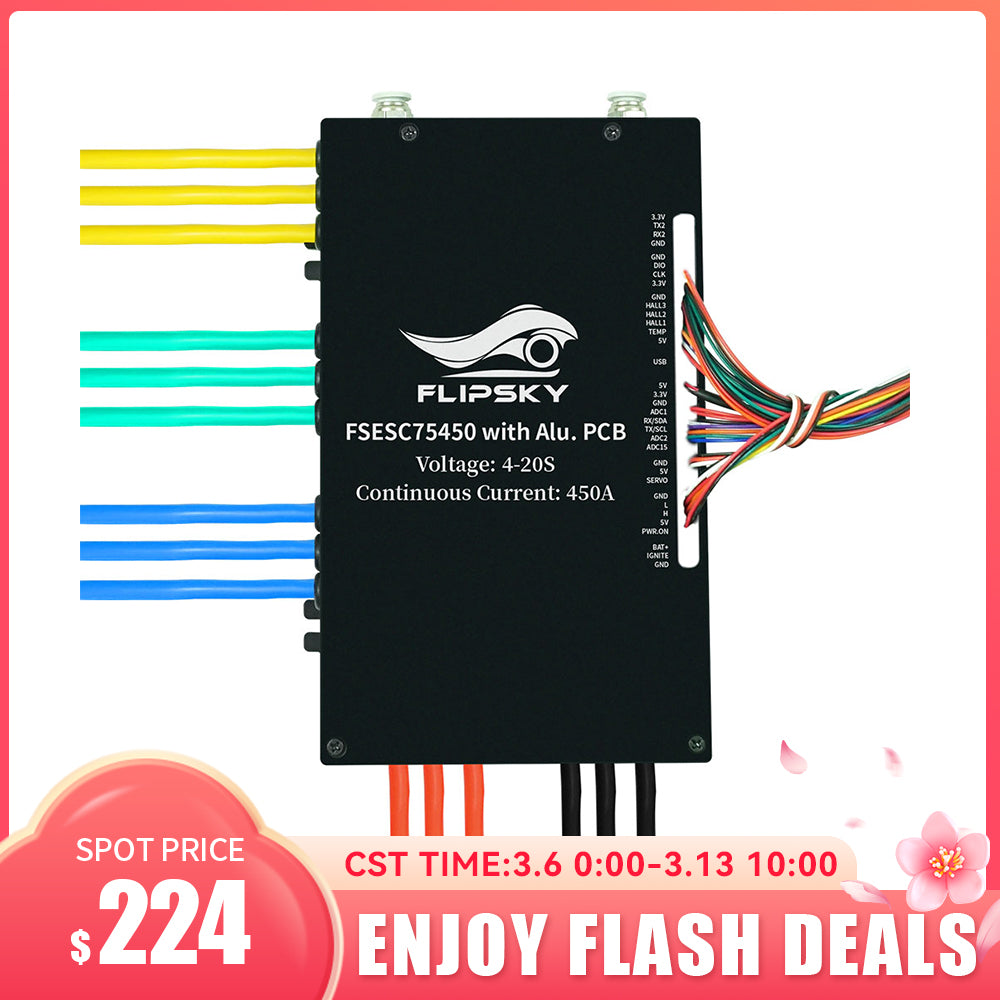

Specs:

• Firmware: 5.2, supports firmware upgrade
• Voltage: 14-84V (safe for 4-20S)
• Continuous current: 50V/450A; 75V/350A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 1200A
• BEC: 5V@1A
• Support Modes: DC, BLDC, FOC (sinusoidal)
• ERPM: 150000
• Communication Ports: USB, CAN, UART, SPI, IIC
• Supported Sensors: ABI, HALL, AS5047, AS5048A
• Input Source Support: PPM, ADC, NRF, UART
• Supported Sensorless: Yes
• Regenerative capacity: Yes
• Programmable via VESC_TOOL: Yes
• Red Switch Button: Yes
• Phase filter: Yes
• Size:227.5*140*54mm(Including Water Cooling Enclosure)

Features:

1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
2.Support various control modes: Current / Duty cycle / Speed / PID control modes.
3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
4.CPU:STM32F405 with frequency 168MHz

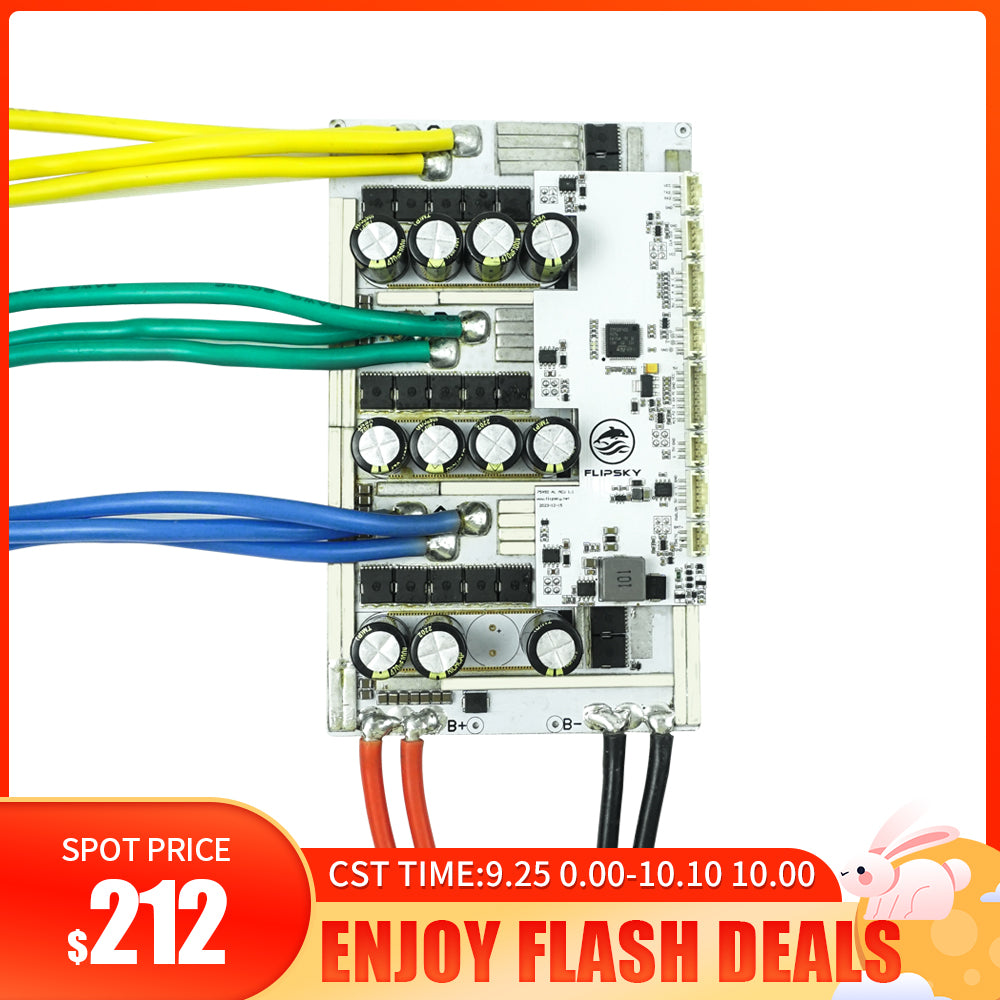

5.Aluminum PCB with good heat dissipation to expand life span.
6.Built with ignite power on/off switch button.

Wiring Diagram:
