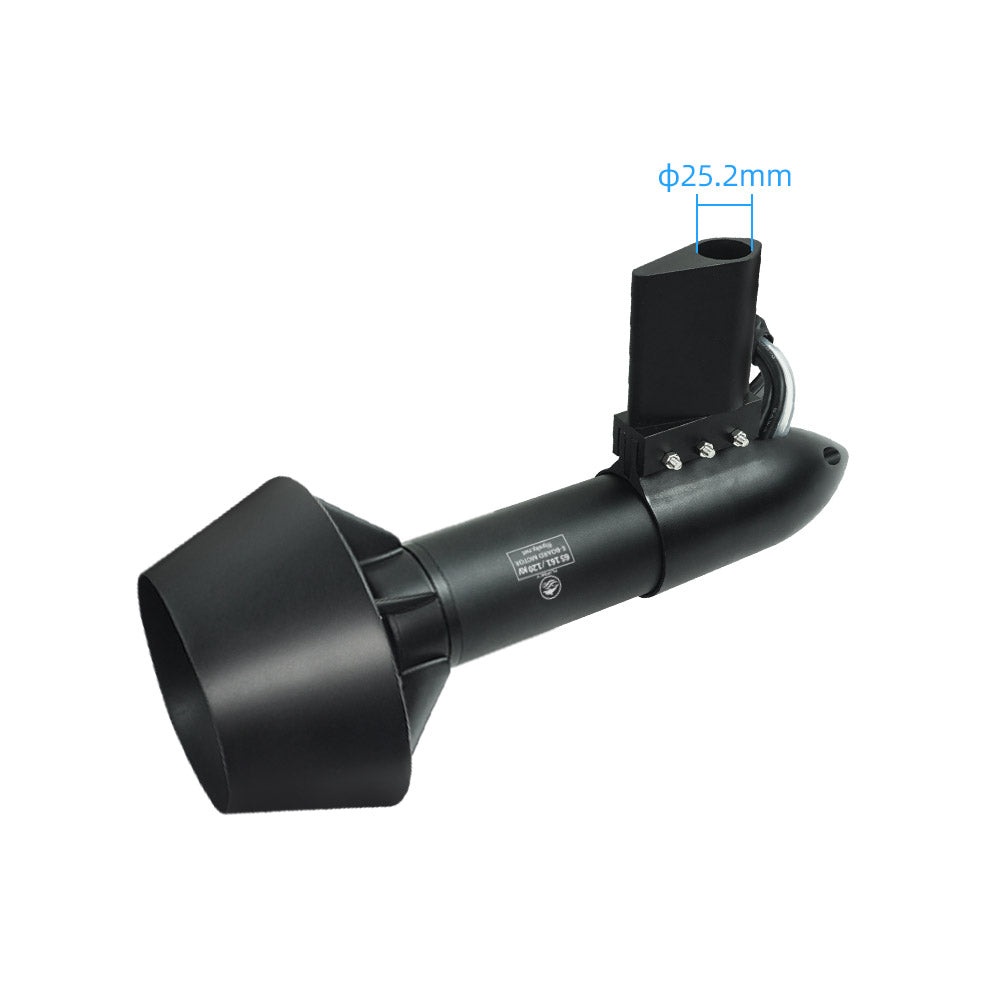

65161 Motor Spec:

• Motor model: 65161
• Voltage range: 6-20S (25.2-84V)
• Max Spin Speed(RPM): 16380
• KV(RPM/V): 120KV/100KV
• Max Power:6000W,rated power 3000W
• Peak current: 200A
• The number of pole: 6(please write 3 pairs when do setup)

• Max torque at 60%:9NM
• Demension: D65*L161mm
• Max working temperature: 120︒C
• Insulation voltage & leak current: AC500V/10MA/3S
• Lead wires extension: 8AWGx1300mm
• Waterproof level:IP68
• Weight:3kg
• Plug: 8.0mm
• Motor wire: 8AWG

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

ESC

• ESC model:75200 PRO V2.0 With Water Cooling Enclosure

• Voltage: 14-84V (safe for 4-20S)
• Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
• BEC: 5V@1A
• Support Modes: DC, BLDC, FOC (sinusoidal)
• ERPM: 150000
• Communication Ports: USB, CAN, UART, SPI, IIC
• Supported Sensors: ABI, HALL, AS5047, AS5048A
• Input Source Support: PPM, ADC, NRF, UART
• Supported Sensorless: Yes
• Regenerative capacity: Yes
• Programmable via VESC_TOOL: Yes
• 75200 Size:130x67.7x40.1mm(Including alu. case)
• Motor/power wire size: 8 AWG

Remark:   Inflatable Paddle Board random delivery color.

7070 motor parameters

• Motor :7070/110KV
• Waterproof grade :IP58
• Guard material :ABS
• Fixing bracket:6061 aluminum alloy
• Propeller: 1 pcs propeller 3.8 inches
• Voltage range 6-20s (25.4-84v)
• Rated power 2200w
• Maximum power: 4300W

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

ESC

• ESC model:75100 prov2.0
• Maximum discharge current: Maximum continuous 100A
• Voltage Range: 6-20s (25.2*84v)
• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)
• Support control protocols ppm, uart, adc, nrf, pas

Spec:

• Safe load: 200KG
• Hull material: environmentally PVC
• Product Category: Inflatable Paddle Board

Electric outboard motor drawing:

Motor 65150 Spec:

• Size: ∅ 65*150mm
• KV:160KV
• Voltage range: 4-13S
• Rated current: 30A;Maximum current:70A
• Insulation current:AC500v/1ma/3s
• Rated power:1500W;Maximum power:3000W
• Rated torque:2.3N.m;Maximum torque 4.5N.m
• Internal structure:12N/10p
• ESC drive mode:PPM
• Communication port: USB
• ESC driver firmware:5.2 vesc tool 3.00
• ESC support mode: BLDC/FOC
• Shaft specifications ∅ 12-0.005/-0.01
• Power cable: 2*12AWG(∅ 4.5mm*140)
• Power plug: XT90 male
• Weight:2.0kg

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

65121 Motor Spec:

• Voltage range: 6-20S (25.2-84V)
• Max power: 3700W; Continuous power: 2000W
• Peak current: 100A;
• Motor KV: 130KV
• Size: OD65*L121mm
• Shaft diameter: 12mm*m8
• Max output torque:5.5N*M
• Waterproof rate: IP68
• Connectors:8mm plug
• Weight:1.62KG
• Structure:18N/P
• Lead wires extension: 8AWGx1400mm

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

ESC

• ESC model:75100 prov2.0
• Maximum discharge current: Maximum continuous 100A
• Voltage Range: 6-20s (25.2*84v)
• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)
• Support control protocols ppm, uart, adc, nrf, pas

65111 Motor Spec:

• Voltage range: 6-20S (25.2-84V)
• Max power: 3000W; Continuous power: 1500W
• Peak current: 70A; Continuous current: 30A
• Motor KV: 160KV
• Max spin speed(RPM): 8064
• Size: OD65*L111mm
• Shaft diameter: 10mm
• Motor pole: 6pcs; 3 pairs
• Motor stator slot: 12
• Waterproof rate: IP68
• Lead wires extension: 12AWGx1400mm

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

ESC

• ESC model:75100 prov2.0
• Maximum discharge current: Maximum continuous 100A
• Voltage Range: 6-20s (25.2*84v)
• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)
• Support control protocols ppm, uart, adc, nrf, pas
