Spec:

• Voltage:14-84V( safe for 3-20S)
• Continuous Current : 50V/350A,75V/250A
• Max Current :800A
• Supported sensors: ABI, HALL, AS5047,AS5048A

• EPRM:150000
• Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors)

Feature:

• Regenerative braking
• The CPU adopts the STM32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
• Sensored or sensorless operation + hybrid mode
• Configurable RPM-, current-, voltage- and power limits
• Input source: PPM, ADC, NRF,UART,PAS
• Communication ports: USB, CAN, UART,SPI,IIC
• Throttle curve and ramping for all input sources
• Seamless 4-quadrant operation
• Motor revolution, ampere hour, watt hour counting
• Real-time data analysis and readout through the communication port.
• Adjustable protection against:
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current (separate limits for the motor and the input)
• High RPM (separate limits for each direction)
• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
• Motor wire: 8AWG
• Power cable: 8AWG
• Waterproof level(with water cooling enclosure):IP67

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC

Specs:

• Firmware: Latest Version
• Continuous current: Continuous 100A single, total 200A ,  Instantaneous current 400A per single, total 800A for system instantaneous current. values depend on the mounting  and ambient temperature around the device!
• Voltage: 14V-60V(safe for 4S to 12S, voltage spikes may not exceed 60V! )
• BEC: 5V@1A,5V/1A output for external electronics
• ERPM: 150000
• Control Interface Ports:USB,CAN,UART
• Supported Sensors:ABI，HALL，AS5047，AS5048A
• Input Set Support:PPM, ADC, NRF, UART, SPI, IIC
• Modes:DC, BLDC, FOC (sinusoidal)
• Regenerative capacity: Yes
• Programmable: Yes
• Motor wire: 10AWG
• Power cable:8AWG
• Size:127.6x78.4x32.5mm(Including Alu case)

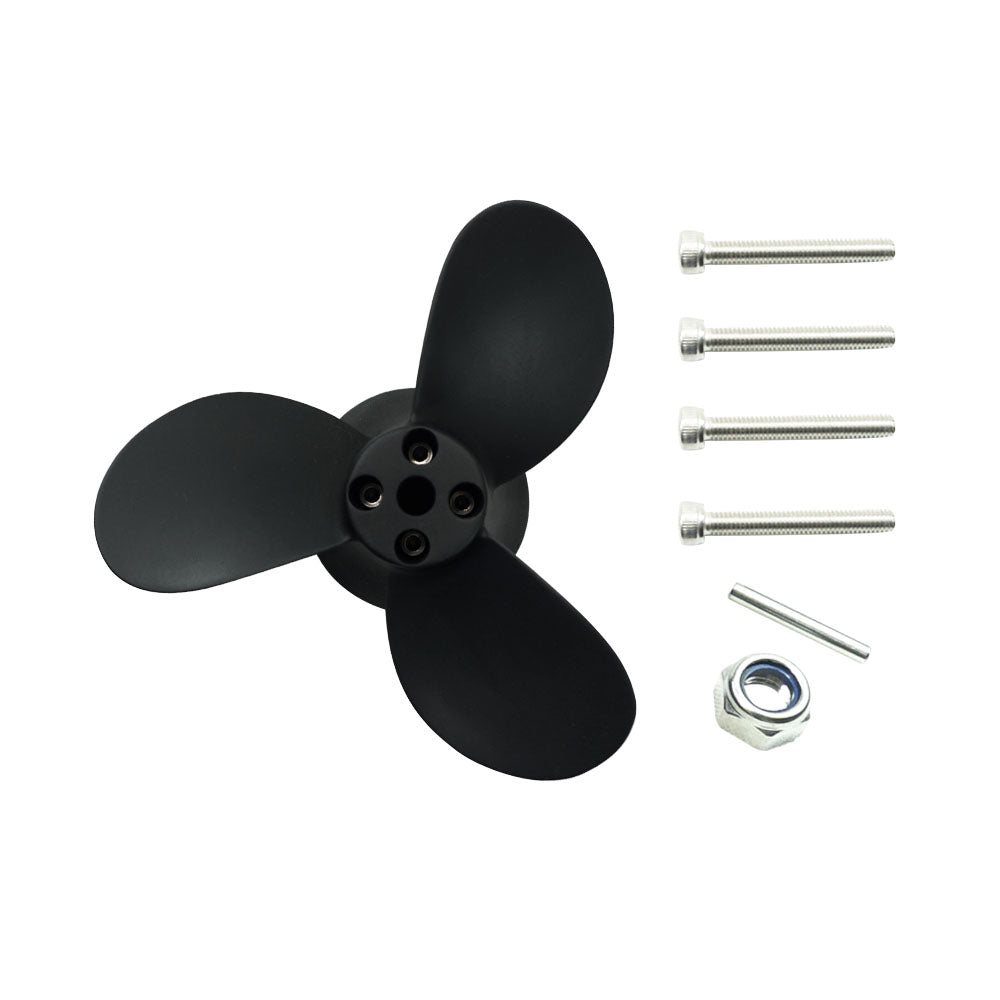

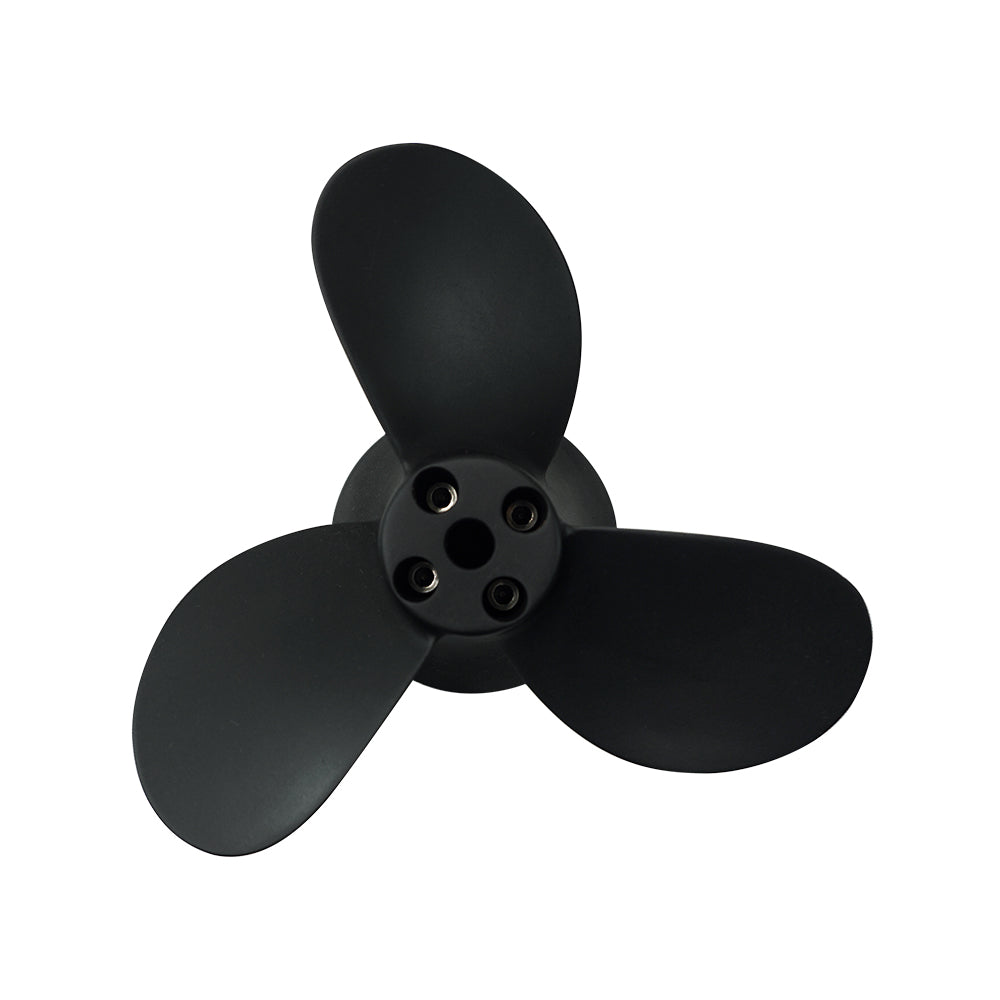

Specs:

• Material:Nylon
• Diameter: ∅120mm
• Pitch: 96mm
• Suitable For Flipsky 65111 motor

Spec:

• Max power : 1300W
• Motor KV:200KV
• Max Current: 36A
• Voltage:3-12S
• Rated torque:0.6N.M
• Max torque : 1.1N.M
• Internal resistance: 115mΩ
• Motor structure: 12N/14P
• Diameter *Length (mm): 50*48
• Shaft (mm): 8mm D-shaft
• Bullet Connector: 4mm
• Sensor: Yes

5048 Motor Drawing:

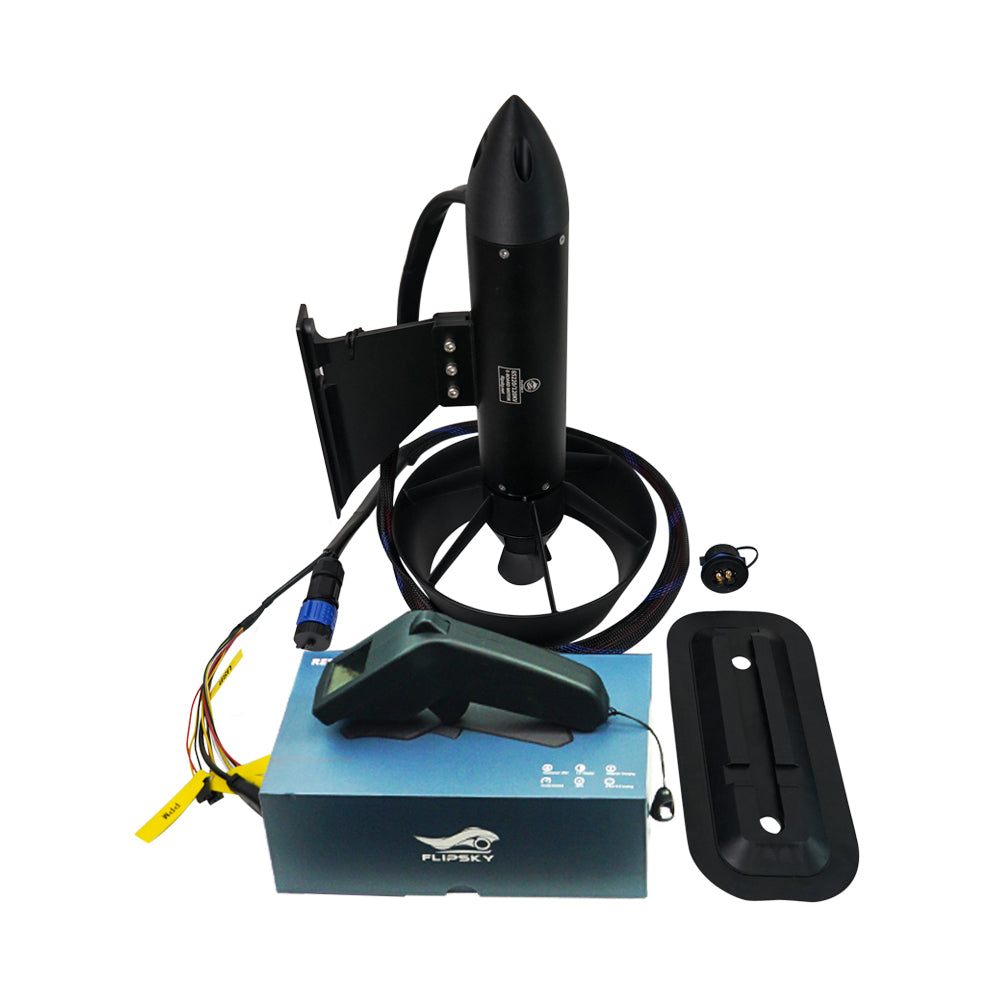

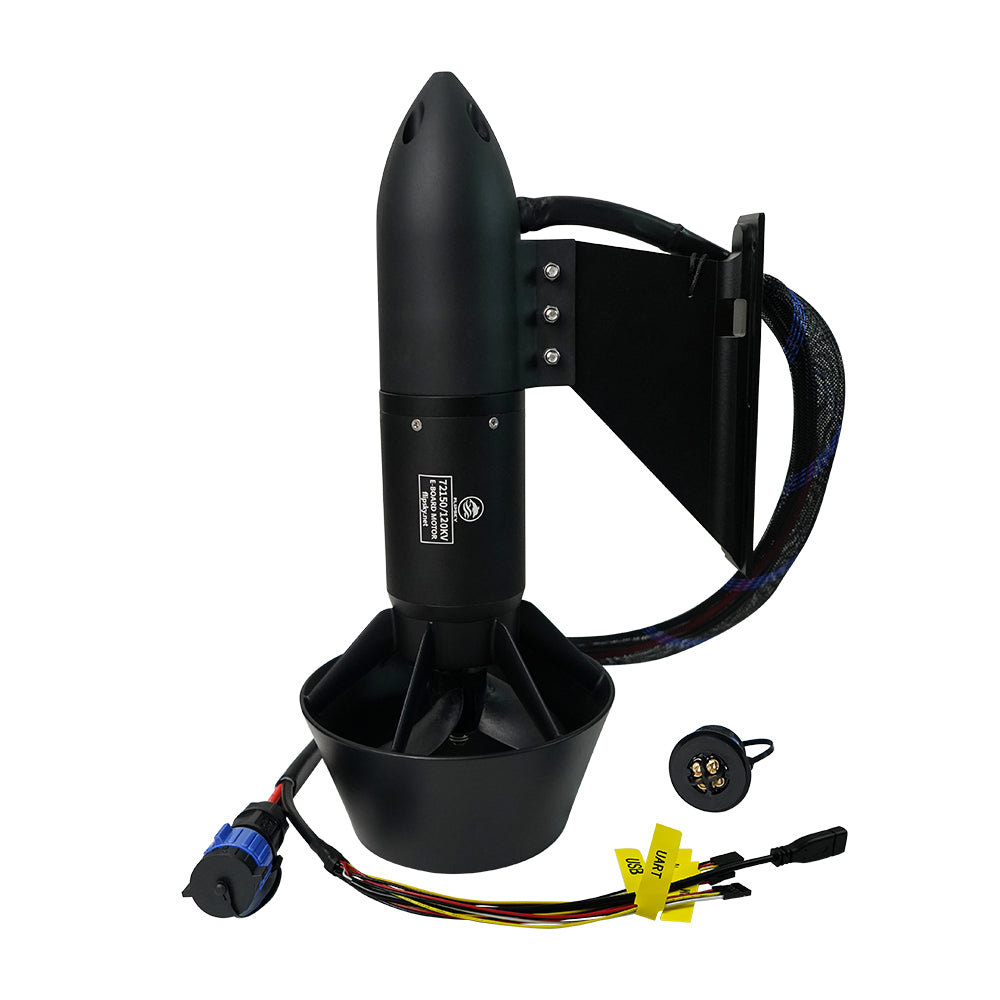

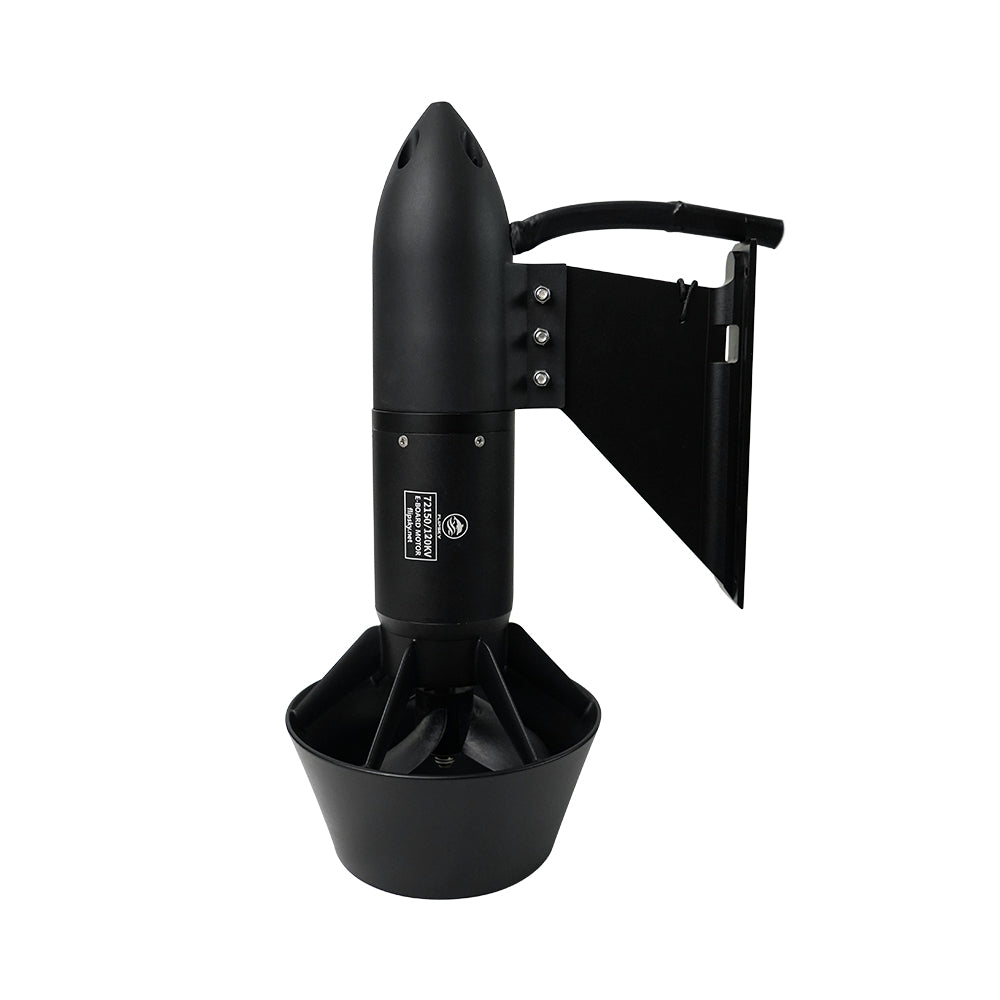

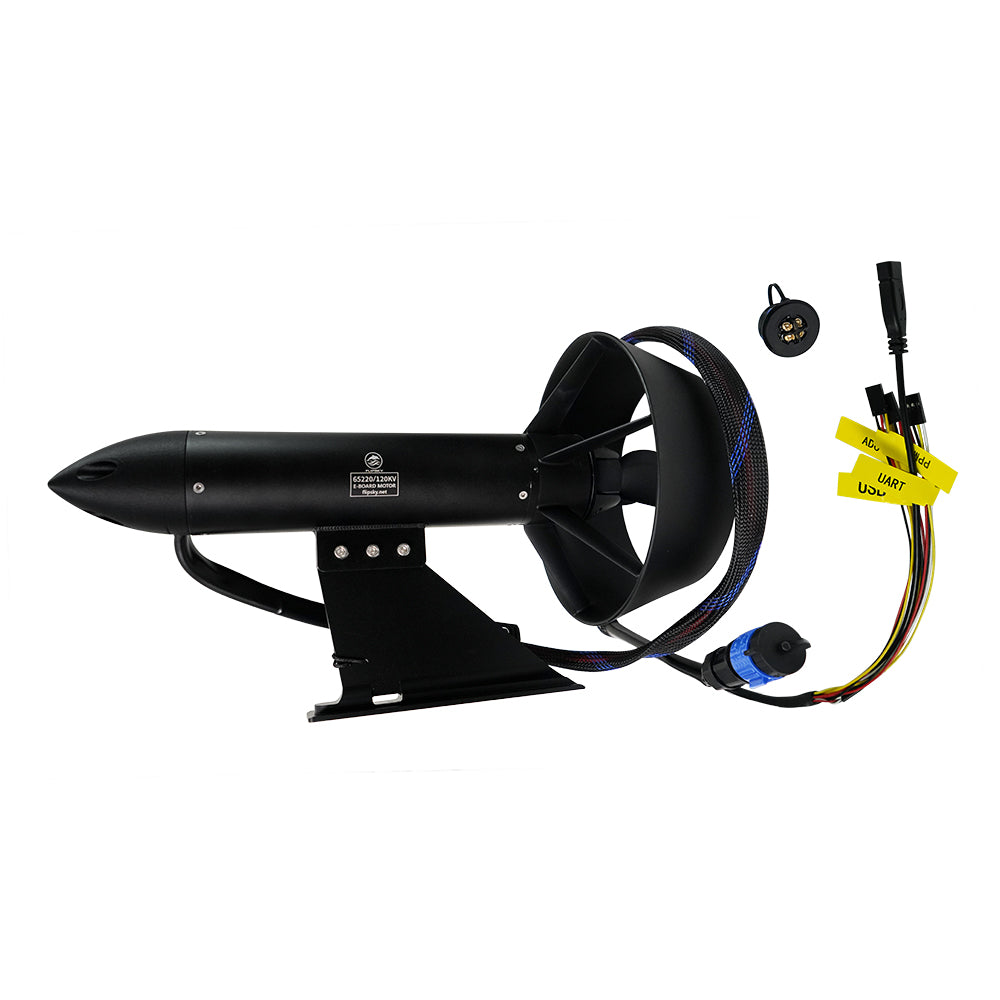

Product Spec:

• Voltage range: 10-24S
• KV(RPM/V): 120KV
• Max Power:8800W,rated power 4400W
• No-load current：3.2A
• Max load current: 150A
• The number of pole: 10(please write 5 pairs when do setup)
• Max torque :13.8NM
• Demension: D70*L165mm
• Max working temperature: 120︒C
• Insulation voltage & leak current: AC500V/10MA/3S
• Lead wires extension: 8AWGx1300mm
• Waterproof level:IP68
• Weight:3.06kg
• Plug: 8.0mm
• Motor wire: 8AWG

Motor drawings：

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Specs:

• Firmware: Latest Version
• Continuous current: 100A; instantaneous current: 200A
• Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
• BEC: 5V@1A
• ERPM: 150000
• Control Interface Ports:USB,CAN,UART
• Supported Sensors:ABI，HALL，AS5047，AS5048A
• Input Set Support:PPM, ADC, NRF, UART, SPI, IIC
• Modes:DC, BLDC, FOC (sinusoidal)
• Regenerative capacity: Yes
• Programmable: Yes
• Motor wire: 10AWG
• Power cable:8AWG
• Size:75.4x63.7x31.1mm(Including heatsink)

Feature:

1. Support four control modes: Current/Dutycycle/Speed /Position control mode.
2. Using 6pcs SFT01N10T high current MOSETS (100V 500A).
3. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
4. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.

Wiring diagram:

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Spec:

• Voltage:14-84V( safe for 3-20S)
• Continuous Current : 50V/300A,75V/200A
• Max Current :350A
• Supported sensors: ABI, HALL, AS5047,AS5048A

• EPRM:150000
• Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors)

Feature:

• Regenerative braking
• The CPU adopts the STM32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
• Sensored or sensorless operation + hybrid mode
• Configurable RPM-, current-, voltage- and power limits
• Input source: PPM, ADC, NRF,UART,PAS
• Communication ports: USB, CAN, UART,SPI,IIC
• Throttle curve and ramping for all input sources
• Seamless 4-quadrant operation
• Motor revolution, ampere hour, watt hour counting
• Real-time data analysis and readout through the communication port.
• Adjustable protection against:
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current (separate limits for the motor and the input)
• High RPM (separate limits for each direction)
• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
• Motor wire: 8AWG
• Power cable: 8AWG
• Waterproof level(with water cooling enclosure):IP67

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Please be careful to limit the Absolute Maximum Current below 250A,setting page

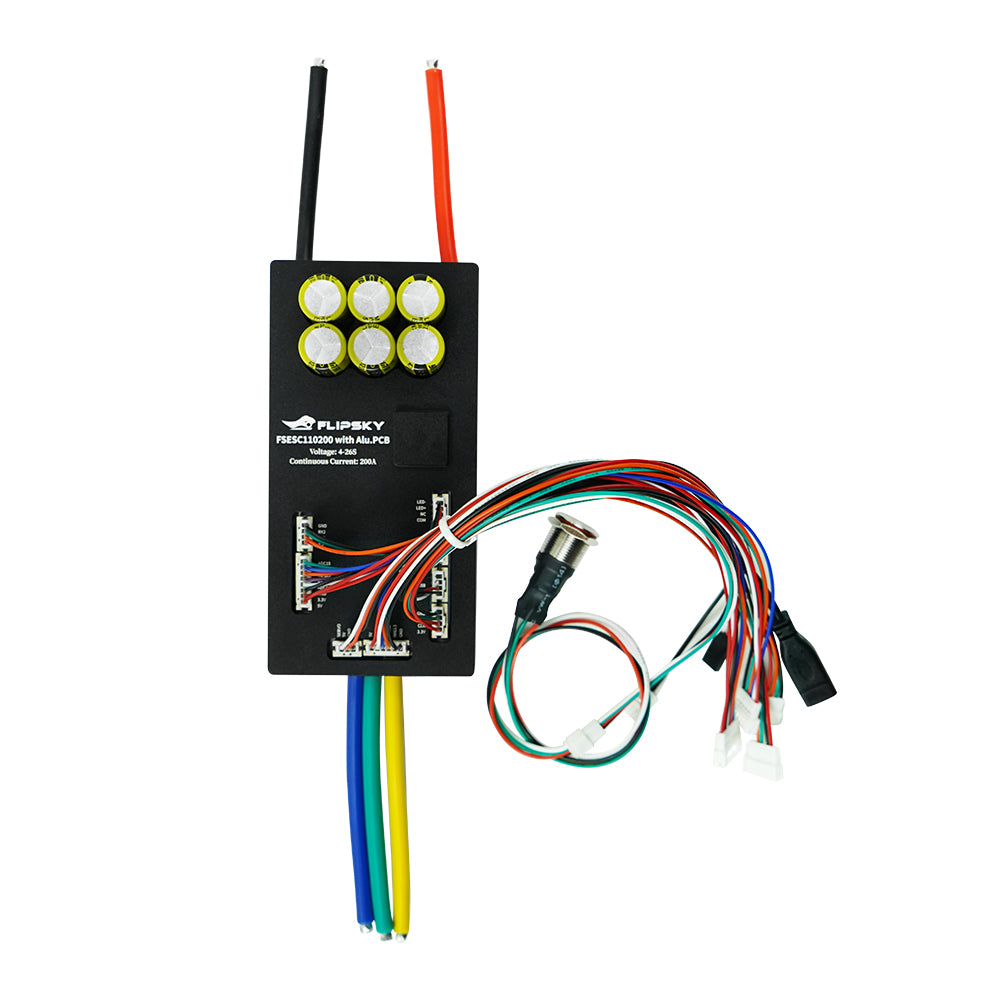

Specs:

• Size:L107mm*W103mm*H18.5mm
• Voltage:14-84V (4-20S safe)
• Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!
• BEC:5V@1A
• Support BLDC square wave mode control and FOC sine wave mode
• Firmware: latest (firmware update supported)
• ERPM:150000
• Control Interface Ports:USB,CAN,UART
• Supported Sensors:ABI，HALL，AS5047，AS5048A
• Input Set Support:PPM，ADC，NRF,UART
• Wire Size: 12AWG
• Programmable: Yes
• Regenerative Capacity: Yes

Warm tips:

Detail:

Features:

• Using 2.4G wireless module-E28-2G4M12S, low power consumption, strong anti-interference ability, long remote control distance
• Support 3 speed modes (high gear: red light; middle gear: yellow light; low gear: green light)
• Support cruise control mode
• Remote control and skateboard battery indicator light
• Comfort touch: ABS+Rubber painting surface
• Support reverse function
• Rechargeable Li-ion Battery (850mAh)
• Anti-slip wrist strap
• VX1 Remote comes with Receiver

Kindly Reminder !
1.Please carefully check following receiver connection diagram corresponding with different FSESC, wrong cable collection in reciver side will cause the receiver burned.

2. The variants (for VESC4/ for VESC6 / For Non VESC) only differenciate on reciver cables , the remote is the same one.

What are the differences between VX1 and VX1 pro?

Receiver Connection Diagram:

For PPM mode(or Non VESC )

For Dual FSESC4.20 Plus:

For Dual FSESC6.6:

Transmitter specs:

• Number of channels:100
• Number of channel groups:1 and 2
• Frequency range:550MHz-590MHz ,antenna 1/4 wavelength
• Audio output level-10dB.
• Headphone output level 87mW(32 Ohms)
• Receiving sensitivity-95 dB
• Signal-to-noise ratio≥90 dB,sound delay 1ms.
• Frequency response 40Hz-18kHz(+/-3dB)
• Reference deviation ±5kHz(-60dBV,input 1kHz)
• Distortion ≤0.5
• Battery type: Lithium battery
• Working temperature 0°C-50°C
• Storage temperature-20°C-55°C

Receiver specs:

• Number of channels: 50
• Numberof channels group:2
• Frequency range :550MHz-590MHz,SNR≥90dB
• Spurious suppression-60dB
• Transmission power 40mW,sound delay 1ms,antenna 1/4 wavelength.
• Reference deviation ±5kHz(-60dBV,input 1kHz)
• Distortion ≤0.5
• Reference audio input level-40dB(Microphone input, 0dB attenuation)
• Battery type: Lithium battery
• Working temperature 0°C-50°C
• Storage temperature-20°C-55°C

Features:

1.Supports two-to-one streaming.Includes intelligent noise reduction.Wireless transmission distance within 100 meters.No delay and anti-interference.

2.Two-to-one: record the voices of 2 people at the same time. Supportsthe use of multiple units in the same location.

3. One-to-one: 1transmitter,1 receiver for use with mobile phone anytime,anywhere.

4.Wind screen included. Built for use outdoors,wind resistant,vibration resistant,effective noise reduction.

5.Come with a built in noise reduction microphone. Also supports use of an external microphone.

6.Support stereo or mono recording modes.

7. Real time monitoring and dection of microphone recording conditions.

8.Built in earphone monitoring funtion.

Video:

Firmware & software repositories are available click here:Github page.

Spec:

• Cell voltage operating range:2V-5V
• Recommended series cell:6S-12S
• Charge / discharge voltage:24V-52V
• Charge Current：≤20A
• Abs. Max battery voltage: 60V
• Minimum operating voltage: 14V
• Continuous charging current: 20A
• Over charge detect and release voltage: 2V-5V
• Over charge protection delay: ≥4ms
• Discharge current: ≤70A
• Max. Continuous discharge / regen current: 70A
• Over discharge detect / release voltage: 0-5V
• Over current detect delay:≥4ms
• Discharge over current protection release condition: off load
• Short Circuit detect voltage:short circuit of external load
• Short Circuit detect delay: 320us
• Short Circuit protection release: off load
• Battery pack capacity and internal resistance detection: Yes

• Balance current: 86mA @4.2V
• Temp Protect: -20℃—+120℃
• Working Temp Range:-20℃—+80℃
• Storage Temp Range: -20℃—+100℃
• Working current: ≤40mA
• Sleeping current: ≤100uA
• Size: 89 x 40 x 20.8mm
• Net weight: 106.5g
• Packing size: 140 x110 x 50 mm
• Package weight: 303.5g
• Including outer carton size: 170*120*100mm
• Weight with outer carton: 380g

Feature:

• Compact layout and mini
• Using aluminum alloy material shell, better heat dissipation.
• Automotive grade design, automotive grade locking connector.
• Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL.
• Automotive grade monitoring & balancing IC with separate power supply for increased reliability
• Voltages measurements for load, charger & battery pack
• Bi-directional current monitoring
• SOC based on coulomb counting
• Humidity sensor & board temperature monitoring
• Charger detection circuit
• Integrated precharge circuit
• Power button, USB-C, UART, I2C & isolated CAN bus interface
• On board High-Efficiency 3.3V regulator powered from the main battery pack
• High current capacity automotive grade screw connectors for main power connections
• Buzzer & status LED
• Support overcharge/discharge/over current /temperature protection,and have thermal management/balance function(active balance and passive balance).
• Support almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc.

 Video:

Firmware & software repositories are available click here:Github page.

Spec:

• Cell voltage operating range:2V-5V
• Recommended series cell:18S-24S
• Charge Voltage:48V-104V
• Charge Current：≤10A
• Abs. Max battery voltage: 120V
• Minimum operating voltage: 28V
• Continuous charging current: 10A
• Over charge detect and release voltage: 2V-5V
• Over charge protection delay: ≥4ms
• Discharge current: ≤70A
• Max. Continuous discharge / regen current: 70A
• Discharge voltage:48V-104V
• Over discharge detect and release voltage: 0-5V
• Over current detect delay:≥4ms
• Discharge over current protection release condition: off load
• Short Circuit detect voltage:short circuit of external load
• Short Circuit detect delay: 320us
• Short Circuit protection release: off load
• Battery pack capacity and internal resistance detection: Yes
• Balance current: 50mA @4.2V
• Temp Protect: -20℃—+120℃
• Working Temp Range:-20℃—+80℃
• Storage Temp Range: -20℃—+100℃
• Working current: ≤40mA
• Sleeping current: ≤100uA
• Size: 109 x 40mm
• Net weight: 126.7g
• Packing size: 140 x110 x 50 mm
• Package weight: 370.3g
• Including outer carton size: 170*120*100mm
• Weight with outer carton: 420g

Feature:

• Compact layout and mini
• Using aluminum alloy material shell, better heat dissipation.
• Automotive grade design, automotive grade locking connector.
• Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL.
• Automotive grade monitoring & balancing IC with separate power supply for increased reliability
• Voltages measurements for load, charger & battery pack
• Bi-directional current monitoring
• SOC based on coulomb counting
• Humidity sensor & board temperature monitoring
• Charger detection circuit
• Integrated precharge circuit
• Power button, USB-C, UART, I2C & isolated CAN bus interface
• On board High-Efficiency 3.3V regulator powered from the main battery pack
• High current capacity automotive grade screw connectors for main power connections
• Buzzer & status LED
• Support overcharge/discharge/over current /temperature protection,and have thermal management/balance function(active balance and passive balance).
• Support almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc.

Video:

Specs:

• Recommended nickel strips: 0.1-0.2mm
• Menu display: 1.8 inch color LCD
• Working mode: automatic/manual
• Built-in battery: 10000mAh
• Shell material: aluminum alloy
• Thickness of soldering pen wire: 8AWG
• Cycle charging: support
• Protection reminder: support
• Firmware upgrade: support
• Automatic shutdown: support
• Power display: support
• Temperature detection: support

Remark: Without strip option default ship 12V LED Strip Controller.

Specs:

• Voltage: 4.5V-5.5V
• Minimum current: 0.5A
• Operating temperature: -40-85°C
• Optimum humidity: 85%RH
• Connection method: WIFI radio
• ESC Compatible: VESC, FSESC, FOC
• LED Strip Support: APA102,WS2801,WS2811,WS2812,WS2813,WS2815 LED Strip
• RAM: standby status with 3 modes; running status with 8 modes; braking status with 8 modes
• LED2811: 60 leds/m, 5050 RGB,1meter
• LED2812: 144 leds/m,5050 RGB,1meter
• LED2813: 30 leds/m, 5050 RGB,1meter
• LED2815: 30 leds/m, 5050 RGB,1meter
• Color mode: custom available
• Size: 34mm x 39mm x 10mm
• N.W.: 11.8g

Features:

1. It’s designed for sports vehicles, compatible with vesc, fsesc, foc escs for esk8 electric skateboards, ebike, escooter etc.
2. Adopting high-speed single-chip microcomputer to process data without delay or intermittence.
3. With 3 different status: standby, braking and running status. Multiple modes choices: standby status*3 modes; running status*8 modes; braking status*8 modes
4. Mobile WiFi control available: customers can change status, strip colors and speed via mobile phone, convenient for customers control.
5. The led strip controller comes with a stop-down power module, which can reduce the vibration effects during the running process.

Wiring:

ESK8 Sport LED Strip Controller Manual

Reference video:

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Specs：

• Size:L137mm*W109mm*H21mm
• Voltage: 8V-60V (Cells: 3-13S LiPo,Safe for 3S to 12S LiPo,voltage spikes may not exceed 60V! )
• Current: 100A continuous/single, 100A/200A continuous/dual.  current 400A
• BEC: 5V@1.2A output, 3.3V 1A output for external electronic equipment;
• Support sensors: ABI, HALL, AS5047, AS5048A
• EPRM: 150000
• Regenerative braking capacity: Yes
• Communication ports: USB, CAN, UART COMM port
• Motor/Power wires size:12 AWG
• Programmable: Yes

Product detail:

Spec:

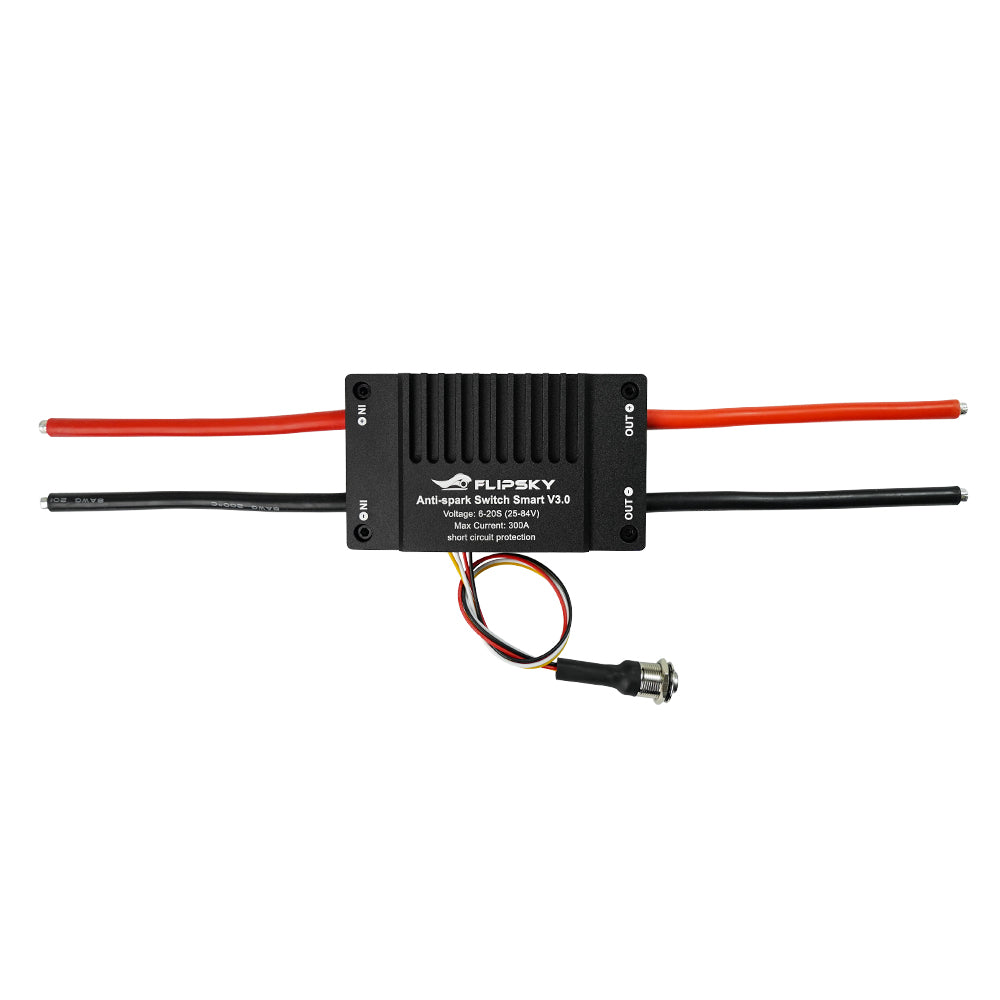

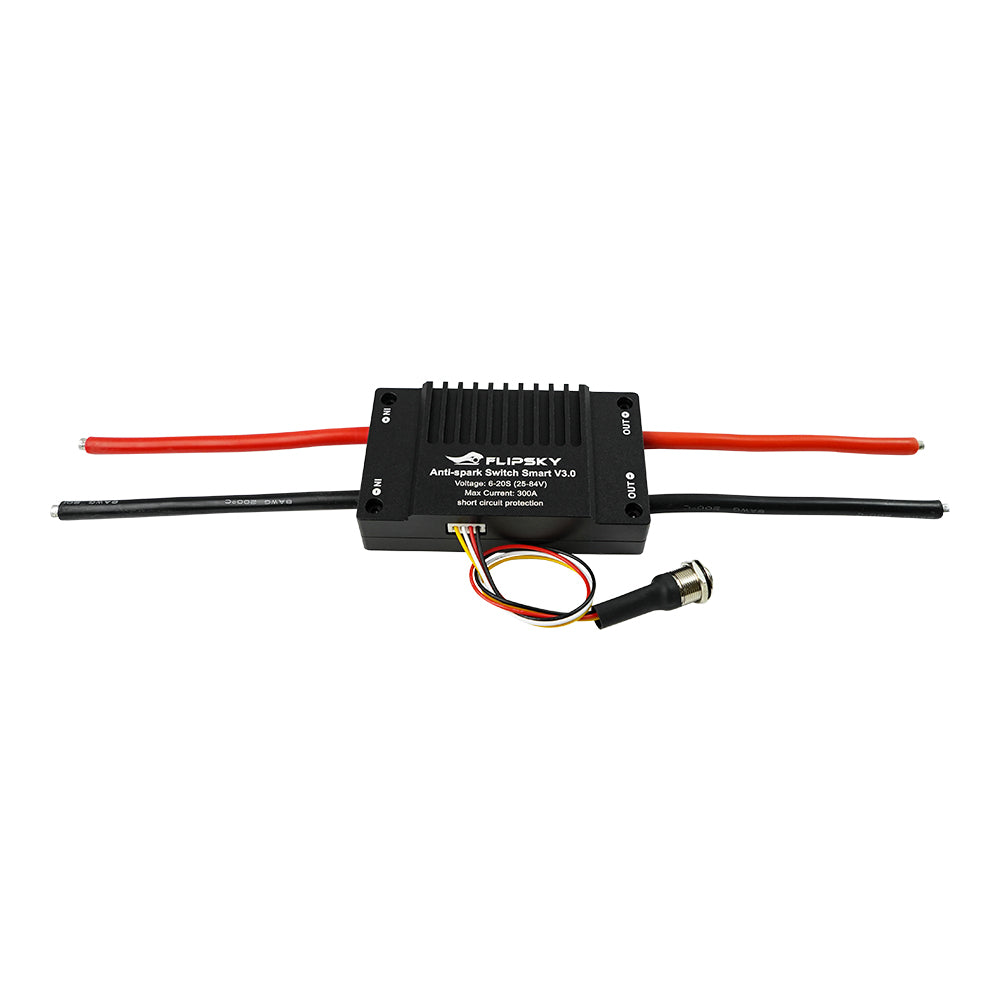

• Hardware: V1.0
• Max voltage: 20S (90V，safe for 80V)
• Continuous Current: 150A , Max Current: 300A
• LED button diameter:12mm

Aluminum pcb Features:

• MOS fets: use 10*10 large package MOS , with better overcurrent and heat dissipation performance
• Control mode: lock key control switch mode; press the lock button to lock it to open, and the LED light will light up at the same time, press the lock button again to bounce it to turn off, and the LED light turn off at the same time.
• The function of the product: the aluminum substrate fire-proof spark switch efficiently and safely protects the power contacts from being burnt and oxidized by the electric spark, effectively protecting the electronic components of the integrated circuit from breakdown and damage, preventing the occurrence of electric sparks that may cause an explosion, and more effectively extending the electronics Product life.
• Aluminum base plate has better heat dissipation performance. It is more convenient to add a larger heat sink for continuous large current output. The heat sink and the heat sink are connected with thermally conductive silicone grease, which has a better heat conduction effect.

Warnings:

• Do not peel off the heat shrink.There’s no screw to lock the heatsink and PCBA, Only the heat-transfer silicon pad is naturally sticky to heatsink and PCBA.
• No short circuit protection, DO NOT short circuit output!
• No reverse polarity protection. DO NOT plug in backwards.
• Recommended to keep output capacitance under 6,000 uF. Proper operation cannot be guaranteed at higher capacitances.
• Do not Hot-Swap. Try to make sure everything is off before connecting and removing. If need be, unplug from battery first, wait for ESCs to turn off, then unplug ESCs. Do the reverse for plugging in, plug in ESCs first before plugging the switch into the battery.
• Engineers have thoroughly tested prototypes; however, this is still a new design and a first production run, please exercise extreme caution (as one would normally do with any electric vehicle) when using this device.
• Do not attempt to reprogram the MCU unless otherwise advised. Doing so will void any warranty and also put the switch at great risk of failure.

 Wiring diagram：

Warm Tips: Support custom KV value, round shaft pulley will default come with 16T pulley/D shaft will come with 15T,please leave order notes if you have any requirements,thanks.

Spec:

• Weight: 0.84KG
• Max Power: 2700W
• Motor KV: 190
• Max current: 75A
• Battery type: 4-12S
• Recommend ESC: VESC6
• Max Torque: 7.5Nm
• Diameter(mm): 63
• Length(mm): 68
• Total length (mm):92mm
• Shaft(mm): 10mm Dshaft
• Bullet connector: 4mm

Wire configuration:

• Blue = U
• White = V
• Yellow = W
• BLDC Motor
• The number of pole: 14

Detail:

Drawing:

Remark:

1.all these parts in the kit are unassembled when shipment.

2.this All Terrain kit come without motors, it can suitable for flipsky 63 series Motors,recommend motor:6384/6374 /63100 etc . (If you need other KV values, please leave order notes, otherwise 190KV will be sent by default)

Truck:

• Truck Length: 420mm / 16.5''
• Axle Length: 60MM / 2.4''
• Axle Diameter: 10MM

Others：

• hub material: Aluminium Alloy
• Tyre Material: Rubber
• Axle Hole Size:10 mm
• Tyre Pressure: 60PSI 410kpa
• HUB Axle Diameter: 10 mm
• HUB Teeth: 72 teeth
• Pulley teeth:16T HTD5M
• Gear ratio:  72:15
• Belt:435 mm length,15mm width

Detail size:

Package included:

Warm Tips: Support custom KV value, round shaft pulley will default come with 16T pulley/D shaft will come with 15T,please leave order notes if you have any requirements,thanks.

Spec:

• Weight: 1.4KG
• Max Power: 5500W
• Motor KV: 190/170/140KV
• Max. current: 100A
• Battery type: 4-12S
• Recommend ESC: VESC6
• Torque: 10Nm
• Diameter(mm): 63
• Length(mm): 100
• Total length (mm):130mm(including 8mm round shaft) / 125mm(including 10mm D shaft)
• Shaft(mm): 8mm/10mm
• Bullet connector: 4mm

Detail:

10MM D Shaft Motor Drawings：

8MM Round Shaft Motor Drawings：

10MM Round Shaft Motor Drawings：

Reference video:
