Please use 5V/2A charger for VX4 (Max. Input voltage of 6.5VDC for VX4). Do NOT use a charger with an output voltage more than 6.5V, otherwise the VX4 remote controller may be damaged.

Feature:

• Color screen(240*240 circular high-brightness LCD screen)
• Option choice for km/h and miles/h
• Option choice for FSESC and other VESC( FOCBOX)
• Use Sx1280 chip,which is based on Loraspread spectrum modulation technology,it has up to 13dB of co-channel rejection.
• Support PPM,Uart,ppm and uart mode.
• Support Remote and receiver upgrade.
• Support 3 speed modes(Default H--high speed)
• Support cruise control mode
• Remote and E-skateboard power indication lights
• Rechargeable Li-ion Battery:1200mAh
• Wrist strap
• VX4 remote comes with receiver

Wiring Diagram:

Detail:

Shipping package:

1pcs VX4 remote

1pcs Uart cable

1pcs PPM cable

1pcs USB TypeC cable

1pcs Manual

Reference video：

Flipsky_VX4_V1.2 firmware and manual download link:

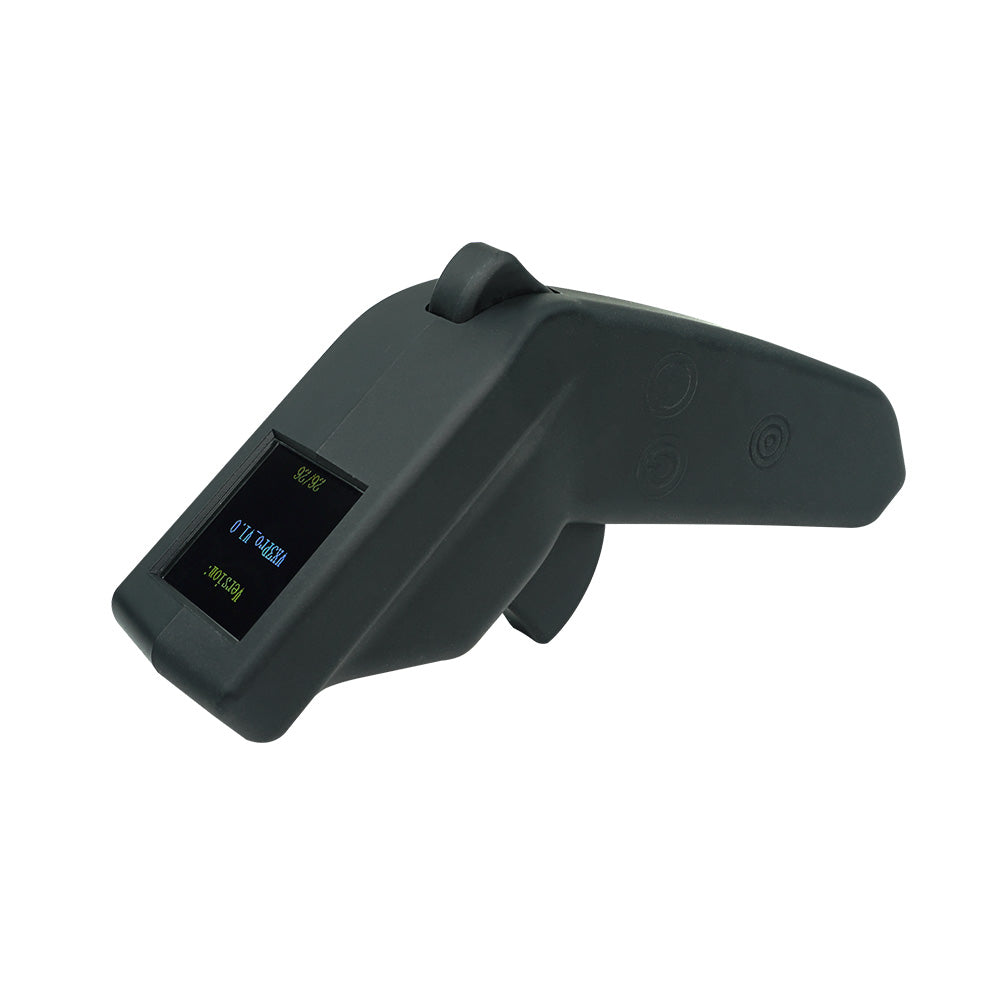

Please use 5V/2A charger for VX1 Pro (Max. Input voltage of 6.5VDC for VX1 Pro). Do NOT use a charger with an output voltage more than 6.5V, otherwise the VX1 Pro remote controller may be damaged.

Features:

• Using 2.4G wireless module-E28-2G4M12S, low power consumption, strong anti-interference ability, long remote control distance
• Support 3 speed modes (high gear: red light; middle gear: yellow light; low gear: green light)
• Support cruise control mode
• Remote control and skateboard battery indicator light
• Comfort touch: ABS+Rubber painting surface
• Support reverse function
• Rechargeable Li-ion Battery (850mAh)
• Anti-slip wrist strap
• VX1 Remote comes with Receiver

Kindly Reminder !
1.Please carefully check following receiver connection diagram corresponding with different FSESC, wrong cable collection in reciver side will cause the receiver burned.

2. The variants (for VESC4/ for VESC6 / For Non VESC) only differenciate on reciver cables , the remote is the same one.

What are the differences between VX1 and VX1 pro?

Receiver Connection Diagram:

For PPM mode(or Non VESC )

For Dual FSESC4.20 Plus:

For Dual FSESC6.6:

Please use 5V/2A charger for VX2 (Max. Input voltage of 6.5VDC for VX2). Do NOT use a charger with an output voltage more than 6.5V, otherwise the VX2 remote controller may be damaged.

Features:

• Color screen
• Option choice for km/h and miles/h
• Option choice for FSESC and other VESC( FOCBOX)
• 2.4Ghz band width
• Real time data reading and 0.95OLED display
• Support 3 speed modes
• Support cruise control mode
• Remote and E-skateboard power indication lights
• Rechargeable Li-ion Battery
• Wrist strap
• Battery last for 12 working hours
• VX2 Remote comes with Receiver

Receiver Connection Diagram

For Dual FSESC6.6 Big size :

For Dual FSESC4.20 :

Remark:

2.The Flipsky VX2 remote just can compatible with base on vesc , if your VESC has changed the program, please choose to purchase carefully.

Function Show

Please use 5V/2A charger for VX1 (Max. Input voltage of 6.5VDC for VX1). Do NOT use a charger with an output voltage more than 6.5V, otherwise the VX1 remote controller may be damaged.

Features

• 2.4Ghz band width
• Support 3 speed modes
• Support cruise control mode
• Remote and E-skateboard power indication lights
• Support checking remote battery volume
• Comfort touch: ABS+Rubber painting surface
• Rechargeable Li-ion Battery
• Wrist strap
• VX1 Remote comes with Receiver

Function Show

Kindly Reminder !

1.Please carefully check following receiver connection diagram corresponding with different FSESC, wrong cable collection in reciver side will cause the receiver burned.

2. The variants (for VESC4/ for VESC6 / For Non VESC) only differenciate on reciver cables , the remote is the same one.

3. When you choose UART mode connection for VX1 remote receiver, pls do connection after your programming in VESC tool. Or else , it will influence programming. And In UART mode, there is no need to do adjust for remote.

Receiver Connection Diagram

For Single V4

For Dual FSESC4.20: Both hook up with bluetooth and remote receiver

For Single V6

For Dual FSESC6.6 Plus : both hook up with bluetooth and remote receiver

For PPM mode(or Non VESC )

Manual：VX1_Remote_VX1_product_manual_-20190316.pdf

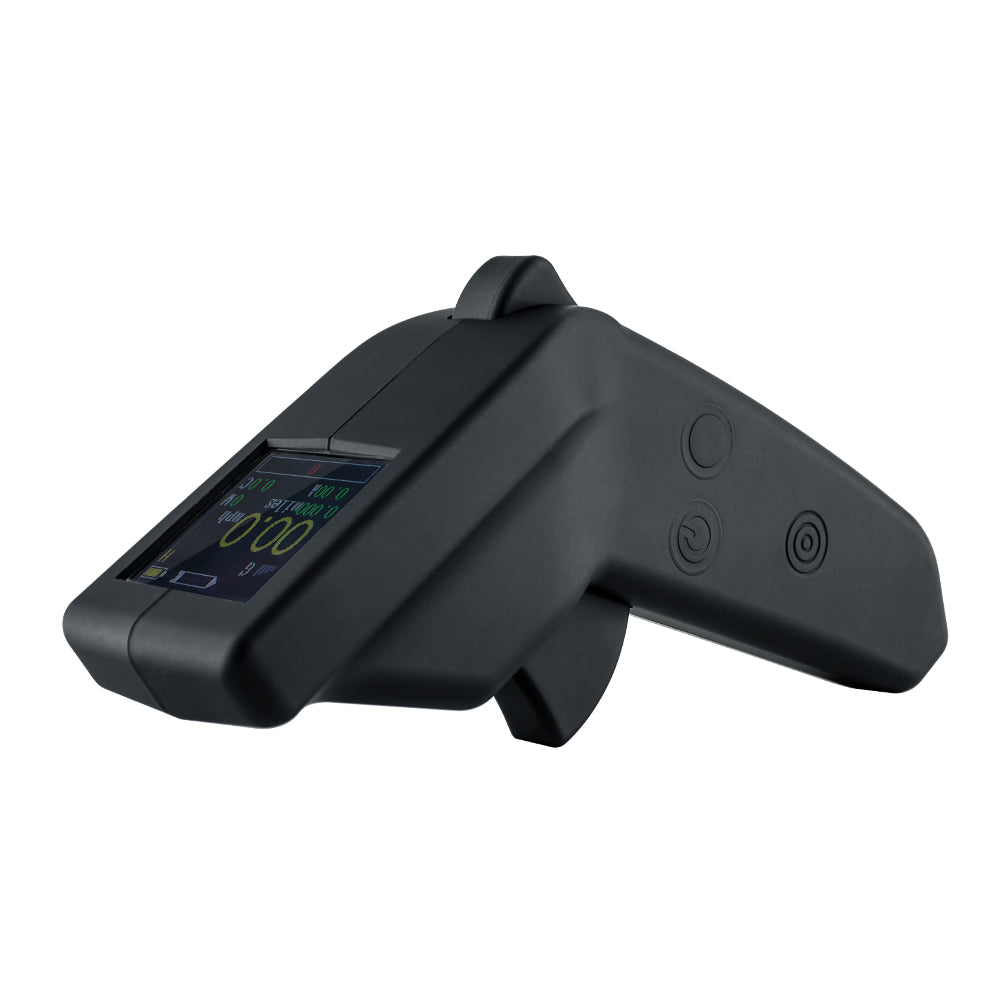

Feature:

• 1.6-inch super clear and big screen display
• Display shows more: Except for basic telemetry data, it also display GPS, motor power, real-time temperature of MOS tube, and throttle progress bar information
• Be compatible with Flipsky FSESC and other VESC and Non-VESC
• ESK8 mode / E-surf mode switching freely
• Esurf mode：Cruise speed control function
• Waterproof IP rating: IP67
• Bigger remote battery capacity:1500MA
• ESC failure report ：Detect possible failures of the ESC in time for replacing
• Controller mode: PPM/UART
• Charging way:Wireless Magnetic Charging
• VX3 Remote comes with Receiver

Wiring Diagram:

Reference video:
