What are the differences among Dual FSESC6.6 plus/Dual FSESC6.6/Dual FSESC6.6 MINI | FLIPSKY

Dual FSESC6.6 Plus/ Dual FSESC6.6 / Dual FSESC6.6 MINI , three dual-drive V6 ESCs that we have produced, which must be known by most friends who have purchased FSESC from us. Their common characteristic are：

Hardware: V 6.6

Eprm:150000

Voltage: 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC

5V 1.5A output for external electronics for single

3.3V 1A output for external electronics for single

Modes: DC, BLDC, FOC (sinusoidal)

Supported sensors: ABI, HALL, AS5047

All of them can reach max 200A big current, give your board strong power.

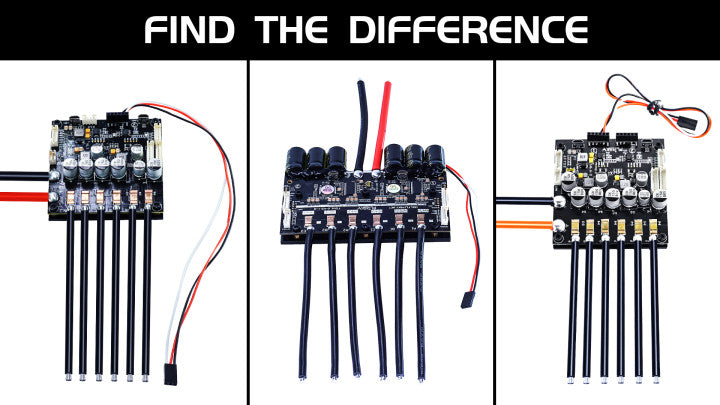

You may also notice that their prices marked on our website are different. So, What are the differences among these three dual FSESCS 6.6? Here are the main points summarized：

1.Mosfet

Mosfets (Mode NO:NTMFS5C628NL) in dual FSESC 6.6 big size board for better heat sink and over-current flow .

2.Capacitors

Bigger capacitors (470uf, 100V):big size and manual soldering

SMT mounting capacitors (in Dual FSESC6.6 Plus and Dual FSESC6.6 mini) to save more space and improve production efficiency

3.Switch : Only Plus version include Antispark Switch

Pro switch version:Power on/off by pressing the button

4.Set up for 4WD:

 Easily setup 4WD by connecting two dual FSESC with a canbus connector

5.Switch Single/Dual

Single/Dual function easily switched by Can Bus Switch button.

Above is main difference between three types of dual FSESC6.6, choose the most fit one according to your actual needs. Get it now!
