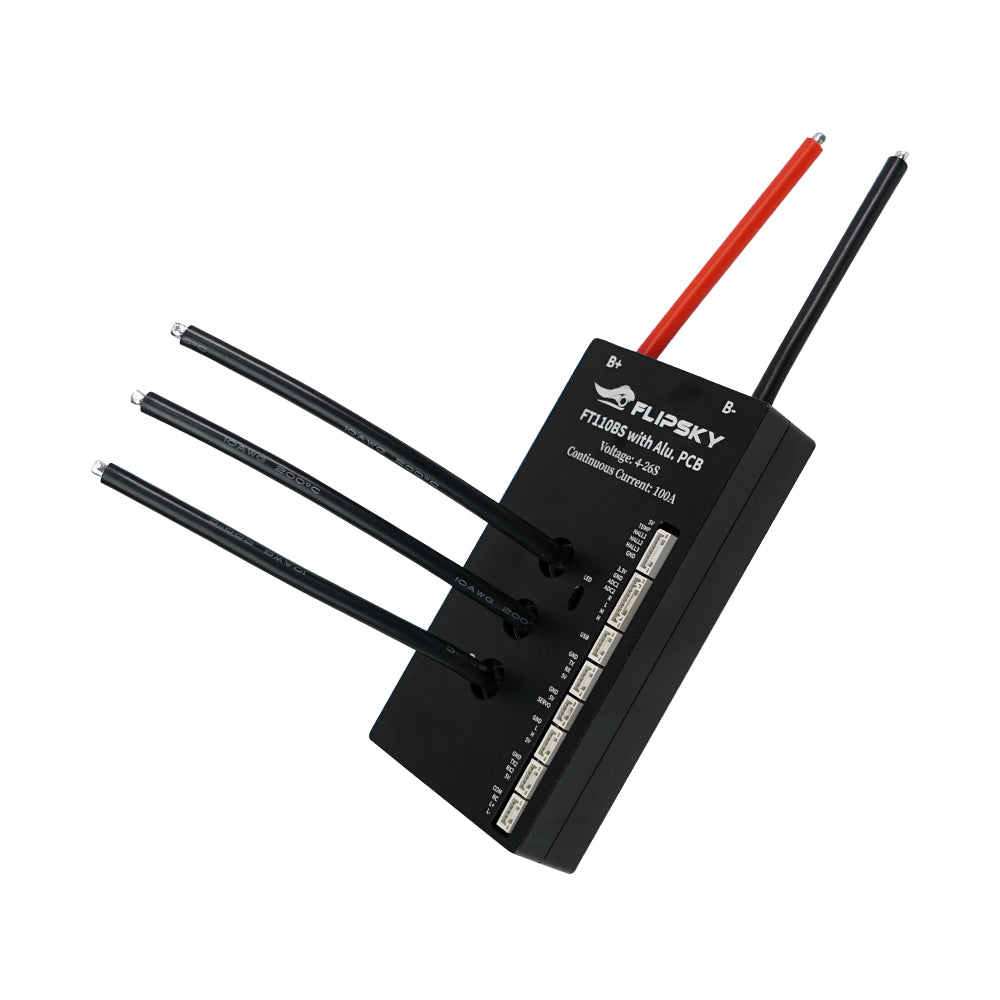

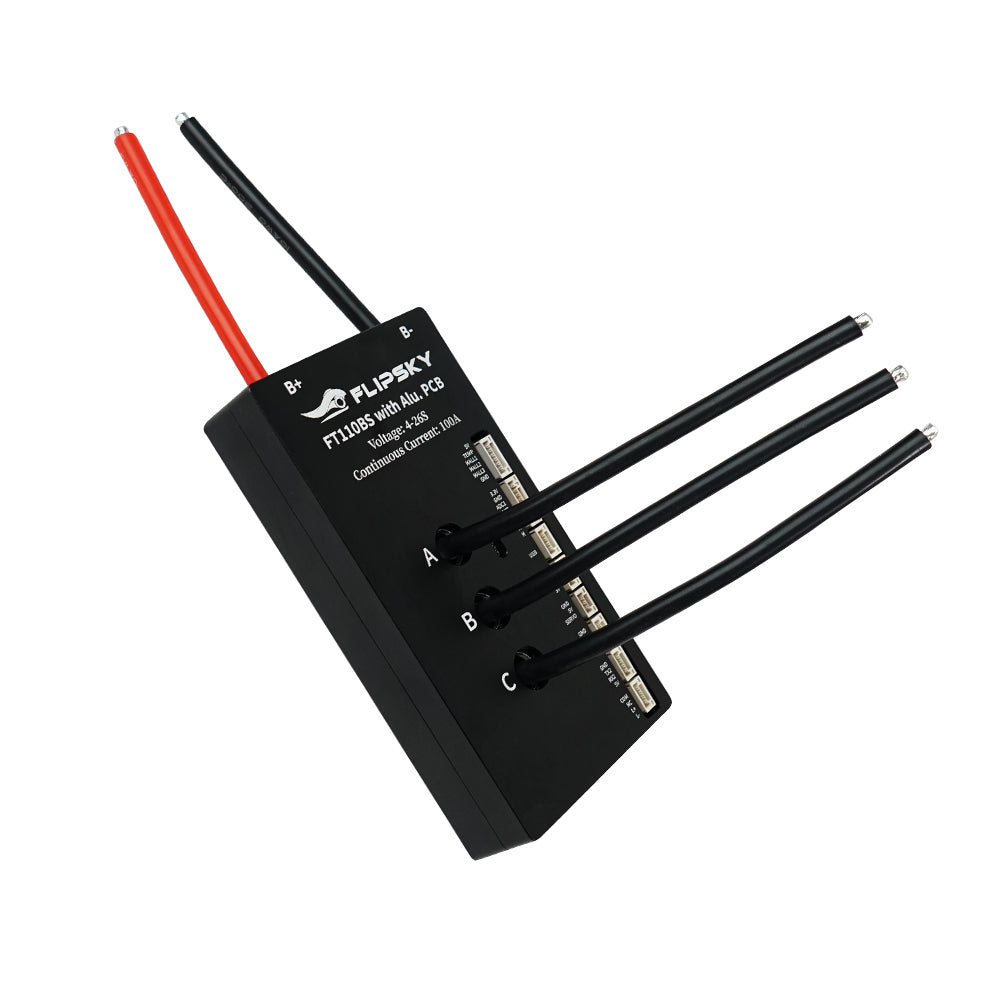

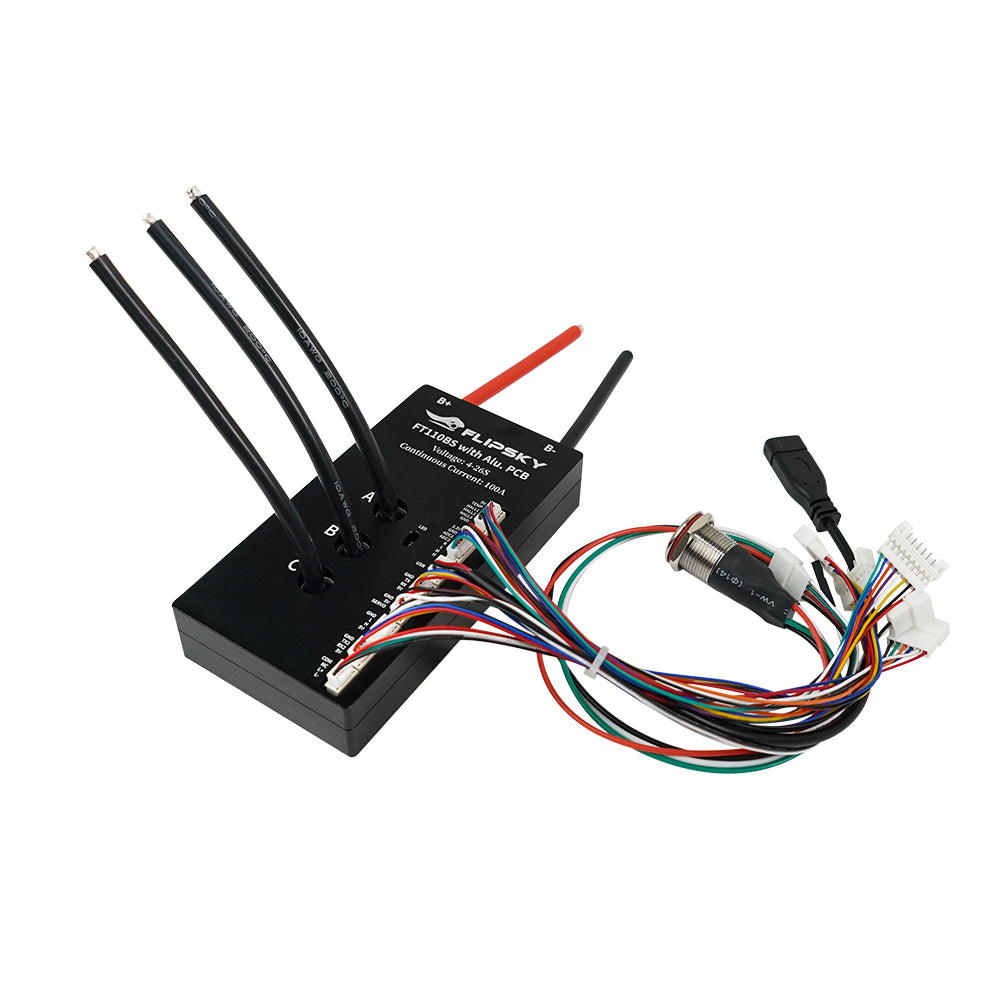

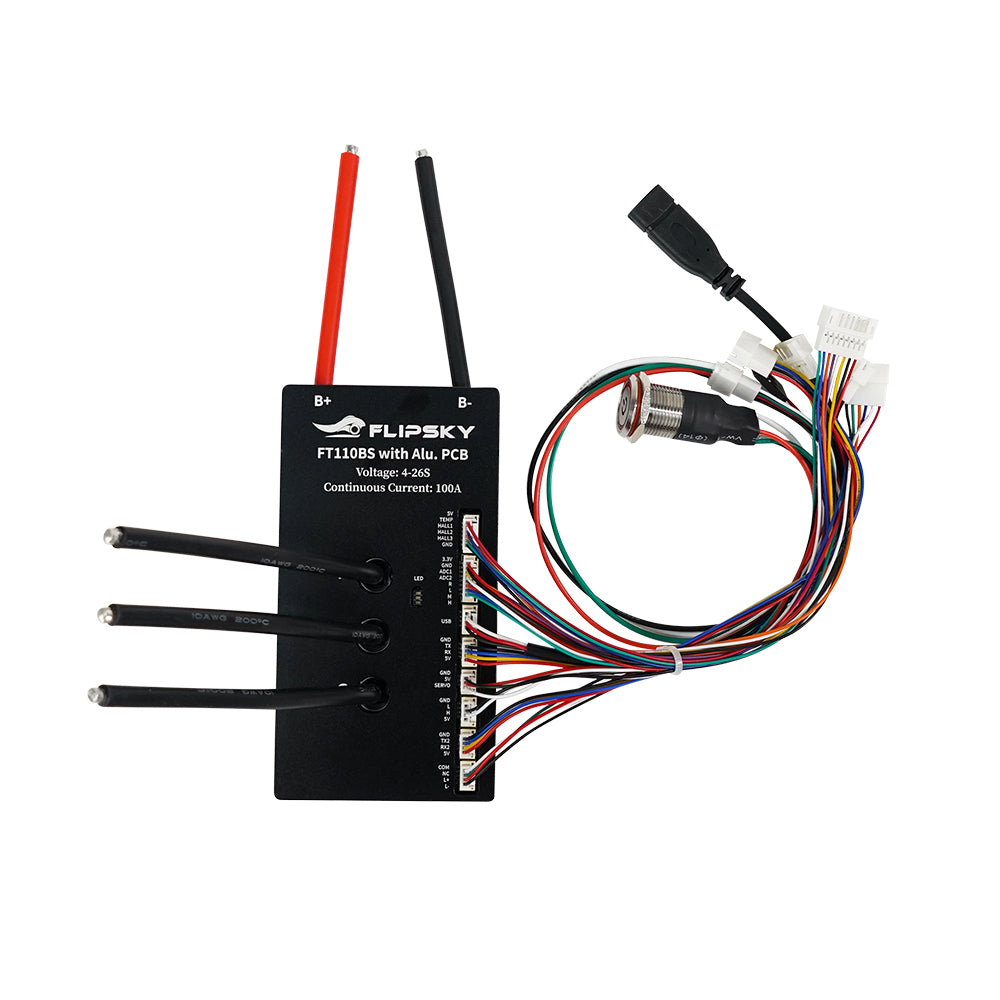

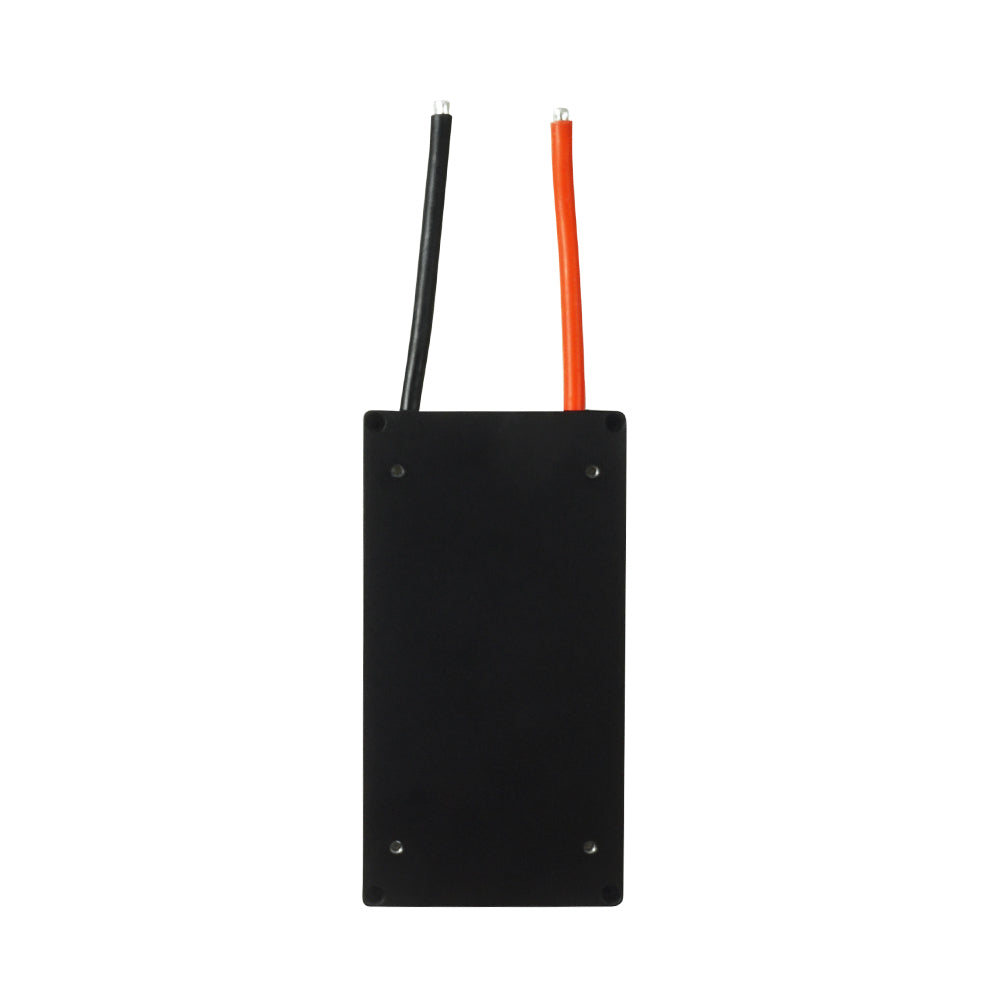

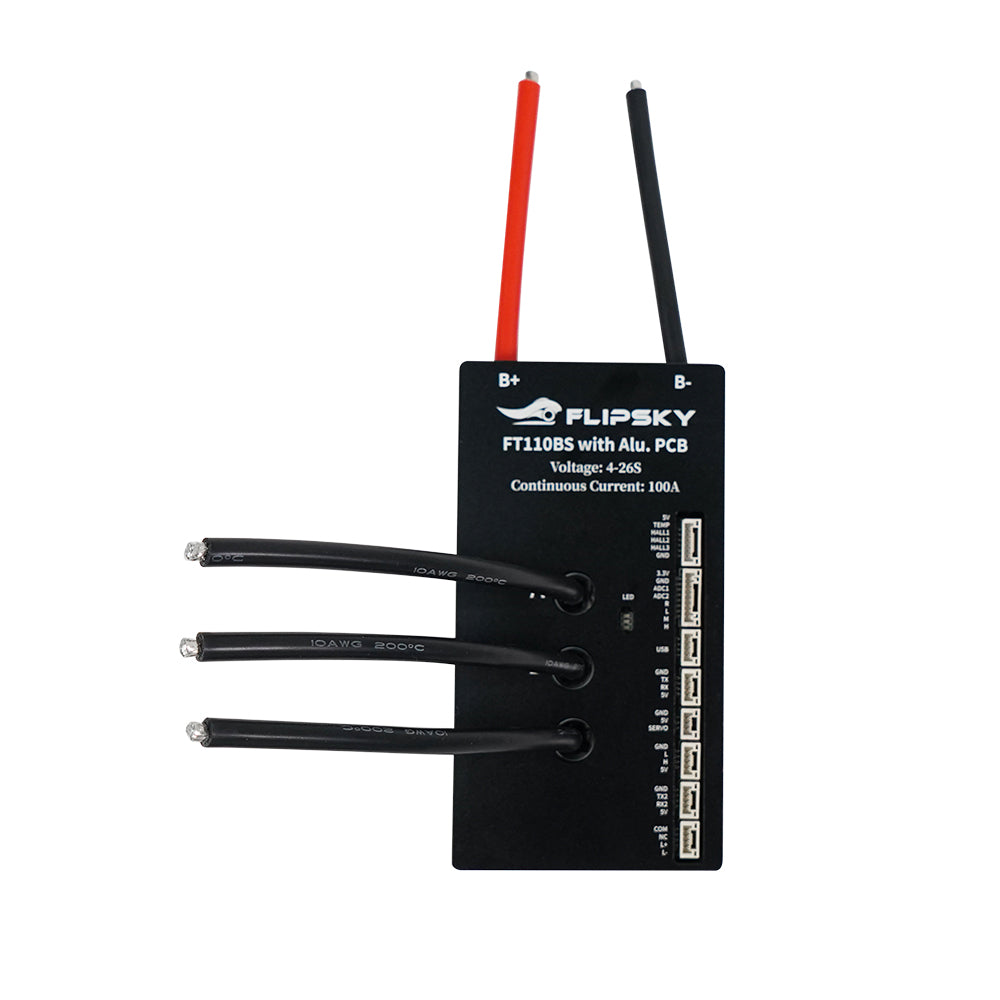

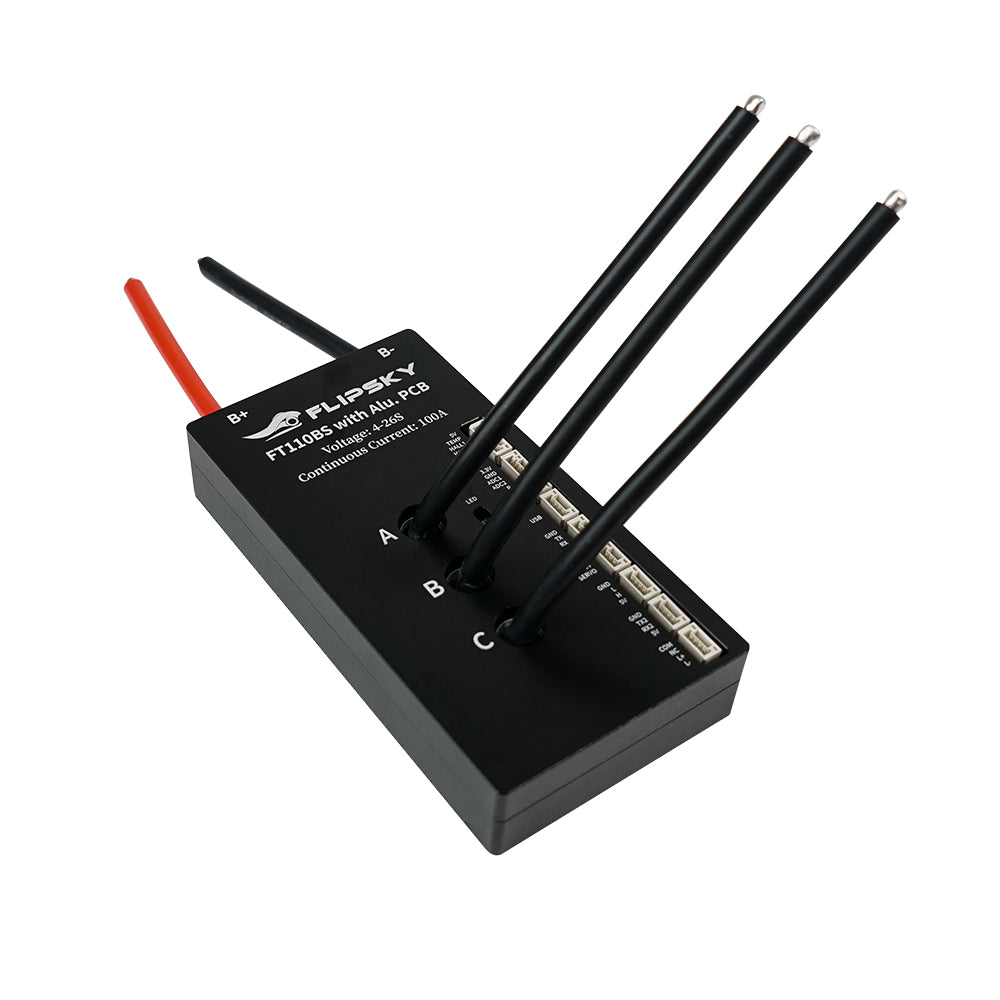

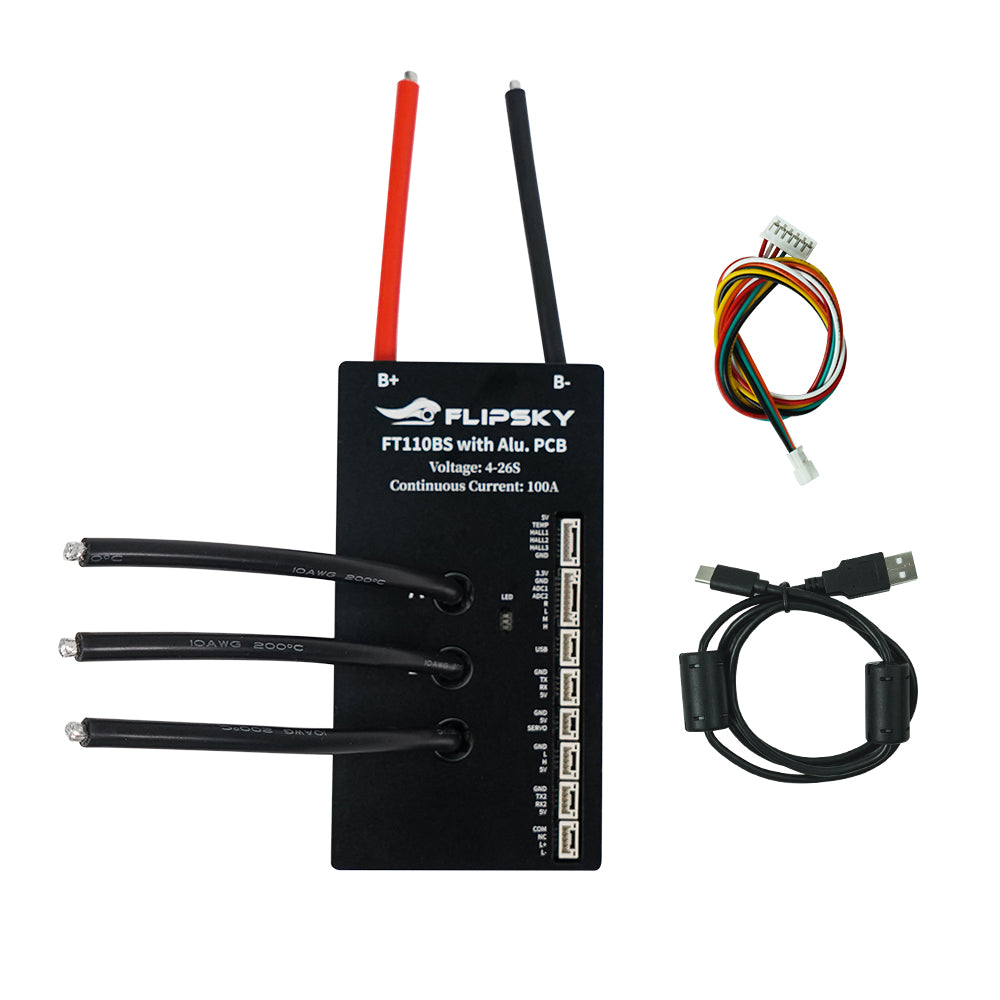

Flipsky FT110BS High Voltage 110V 100A With Aluminum PCB For Electric Skateboard /Ebike Speed Controller / Electric Scooter / Electric Motorcycle

Specs:

• Firmware: V1.6 or above (firmware update via Flipsky ESC Tool supported)

• Voltage: 14-110V(safe for 4-26S)

• Continuous current: 100A (Values depend on the mounting, ambient temperature and air/water circulation around the device!)

• Peak Current: 250A

• Communication Ports: USB, CAN, UART, PPM, ADC, PAS

• Input Signals Support: PPM, ADC, PAS (Cadence Input Signal), UART (compatible with all Flipsky VX Series remotes)

• BEC: 5V@1A

• Programmable Tool: Flipsky ESC TOOL

• PWM Frequency Control: YES

• Multiple Speed Gear Limit Control: YES (UART&ADC)

• Regenerative Capacity: YES

• Integrated Self-locking Switch: 16mm Red Button

• Motor/power wire size: 10 AWG

• Size: L117.7*W62.4*H21.7mm (Including Alu. Case)

Feature:

• Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.

• Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.

• Programmable via Flipsky VX4Pro remote (remote firmware version: VX4 Pro_V1.2 or above).

• Supporting motor FOC with low working noise and smooth starting.

• Supporting real-time data and fault alerts.

• Supporting adaptive variable PWM frequency control.

• Supporting save / load configuration files via ESC Tool.

• Supporting multiple speed levels: Level 1 (Low), Level 2 (Medium), Level 3 (High), Level 4 (PAS Only), Level 5 (PAS Only).

• Supporting sensor mode (HALL, ENCODER) and sensorless mode (IPDS, HFPI, OPEN).

• Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER (such as ABI Encoder, AS5047 SPI, TLE5012 SPI, AS5600 IIC), OPEN (Sensorless Open-Loop Startup)
• Traction Control: YES

• Supporting control types: Current, Duty Cycle, Speed control, Position Control.

• Supporting PAS cadence sensor.

• Supporting emergency stop and shutdown.

• Support safe power-on protection (in PPM&ADC control modes only).

• Protection functions: low and high voltage protection, MOSFET over-temperature and over current protection, battery overcharge and discharge protection, motor over-temperature protection.

• Supporting multiple typed of motor temperature sensors such as NTC-10K-25℃ , NTC-10K-100℃ , PT1000, PTC-1K-100℃ , KTY and so on.

Wiring diagram:

Manual:

https://cdn.shopify.com/s/files/1/0011/4039/1996/files/FT110BS_V1.6_20251030.pdf?v=1762156521
