Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module
Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module

Flipsky FSESC EXPRESS ESP32 VESC CAN Adapter Supports Connection to VESC Motherboard /GPS Module

$9.00
/
Shipping calculated at checkout.
STYLE
  • In stock, ready to ship
  • Inventory on the way

Specifications :

  • Firmware Version: VESC Tool 6.05 (support V6.02 or above)
  • Import Voltage: DC5V
  • VESC Tool Version: V6.02 or above
  • Microprocessor: ESP32
  • Communication Ports: USB / CAN / Bluetooth / WiFi / GPS / Micro SD
  • CAN Baud Rate: 10K / 20K / 50K / 75K / 125K / 250K / 500K / 1M
  • GPS receiving format: GPS / GALILEO / GLONASS / BEIDOU / SBAS / QZSS

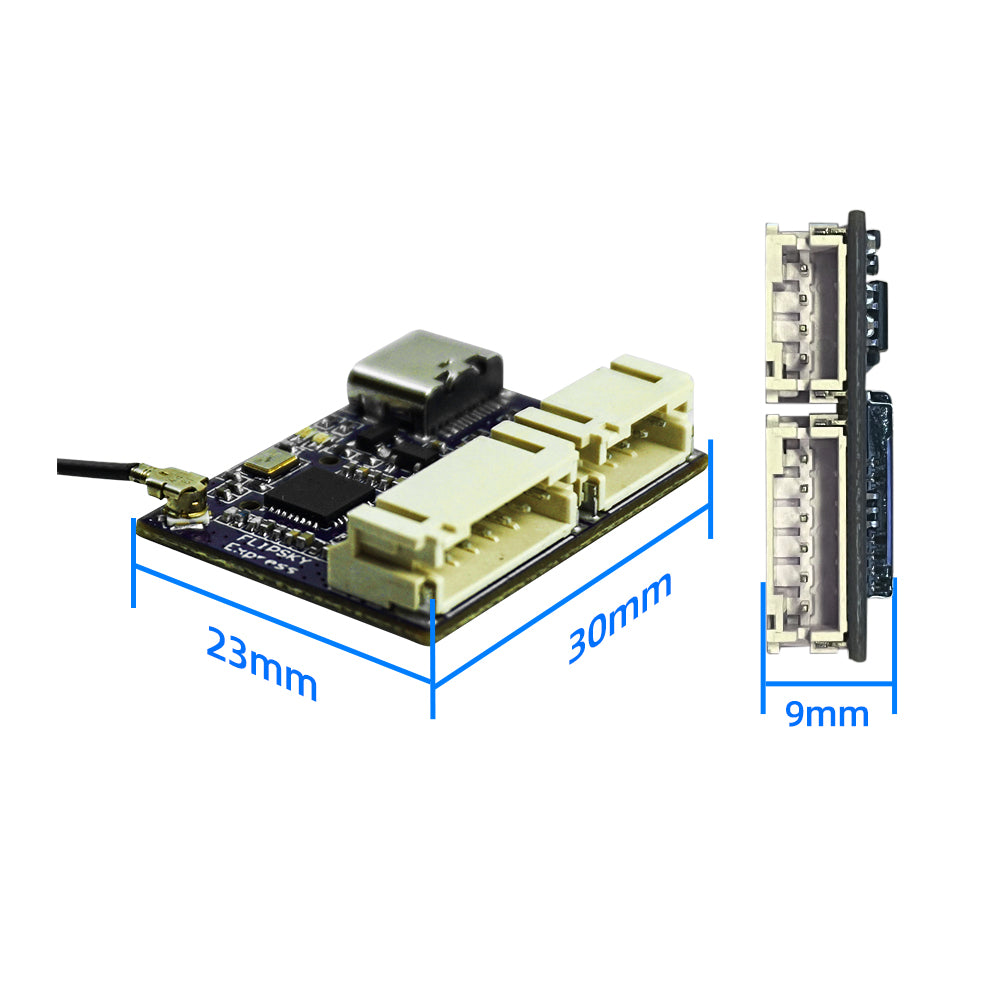

  • Mainboard Size: 30*23*9mm (without antenna)

Features:

  • Black Box: Record the data in the micro SD.
  • Support firmware update, Bluetooth and WiFi connection to realize wireless parameters settings, data analysis and read the stored log files.

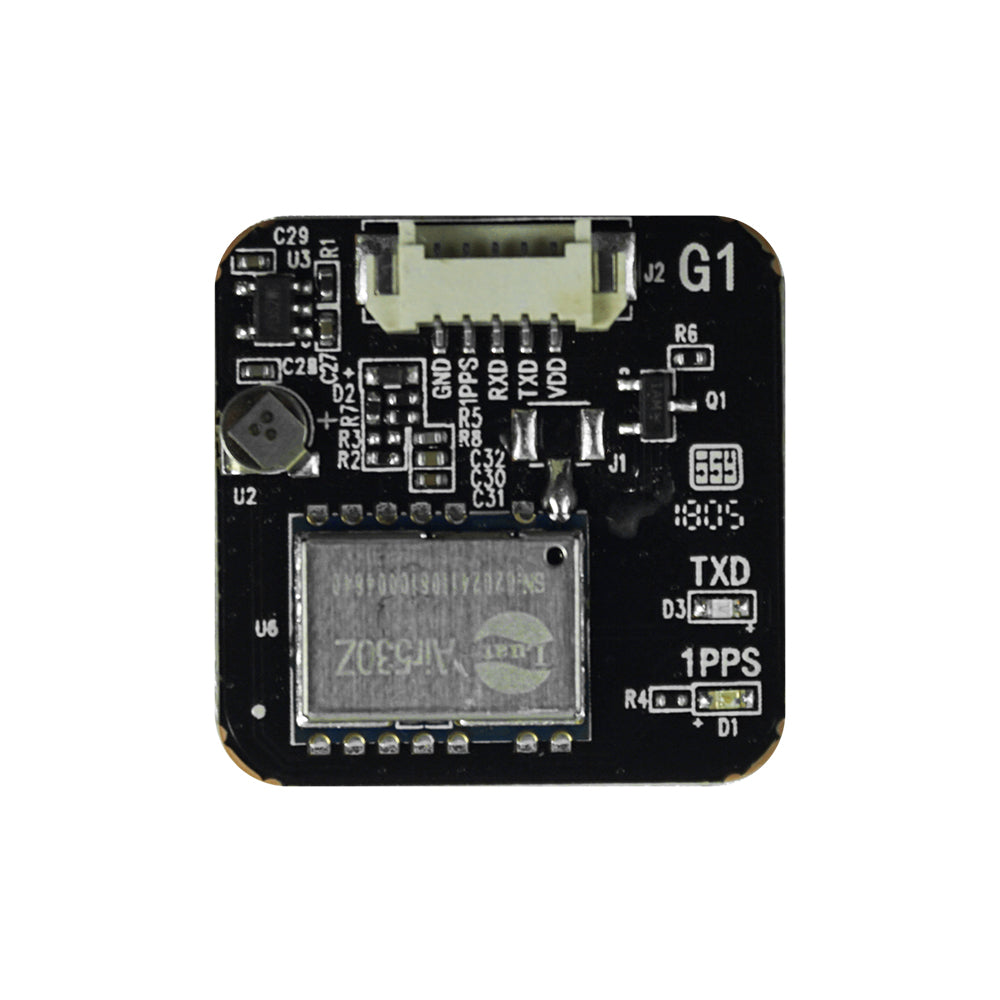

  • Support external GPS (GNSS) module (M8030 chipset).
  • Support Bluetooth and WiFi set personalized name and PIN code.
  • Support two different WiFi modes: Station Mode/ Access Point.
  • Connect the VESC mainboard via CAN.
  • Extra small size: 30*23*9mm (without antenna).

Wiring diagram1:



Wiring diagram2:

FSESC EXPRESS Module Manual
