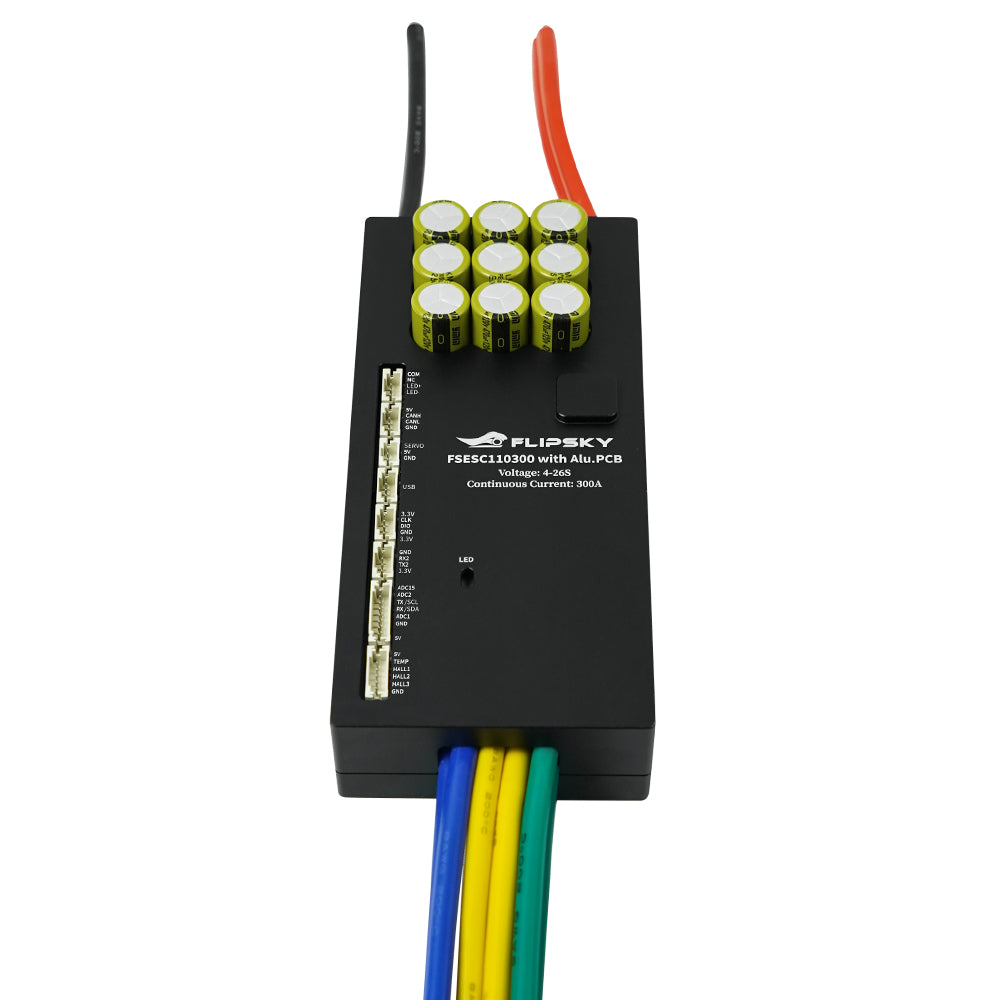

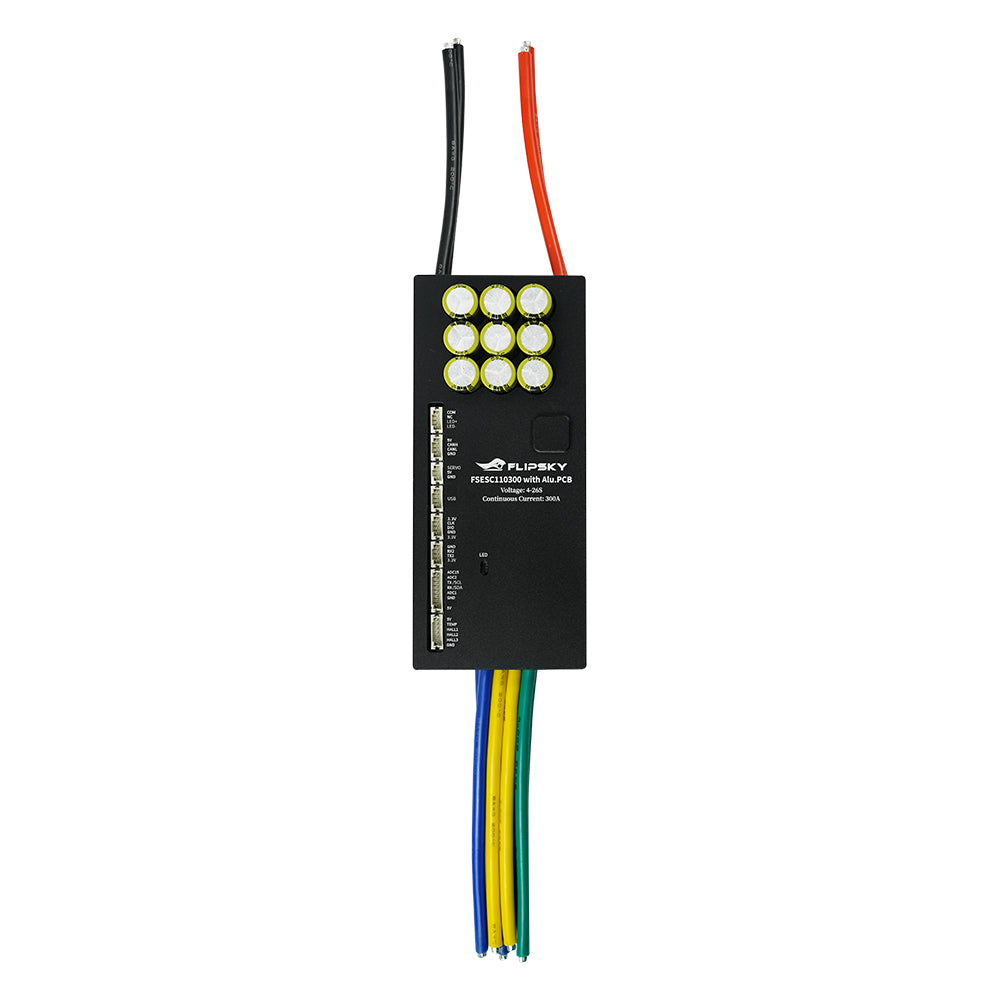

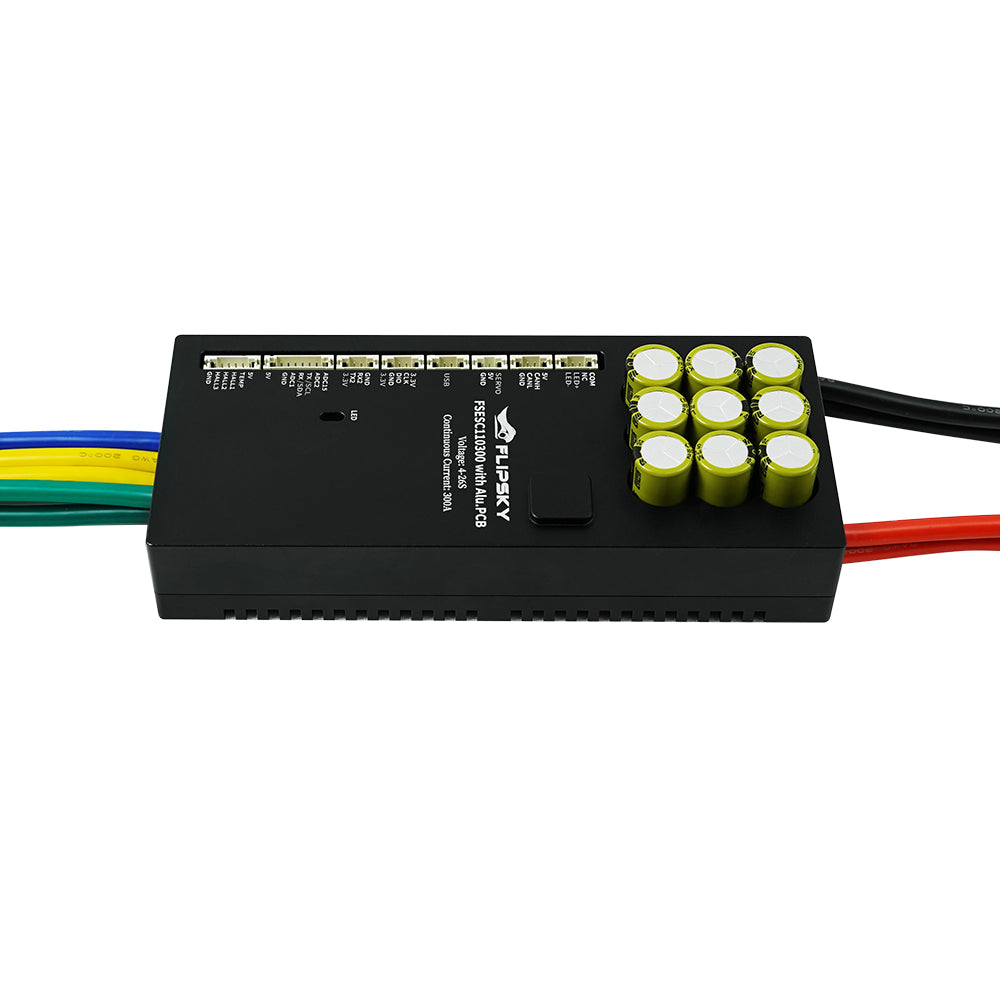

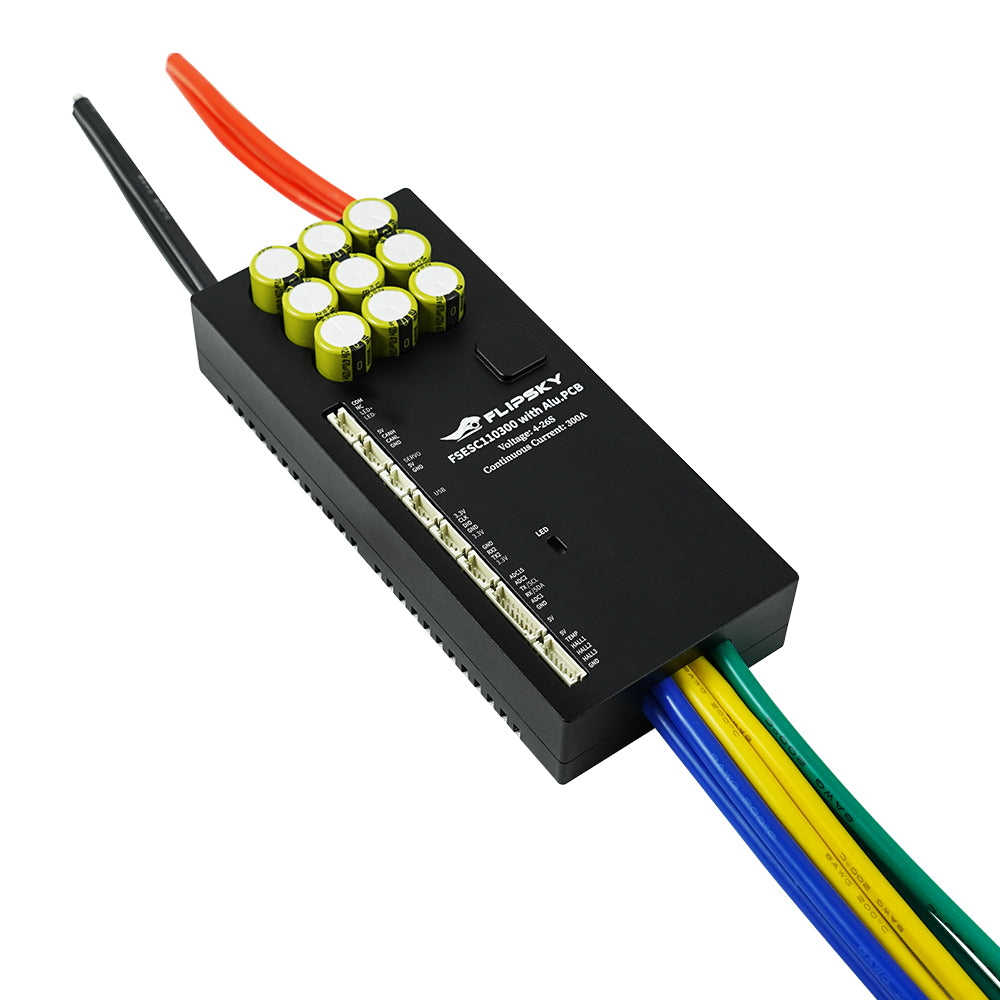

Flipsky FSESC 110300 High Voltage 110V 300A With Aluminum PCB Based on VESC For Fighting Robot Surfboard AGV Robot/Electric Scooter/Electric Motorcycle

Specs:

• Firmware: 6.05 (or above in the future)

• Voltage: 14-110V (safe for 4-26S)

• Continuous current: 110V/300A (Values depend on the mounting,ambient temperature and air/water circulation around the device!); Burst: 800A

• BEC: 5V@3A

• Support Modes: BLDC, FOC (sinusoidal)

• ERPM: 150000

• Communication Ports: USB, CAN, UART, SPI, IIC

• Supported Sensors: ABI, HALL, AS5047, AS5048A

• Input Source Support: PPM, ADC, NRF, UART

• Supported Sensorless: Yes

• Regenerative capacity: Yes

• Programmable via VESC_TOOL: Yes

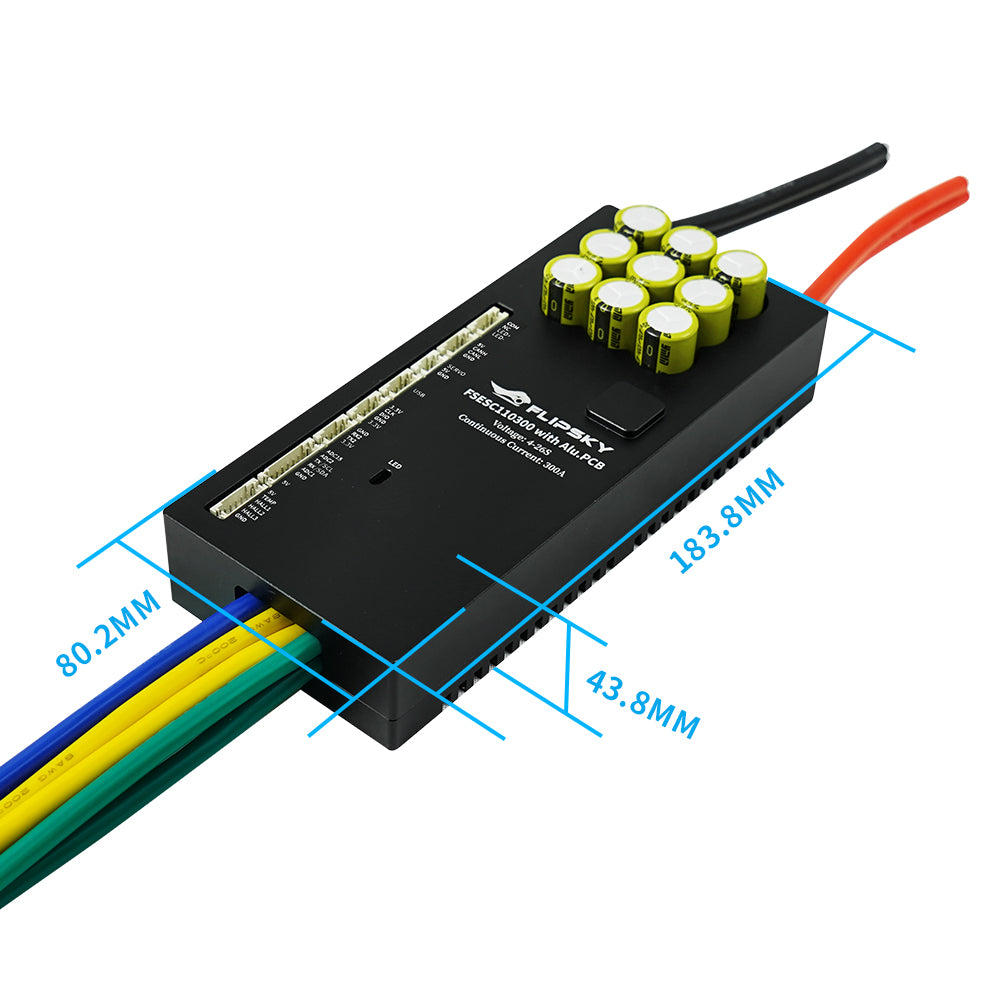

• Size: 183.8*80.2*43.8mm

• Motor/power wire size: 8AWG

• Phase Filter: Yes

• Power Switch Button: Red

Feature:

• Adjustable protection against: low voltage protection, high voltage protection, over current protection

• temperature abnormal protection, mosfets / motor over temperature protection

• Support various control modes: Current / Duty cycle / Speed / PID control modes

• CPU: SMT32F405 with frequency 168MHz

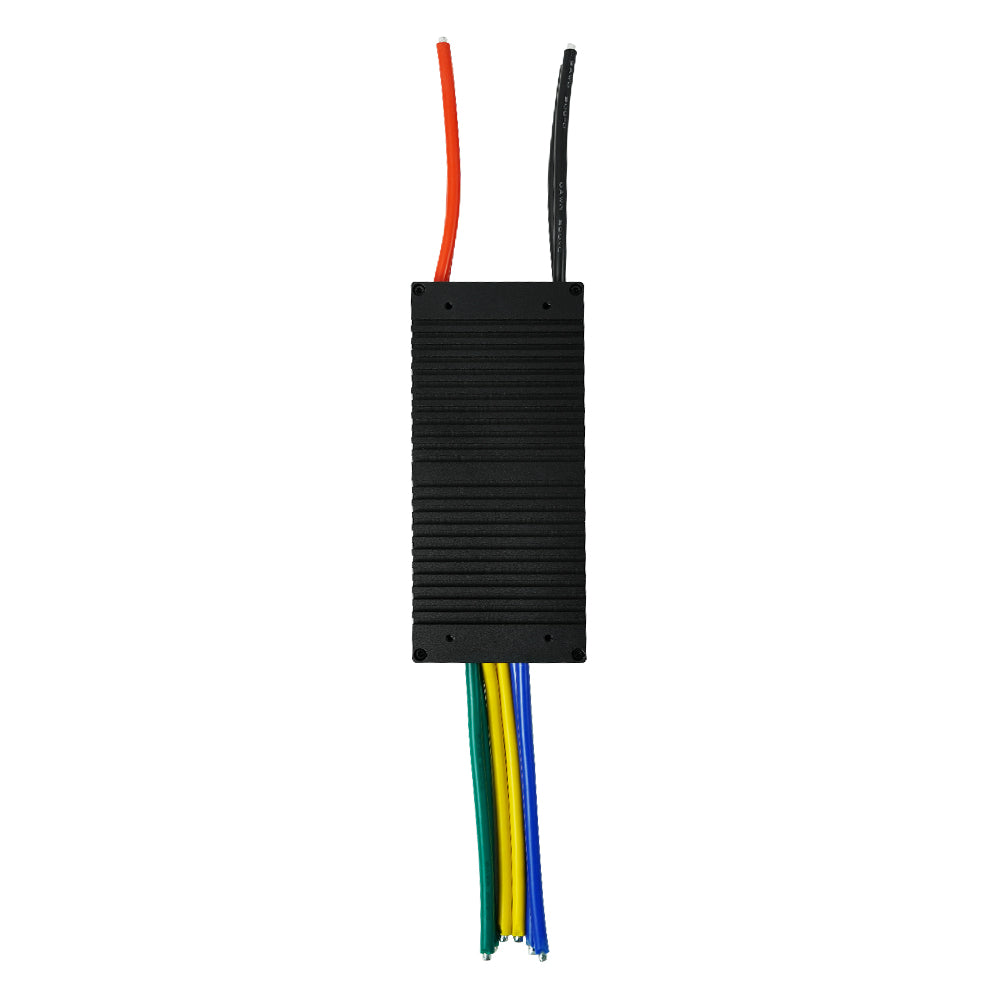

• Design with Aluminum PCB with good heat dissipation to expand life span

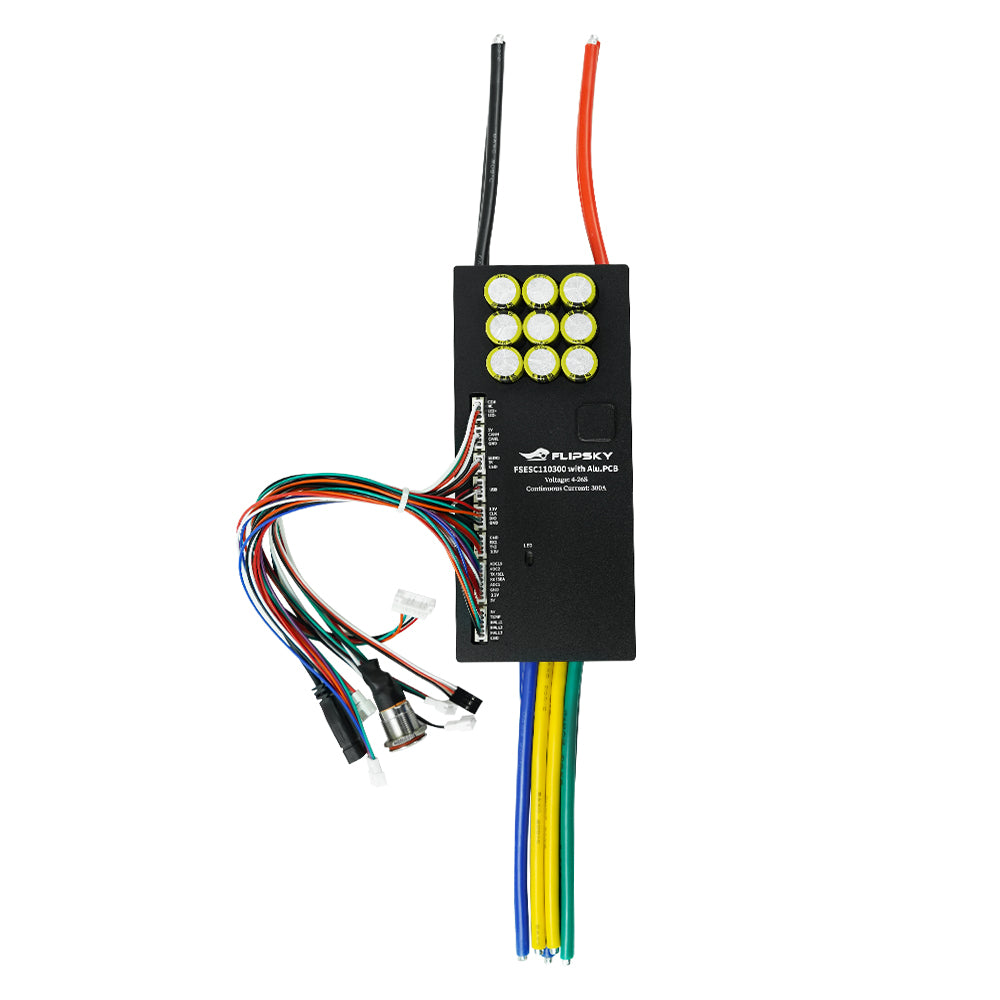

• FSESC110300 with aluminum pcb: supports serial port function,and built with powe on/off switch

Wiring diagram:
