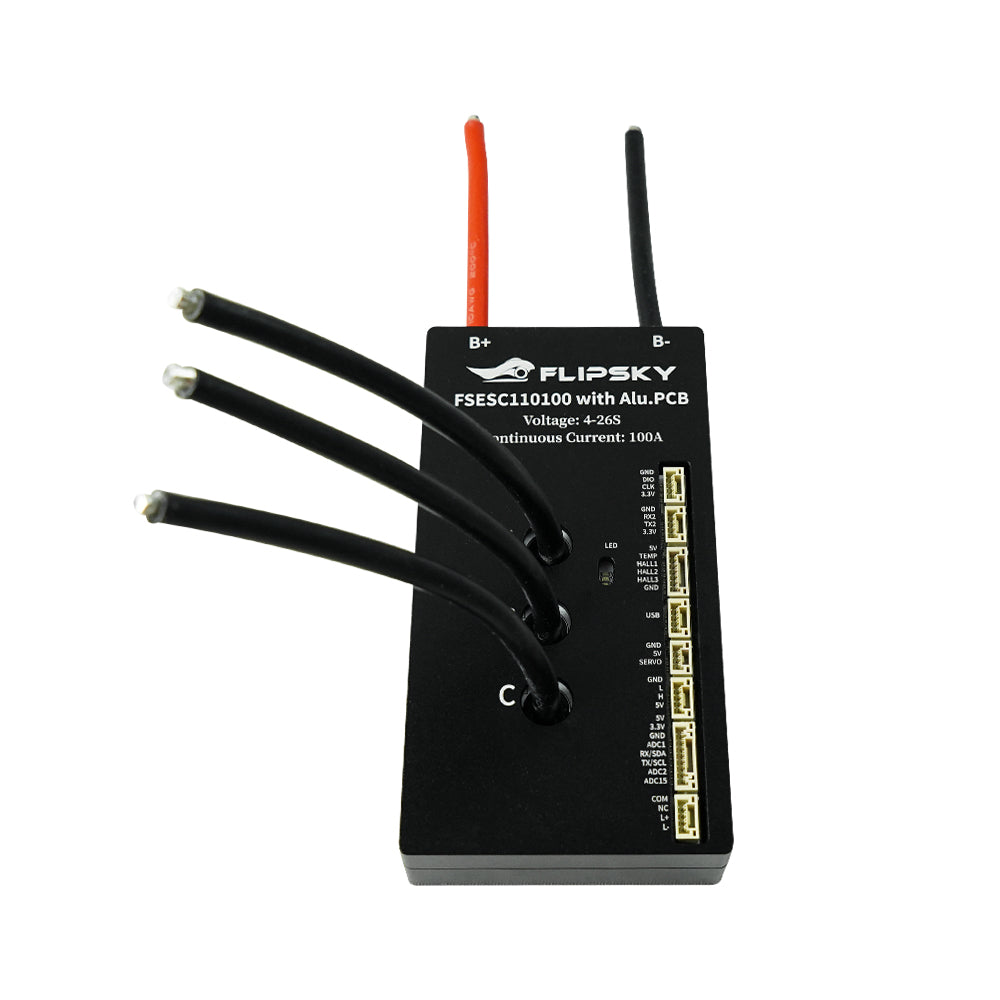

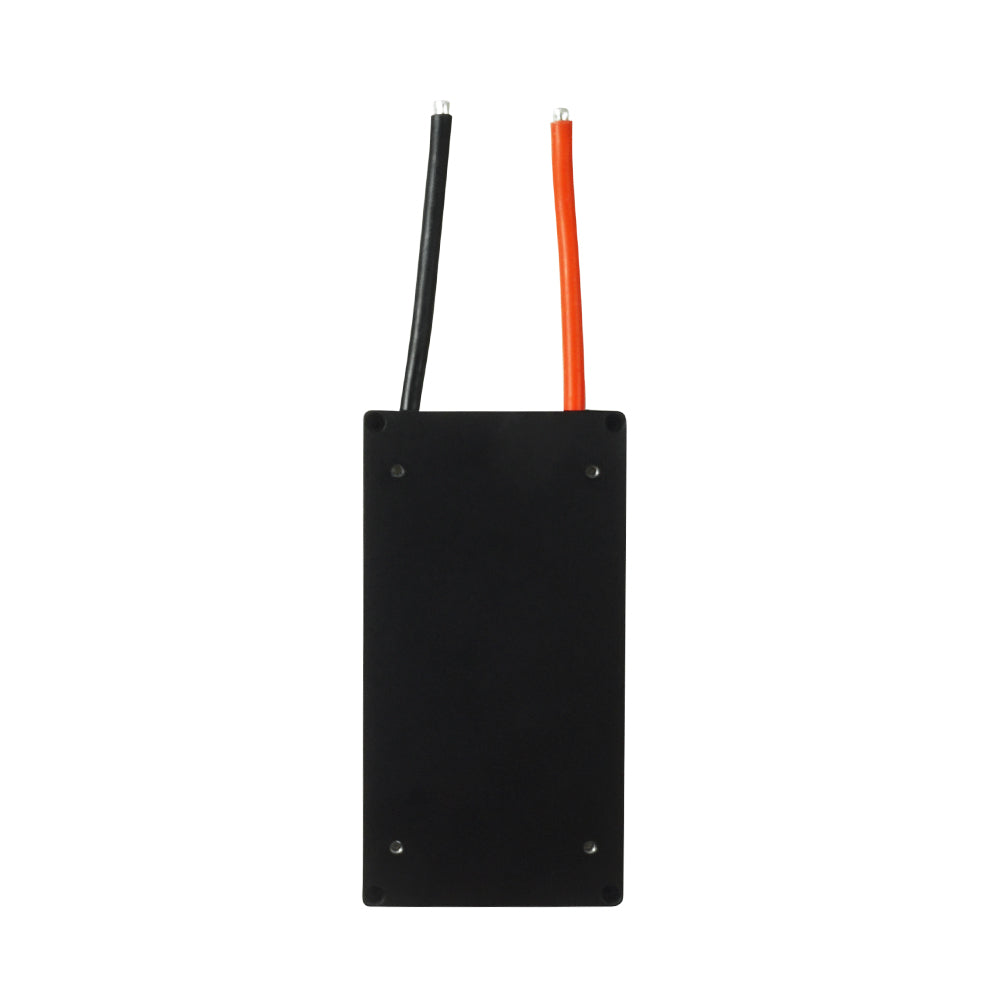

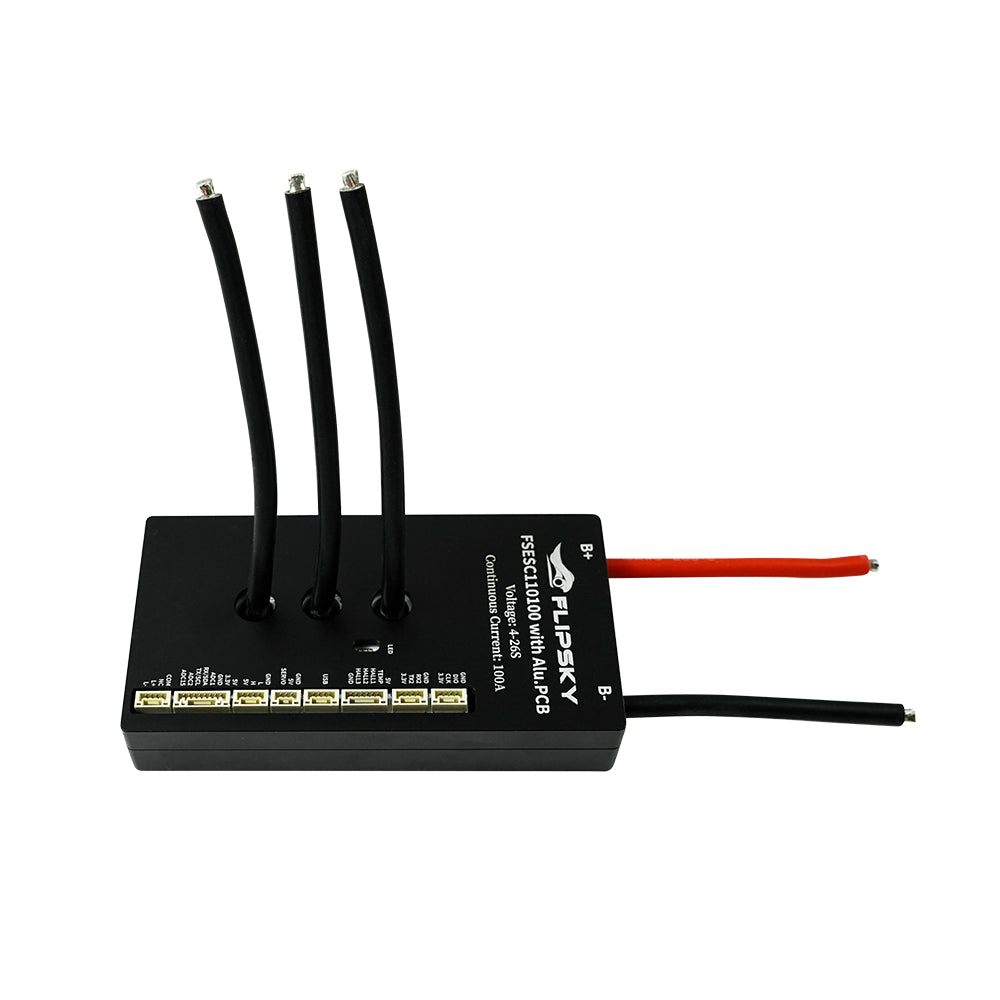

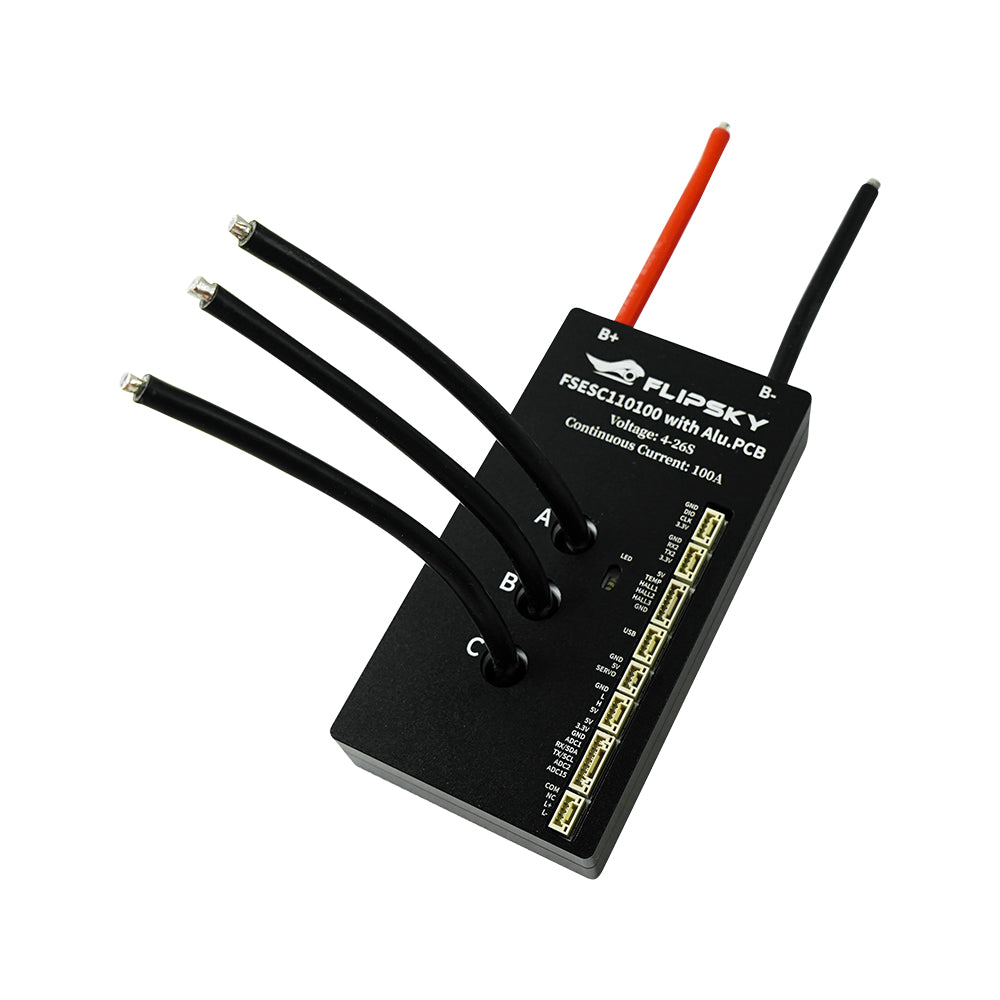

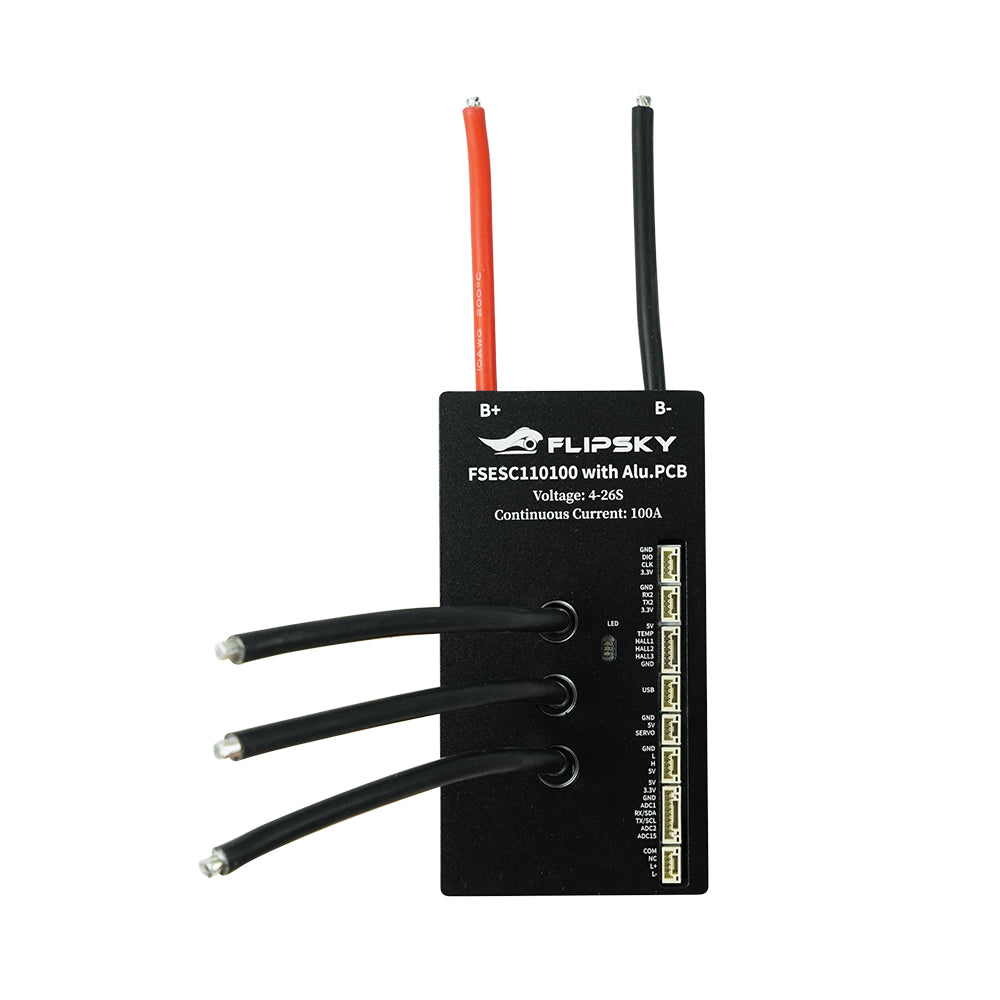

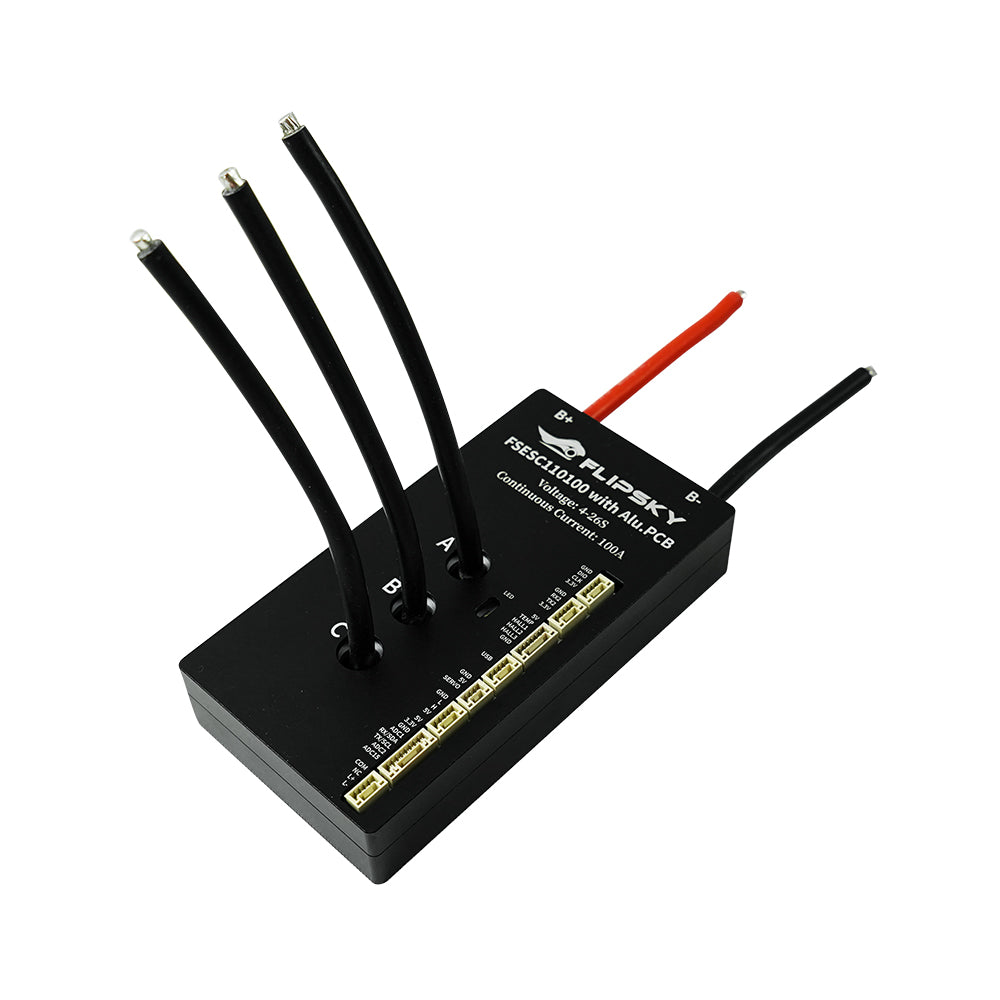

Flipsky FSESC 110100 High Voltage 110V With Aluminum PCB Based on VESC For Fighting Robot Surfboard AGV Robot

Specs:

• Firmware: 6.05 (or above in the future)

• Voltage: 14-110V (safe for 4-26S)

• Continuous current: 50V/120A; 110V/100A (Values depend on the mounting,ambient temperature and air/watercirculation around the device!); Burst: 250A

• BEC: 5V@3ASupport Modes:BLDC,FOC (sinusoidal)

• ERPM: 150000

• Communication Ports: USB, CAN, UART, SPI, IIC

• Supported Sensors: ABI, HALL,AS5047, AS5048A

• Input Source Support: PPM, ADC, NRF, UART

• Supported Sensorless: Yes

• Regenerative capacity: Yes

• Programmable via VESC_TOOL: Yes

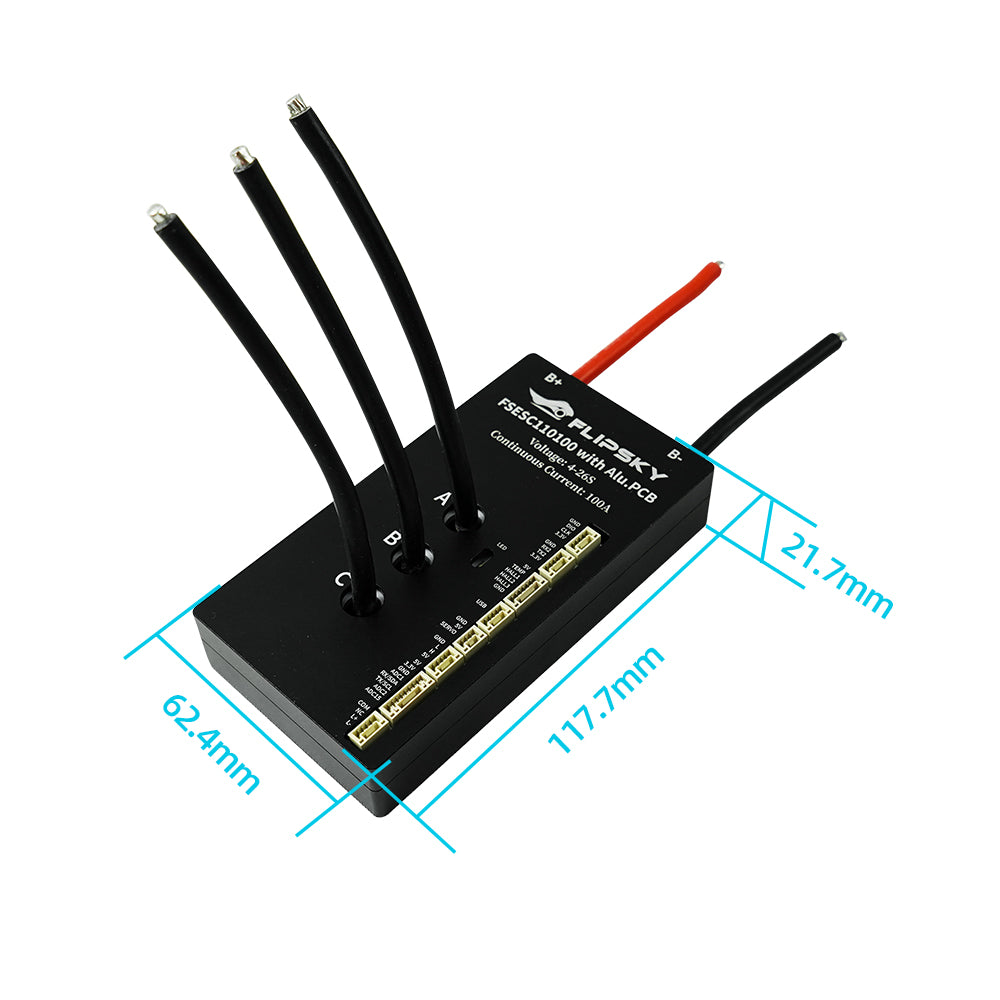

• Size: 117.70x62.40x21.70mm

• Motor/power wire size: 10AWG

• Phase Filter: Yes

• Power Switch Button: Red

Feature:

• Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.

• Support various control modes: Current / Duty cycle / Speed / PID control modes.

• CPU: SMT32F405 with frequency 168MHz

• Design with Aluminum PCB with good heat dissipation to expand life span.

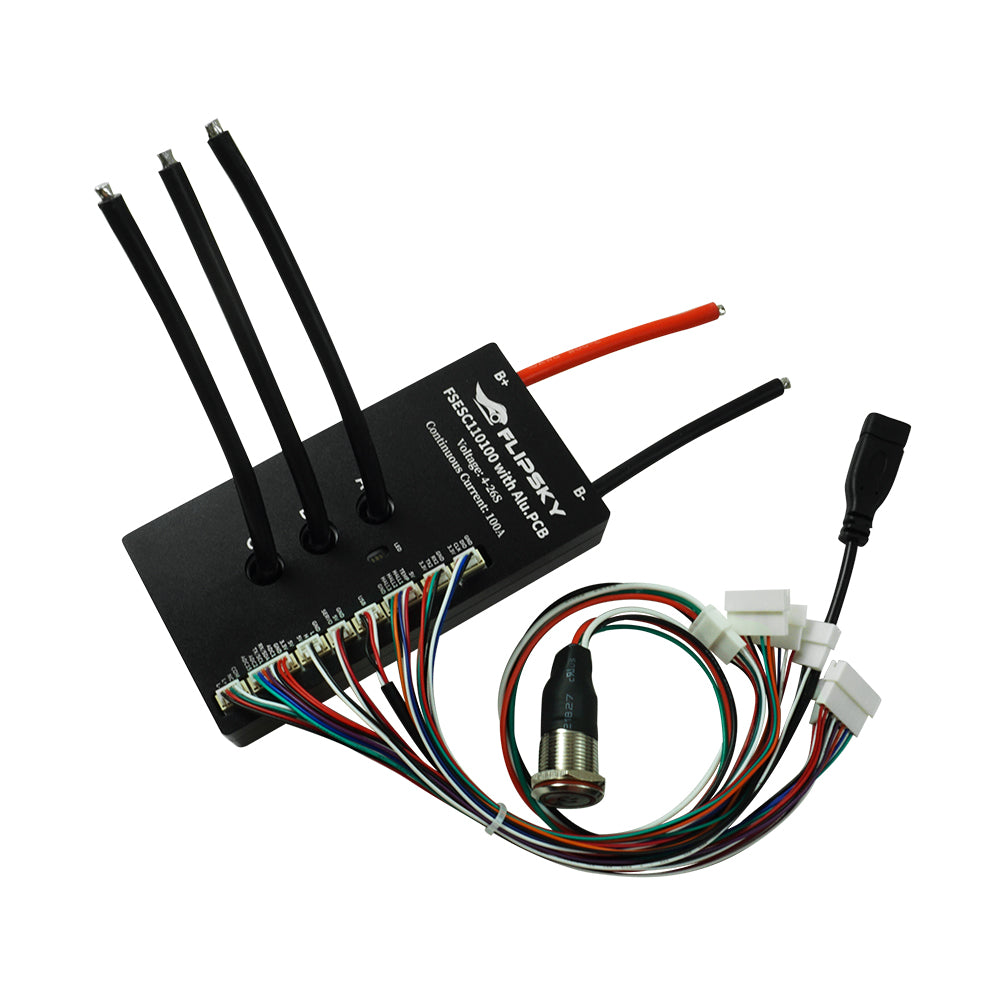

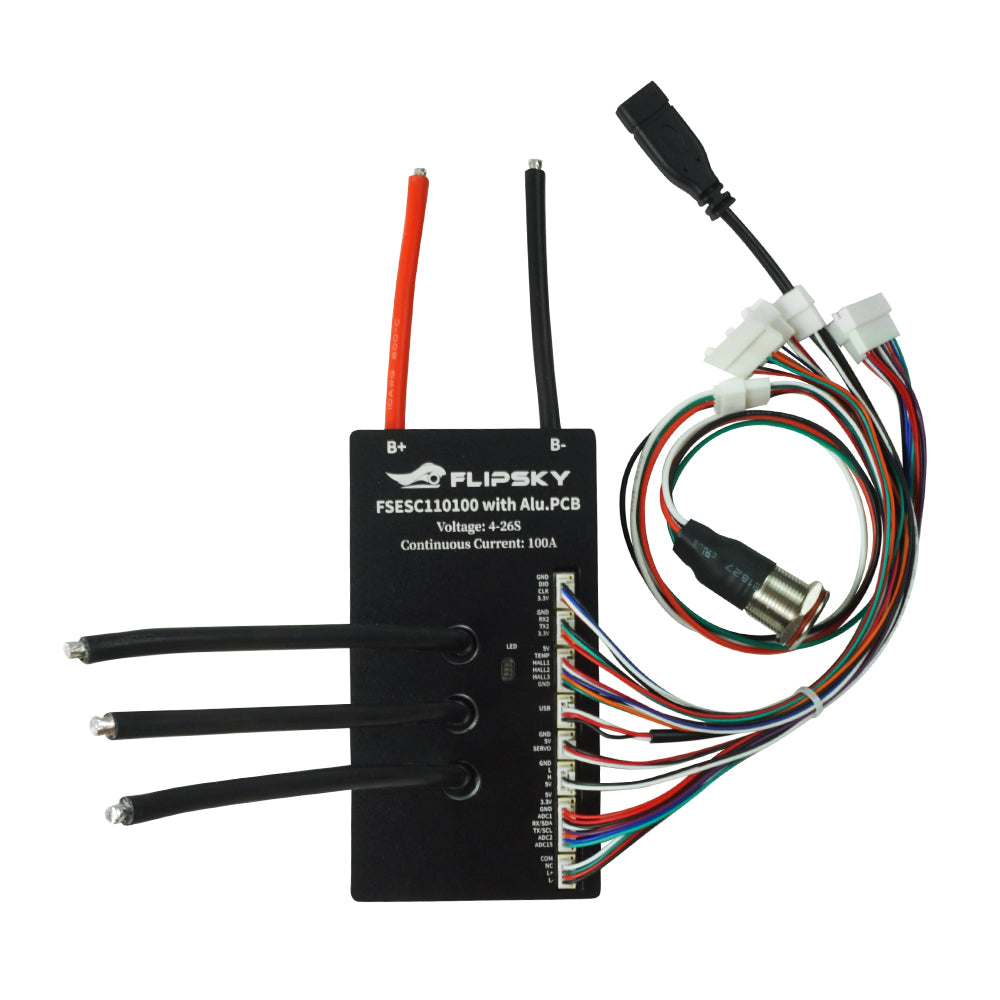

• FSESC110100 with aluminum pcb: supports single serial port function,and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time), and built with power on/off switch.

Wiring diagram:
