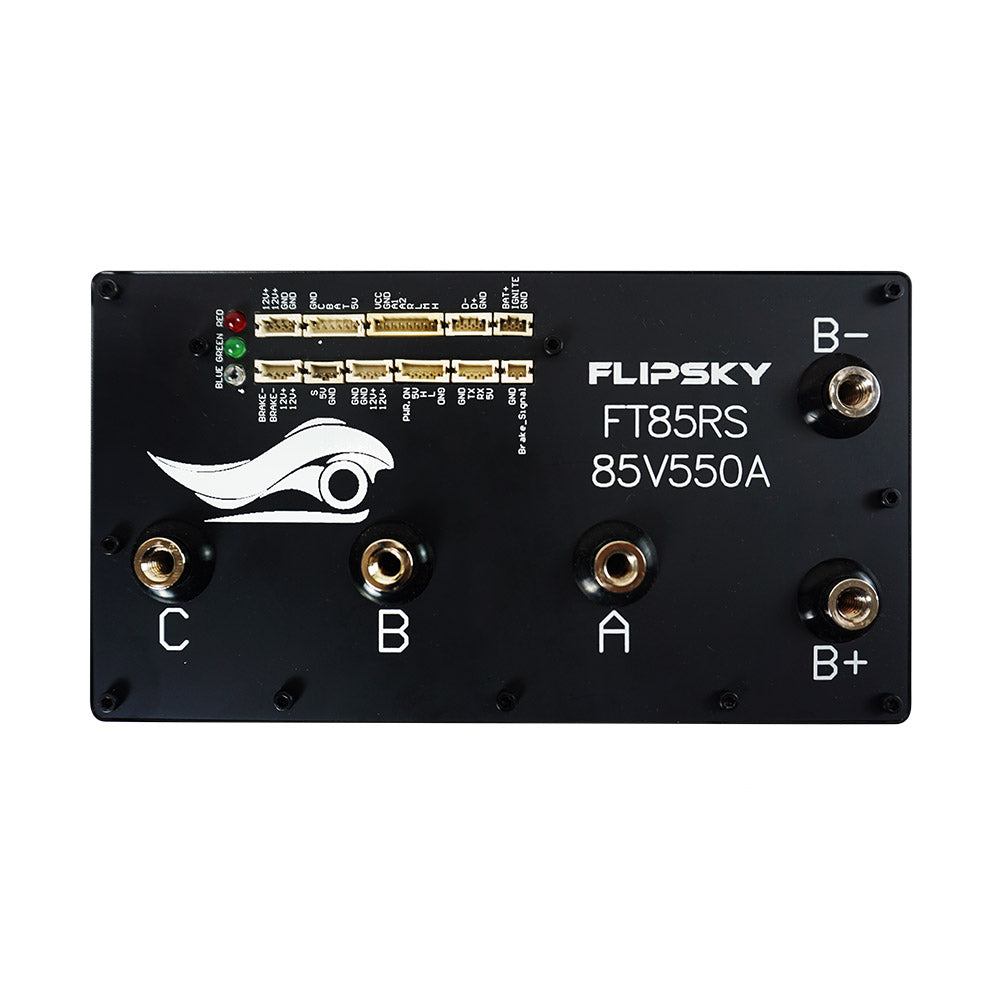

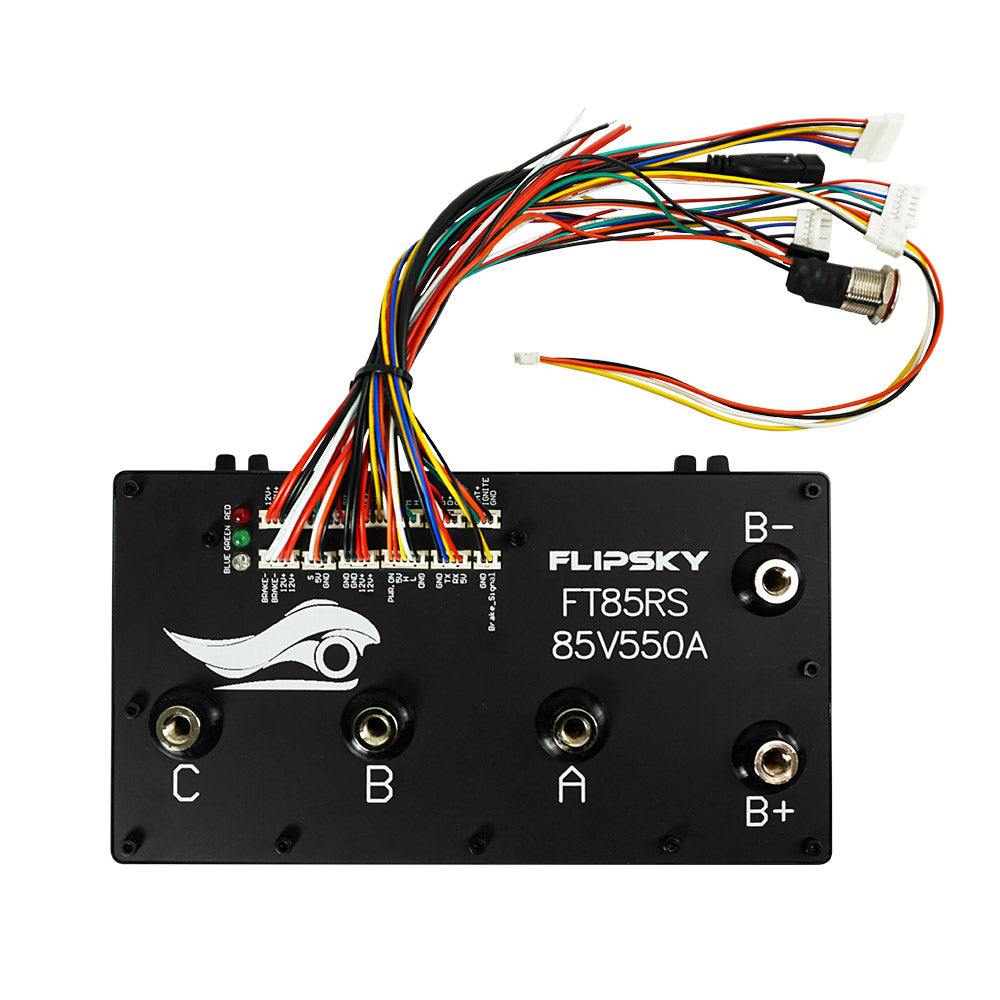

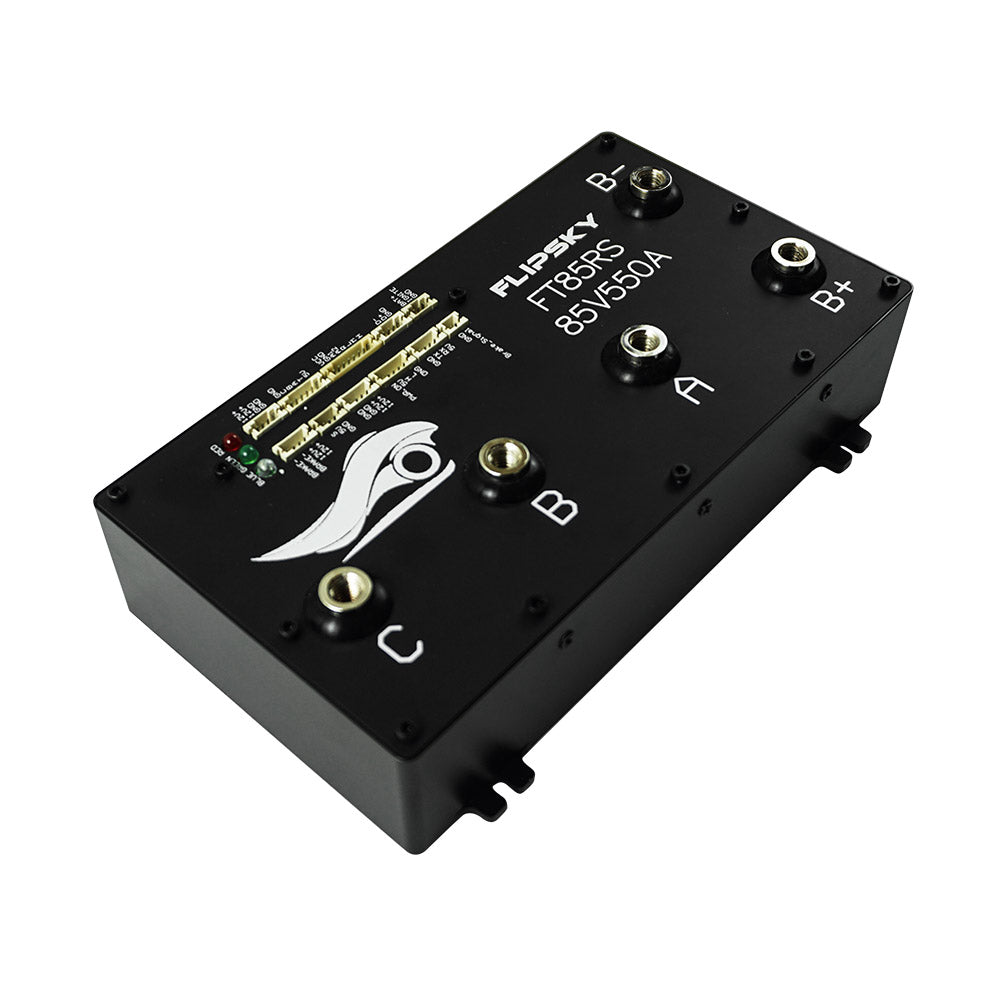

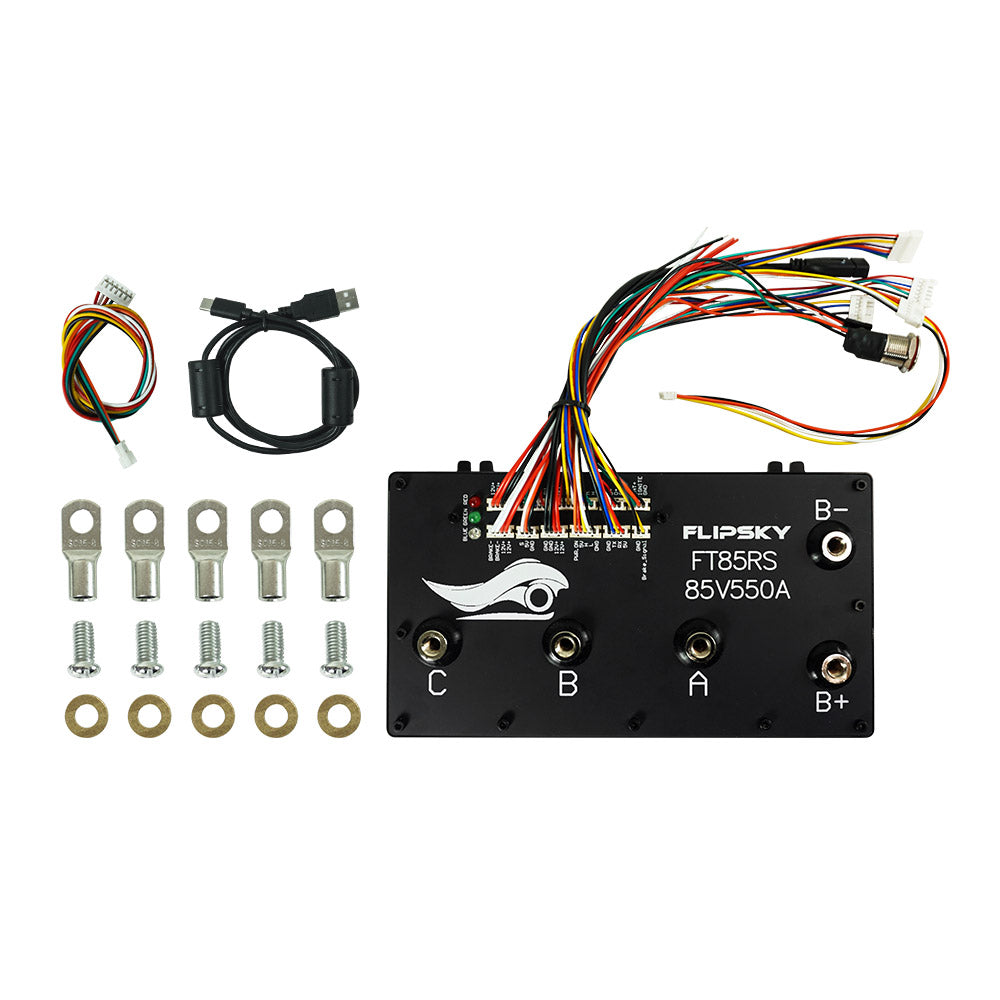

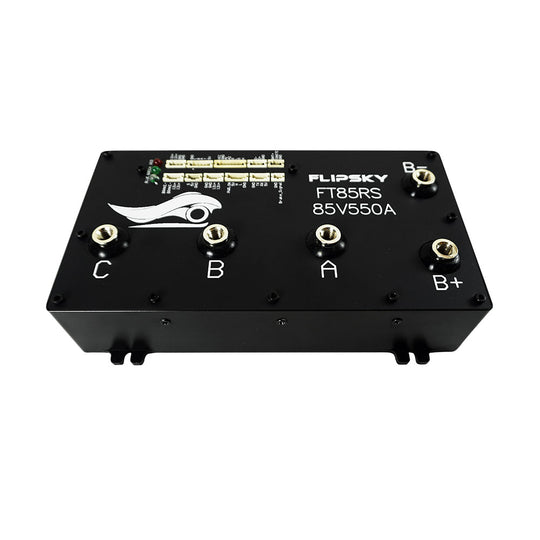

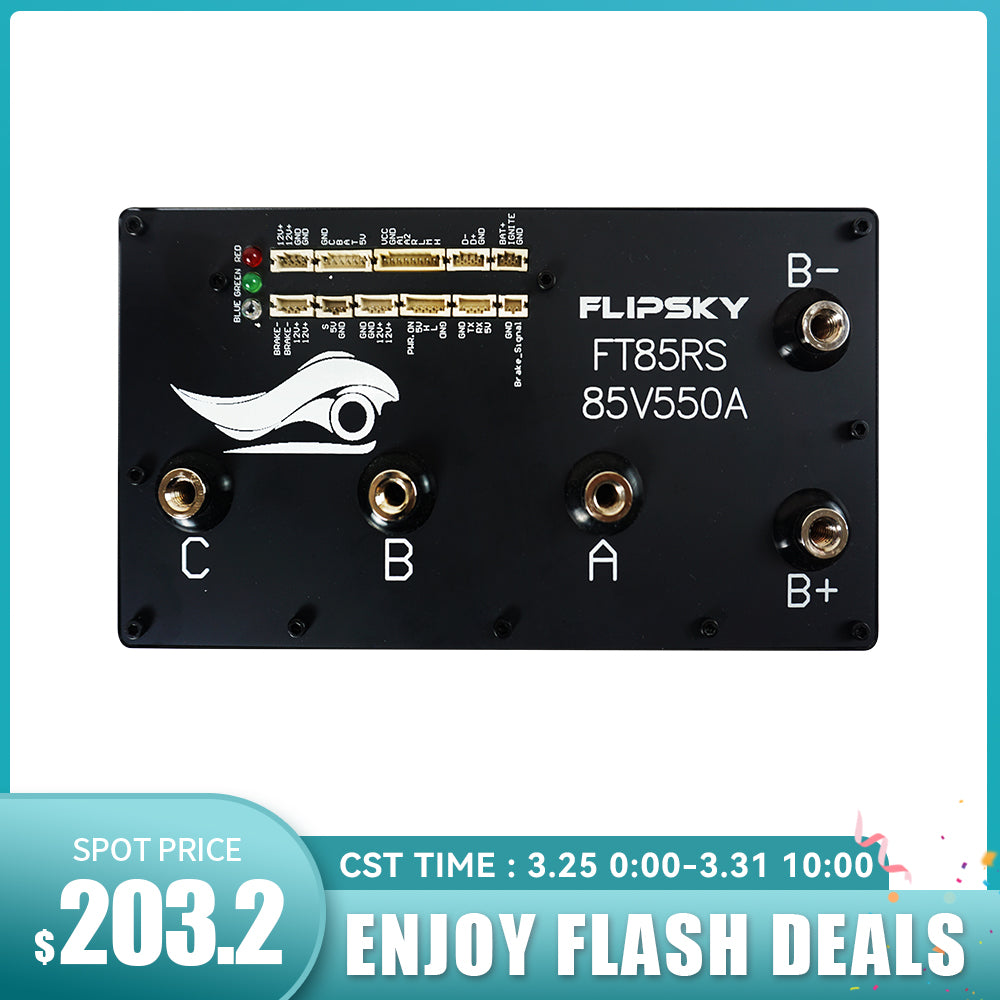

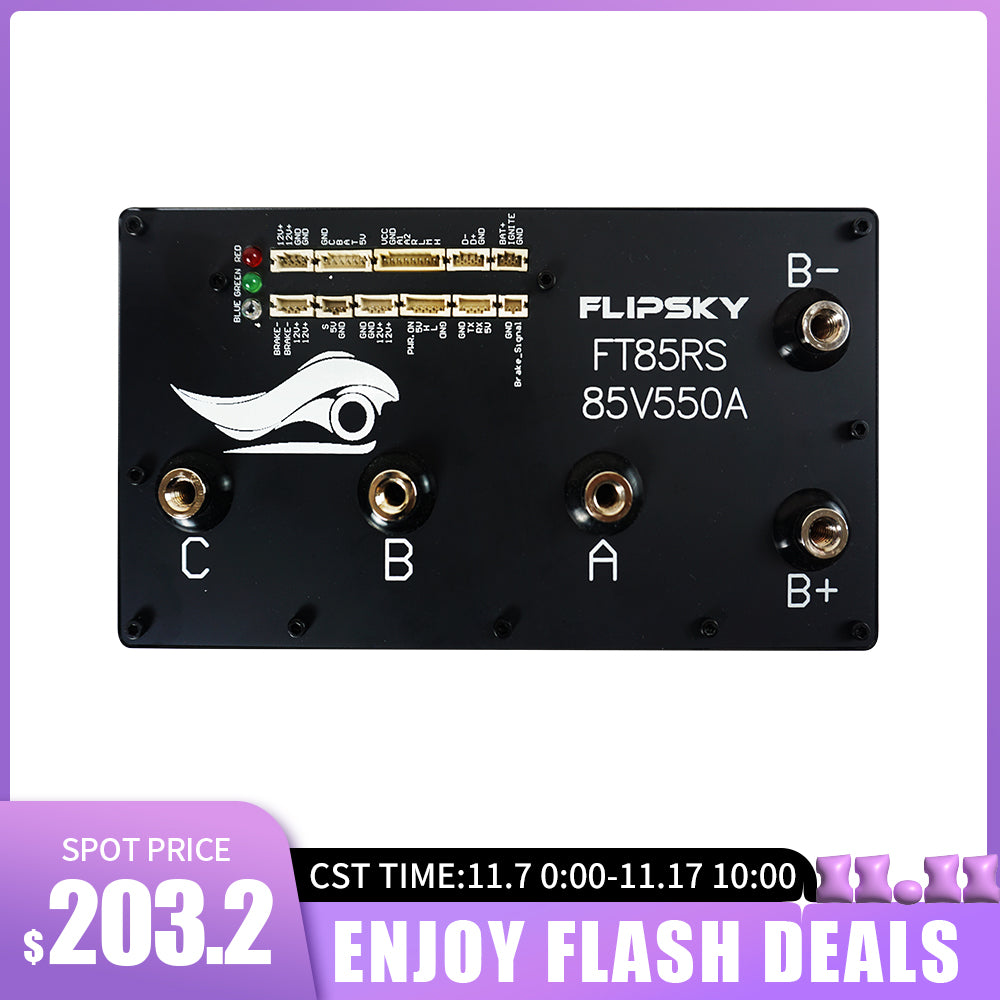

Flash Deals Flipsky FT85RS 85V 550A With Aluminum Enclosure Support PWM Variable Frequency Control And Brake Signal NON-VESC For Electric Skateboard /Ebike Speed Controller / Scooter / Electric Motorcycle / Robotics

Specifications :

• Firmware: V1.5 and above (firmware update via Flipsky ESC Tool supported)
• Voltage: 14V-85V (safe for 4S-20S)
• Continuous current: 50V/550A; 75V/450A; 85V/400A(Values depend on the mounting, ambient temperature and air/water circulation around the device.)

• Peak Current: 1000A

• BEC: 5V@1A

• Power/Motor Wires: Integrated M8 terminals

• Programmable Tool: Flipsky ESC TOOL

• PWM Frequency Control: YES

• Multiple Speed Gear Limit Control: YES (UART / ADC)

• Regenerative Capacity: YES

• Communication Ports: USB, CAN, UART, PPM, ADC/PAS

• Input Signals Support: PPM, ADC, PAS, UART(compatible with FLIPSKY remote such as VX1, VX1Pro, VX2, VX3, VX3Pro, VX4Pro )

• Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER(ABI Encoder, AS5047 Absolute Type Encoder SPI Port), OPEN(Sensorless Open Loop Startup)
• Traction Control: YES

• Multiple Speed Gear levels: Low, Medium, High, Reverse

• Switch Support: Power on/off button switch or key switch

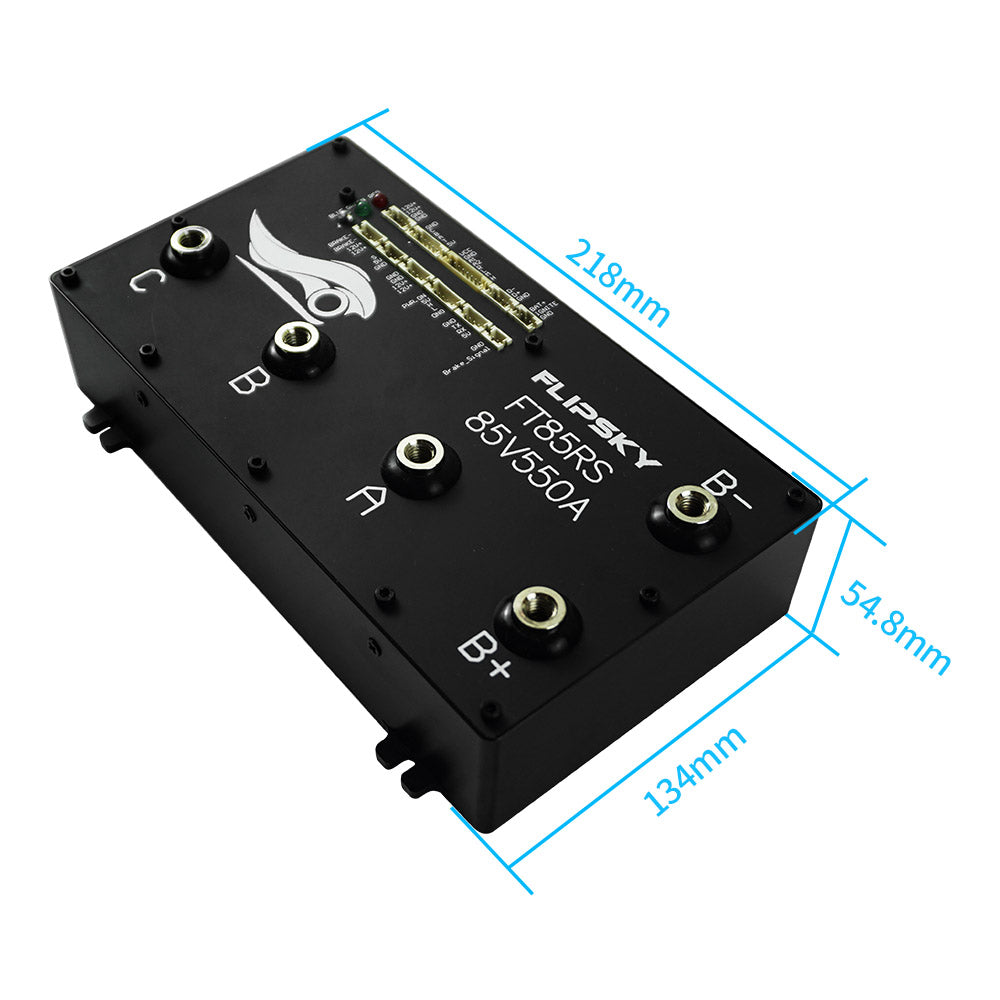

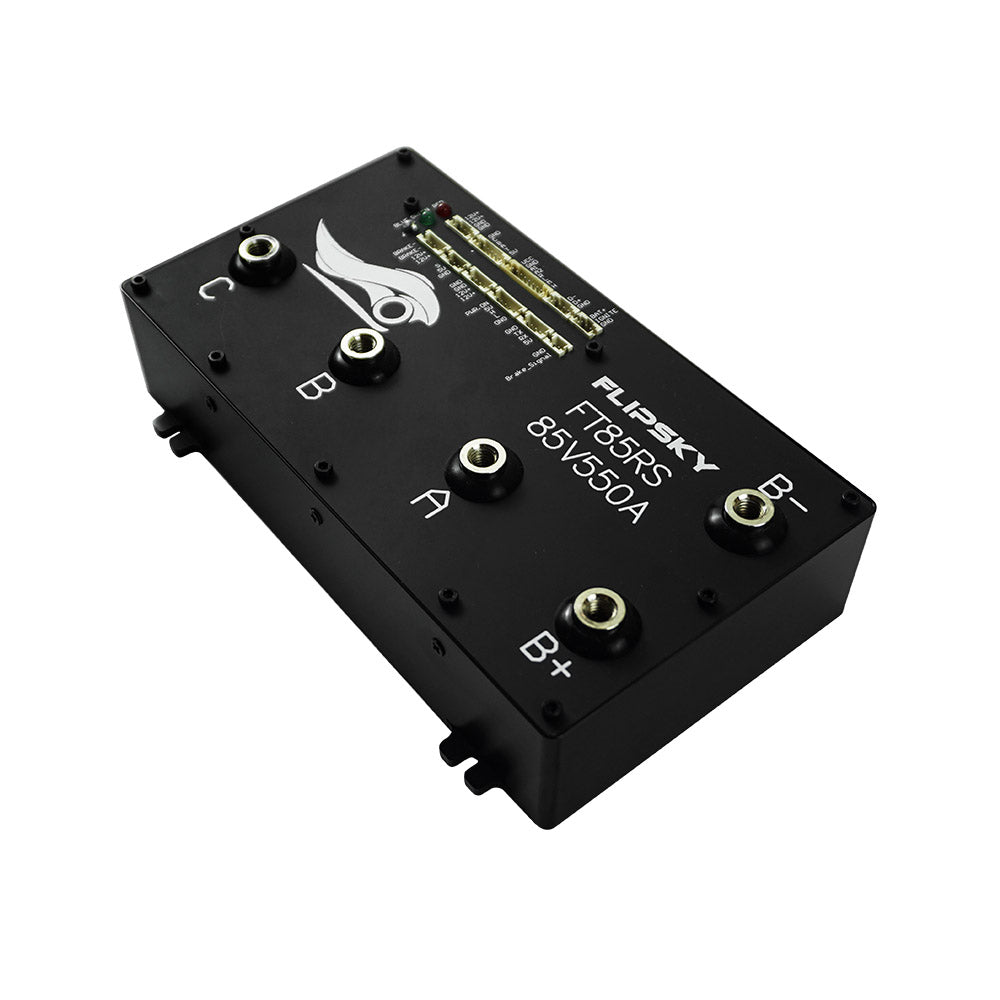

• Size:L218*W134*H54.8(with aluminum enclosure)

Features:

• Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.

• Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and multiple control methods.

• Programmable via Flipsky remote controller VX4Pro(remote firmware version: VX4Pro_V1.1 and above)

• Supporting motor FOC with low working noise and smooth starting.

• Supporting Real-time data and fault alerts.

• Supporting adaptive variable PWM frequency control.

• Supporting sensor mode(HALL, ENCODER) and sensorless mode(IPDS, HFPI, OPEN).

• Supporting control types: Current, Duty Cycle, Speed Control, Position Control.

• Supporting multiple types of motor temperature sensors such as NTC-10k-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY, etc.

• Protection functions: low and high voltage protection, motor over-temperature
• protection, MOSFET over-temperature and over current protection, battery over discharge protection.

• Integrating power of 12V(3pcs) to provide power for external devices(headlight, brake light, horn, etc.) with two groups normally open and one controlled by brake signal. (Note: maximum output current:4A)

• Supporting brake signal to cut off ESC output.

Wiring diagram:

flipsky_esc_tool  software and manual download link
