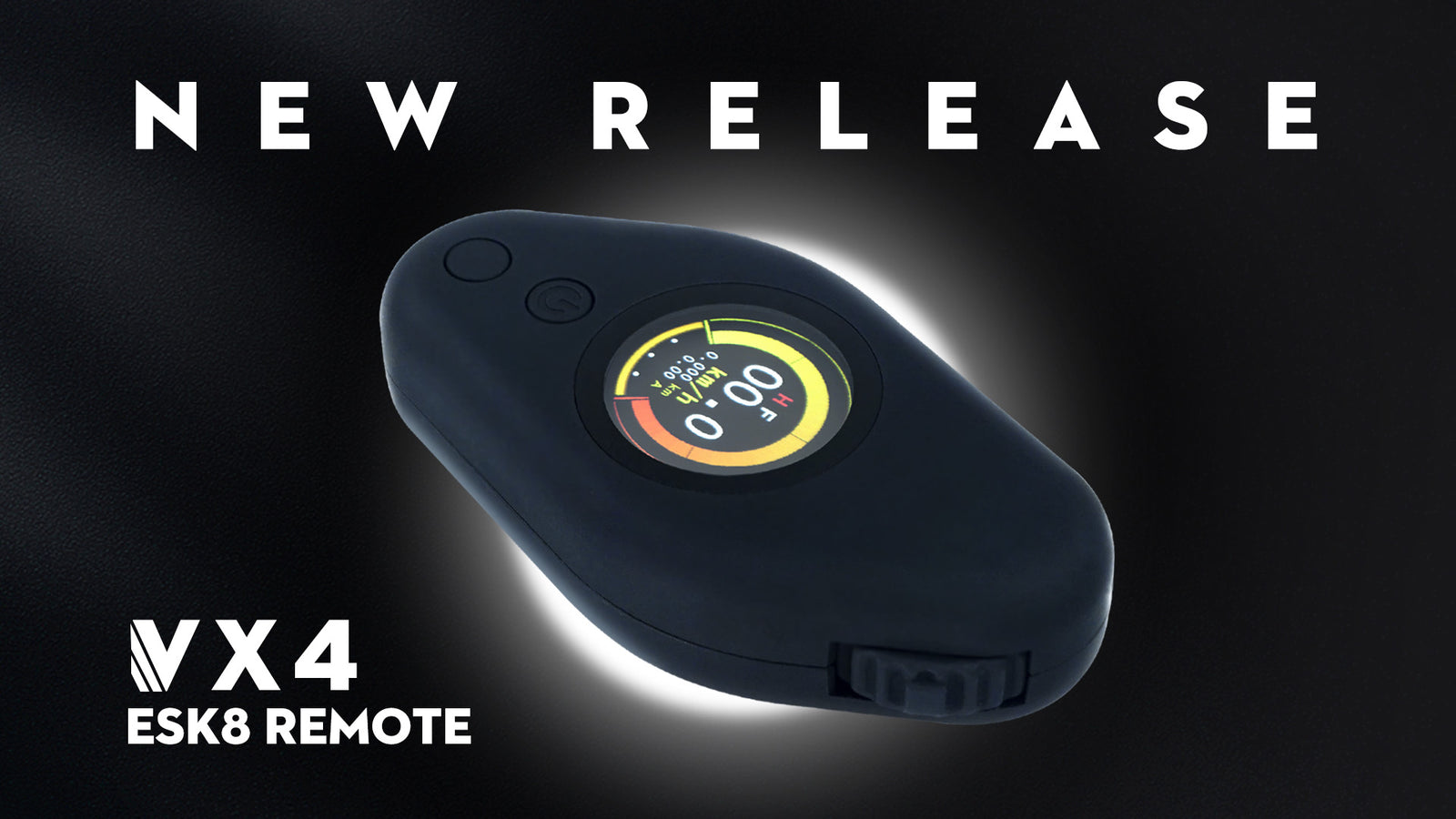

VX4 Remote: Three Control Mode PPM/UART/PPM and UART

PPM Control

1.Select PPM in remote setting "Control Type".

2.Remote enter into pairing .PPM wire connect to receiver, and pairing succeed.

3.Setting in VESC TOOL:"General"-App to Use"PPM"-Write in.Setup Input-PPM input-Next.Throttle calibration-Next-Finish.

4.PPM control mode does not show real-time data.

UART Control

1.Select UART in remote setting "Control Type".UART wire connect to receiver, and pairing succeed automatically.

3.Setting in VESC TOOL:"General"-App to Use"UART"-Write in.

4.UART control mode shows real-time data.

PPM and UART Control

1.Select PPM and UART in remote setting "Control Type".

2.Wiring as follows, and pairing succeed automatically.

3.Setting in VESC TOOL:"General"-App to Use"PPM and UART"-Write in.

4.PPM and UART control mode shows real-time data.Know more about VX4:https://bit.ly/3ENBYBz
