The Differences Among Dual Mini FSESC6.7 / Dual FSESC6.7 Plus/ Dual FSESC6.7

Dual Mini FSESC6.7 / Dual FSESC6.7 Plus/ Dual FSESC6.7 comparision are as follows:

Continuous current Single70A,total 140A Continuous 100A single, total 200A Continuous 100A single, total 200A
Instantaneous current Instantaneous current 200A per single, total 400A Instantaneous current 400A per single, total 800A  Instantaneous current 400A per single, total 800A
Voltage 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ) 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC
Supported sensors ABI,HALL,AS5047,AS5048A ABI, HALL, AS5047 ABI, HALL, AS5047
Motor wire 12AWG 12AWG 10AWG
MOS Q'ty 12 29 36
Capacitors 220uf/100V Small Size120uf 80V/Big Size 220uf 80V 470uf/100V
Capacitor mounting Plug-in mounting SMT mounting Plug-in mounting
Anti-spark switch No Yes No
CAN-BUS connector for 4WD Yes Yes No
Single/Dual switch No No Yes
Power cable 14AWG 8AWG  8AWG
Size(L*W*H mm) 79.8*66.8*17.8 78*78*20 127.8*92*22

4 power wires of Dual Mini FSESC6.7 and the bigger capacitors of the three escs support higher current input and output.

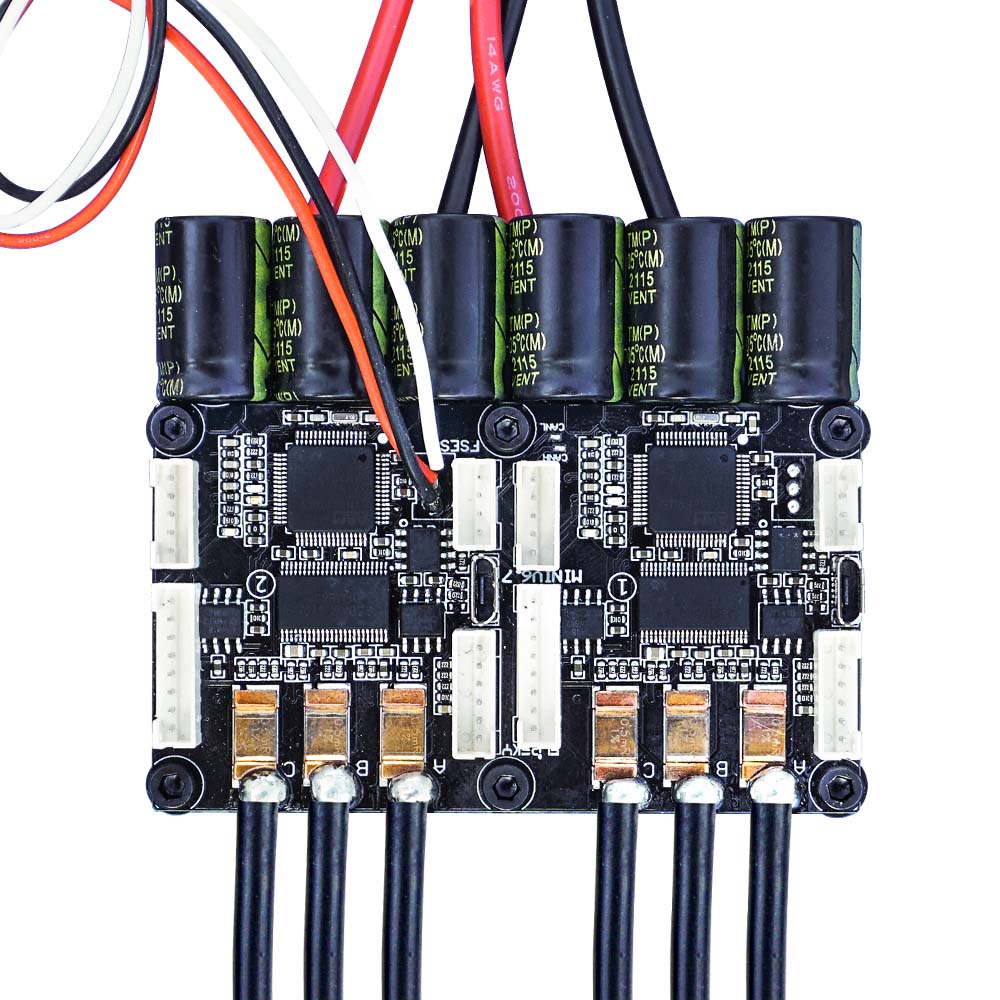

Dual Mini FSESC6.7 adopts 4 power wires,which support higher current

All of the three Dual FSESC 6.7 adpot bigger capacitors wich support higher current output
