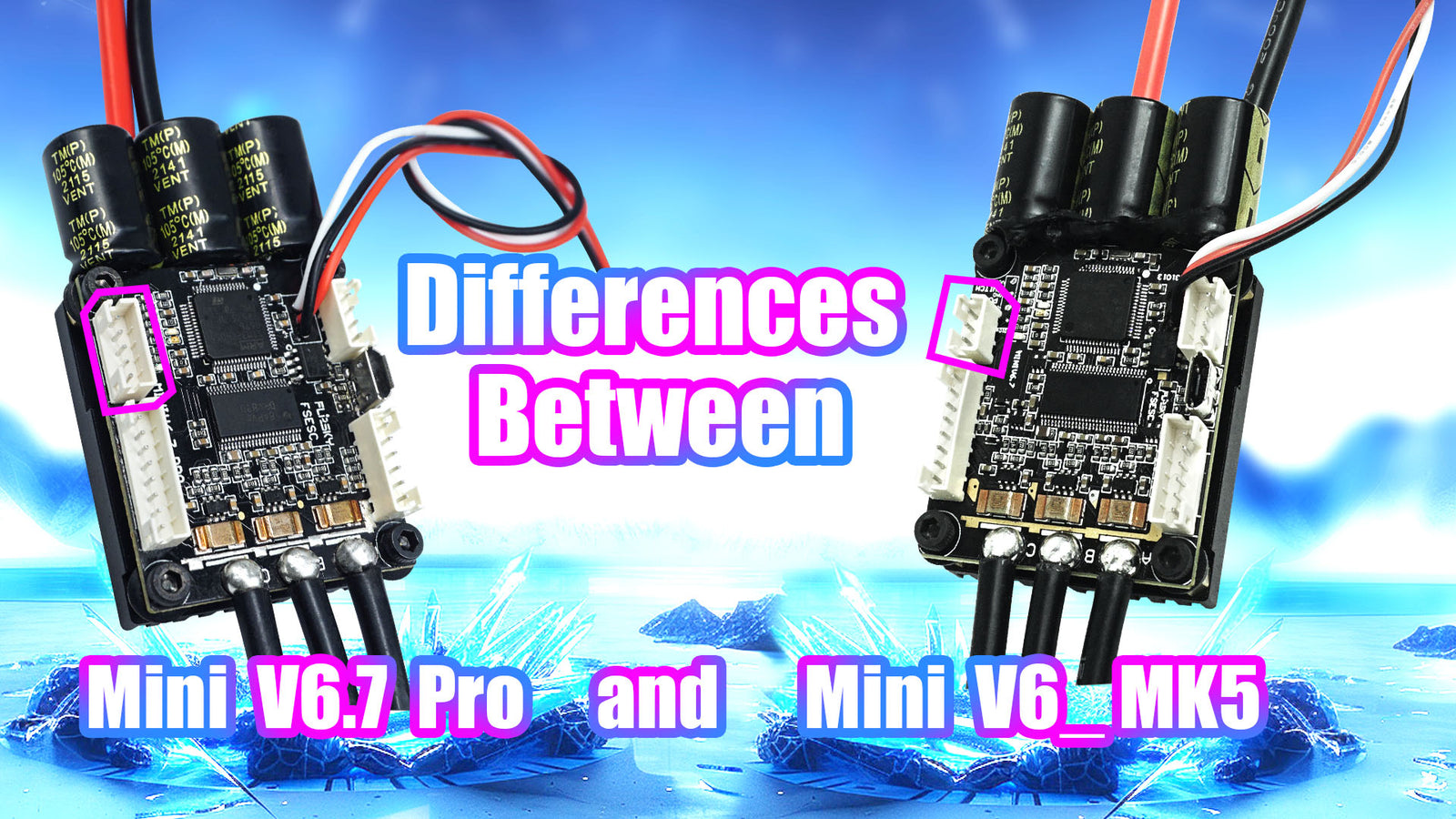

Differences Between FLIPSKY Mini V6.7 Pro and Mini V6_MK5

Differences Between FLIPSKY Mini V6.7 Pro and Mini V6_MK5



Mini V6.7 Pro

Mini V6 MK5

Hardware Version

VESC 6.4

VESC_6_MK5

Firmware Version

60

60_MK5

Phase Filter

N/A

Yes

Switch

N/A

Yes

Shutdown Mode

N/A

Yes

Current

Continous:70A; Max:200A

Continous:70A; Max:200A

Voltage Range

14-60V (4-12 S safe)

14-60V (4-12 S safe)



Phase Filter

The Mini V6.7 Pro has been flashed firmware 5.2 and the Mini V6 MK5 has been flashed the latest firmware 6.02 instead. The V6.7 pro does not have phase filter, While, the Mini V6_MK5 is built with a phase filter which can obtain more accurate realtime data, so if you want to use phase filter please select this ESC.

Power ON/OFF Switch

The Mini V6.7 Pro comes without power on/off switch. If you want to use ESC with the power on/off switch, you can select Mini V6 MK5 which has integrated with a smart switch supporting four modes (Manual power on/off; Roll to start; Auto turn off; Led indicate state)

Wiring Diagram

Shutdown Mode

The shutdown mode is a smart function of the Min V6_MK5. It can conserve power while not in use. It also can support four shutdown modes: ALWAYS_OFF;ALWAYS_ON;TOGGLE_BUTTON_ONLY;OFF_AFTER_.

The Mini V6 MK5 is based on the Mini V6.7 Pro increases some new functions that can satisfy more different requirements of customers and promote your using experience. Anyway, no matter which ESC you choose we hope you have good experience for using of our products.
