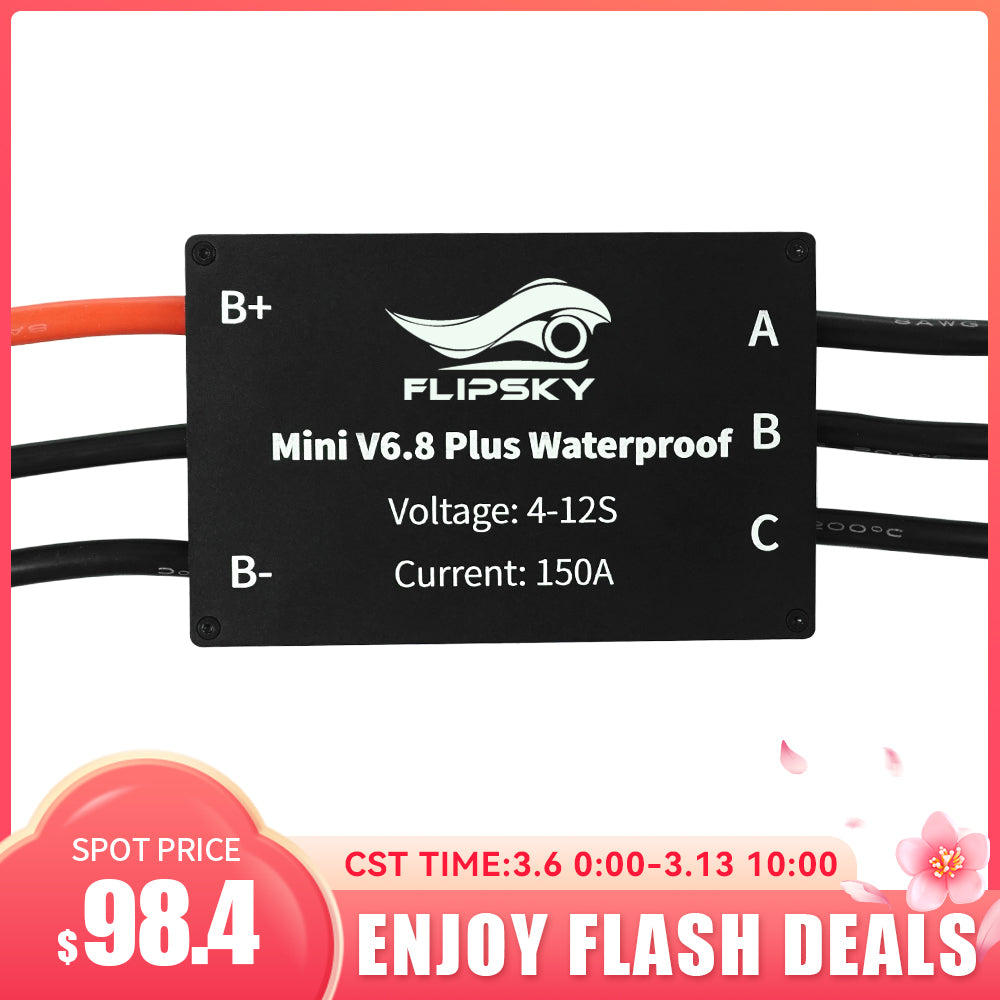

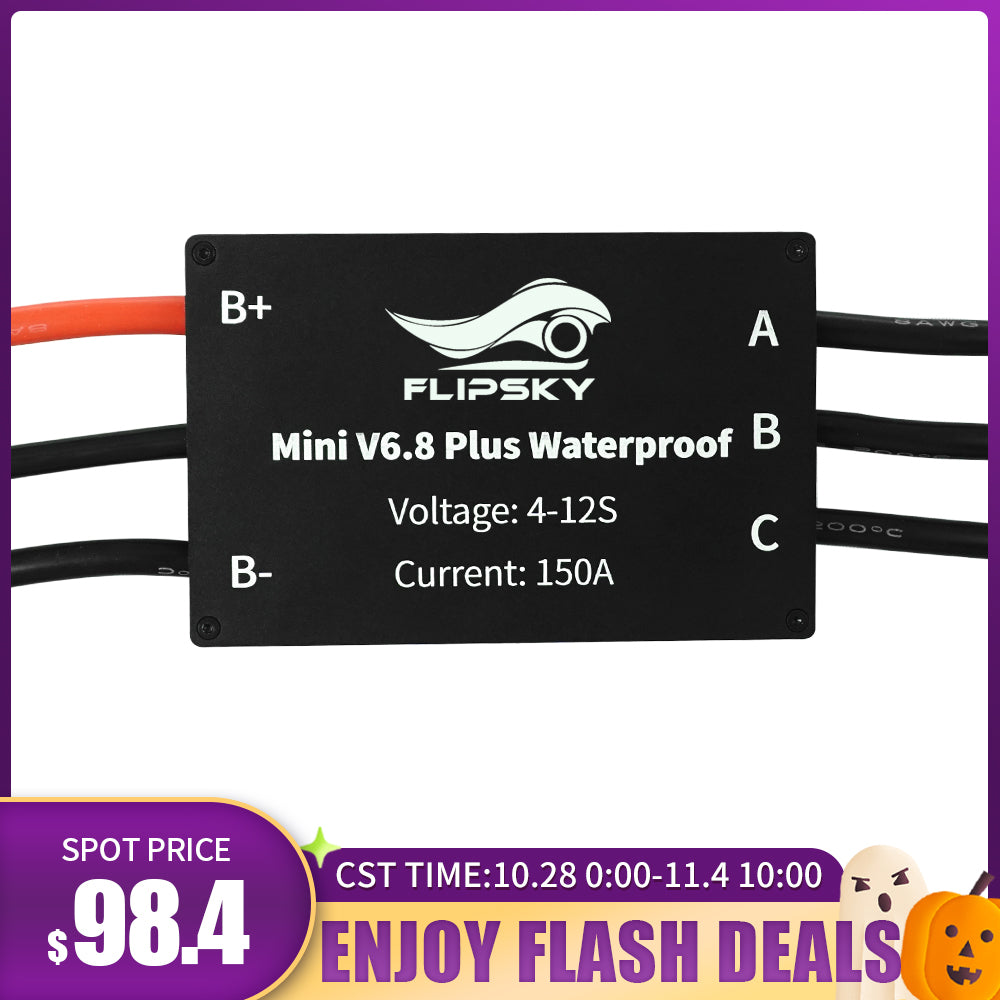

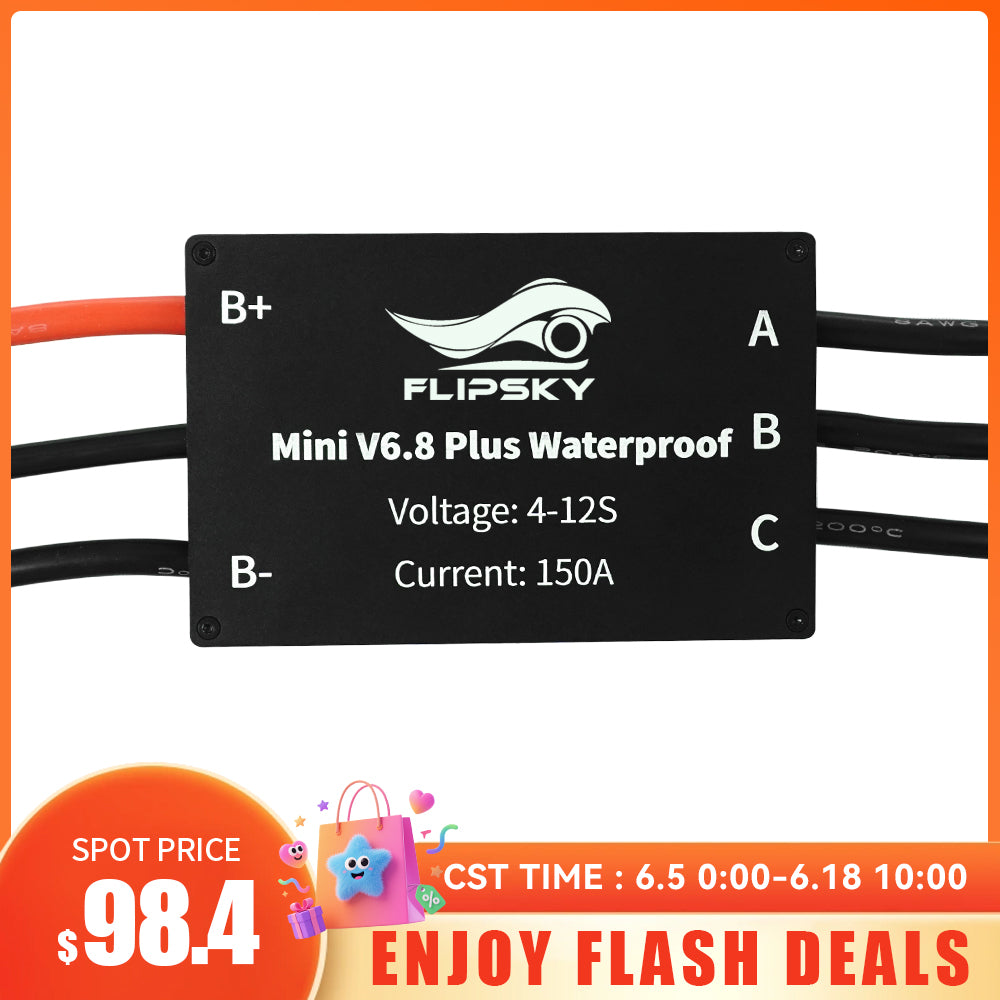

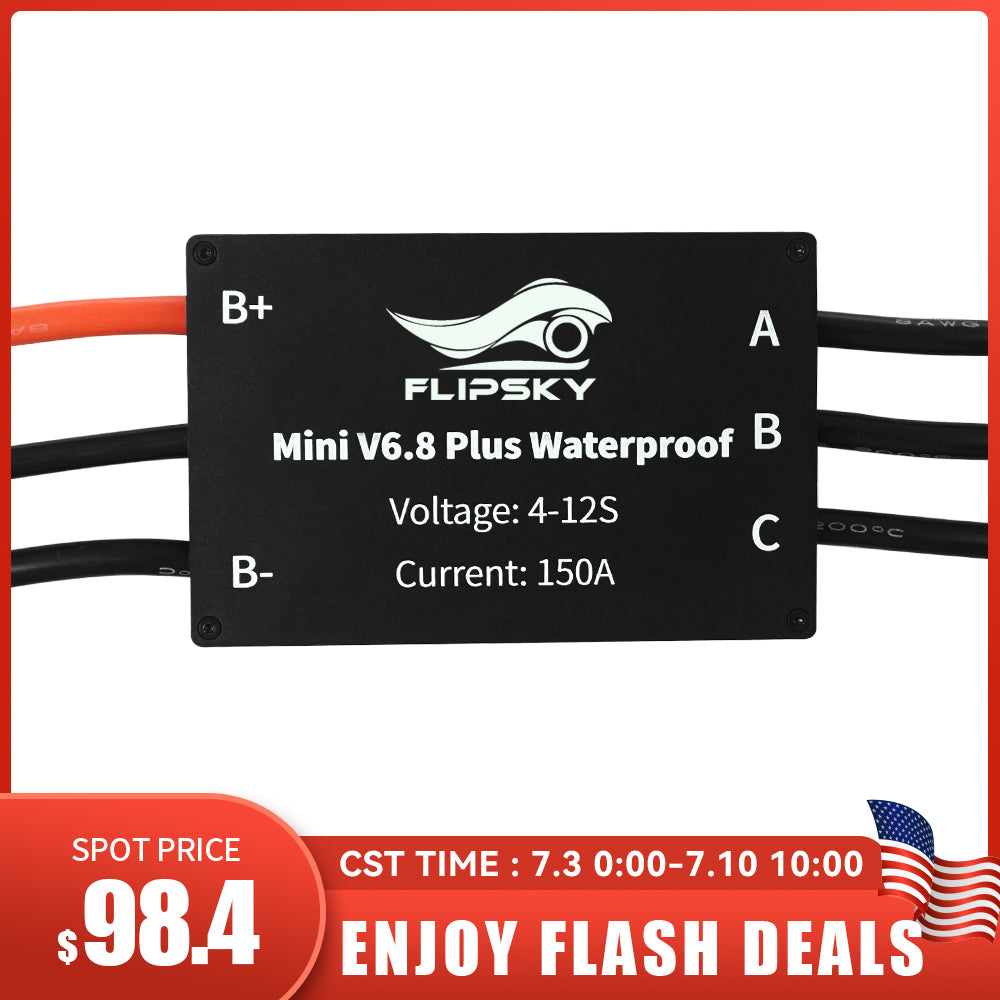

Flipsky IP68 Waterproof ESC Electronic Speed Controller Mini FSESC6.8 Plus based on VESC6 150A for Efoil Ejet / boat esurf
Specifications :
- Firmware: 5.2 (supporting firmware upgrade)
- Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient
- temperature around the device!)
- Voltage: 14V-60V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
- BEC: 5V@1.5A; ERPM: 150000
- Supported sensors: Sensorless
- Supported Modes: BLDC, FOC (sinusoidal)
- Control Interface Ports: USB UART
- Input Set Support: PPM, ADC, NRF, UART
- Regenerative capacity: Yes
- Programmable: Yes
- Power Wire: 8AWG 1200mm / Motor Wire: 8AWG 170mm
- Size: 103.5x67.6x27.5mm(Including aluminum case)
Features:
- Fully sealed with IP68 water-proof rate.
- VESC ESC: based on vesc6, programmable via VESC_TOOL and support real-time data read.
- 6-layer 3oz special PCB plate with good heat dissipation, support rated current 150Amps.
- Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.
- Support three control modes: Current / Dutycycle / Speed.
- Multiple protection functions: low voltage protection, high voltage protection, over-current protection,
- temperature abnormally protection, mosfets over-temperature protection over 80℃.
- Compact size with high efficiency: 103.5x67.6x27.5mm.
