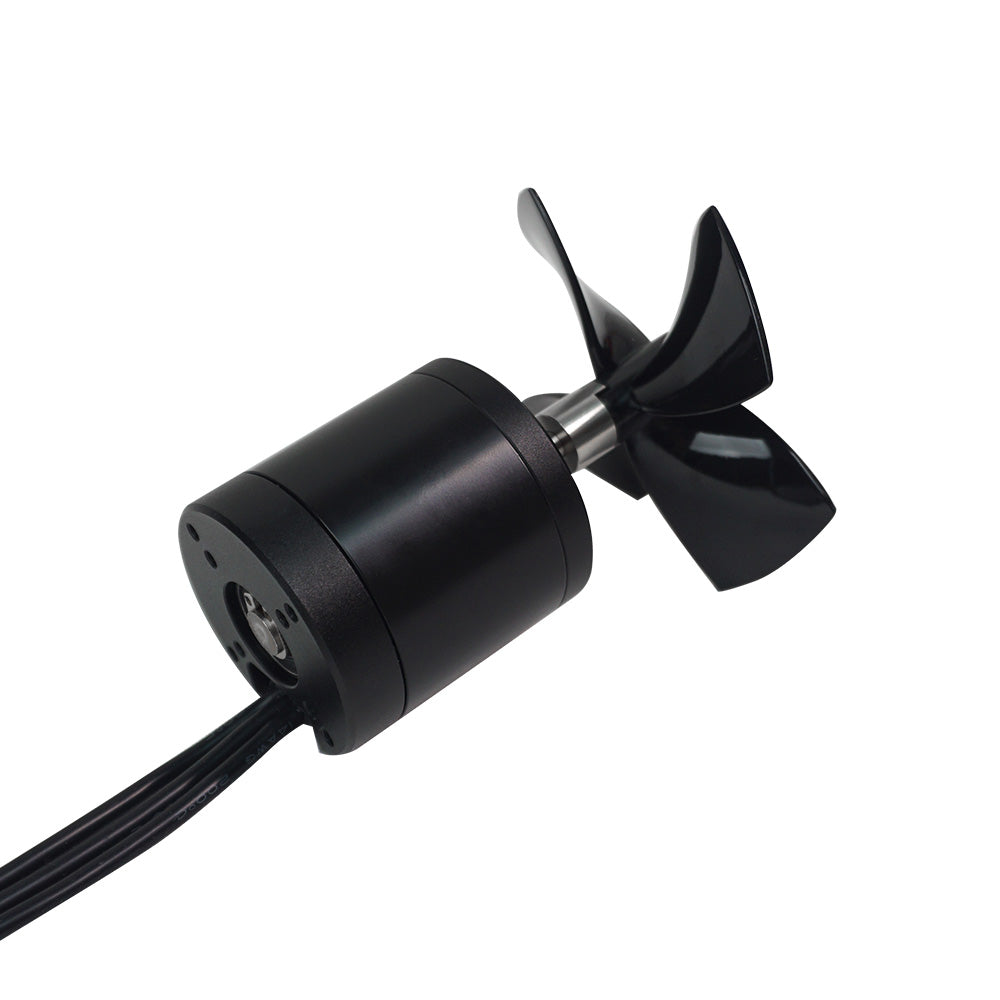

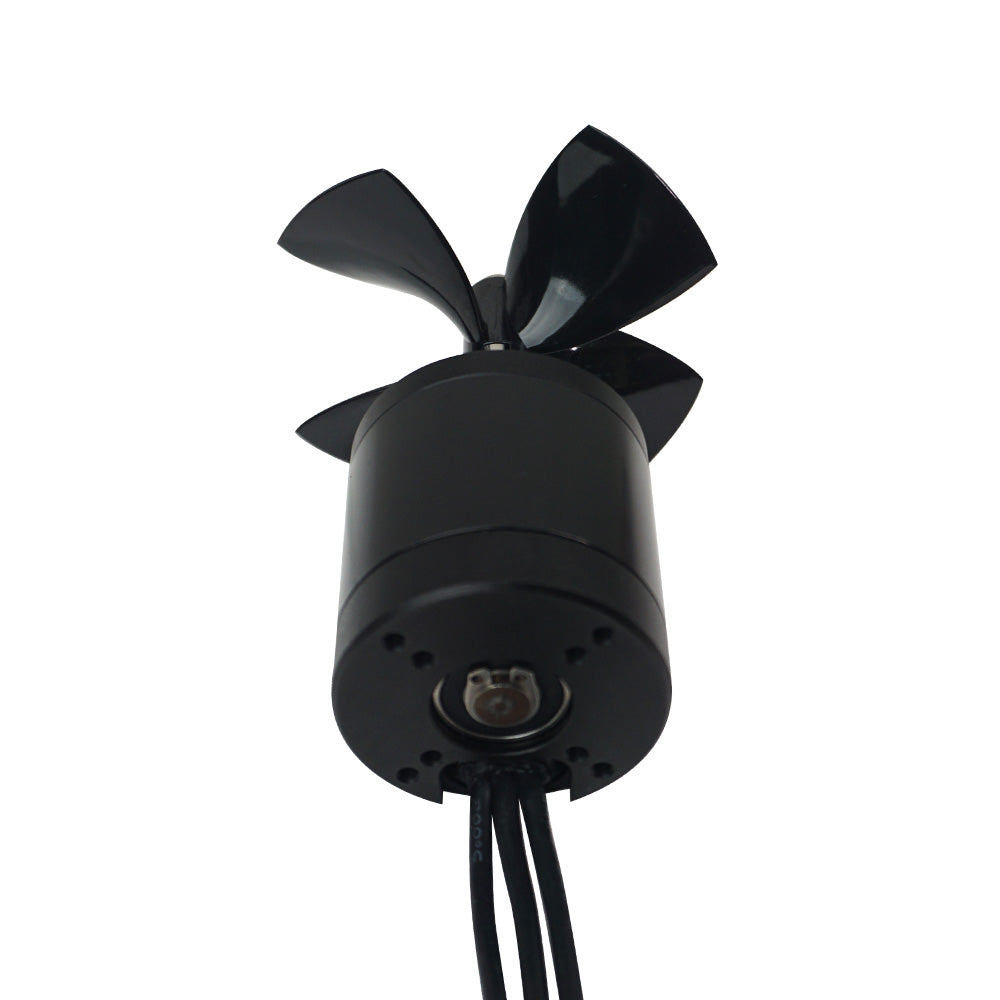

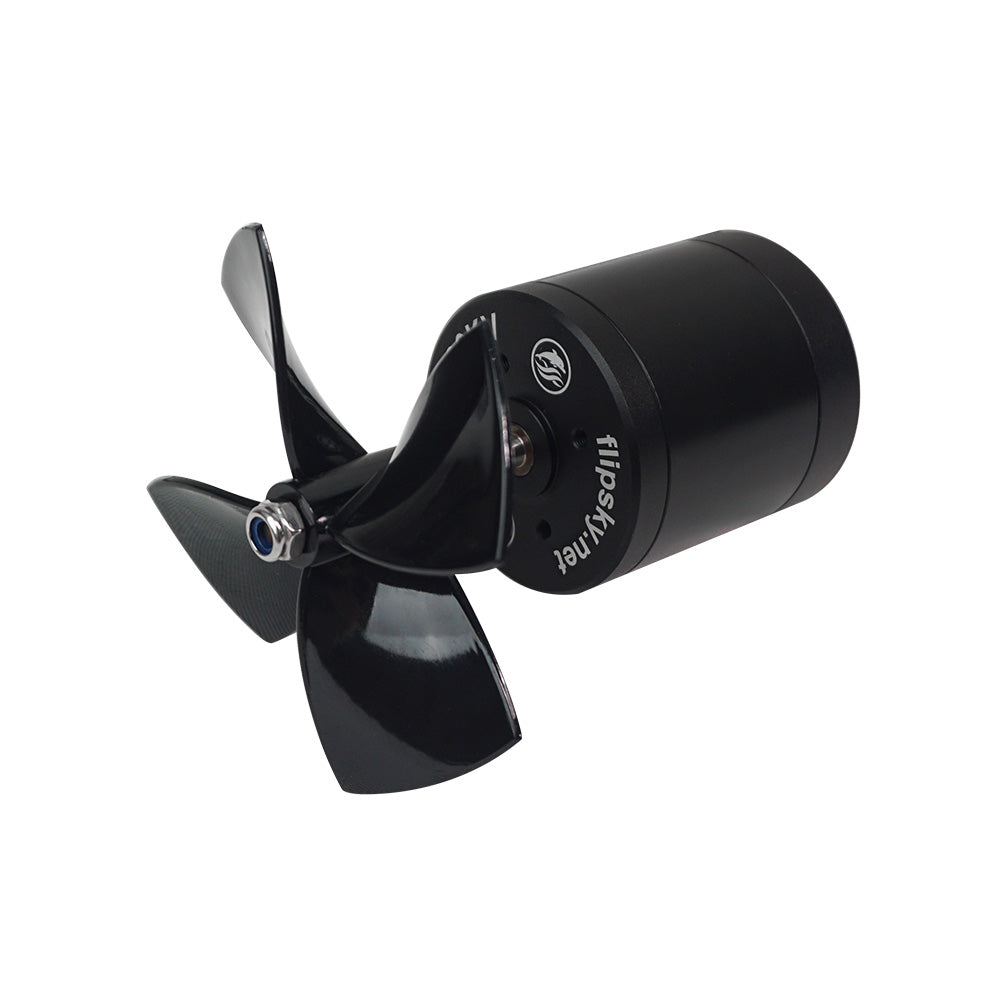

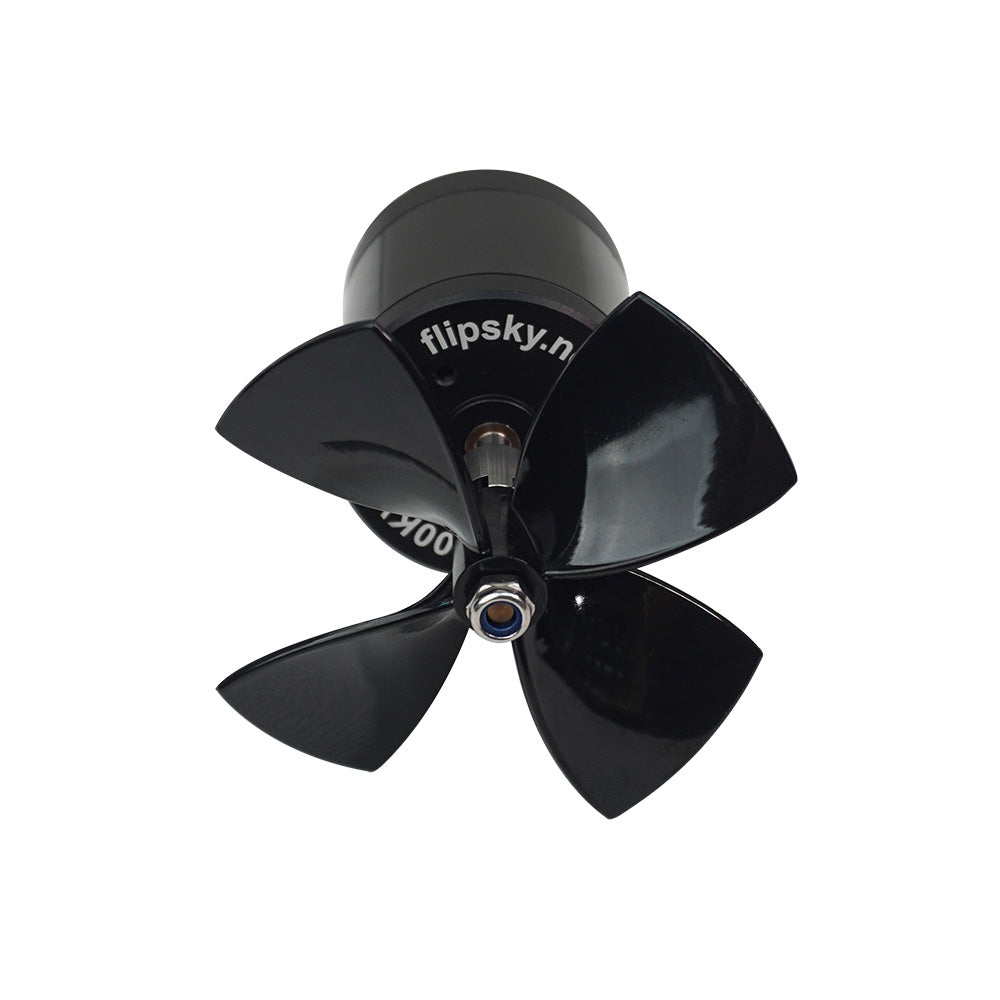

Flipsky Waterproof Brushless DC 4650 Motor 300KV 900W with Propeller For Surfing Boat Underwater Thruster | Hydro | Efoil
Spec：
- Voltage range:6～12S
- Rated voltage:36V
- Rated current:20A; Maximum current:25A;
- Rated power:720W; Maximum power:900W
- No load current:2.3A
- Motor specifications:Φ46.0×L50.0
- Shaft specifications:Φ5
- Number of slots & poles:24N/28P
- Lead wire:14AWG
- Coil resistance:0.062Ω
- Coil inductance：0.03mH
- Maximum thrust::8kgf
- Insulation voltage & leakage current:500VAC/50HZ/1MA/3S
- Maximum operating temperature:100℃
- Length of lead wire:500mm
- Protection grade:ip58
- Weight:0.37kg
4650 Motor Diagram:
Thrust Test:
