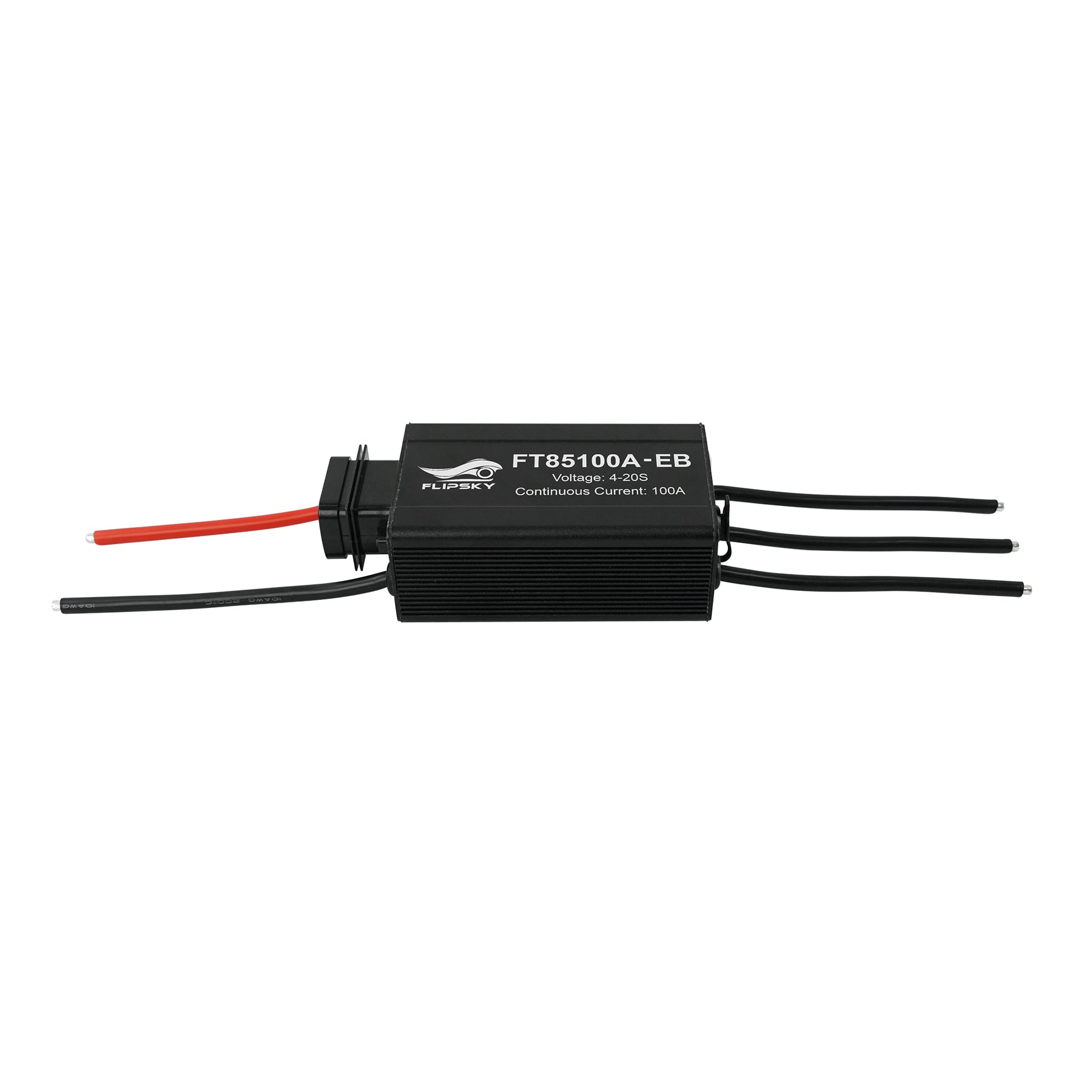

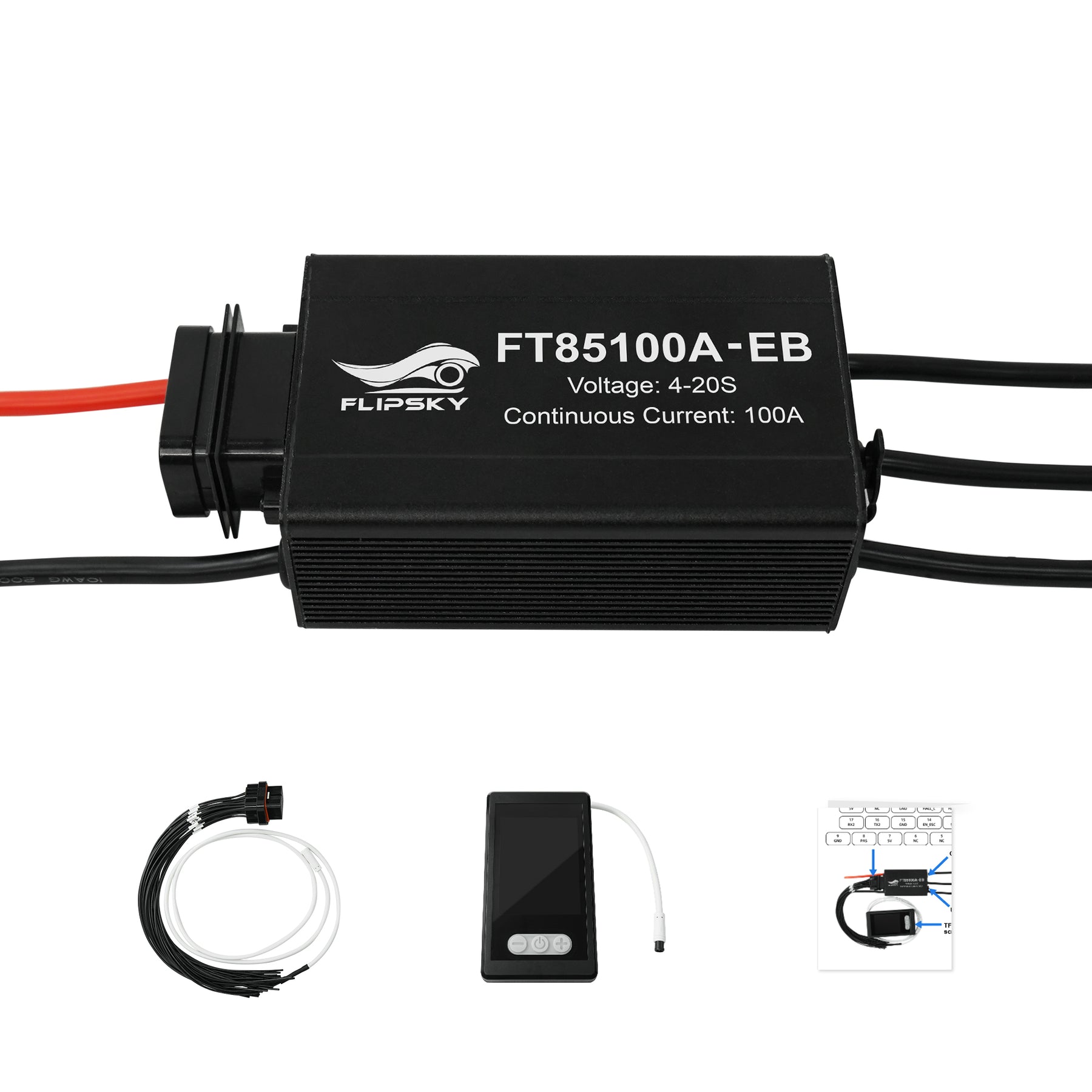

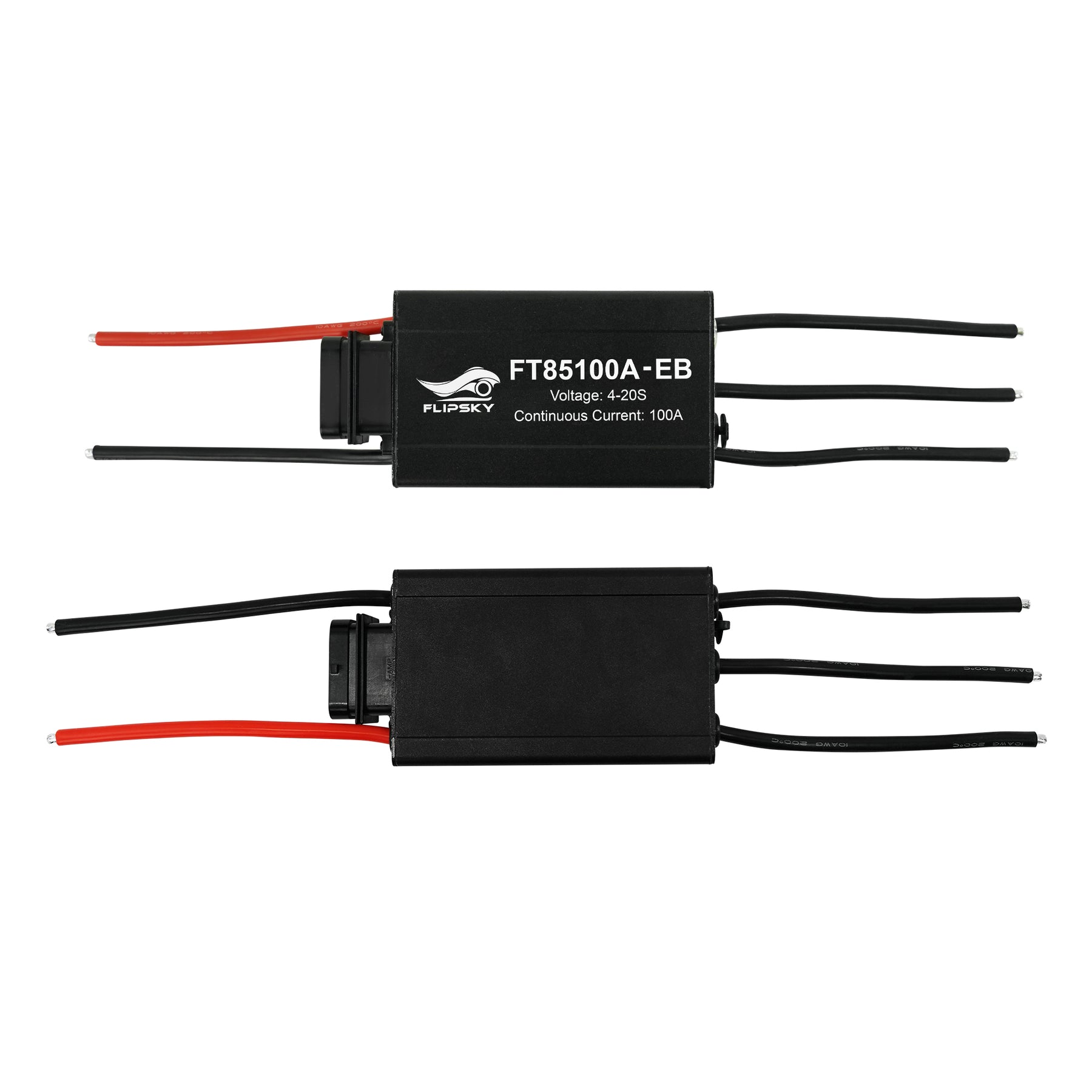

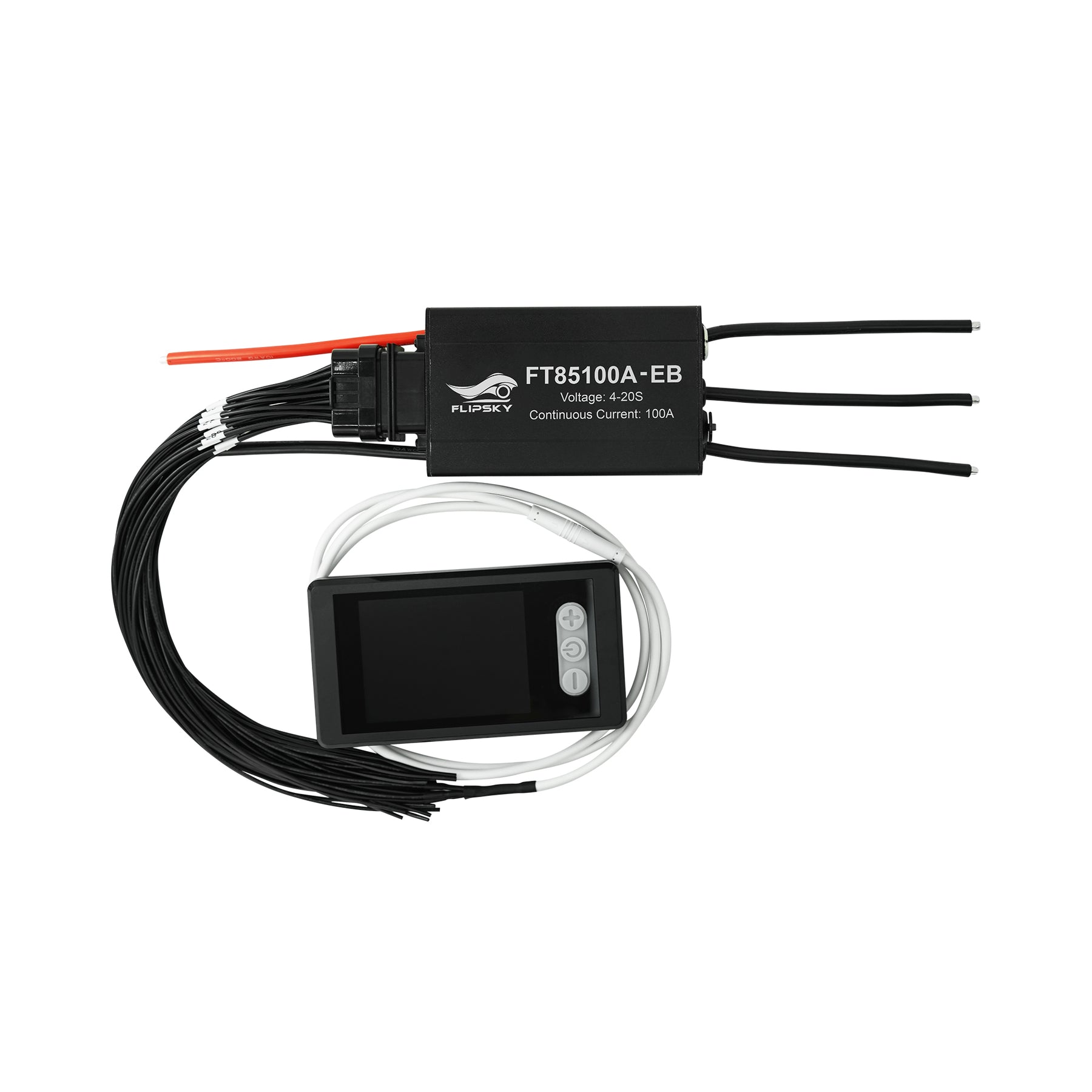

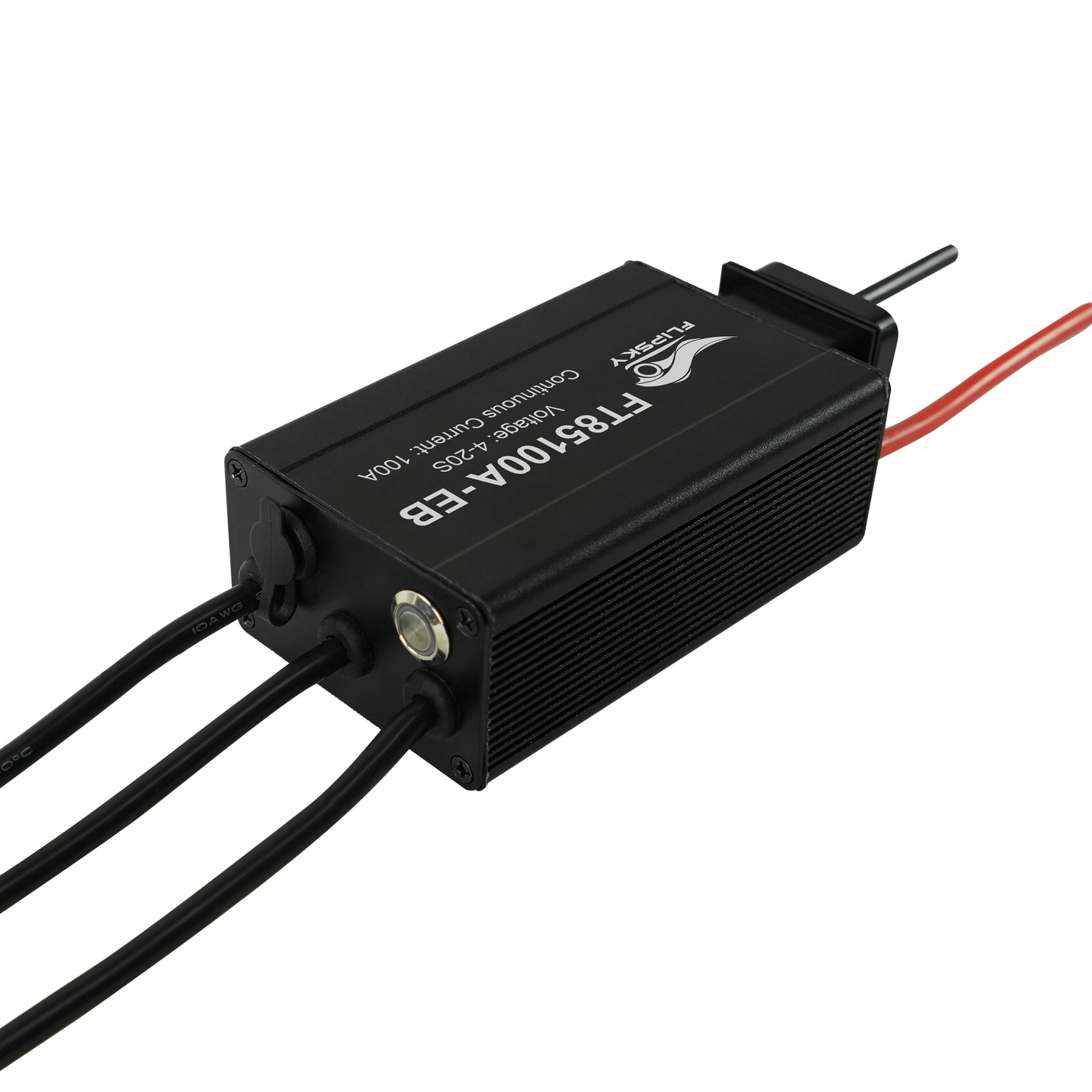

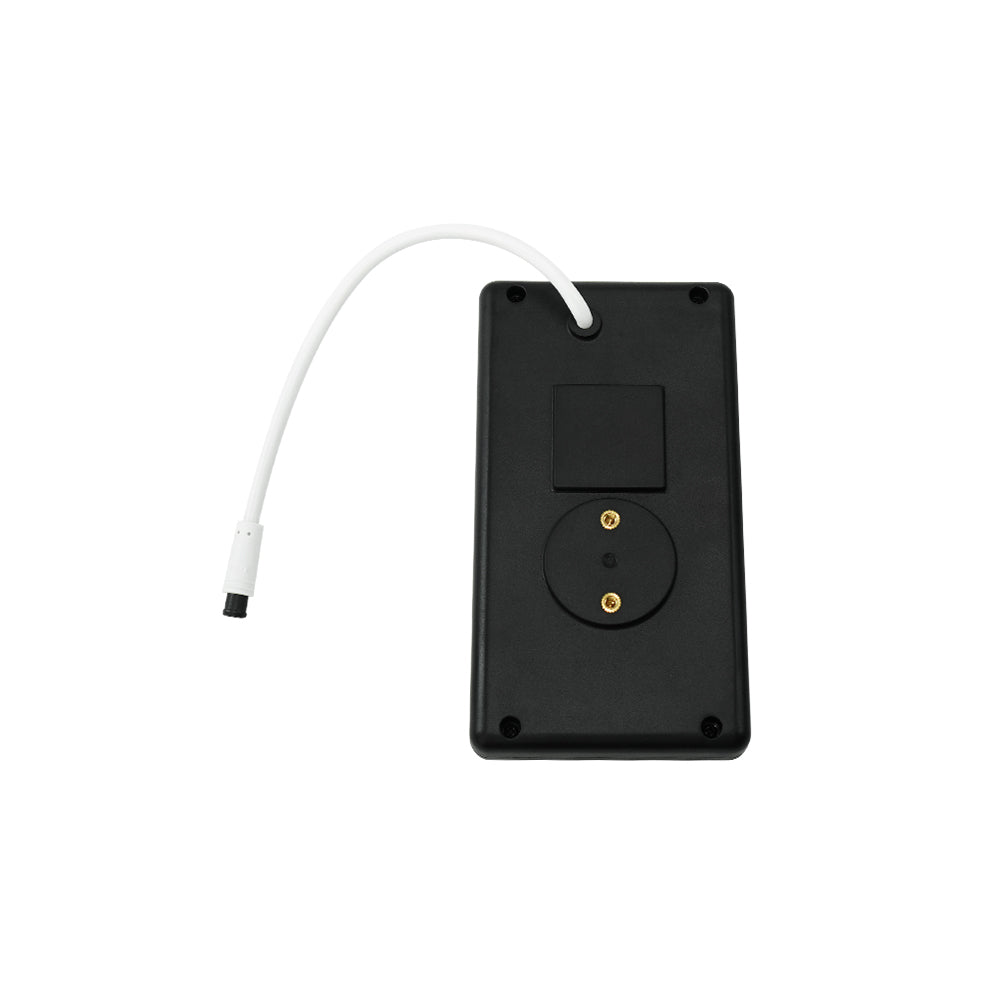

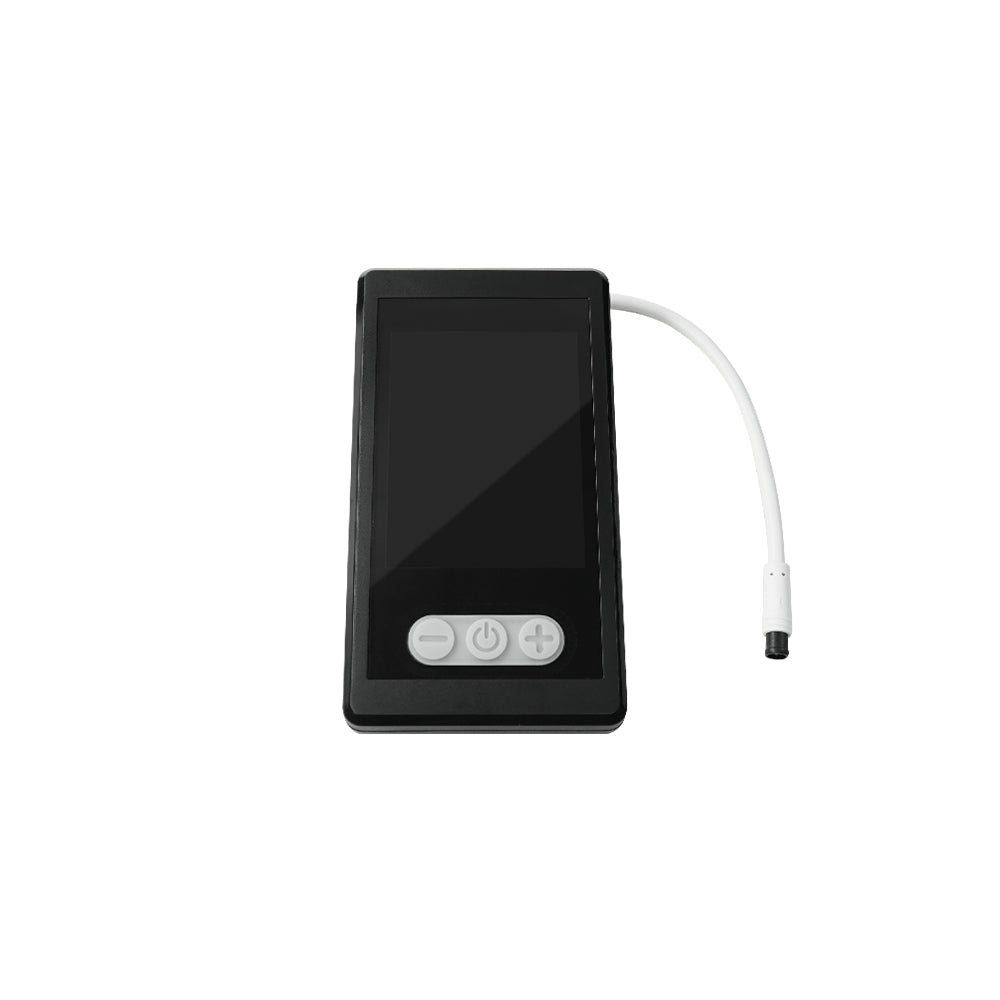

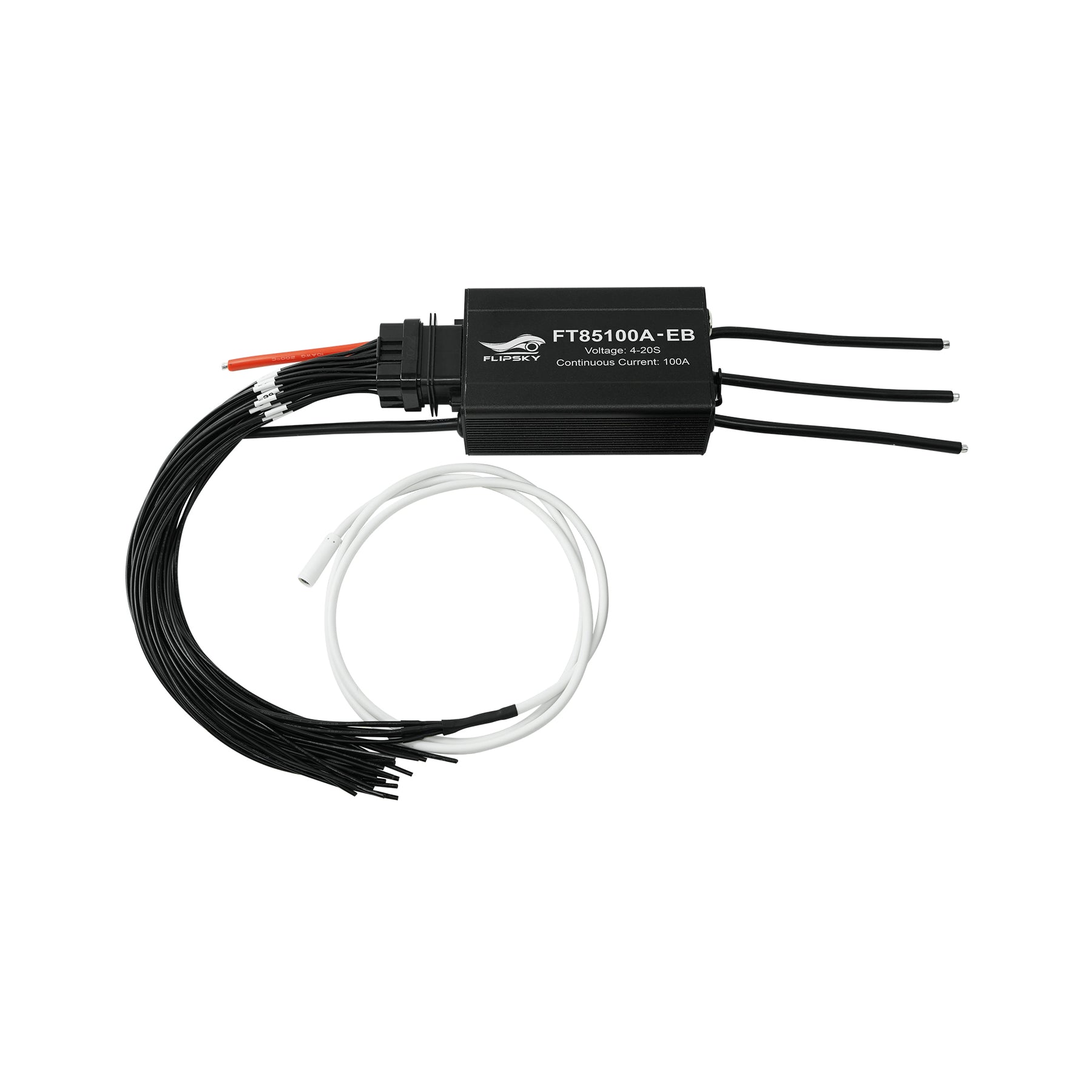

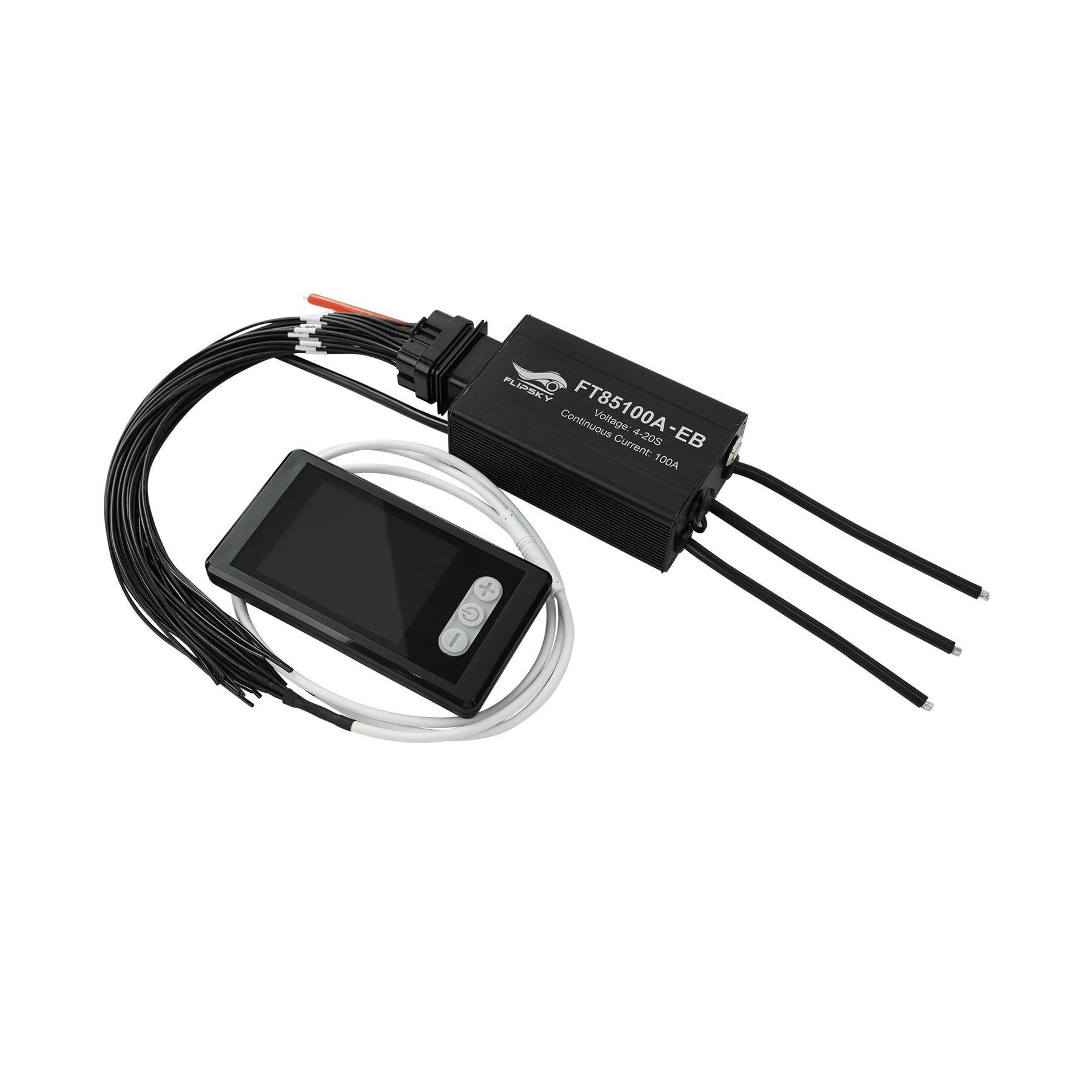

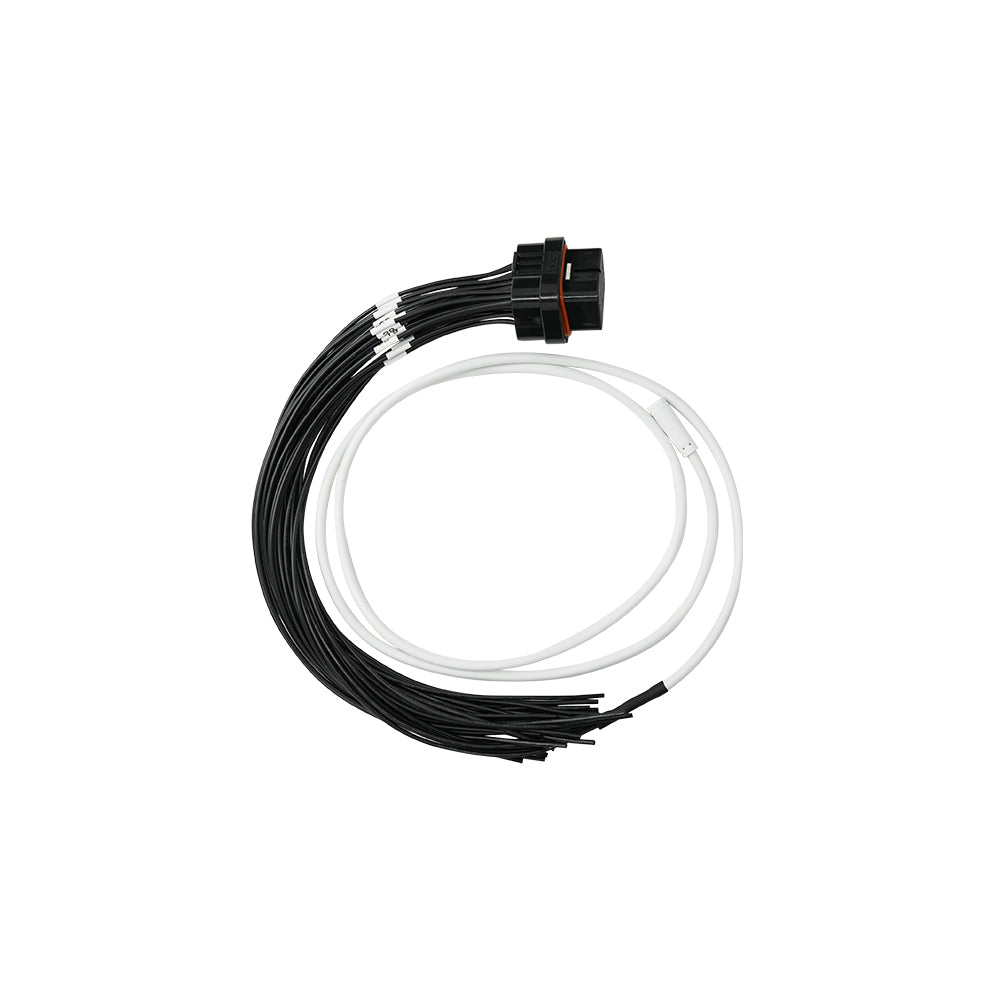

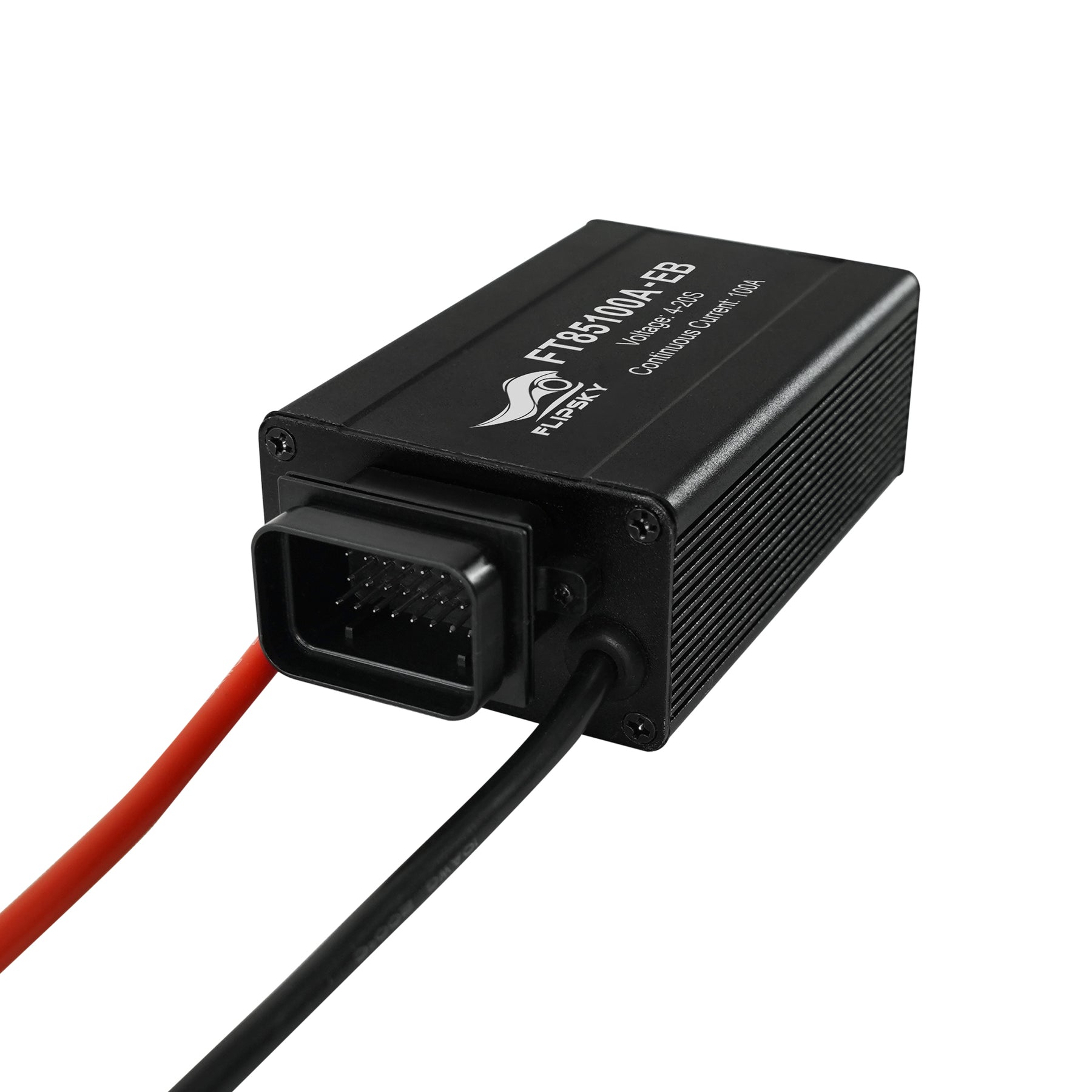

Flipsky FT85100A-EB ESC 85V 100A With TFT Advanced display V3.0 Support PWM Variable Frequency Control And Brake Signal For Ebike Speed Controller

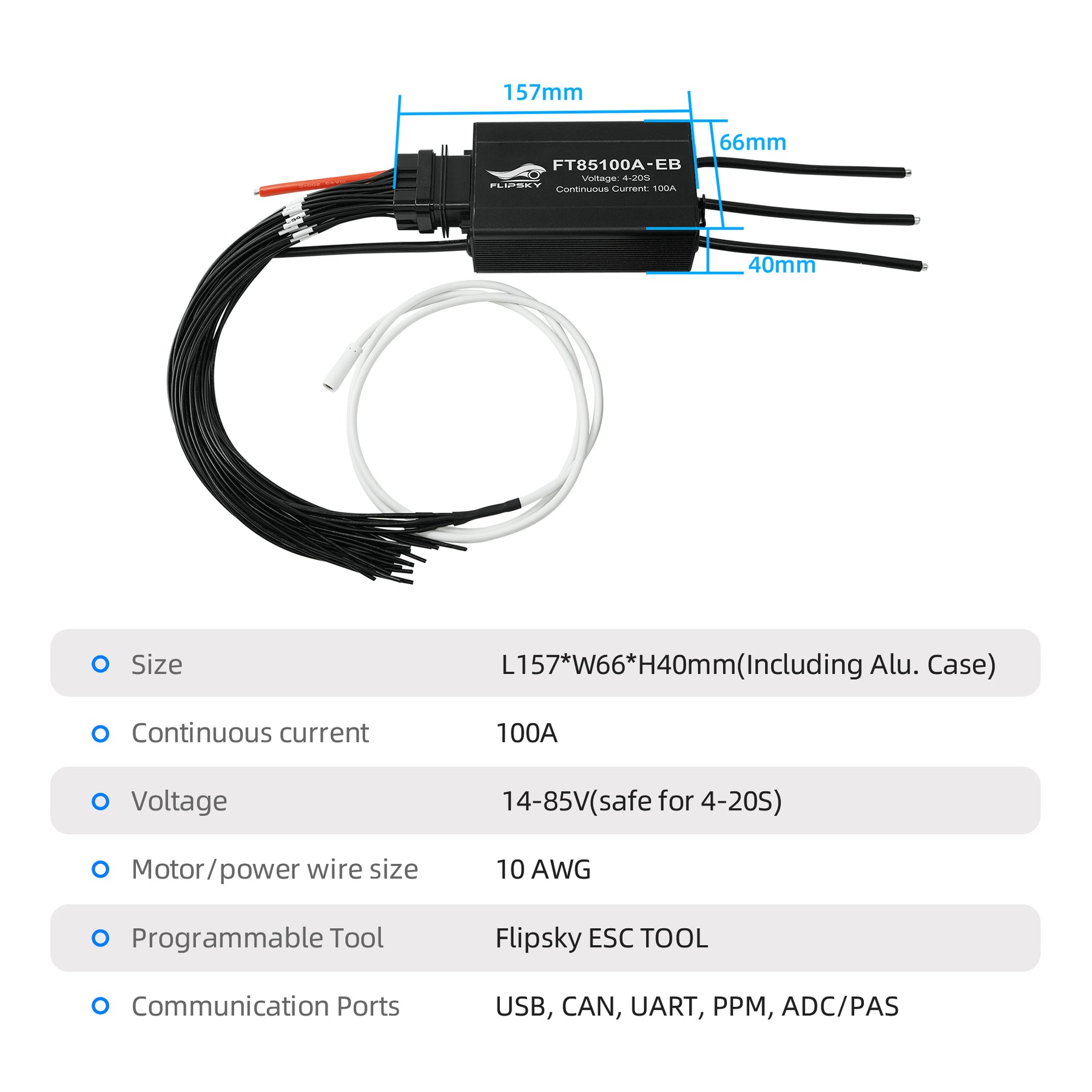

Specifications:

• Firmware: V1.6 or above (firmware update via Flipsky ESC Tool supported)

• Voltage: 14-85V(safe for 4-20S)

• Continuous current: 100A (Values depend on the mounting, ambient temperature and air/water circulation around the device!)

• Peak Current: 250A

• Communication Ports: USB, UART, ADC/PAS

• Input Signals Support: ADC, PAS (Cadence Input Signal), UART (compatible with all
  Flipsky VX Series remotes)

• BEC: 5V@1A

• Front Lights, Rear Brake Lights & Horn: Support

• Programmable Tool: Flipsky ESC TOOL

• PWM Frequency Control: YES

• Multiple Speed Gear Limit Control: YES (UART&PAS)

• Regenerative Capacity: YES

• Integrated Switch: Supports self-locking switches or power on/off via the matched designated TFT screen

• Waterproof rating: IP56

• Motor/power wire size: 10 AWG

• Size: L147.5*W66*H40mm(with enclosure and connector)

Feature:

• Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.

• Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.

• Supporting motor FOC with low working noise and smooth starting.

• Supporting Real-time data and fault alerts.

• Supporting adaptive variable PWM frequency control.

• Supporting save / load configuration files via ESC Tool.

• Supporting multiple speed levels: Level 1(Low), Level 2(Medium), Level 3(High), Level 4 (PAS Only), Level 5 (PAS Only).

• Supporting sensor mode(HALL, ENCODER) and sensorless mode(IPDS, HFPI, OPEN).

• Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER (such as ABI Encoder, AS5047 SPI, TLE5012 SPI, AS5600 IIC), OPEN (Sensorless Open-Loop Startup)

• Traction Control: YES.

• Supporting control types: Current, Duty Cycle, Speed control, Position Control.

• Supporting PAS cadence sensor.

• Supporting emergency stop and shutdown.

• Support safe power-on protection (in PPM&ADC control modes only).
• Protection functions: low and high voltage protection, motor over-temperature protection, MOSFET over-temperature and over current protection, battery overcharge and discharge protection, motor over-temperature protection.

• Supporting multiple typed of motor temperature sensors such as NTC-10K-25℃ , NTC-10K-100℃ , PT1000, PTC-1K-100℃ , KTY and so on.

• Integrating power of 12V(3pcs) to provide power for external devices(front lights,brake light, horn, etc.)with two groups normally open and one controlled by brake signal. (Note: maximum output current:4A)
• Supporting brake signal to cut off ESC output.

Pin Diagram:
