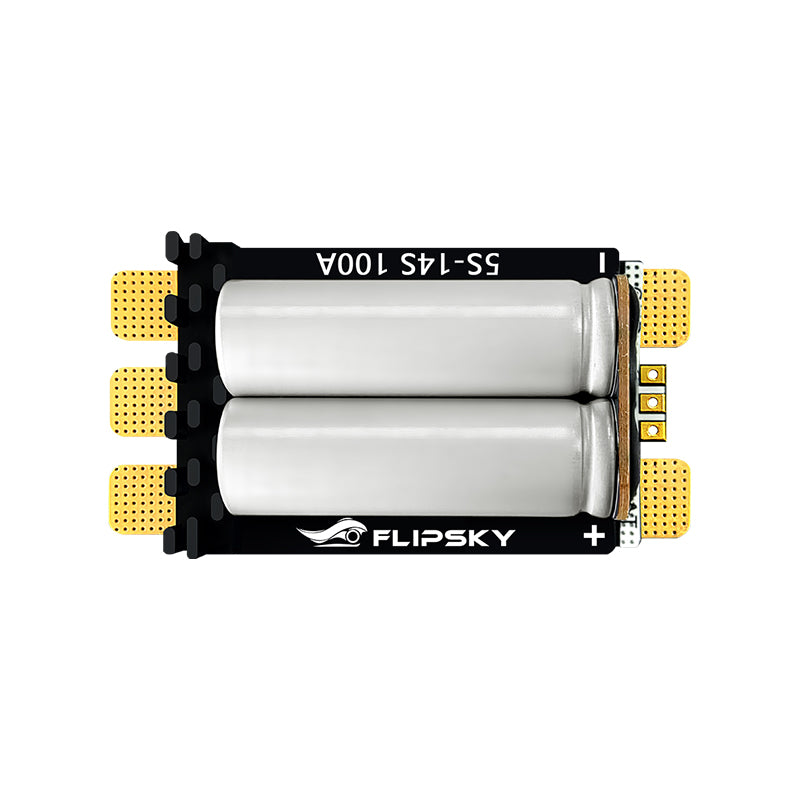

Flipsky 5-14S 100A AM32 Brushless ESC High-Performance Electronic Speed Controller For FPV Racing Drone / Multi-Rotor Drones / Fixed-Wing UAV Model Boats / RC model cars
Specifications :
- Continuous Current: 100A
- Instantaneous Current: 130A

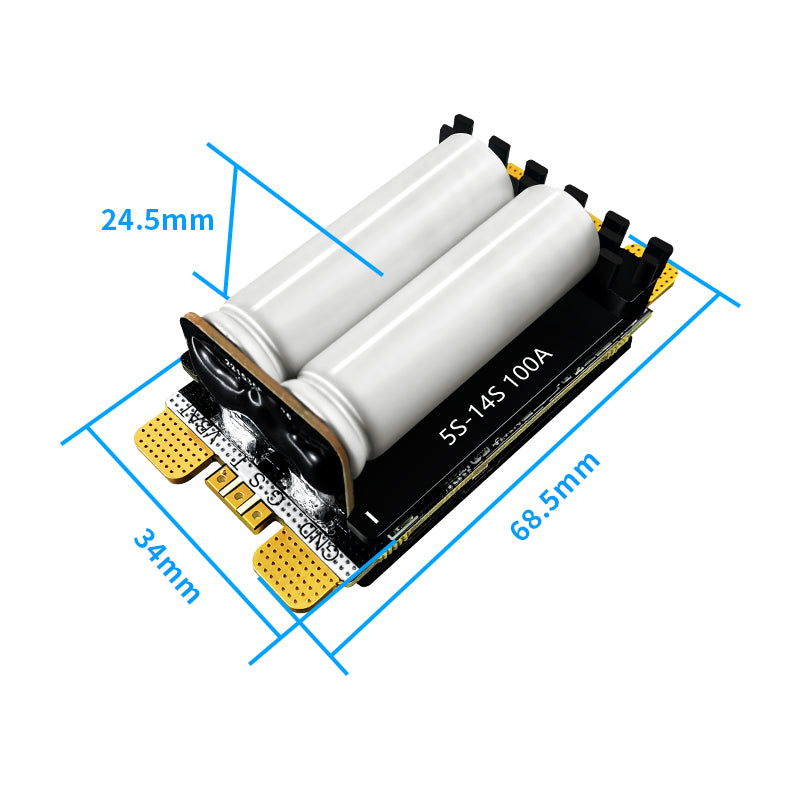

- Size: 68.5mm (L) × 34mm (W) × 24.5mm (H)
- Input Power Supply: 5S-14S LiPo
- Firmware Version: MAXKGO_V1_F421
- Firmware Upgrade: Supports online upgrade via AM32.ca
- Communication Protocol: Dshot 300, Dshot 600, Servo PWM
- Signal Feedback: The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed
Features:
- MINI Size,MAX Power.
- Supports multiple protection functions: Low-voltage protection, over-temperature
- protection, motor stall protection, low-speed protection
- High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz
- Stall protection for cars and crawlers
- Stuck rotor protection for multi-rotors
- Firmware upgradable via betaflight passthrough, or single wire serial or Arduino
web configurator at am32.ca - Servo PWM and Dshot300/600
- EDT for full Dshot telemetry via signal wires
- Sinusoidal startup mode for smoother starting on cars and crawlers
Wiring diagram：

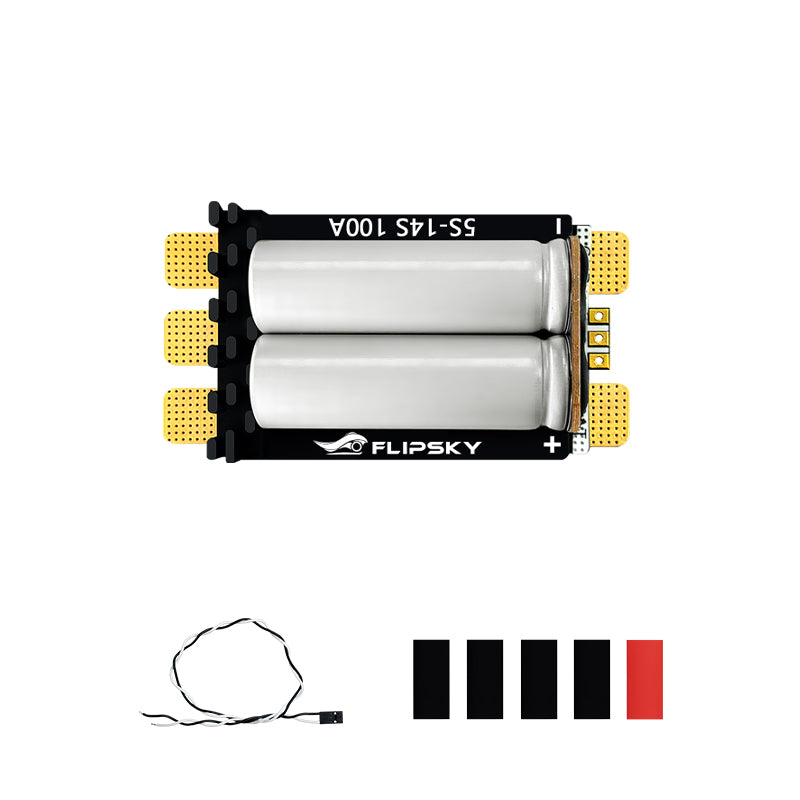

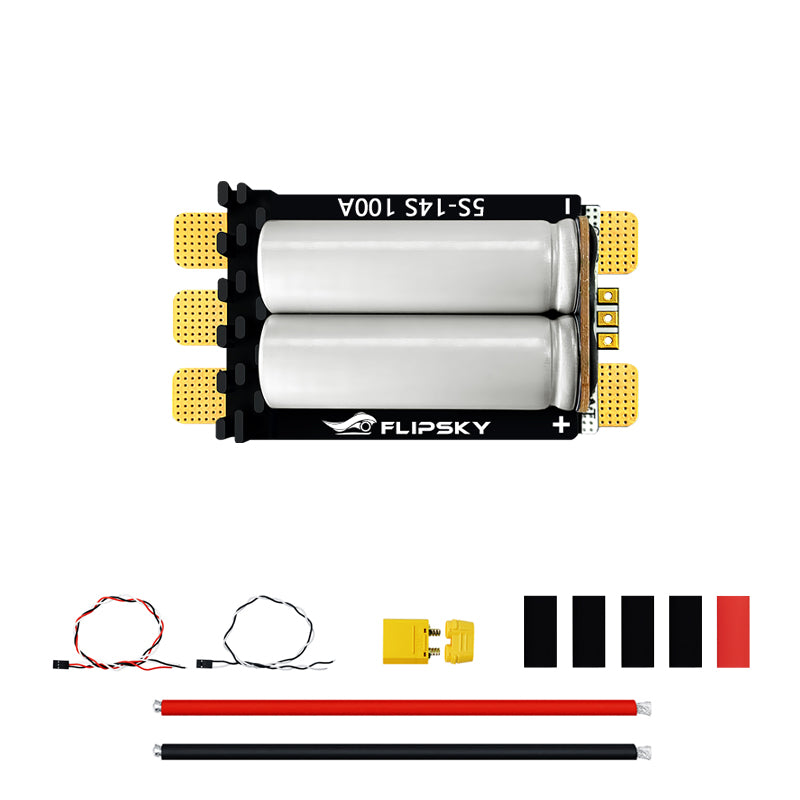

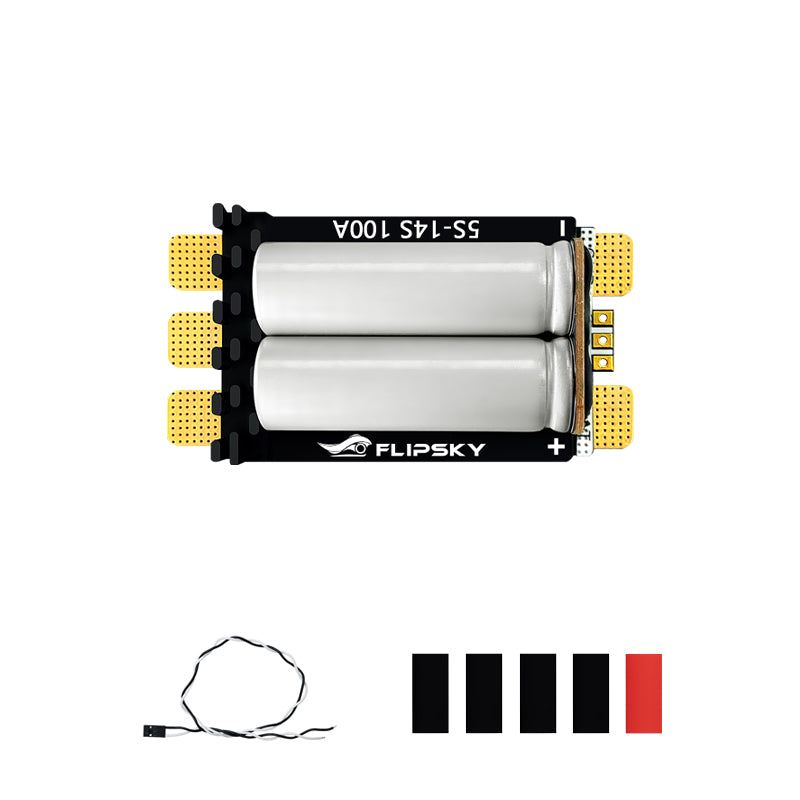

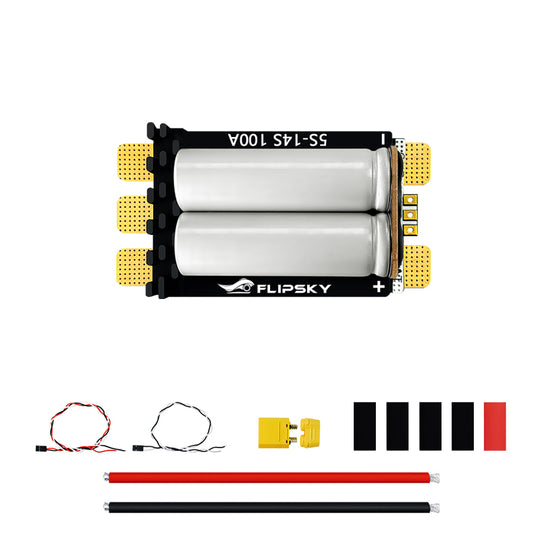

Shipping List：
5-14S100A_ESC Main Unit 1
Heat Shrink Tubes *5
PH2.0 Communication Cable *1
