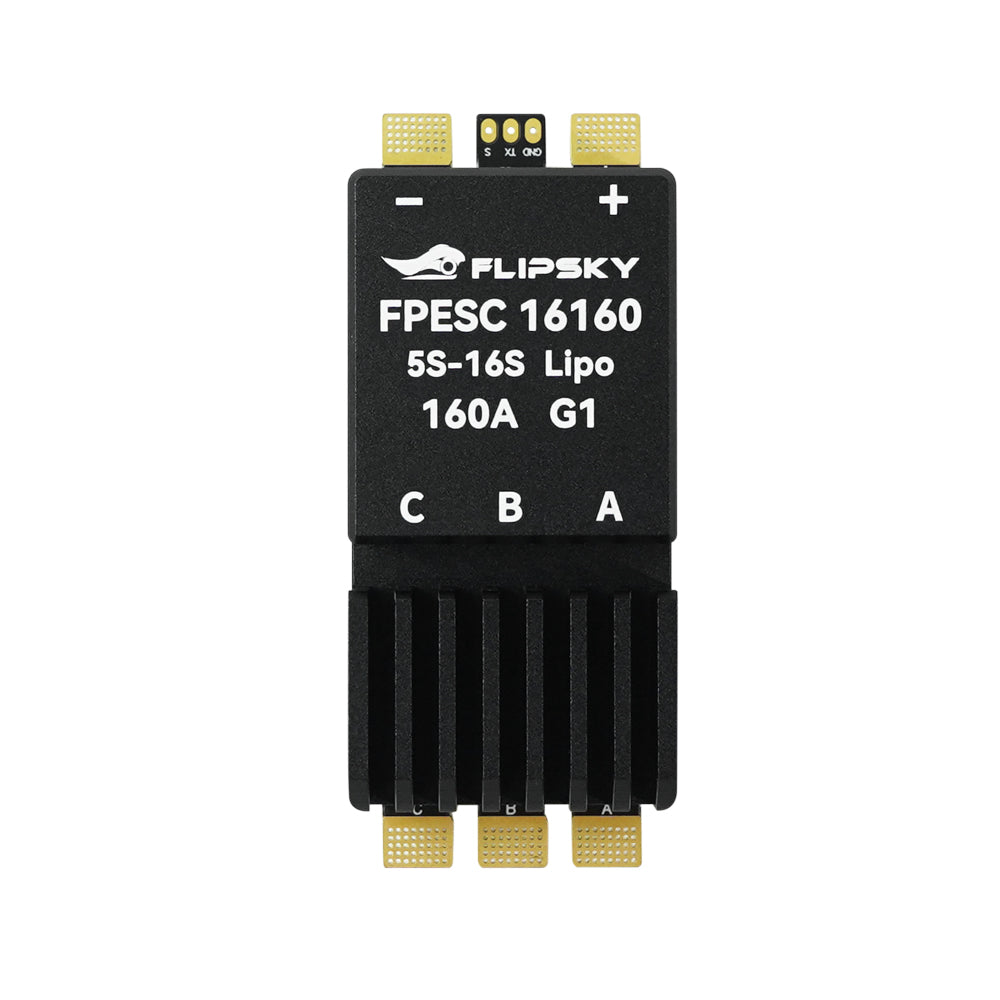

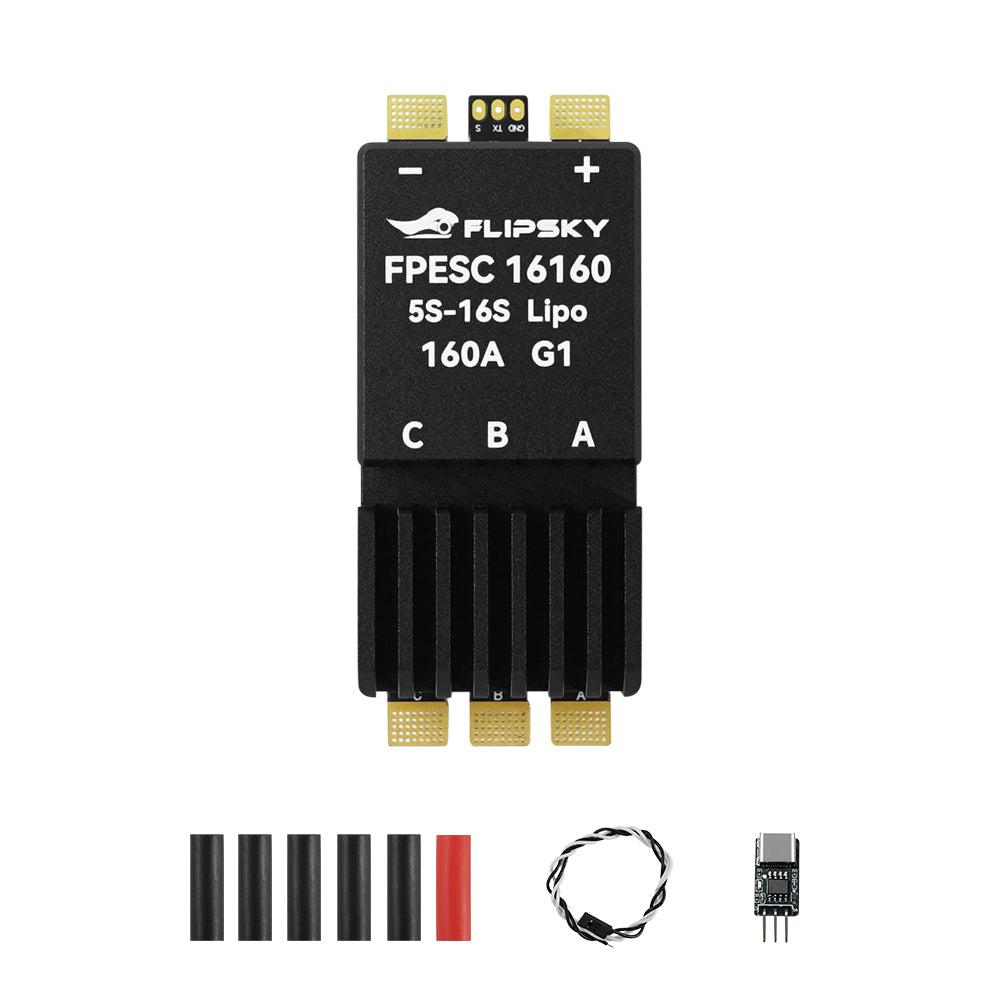

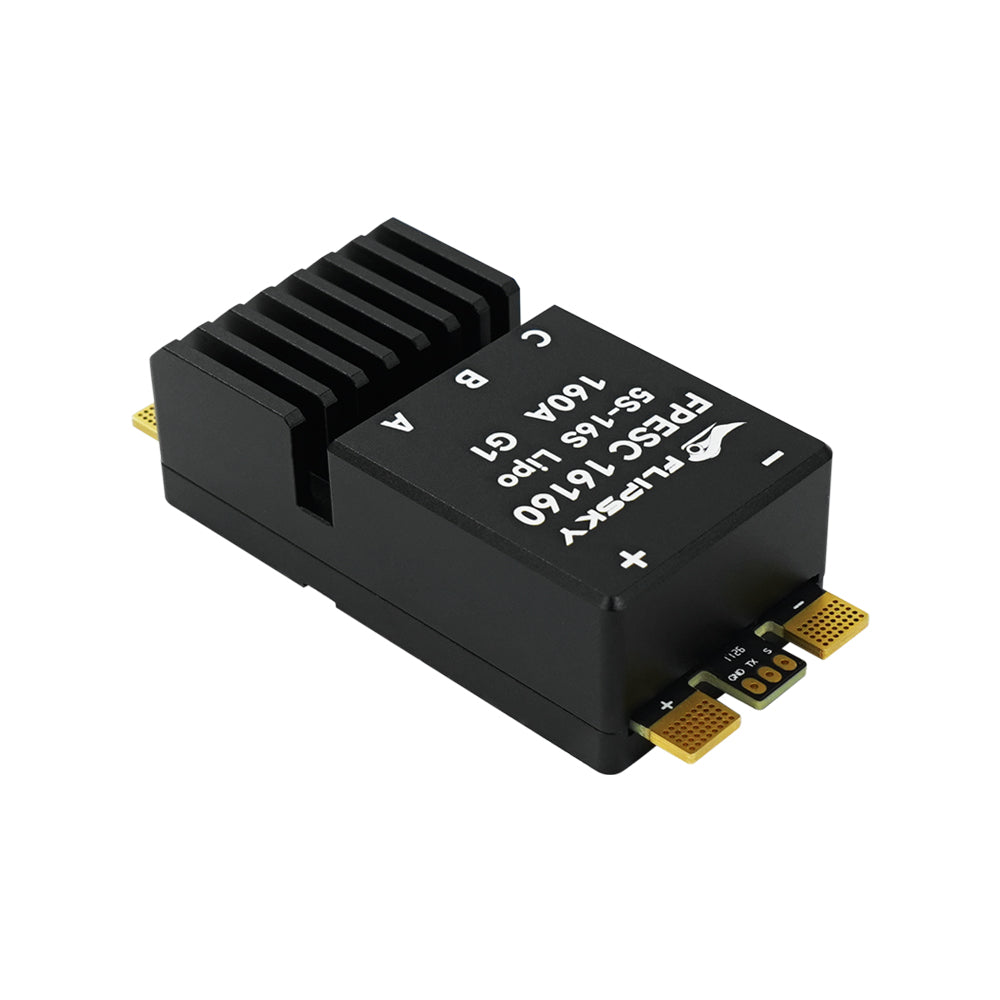

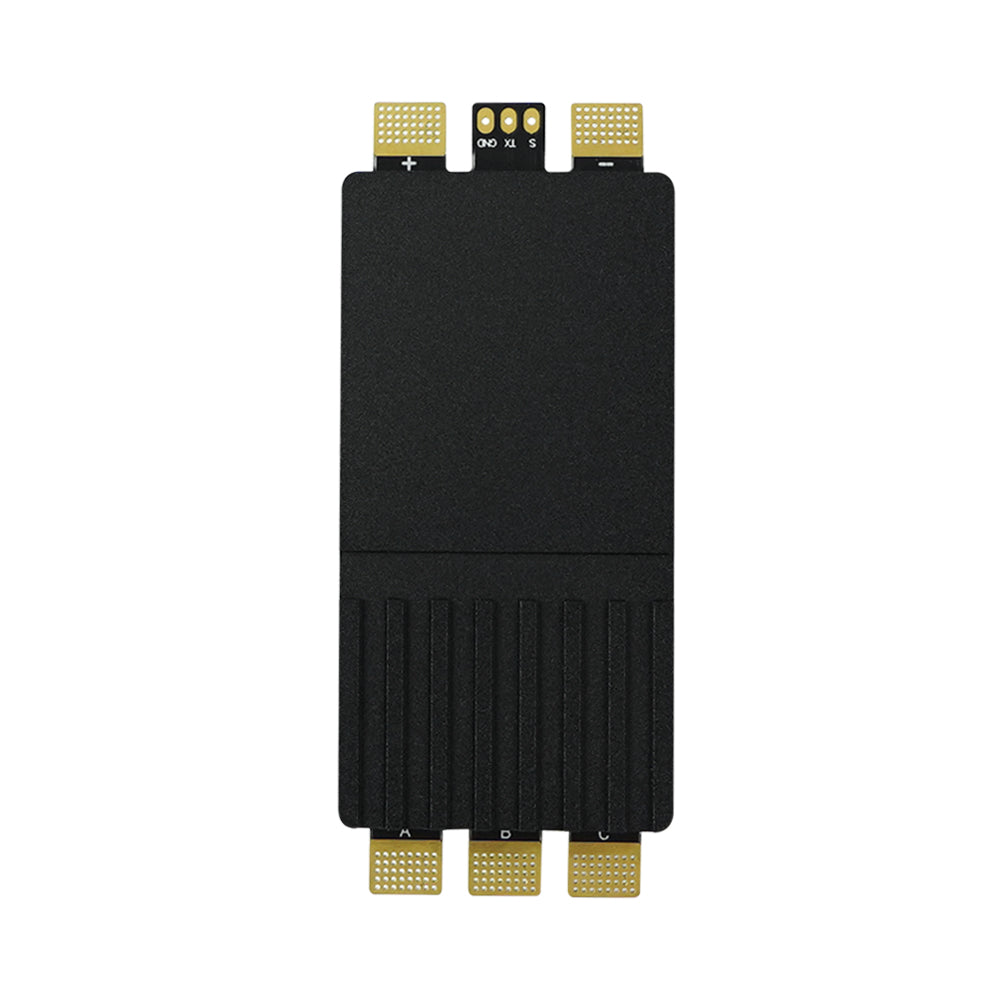

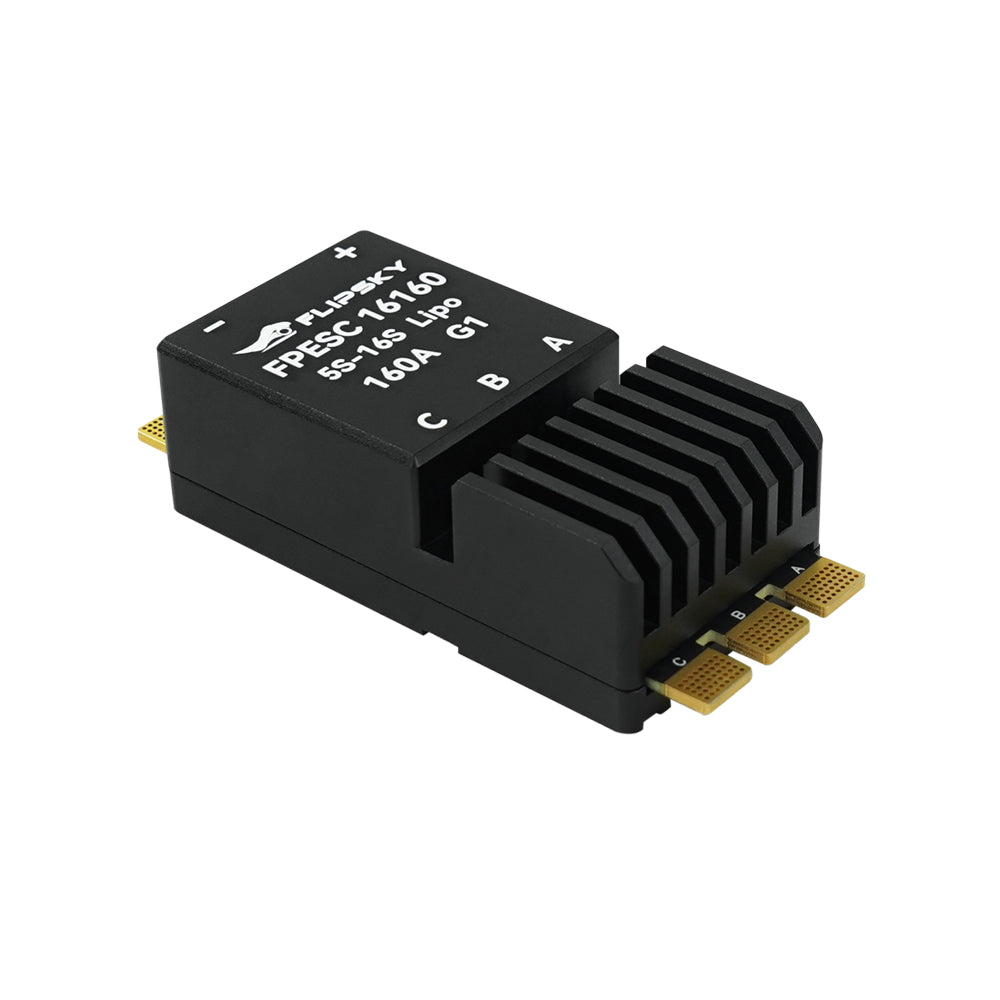

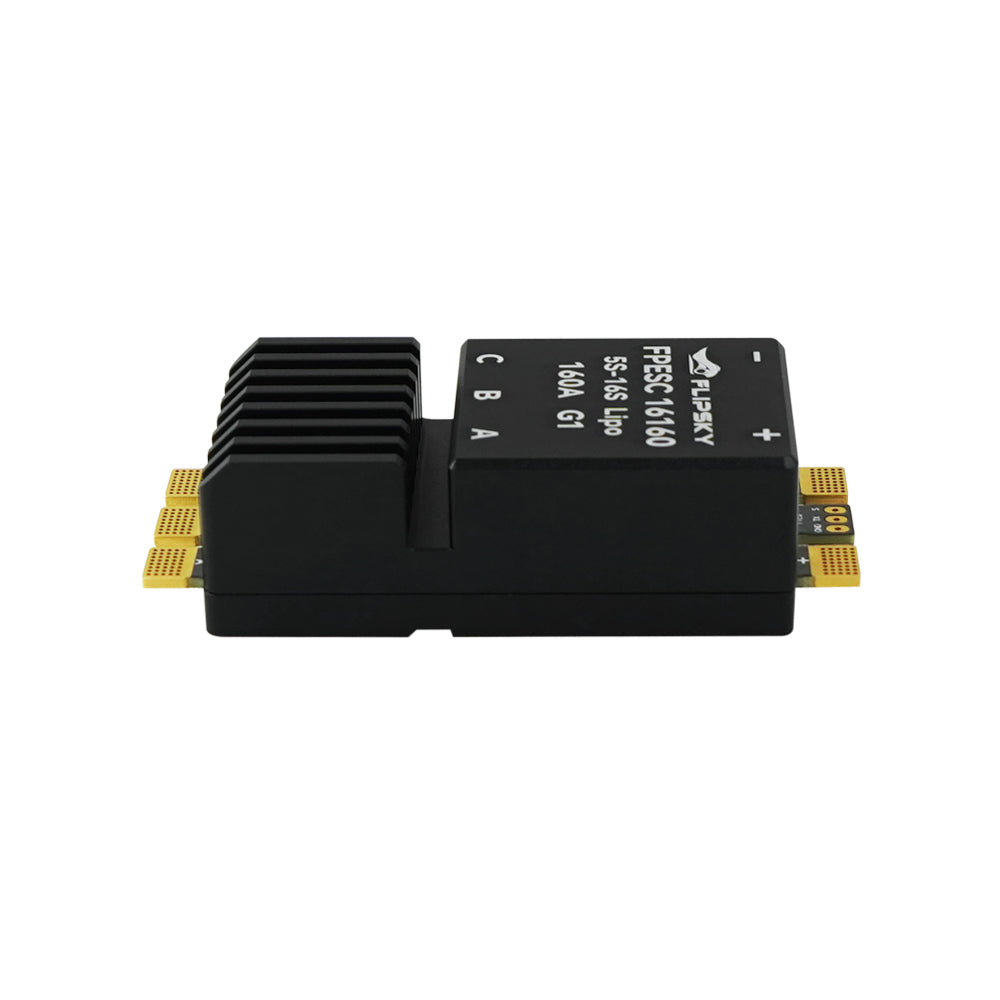

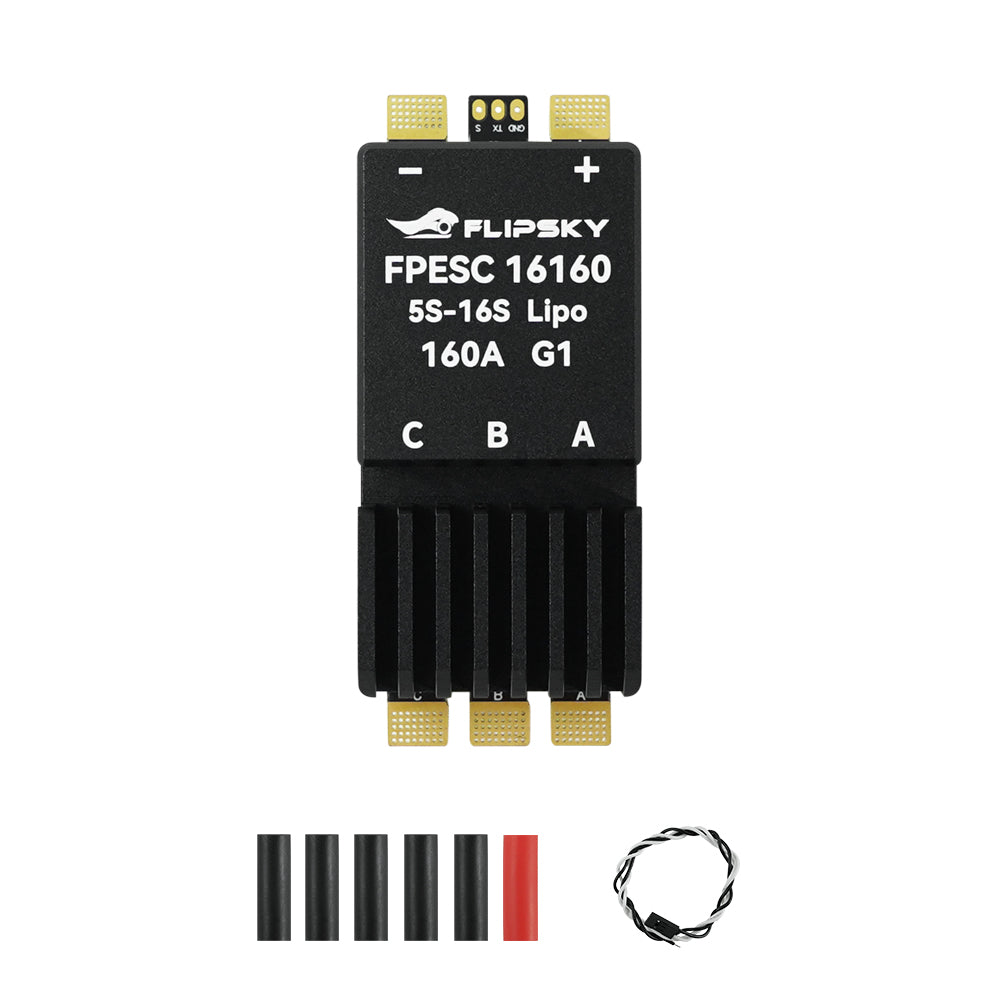

Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones
Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones

Flipsky FPESC 5S-16S 160A with AM32 Firmware for For 3D Aircraft, RC Cars & Drones

$99.00
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way

Specs:

  • Model: FPESC 16160 G1
  • Firmware: AM32_FLIPSKY_AT16160G1_F421_2.19
  • Voltage: 5S~16S Lipo
  • Peak Current: 240A(3s); 200A(10s); 160 A(35s)
  • Continuous Current: 160A(35s); 80 A(5 mins, under good heat dissipation condition)
  • BEC: No
  • Programming Tool: ESC Config Tool
  • Programming Link: https://am32.ca/
  • Import Source Support: PWM/ Dshot300/ Dshot600
  • Data Transmission: TX Port
  • Startup: OPEN/ Sinusoidal Startup(sensorless)
  • Size: L87.5*W36.4*H23mm(with pad); L71.2*W36.4*H23mm(without pad)
  • Weight: 106g(without wires)

Feature:

  • High-performance CPU: core MCU: AT32F421K8U7, with high efficiency of 120MHZ.
  • Adapt optimized AM32 with fast response and excellent performance.
  • PCB structuring design: well-organized wiring and component layout, effectively separating the power terminals and signal terminals, enhancing the stability and utility of the ESC.Using a 8-layer design with a 3OZ thick copper layer as well as large-diameter copper strips on the main power lines, greatly increasing the current-carrying and heat dissipation capability.
  • Wide voltage input: support 5~16S Li-po input, suitable for 13-20 inches drones with X-Class structure.
  • Support multiple input source: once ESC was powered on, it will auto detect the throttle signal. Support Servo PWM, one-way and both-way Dshot(300,600).
  • Variable PWM: switching PWM frequency according different rpm, highly improving motor working efficiency.
  • Support sinusoidal sensorless startup: in some cases, this mode enables the motor to smoothly transit to the reverse electrical mode with heavy load.
  • Support upgrade/parameters setup via ESC Config Tool/web.
  • Compact layout with light weight, suitable for UAV with limited arm space.
  • Built-in precise current and temperature sensor. Support trans back ESC working data via pin of TX port, monitoring core data such as temperature, voltage, current, and rpm.
  • Adapt double-stranded silicone wires as signal wires, effectively reducing the signal interference during copper wire transmission process, enhancing the flight stability.
  • Equipped with an aluminum alloy radiator, efficiently dissipating heat and improving working stability.

Wiring Diagram:

To prevent short circuits or electric leakage, please ensure that the connection well insulated.

Manual download link:

https://cdn.shopify.com/s/files/1/0011/4039/1996/files/FSESC_16160_G1_V1.0_AM32.docx?v=1781761721
