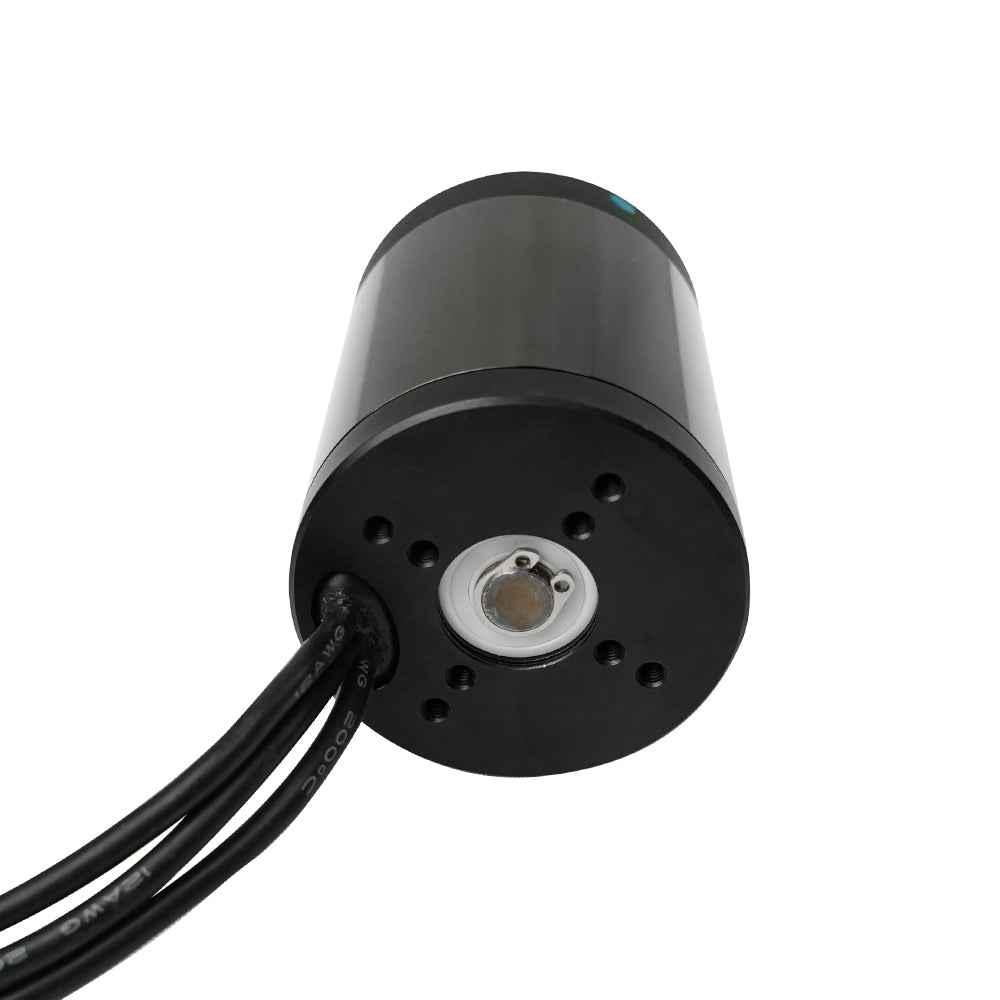

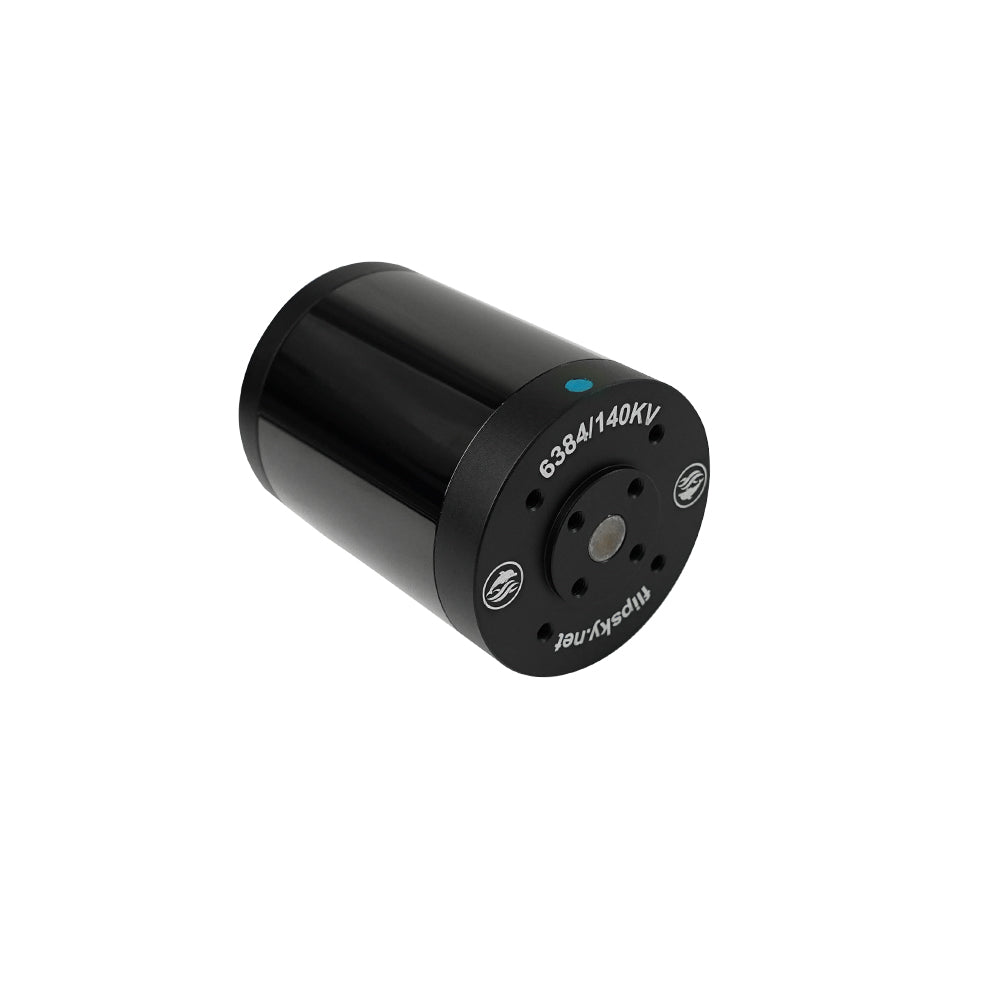

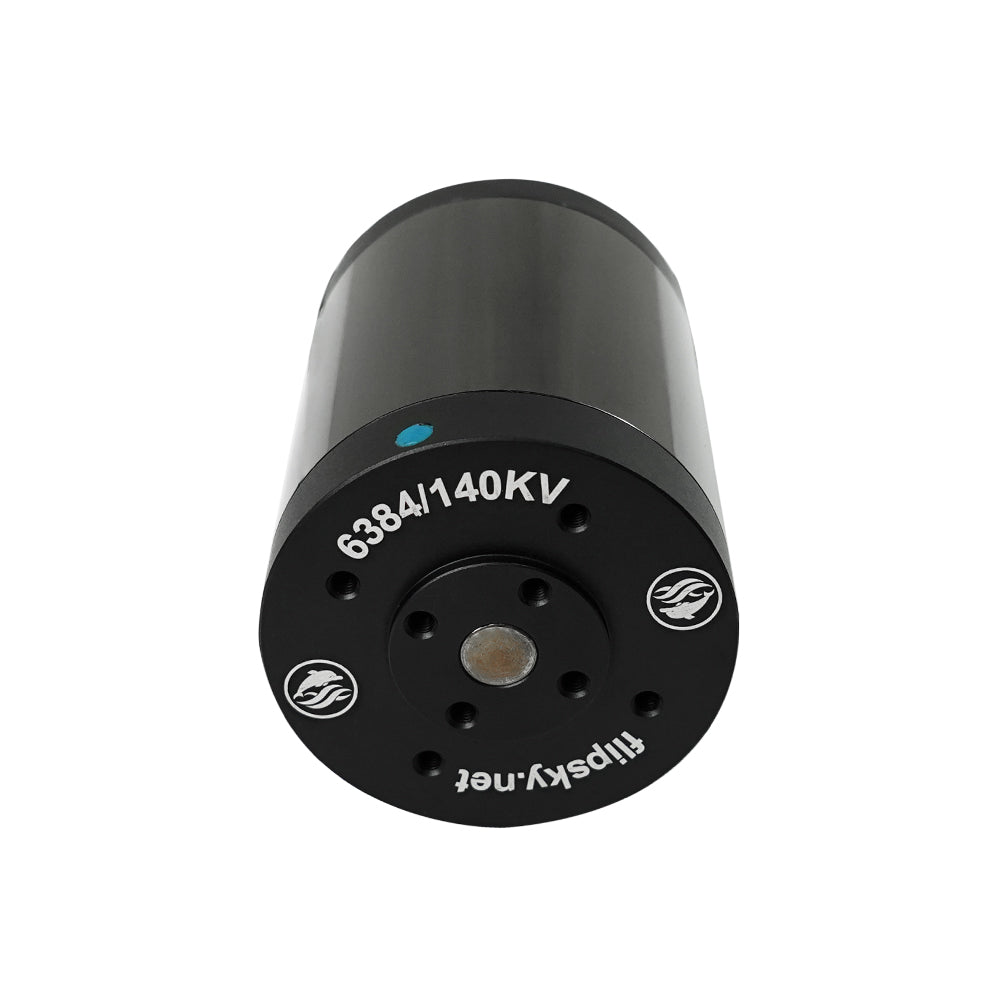

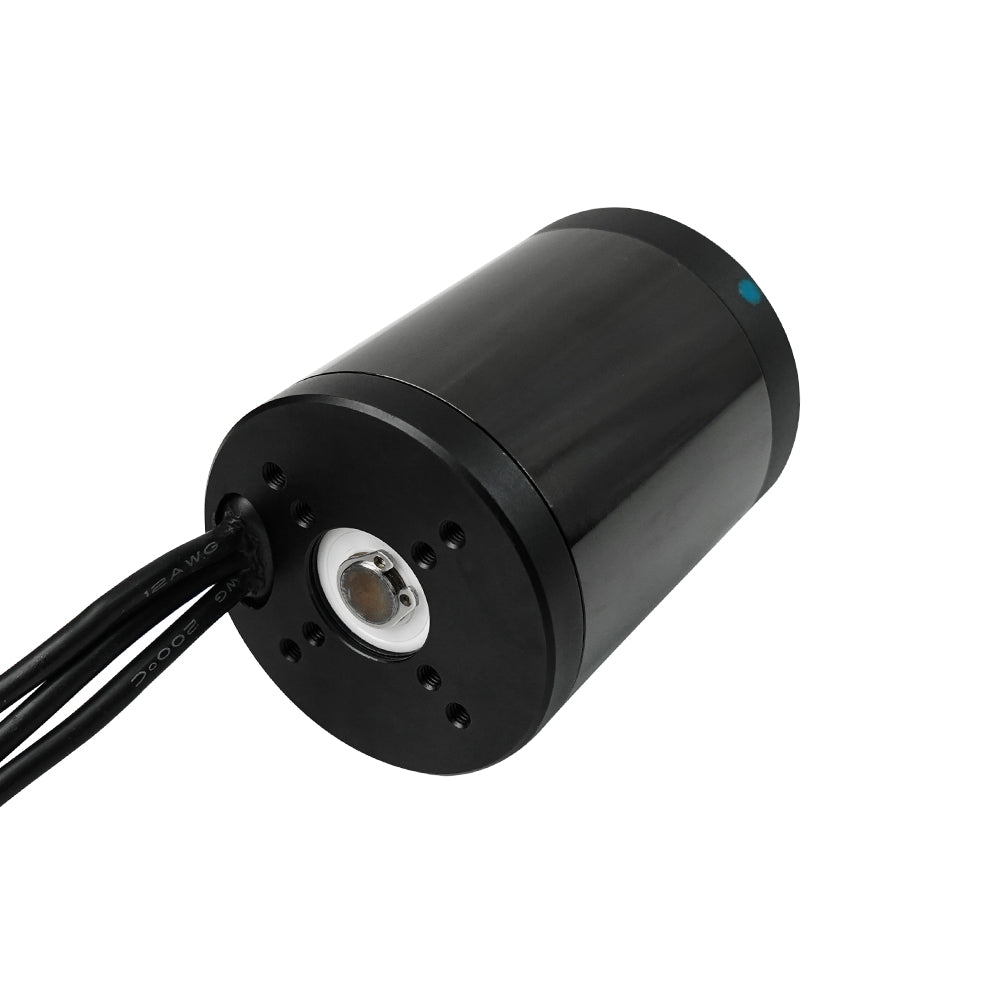

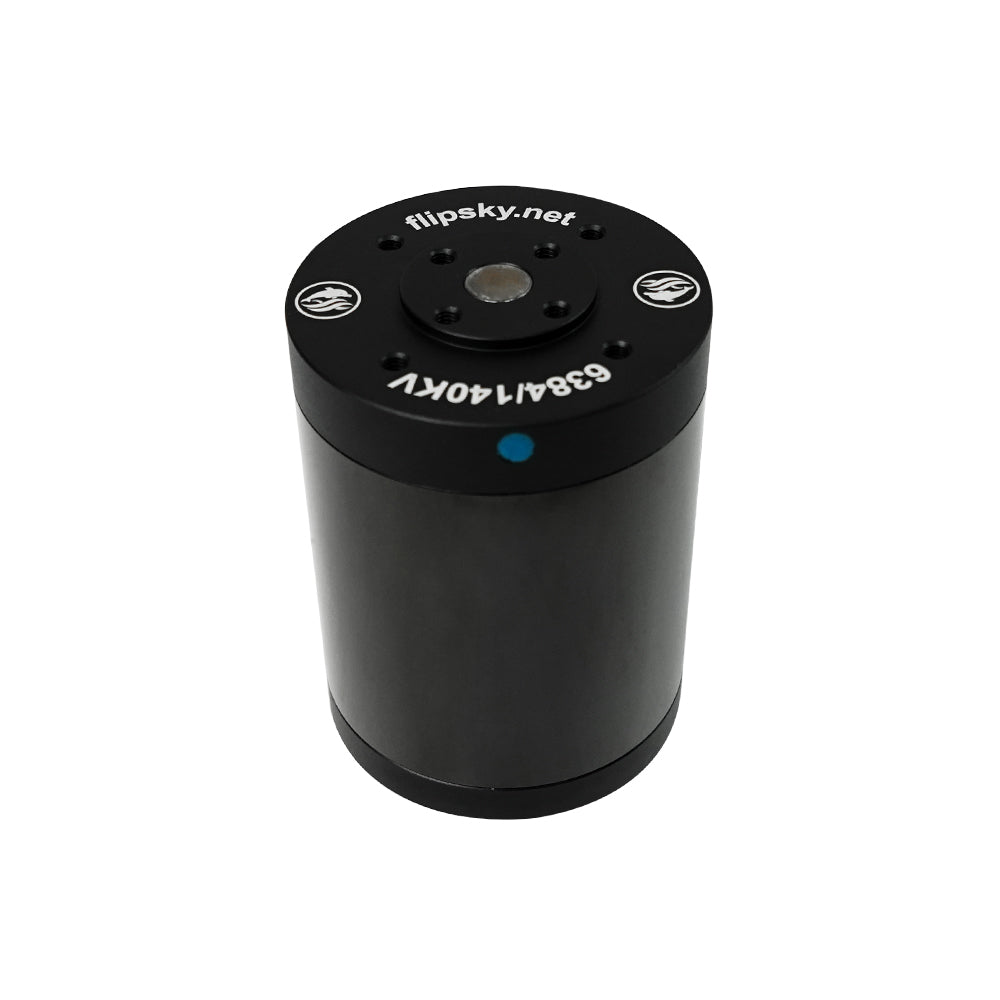

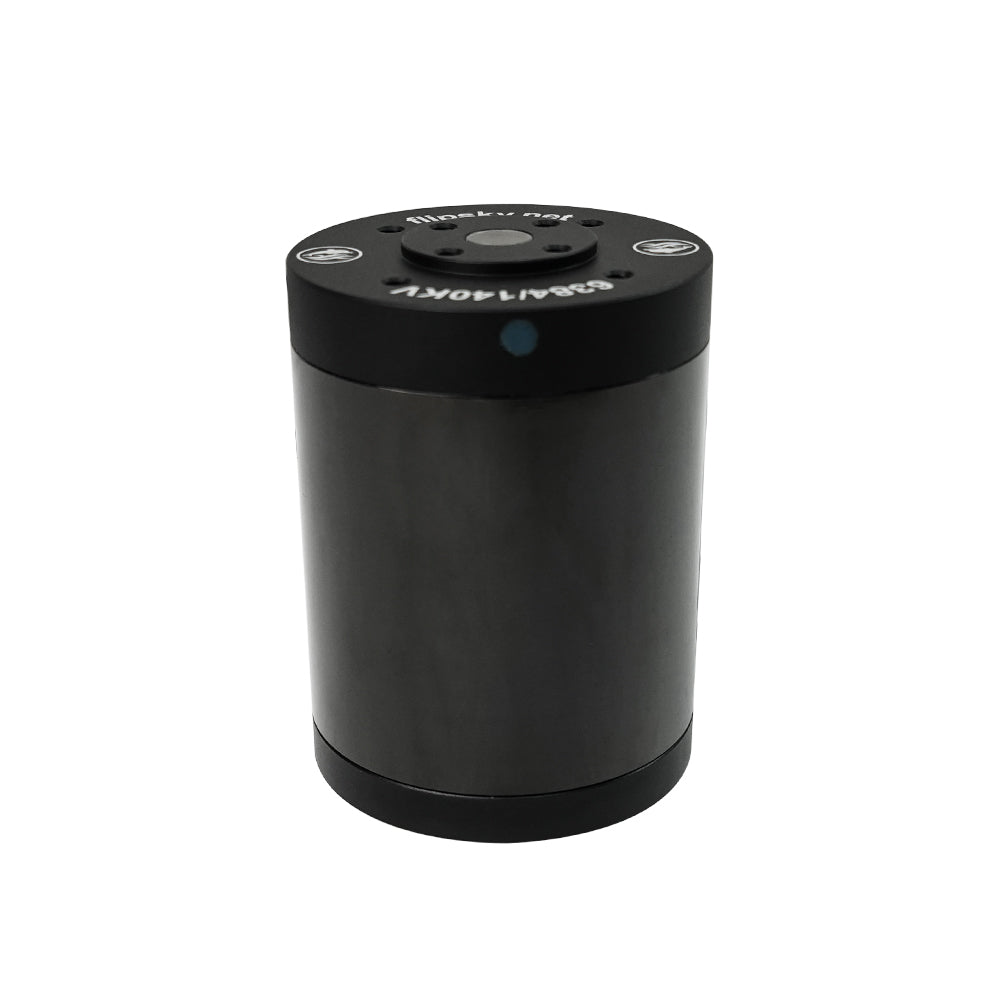

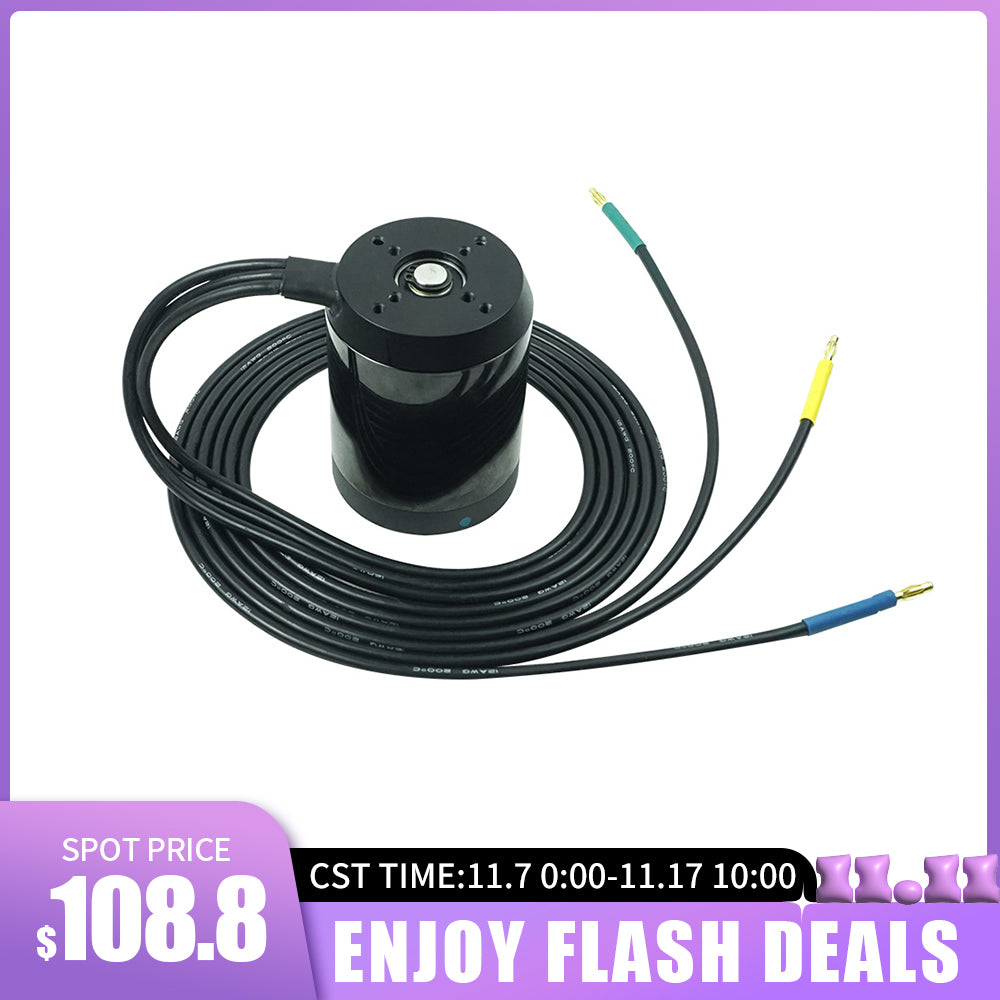

Name: Flipsky Waterproof Brushless DC 6384 Motor 140KV 4400W for Surfing Boat Underwater Thruster | Hydro | Efoil
Brand: FLIPSKY
SKU: 90-063084-001-003(140)
Price: 136.0 USD
Availability: InStock

Flipsky Waterproof Brushless DC 6384 Motor 140KV 4400W for Surfing Boat Underwater Thruster | Hydro | Efoil

$136.00

Shipping calculated at checkout.

Quantity

Include

Short shaft

Long thread shaft

Short shaft + 4.8" Foldable Propeller

Long thread shaft + 3.8" Propeller

WITH KV

140KV

Customized (please leave notes)

In stock, ready to ship
Inventory on the way

Customized (please leave notes)

Spec:

Model: Φ63.0×L84.0
KV: 140KV
Voltage Range (UR): 6-16S
Shaft : Φ10
Rated Power (P): 2800 W
Max Power (Pmax): 4400 W
Rated Current (I): 59 A
No load current :1.6 A
Max Current (Imax): 88 A
Insulation Current: AC 500V, 50Hz, 1mA, 3 seconds
Rated torque(T): 3.8 Nm
Torque constant (K): 67.4 (mNm/A)
Resistance (R): 35 mΩ

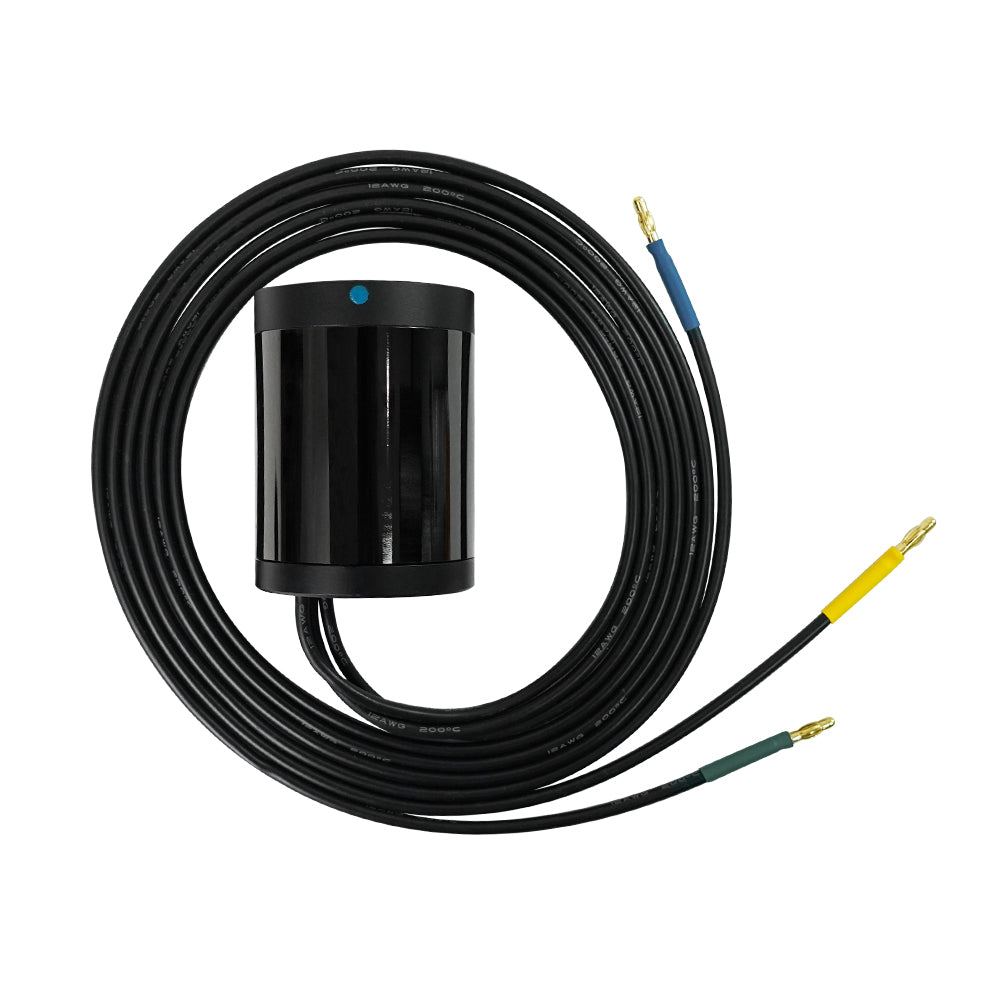

Three-phase Leads: 3*12AWG (4.5mm)
Wire length: 1300mm
Plug: 4mm Banana Plug (male)
Inductance (L): 0.08 mH
Weight (W): 1.27 kg
Stator length: 55mm
Bearing: Ceramic bearing
Number of slots & poles: 12N/14P
Waterproof level: IP58

Short shaft Motor diagram:

Long thread shaft Motor diagram:

Propeller Diagram:
