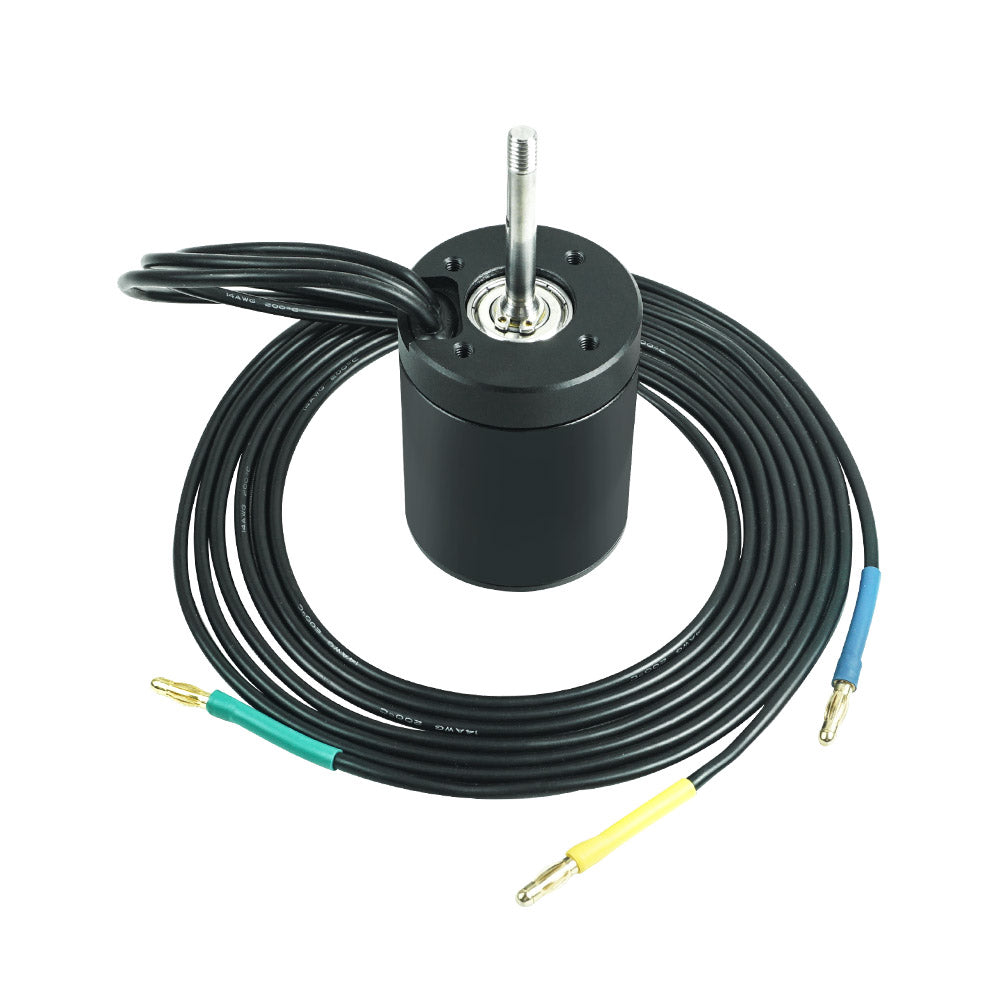

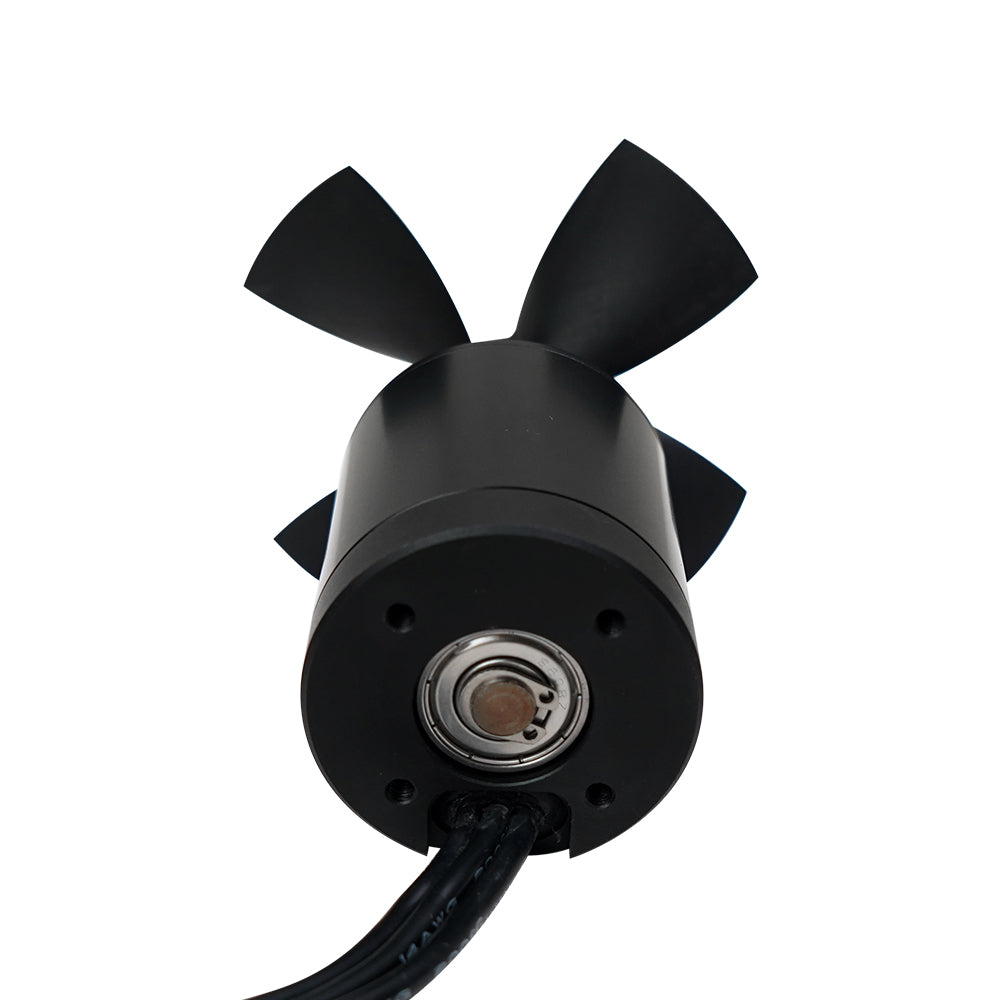

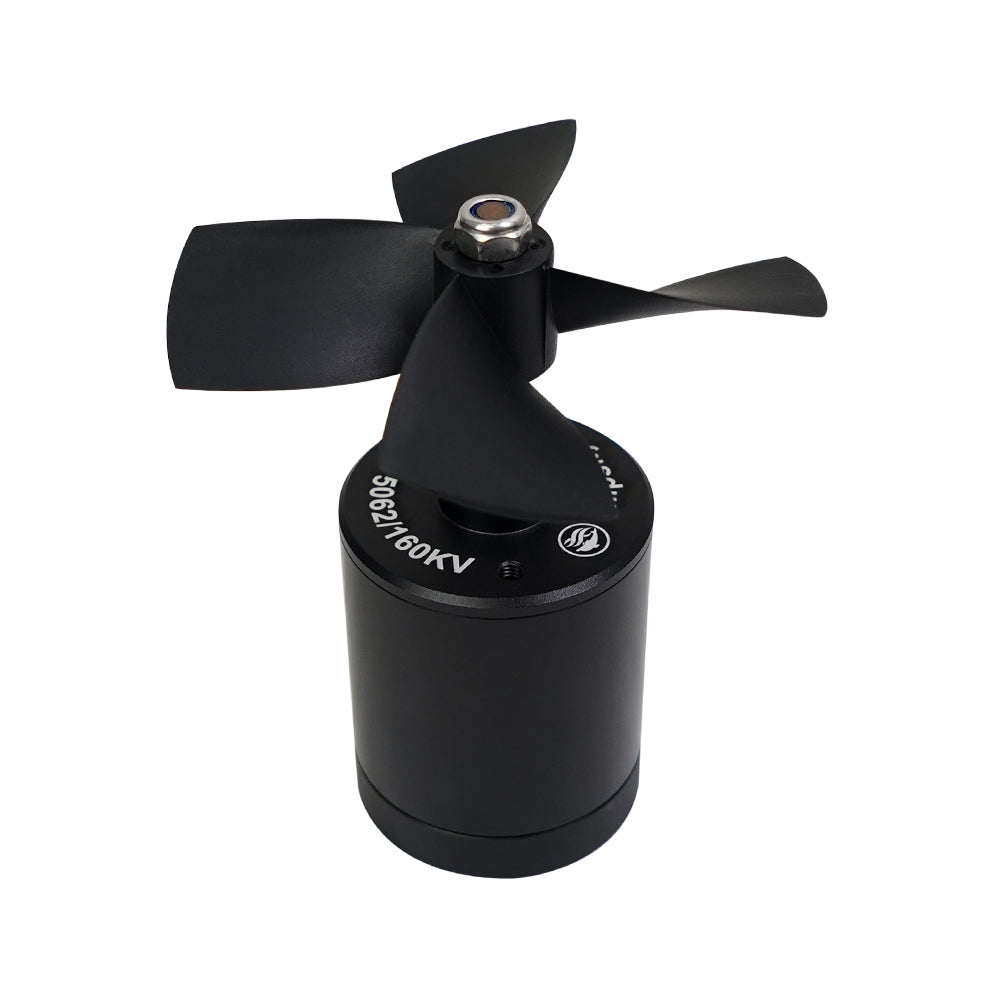

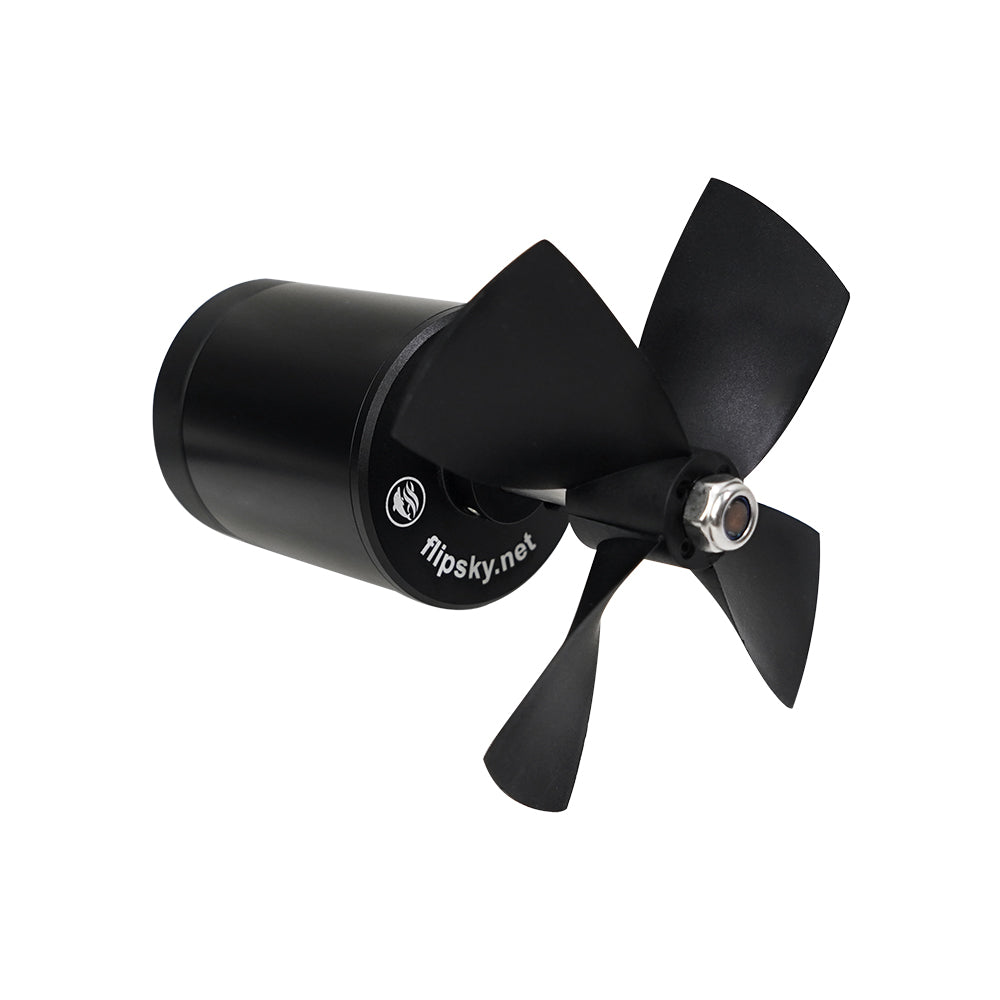

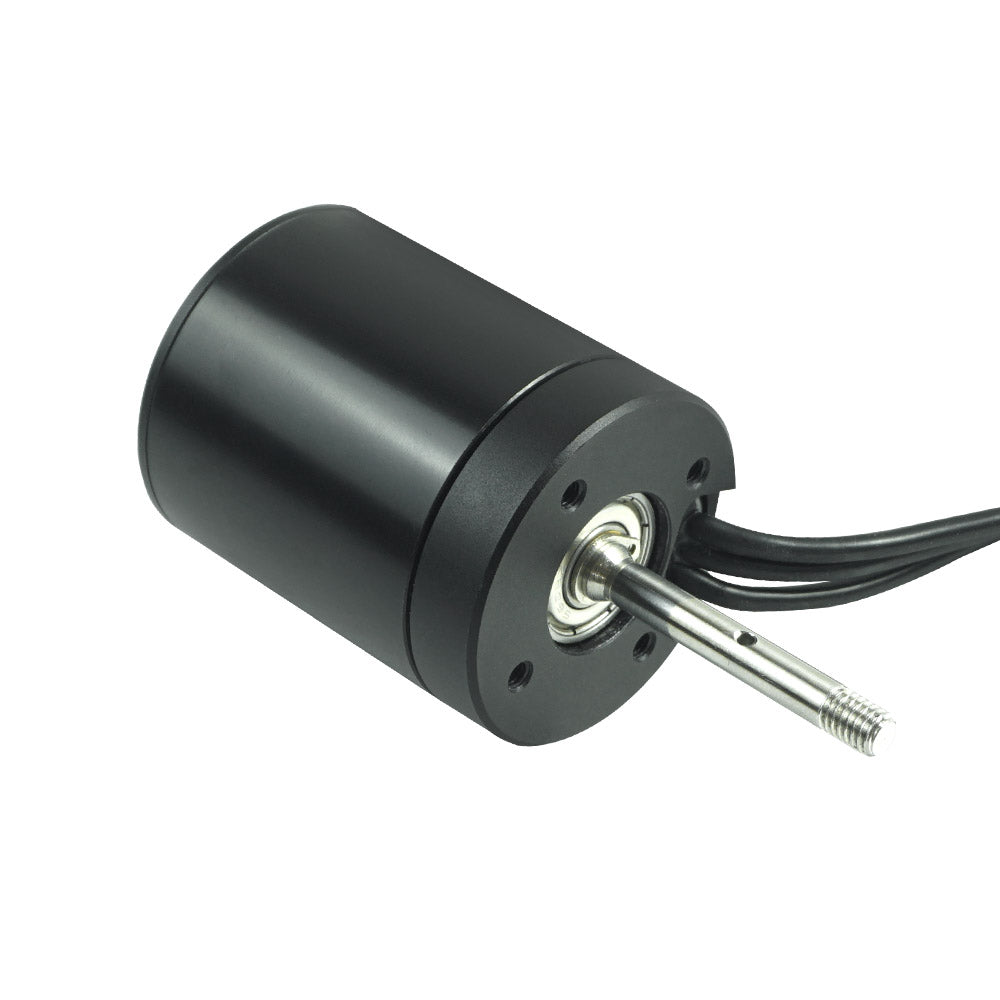

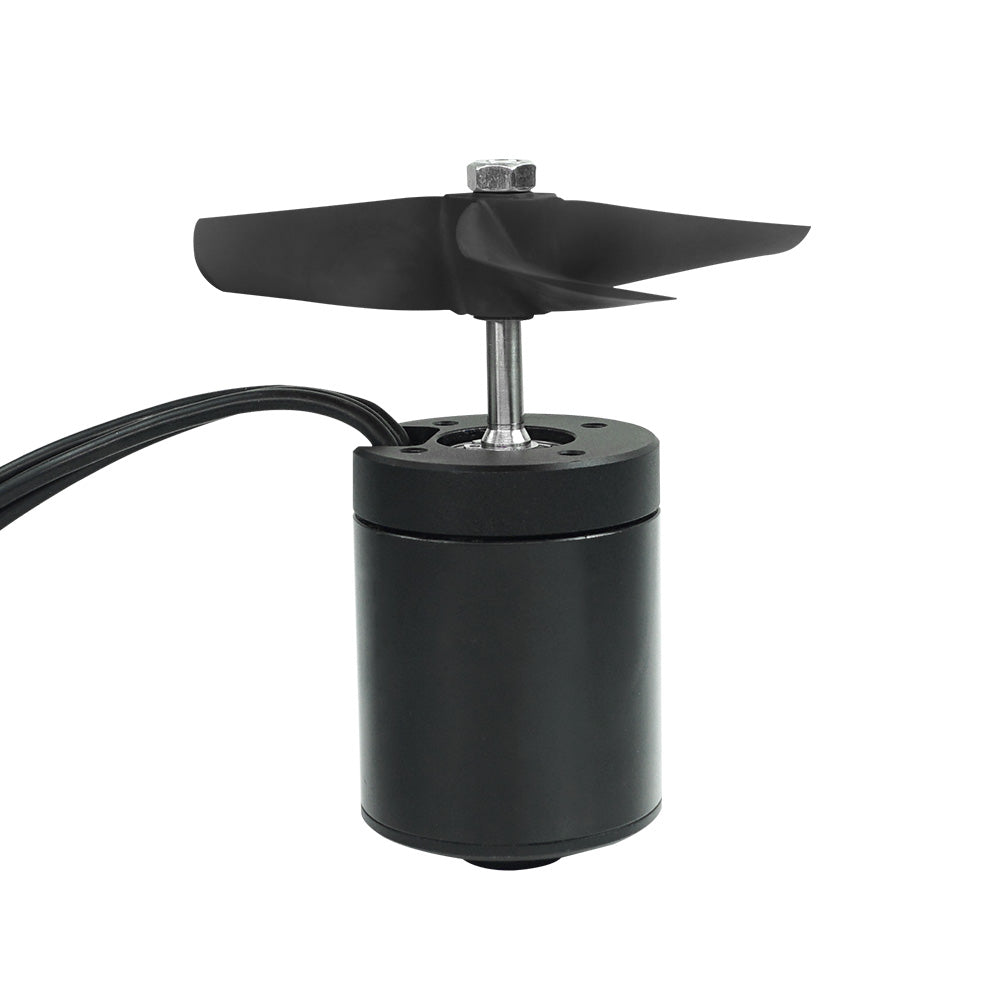

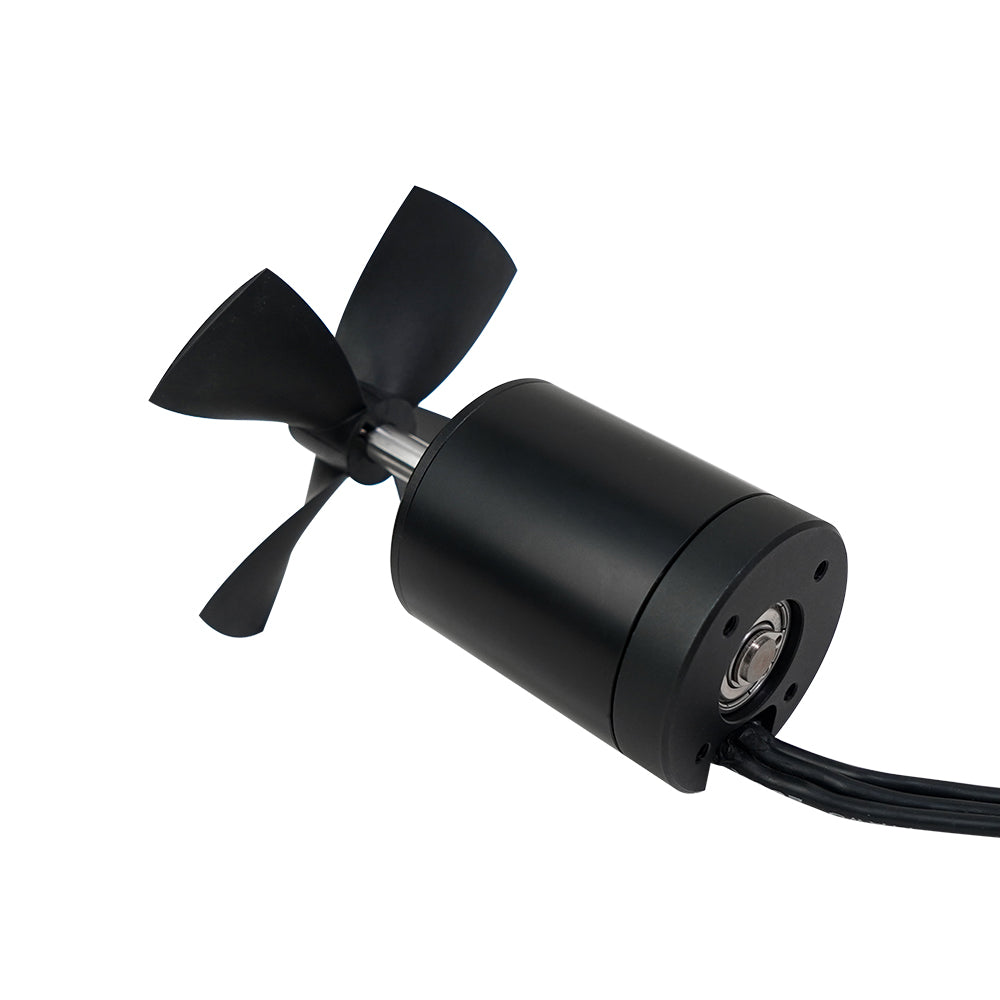

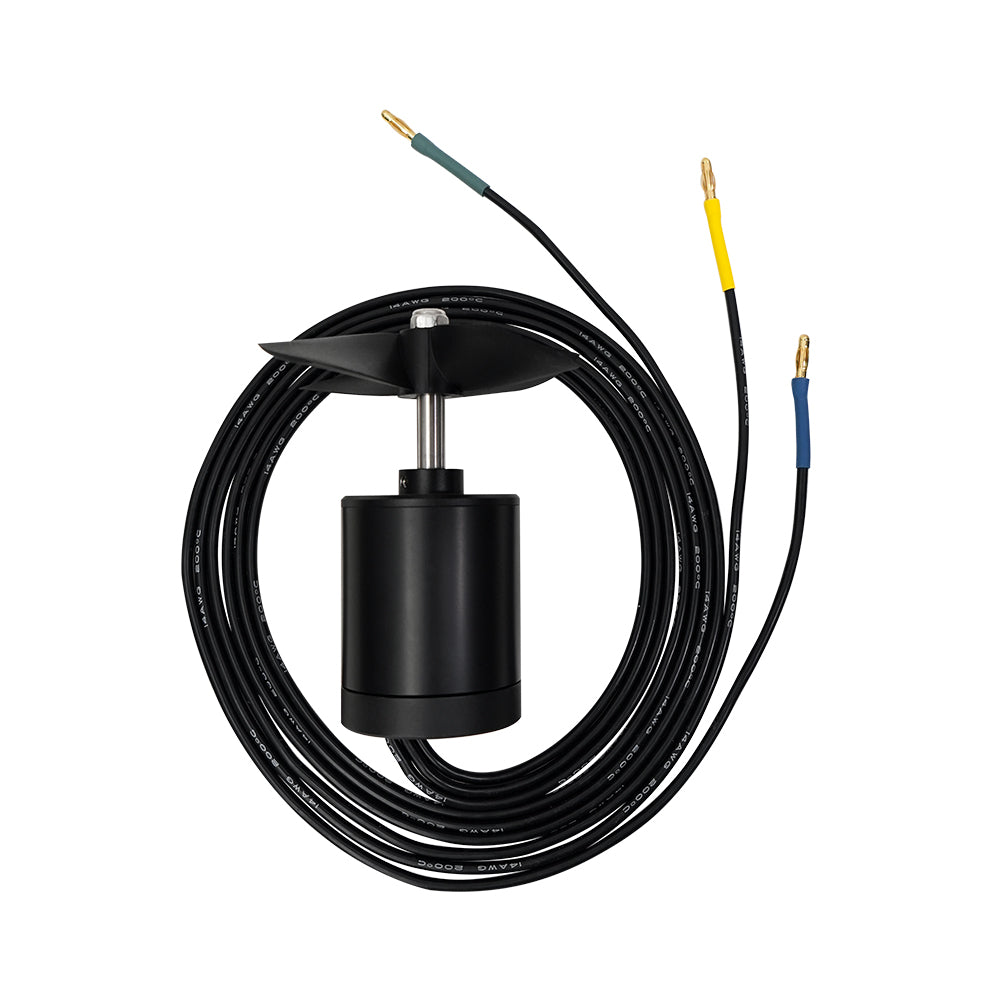

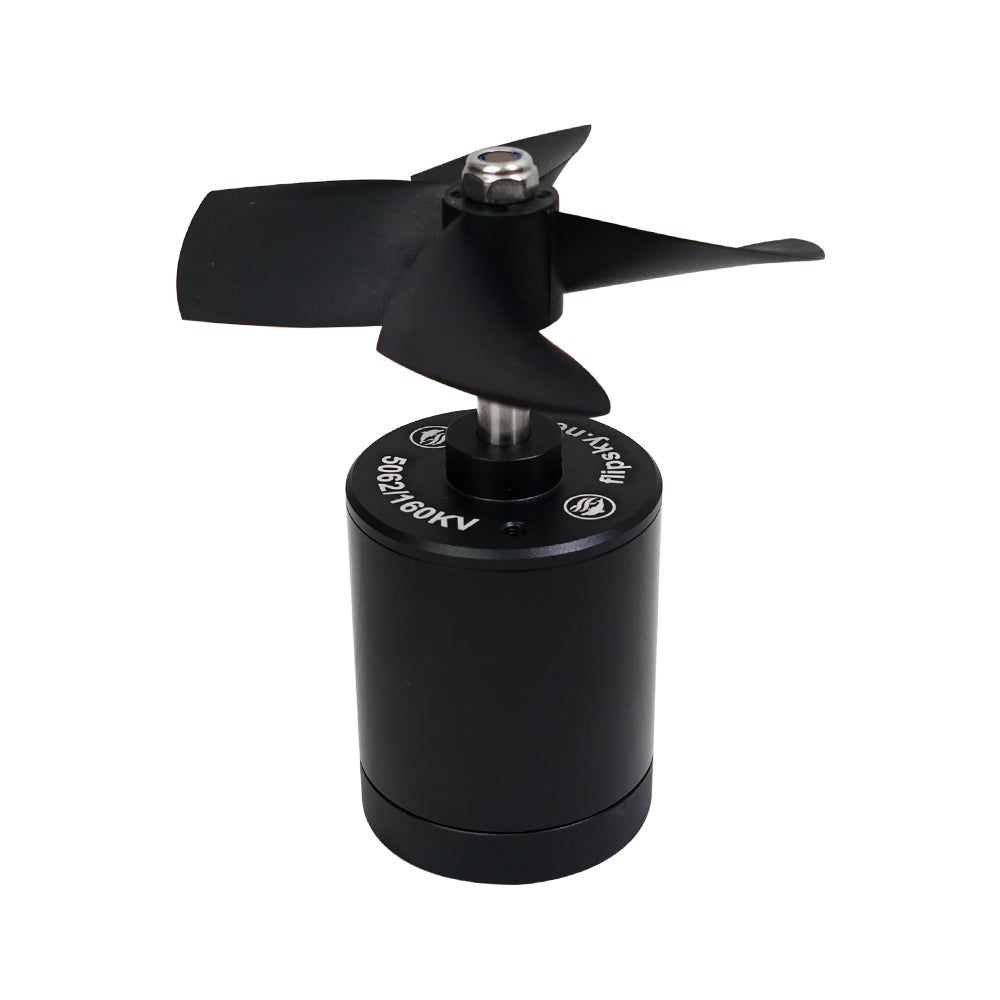

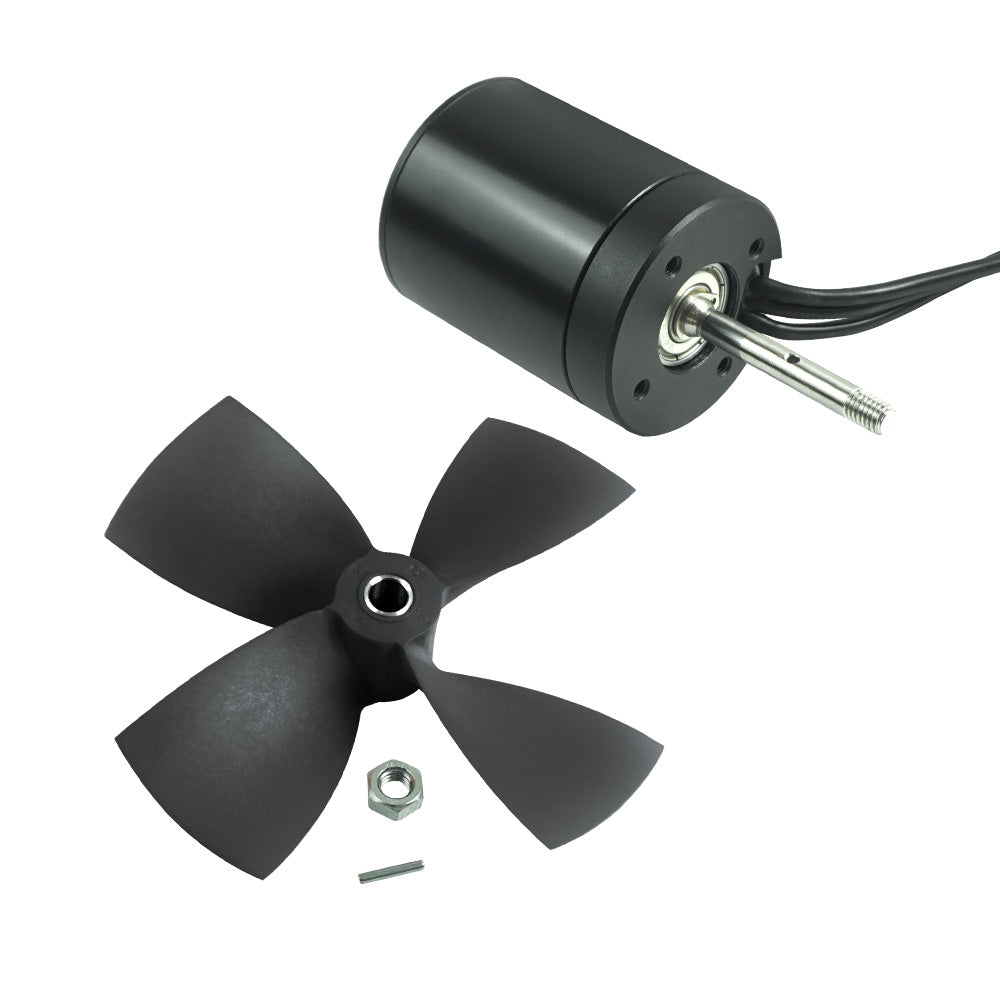

Flipsky Waterproof Brushless DC 5062 Motor 160KV 1100W with Propeller for Surfing Boat Underwater Thruster | Hydro | Efoil

Spec

• Model: Φ49.2×L62.0

• KV: 160KV

• Voltage Range (UR): 6-14S

• Shaft: Φ8

• Rated Power (P): 650W

• Max Power (Pmax): 1100W

• Rated Current (I): 18A

• Max Current (Imax): 30A

• Insulation Current: AC500V/50Hz/1mA/3S

• Resistance (R): 120mΩ

• Three-phase Leads: 3*14AWG (4.5mm)

• Plug: 4mm banana plug (male)

• Inductance (L): 0.15mH

• Internal Structure: 12N/14P

• Weight (W): 0.61kg
• Waterproof Level: IP58
• Propeller size：4 leaves, outer diameter 94.1

5062-160KV thrust test

140KV 24V Motor Curve Diagram link

Φ8 mm shaft Dimension:
