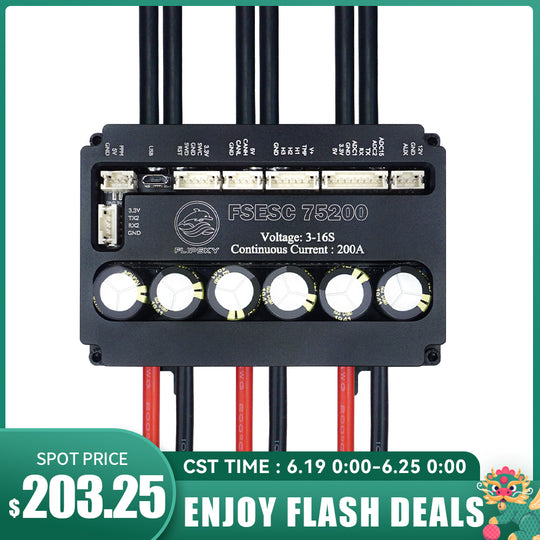

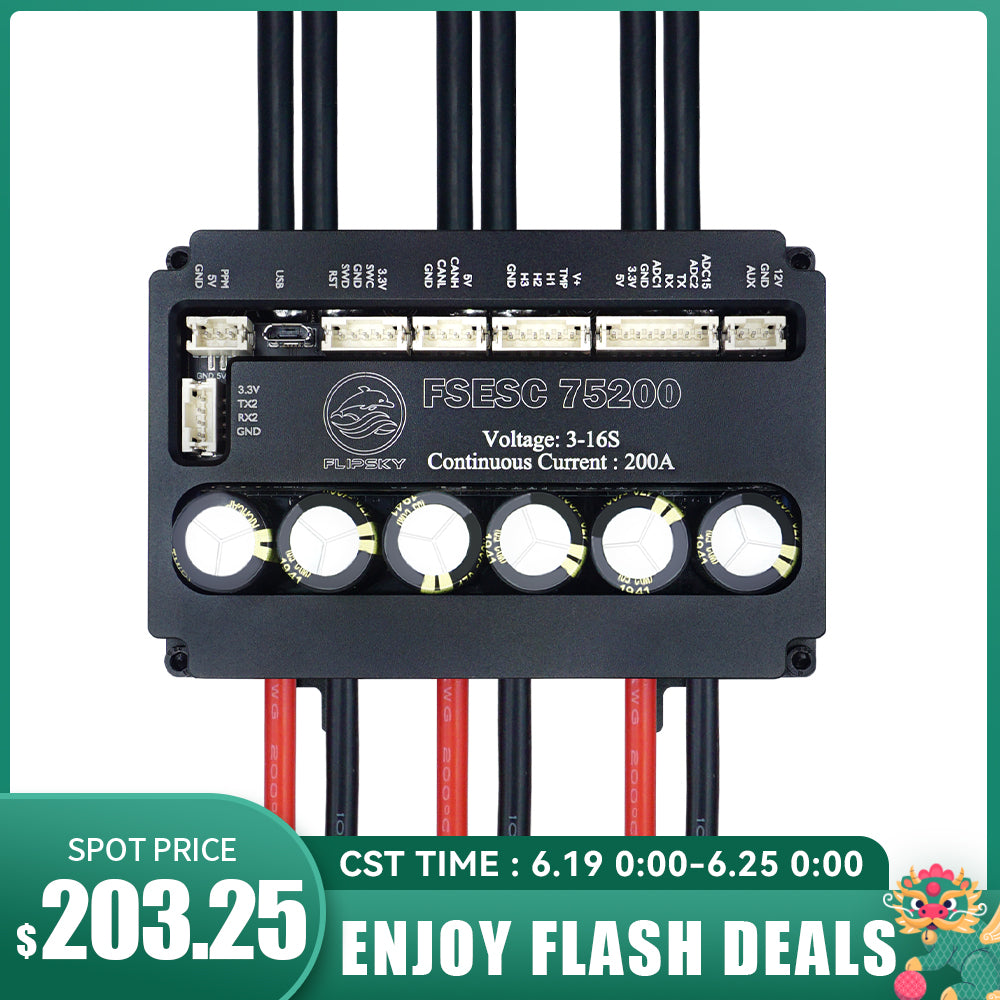

Name: Flash Deals Flipsky FSESC 75200 75V High Current 200A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot
Brand: FLIPSKY
SKU: VW-75S-N-200
Price: 203.75 USD
Availability: InStock

Flash Deals Flipsky FSESC 75200 75V High Current 200A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot

Flipsky FSESC 75200 75V High Current 200A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot

$300.00 $213.75

Shipping calculated at checkout.

Quantity

Style

With Aluminum Case

With Water Cooling Enclosure

In stock, ready to ship
Inventory on the way

Spec:

Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer)
Voltage: 14-75V（3-16S）
Continuous current: 200A
Peak Current: 400A
BEC: 5V@1.5A
Support Modes: DC, BLDC, FOC (sinusoidal)
Communication Ports: USB, CAN, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Source Support: PPM, ADC, NRF, UART
Supported Sensorless: Yes
Regenerative capacity: Yes
Programmable via VESC_TOOL: Yes
Size:110*73*52mm
Motor wire: 8AWG
Power cable: 10AWG
Waterproof level(with water cooling enclosure): IP65

Feature:

Adjustable protection against: low voltage protection, high voltage protection, over current protection,

temperature abnormal protection, mosfets / motor over temperature protection.
Support various control modes: Current / Duty cycle / Speed / PID control modes.
Support the function of balancing car by connecting the IMU module through the IIC interface; support i nertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
CPU:32F405 with frequency 168MHz
Two COMM ports: UART bluetooth module, screen display or remote controller supportable.

Warm tips:

Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube：Click here
Blog：Click here

More Detail:

Wiring Diagram With Aluminum Case:

Wiring Diagram With Water Cooling Enclosure:
