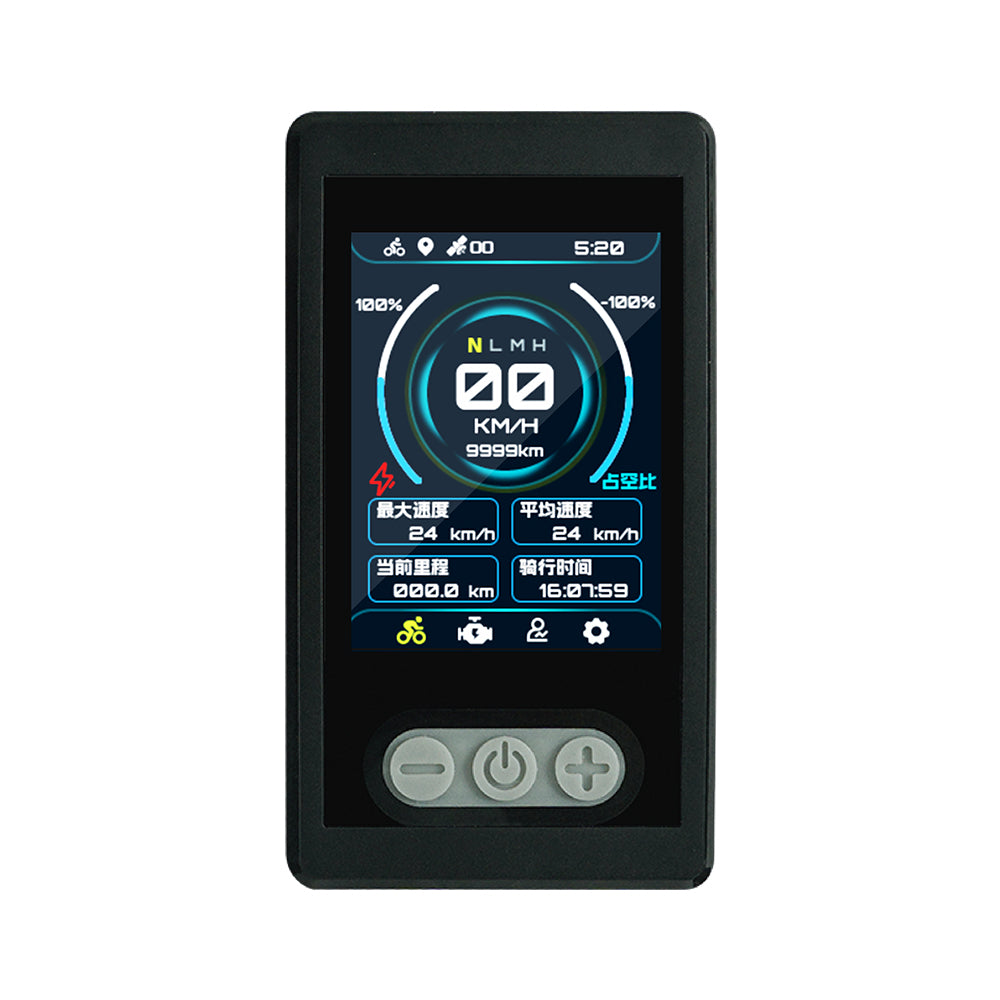

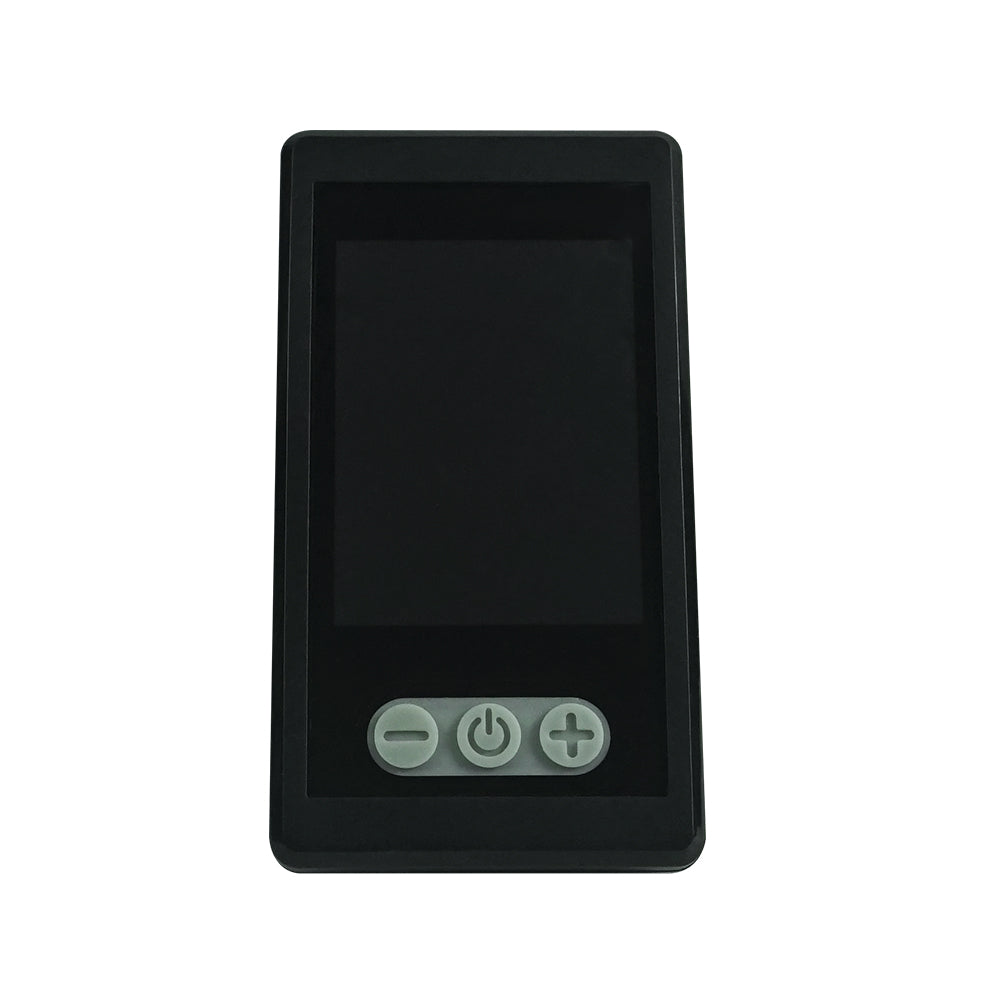

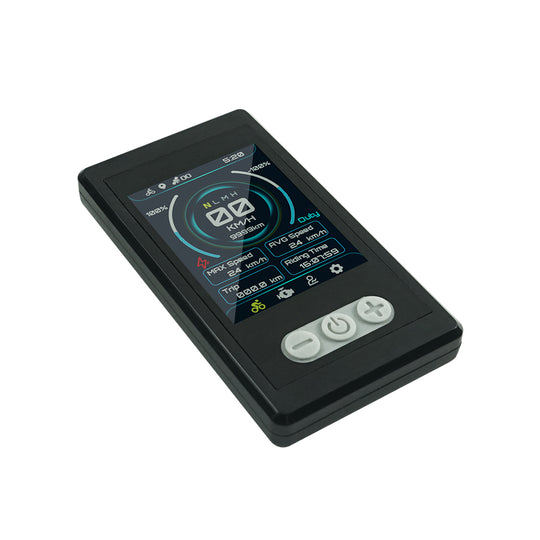

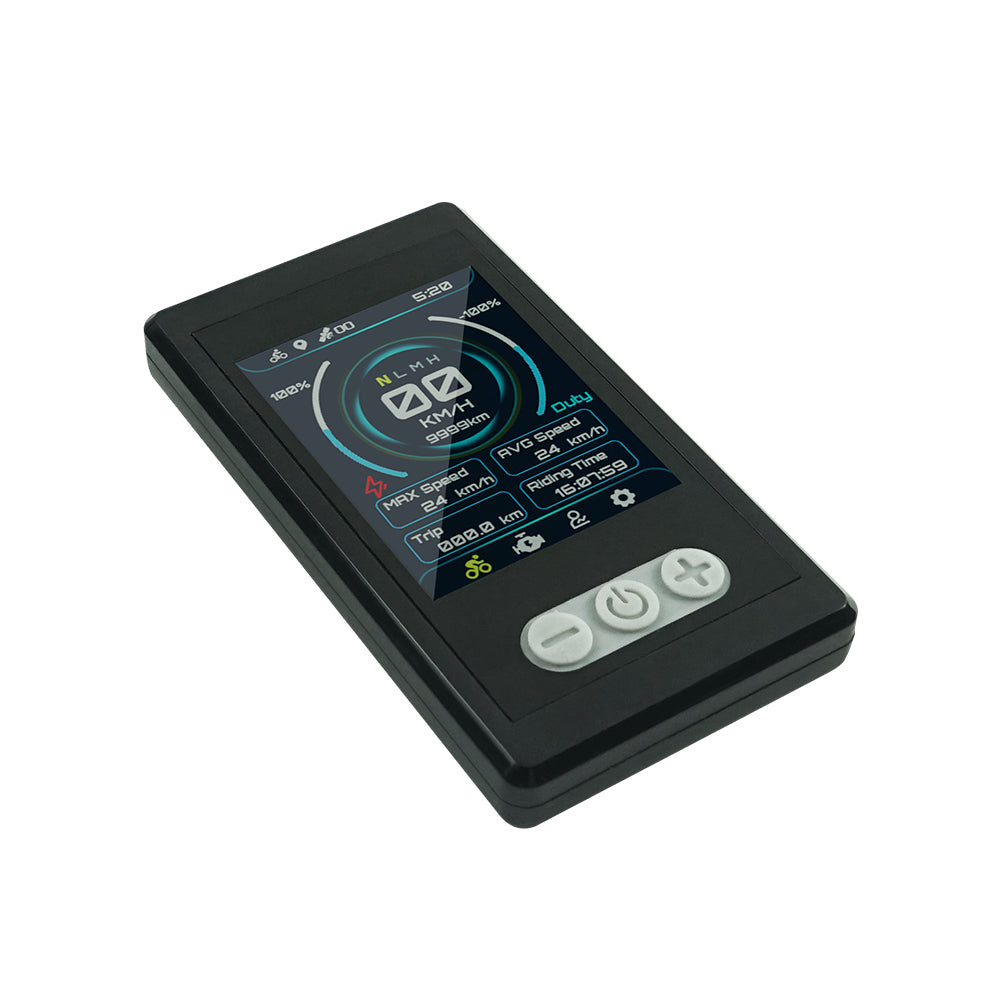

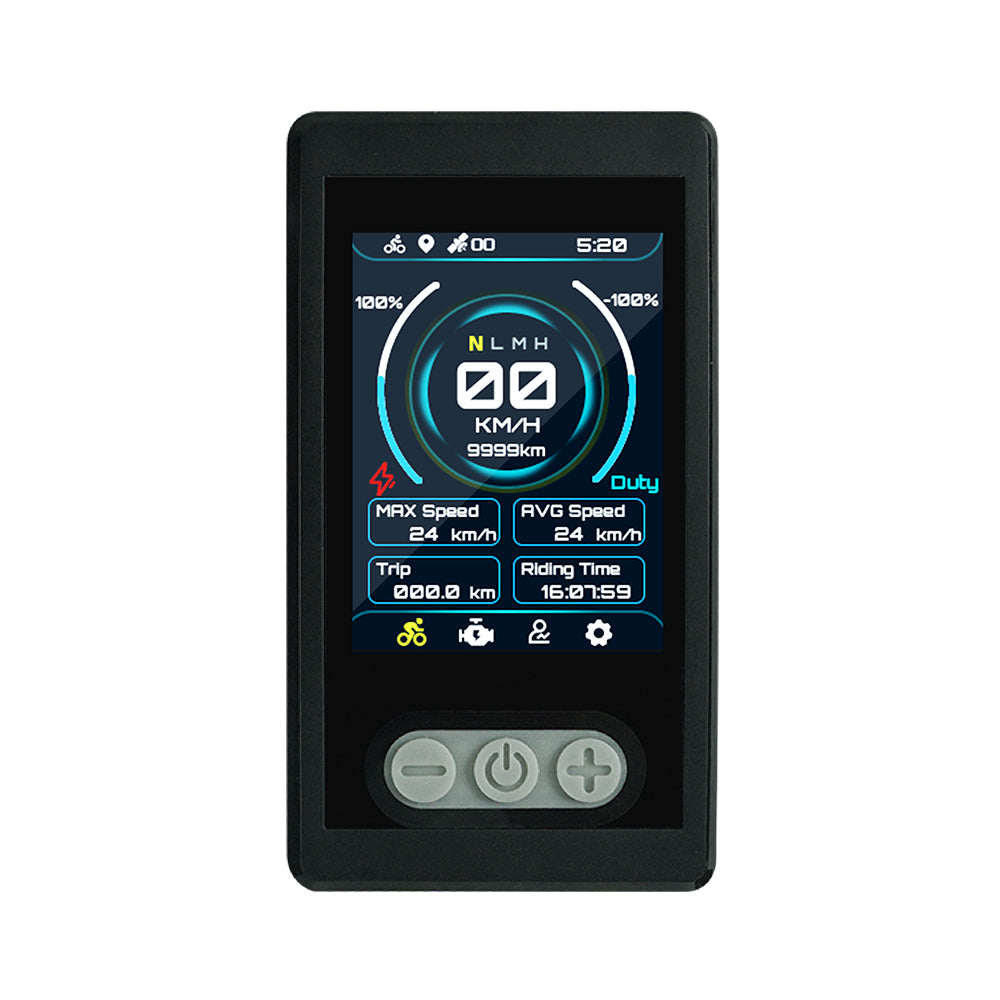

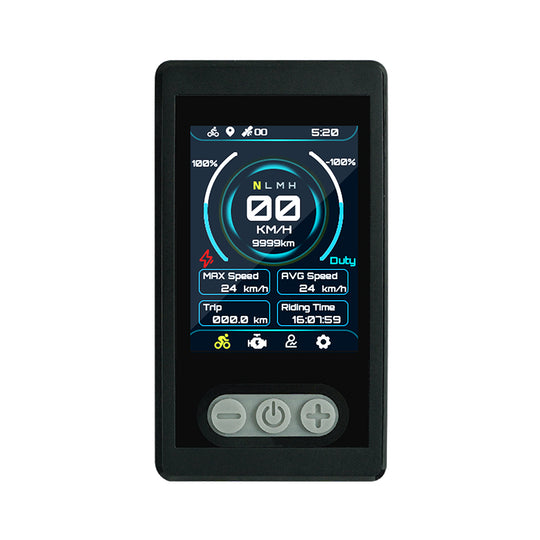

Flipsky TFT Advanced display V2.0 with GPS function IP65 waterproof for Ebike
Support Esc Types:
FTESC: Flipsky Non VESC ESCs
FSESC: ESCs based on VESC
FOCBOX: FOCBOX Unity
Product Structural dimensions:
Specification:
| Dimension: L*W*H (mm) | 124.4*68.1*18.5(mm) |
| Display Size | 3.2 “ |
| Display Type | TFT |
| Display Color | RGB |
| Display Image Resolution | 240*320 |
| Voltage/Current | 5V/500mA |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -30℃～+70℃ |
| IP Rate | IP65 |
| Weight | 116g |
| Communication Mode | UART |
Product Wiring Diagram:
New Features
-

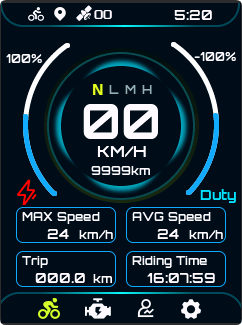

New UI design, upgraded visual experience
Adopting modern technology style interface, the overall visual sense of technology and sophistication.
Clearer graphical layout, more in line with contemporary user aesthetics, to enhance the cycling experience. -
Rich cycling record data display
New detailed cycling record display helps users to
fully understand the cycling status and energy efficiency performance:
Speed
Mileage
Riding time
Power output and energy recovery
Average energy consumption (Wh/km)
Maximum temperature of the ESC and maximum temperature of the motor
Maximum power during the cycling process -
GPS automatic time calibration function
Built-in GPS module automatically calibrates the date and time, manually set a
time zone, synchronized while riding. -
Multi-language support, suitable for users in different regions
Supports Chinese, English, Russian trilingual display
Users can switch with one key according to their language habits, and the operation
is barrier-free. -
Real-time data to assist cycling management
Real-time display of cycling and ESC data, providing users with a scientific basis to optimize cycling habits and efficient use
V2.0 compared with the old version V1.0:
- Self-designed U1 and program framework, which is clearly differentiated from VESC displays on the market.
- After setting the time zone once, every time you go outdoors to get the GPS signal will be calibrated once, the time and its accuracy.
- Support Chinese, English and Russian language display, which is favorable for domestic and Russian market.
- Enhancement of human-computer interaction in cycling record display adds ESC energy consumption display and maximum data display.
Kindly Remind:
Improper operation may cause useless or even damage. We Strongly recommend you reading this manual carefully before using this product and strictly follow the prescribed operating procedures. We are not responsible for any liability reason arising from the misuse of this product, including but not limited to liability for direct or indirect loss or damage, and we do not assume any liability for unauthorized modifications for the product. We reserve the right to change product design, appearance, performance and usage requirements without prior notice to the buyer
EBike Cycling Computer TFT Screen V2.0 User Manual（please Scan QR code）：
https://cdn.shopify.com/s/files/1/0011/4039/1996/files/TFT_2.0-20250619.pdf?v=1750664575
