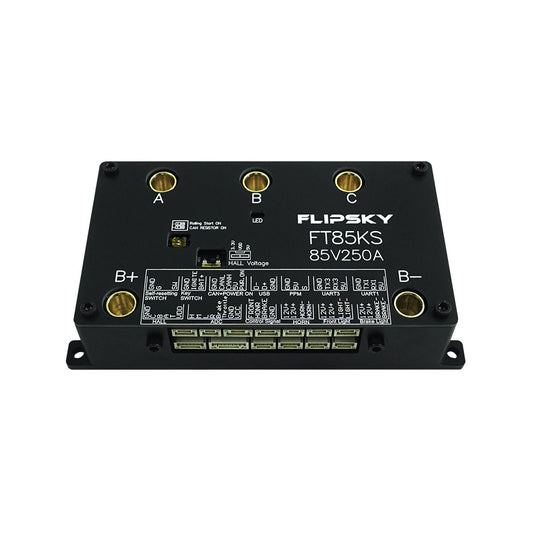

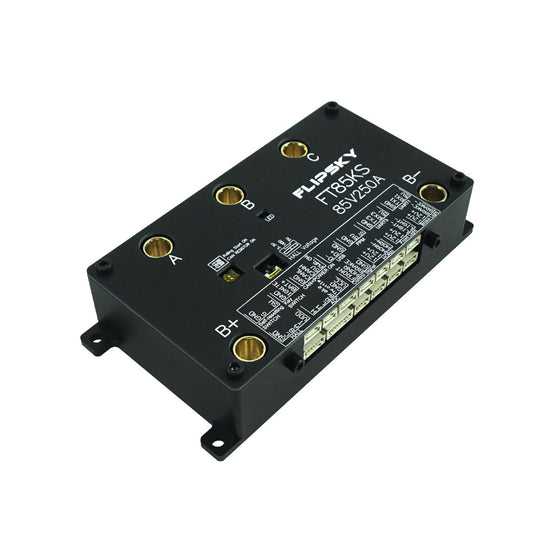

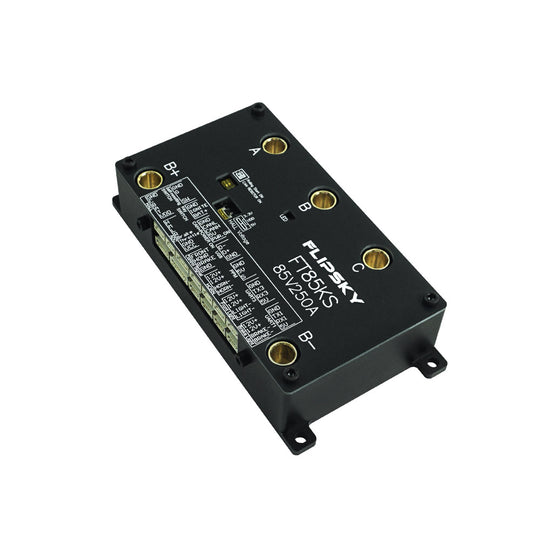

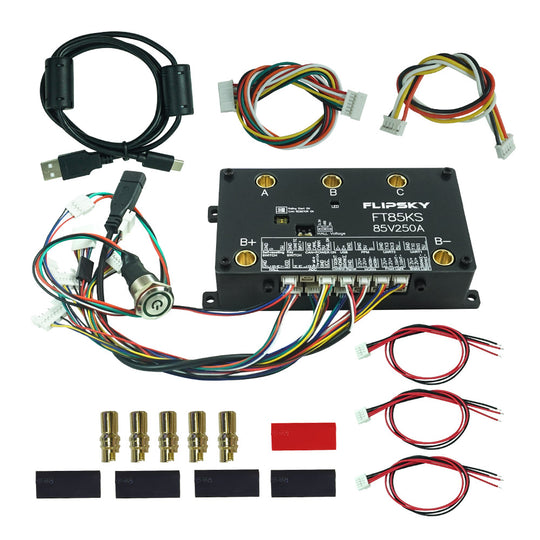

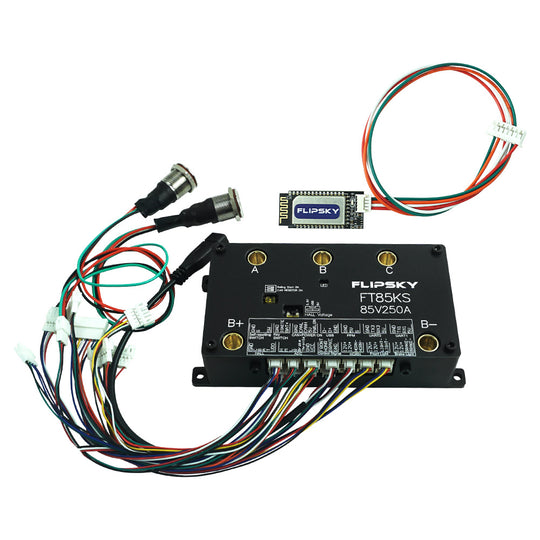

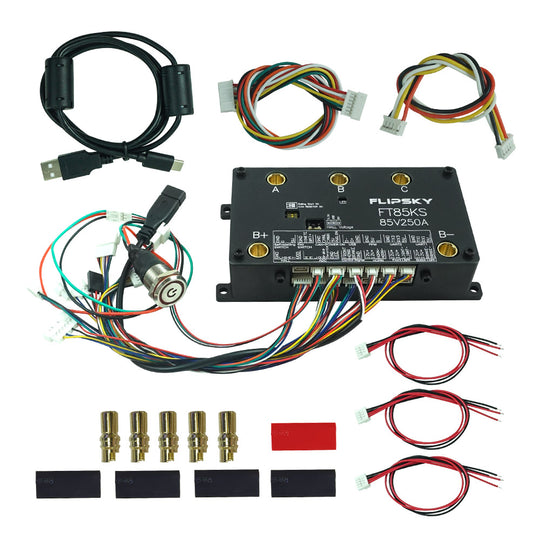

FLIPSKY FT85KS 85V 250A ESC supports ordinary upgrade switches and smart switches NON-VESC For Electric Skateboard / Electric Scooter / Ebike Speed Controller / Electric Motorcycle / Robotics

Normal Power ON/OFF Switch:Toggle the Rolling Start switch OFF when use the self-lock switch

Specifications :

• Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported)
• Voltage: 14V-85V (safe for 4S-20S)
• Continuous current: 250A (Values depend on the mounting, ambient temperature and air/water circulation around the device!);
• Peak Current: 400A
• BEC: 5V@1A
• Programmable Tool: Flipsky ESC TOOL
• PWM Frequency Control: YES
• Multiple Speed Gear Limit Control:YES ( in UART / ADC mode)
• Regenerative Capacity: Yes

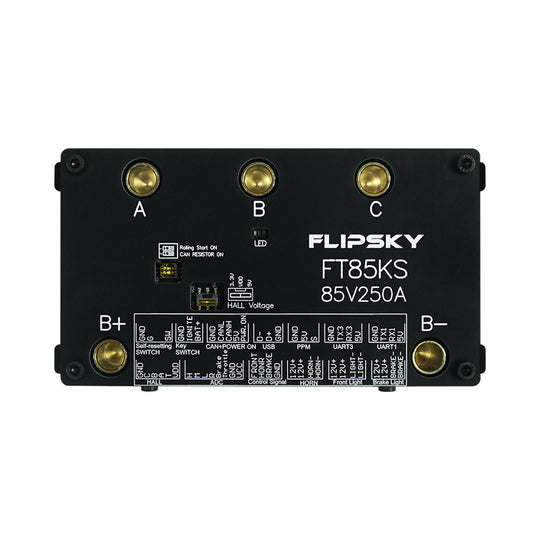

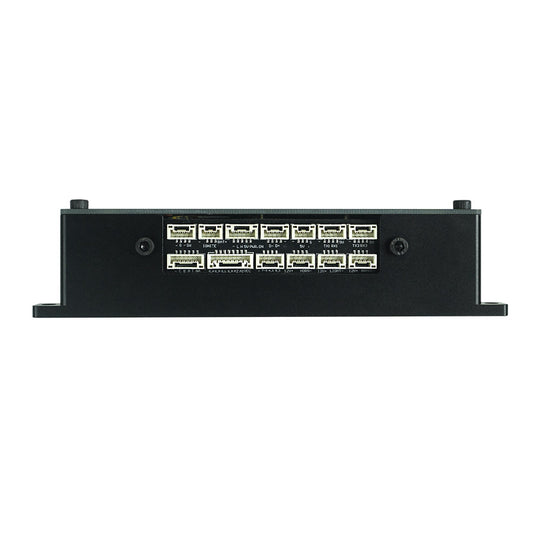

• Communication Ports: USB, CAN, UART, PPM, ADC
• IInput Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS
• Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored),Encoder (ABI, AS5047 SPI interface)
• Multiple Speed Gear levels: Low, Medium, High, Reverse
• Integrated Smart Switch Function: supports sliding / rolling on and automatic shutdown function; supports modification of automatic shutdown time (standby current as low as 50uA)

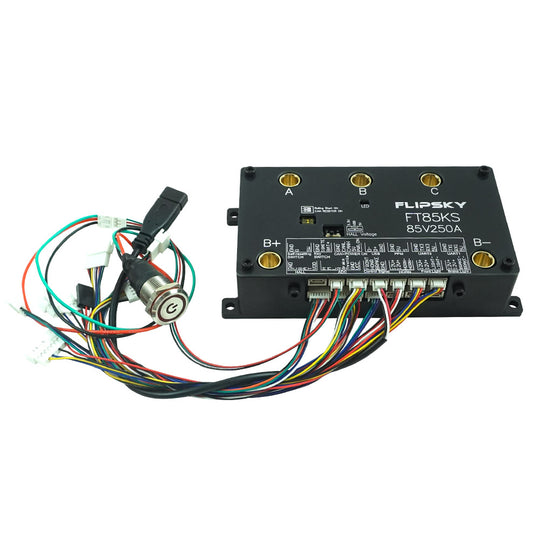

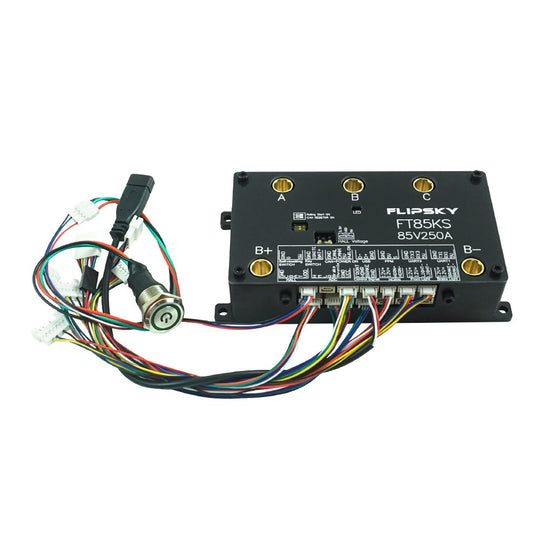

• Two Power ON/OFF Switch Options: Self-resetting switch with green LED, button diameter: 16mm;
• Self-locking switch with red LED, button diameter: 16mm (When using the self-locking switch, please remember to OFF the “Rolling Start ON” switch. Otherwise, the ESC can not be powered off.)
• Built-in IMU chip LSM6DS3TR-C (accelerometer, gyroscope)
• Power Wire: 8.0mm bullets female X 2pcs
• Motor Wire: 8.0mm bullets female X 3pcs

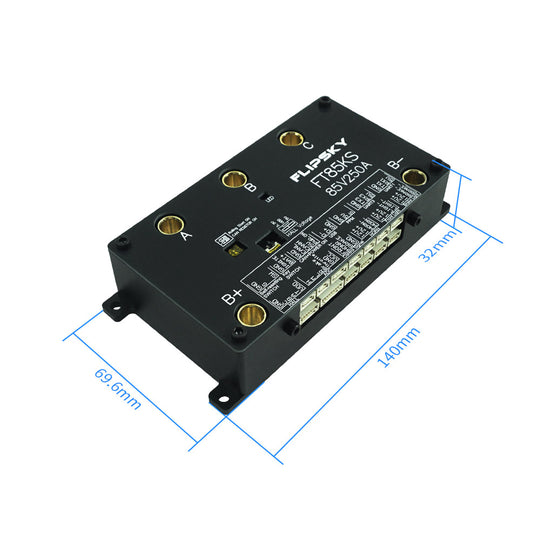

• Size: L140*W69.6*H32mm (including Alu.Case)

Features:
