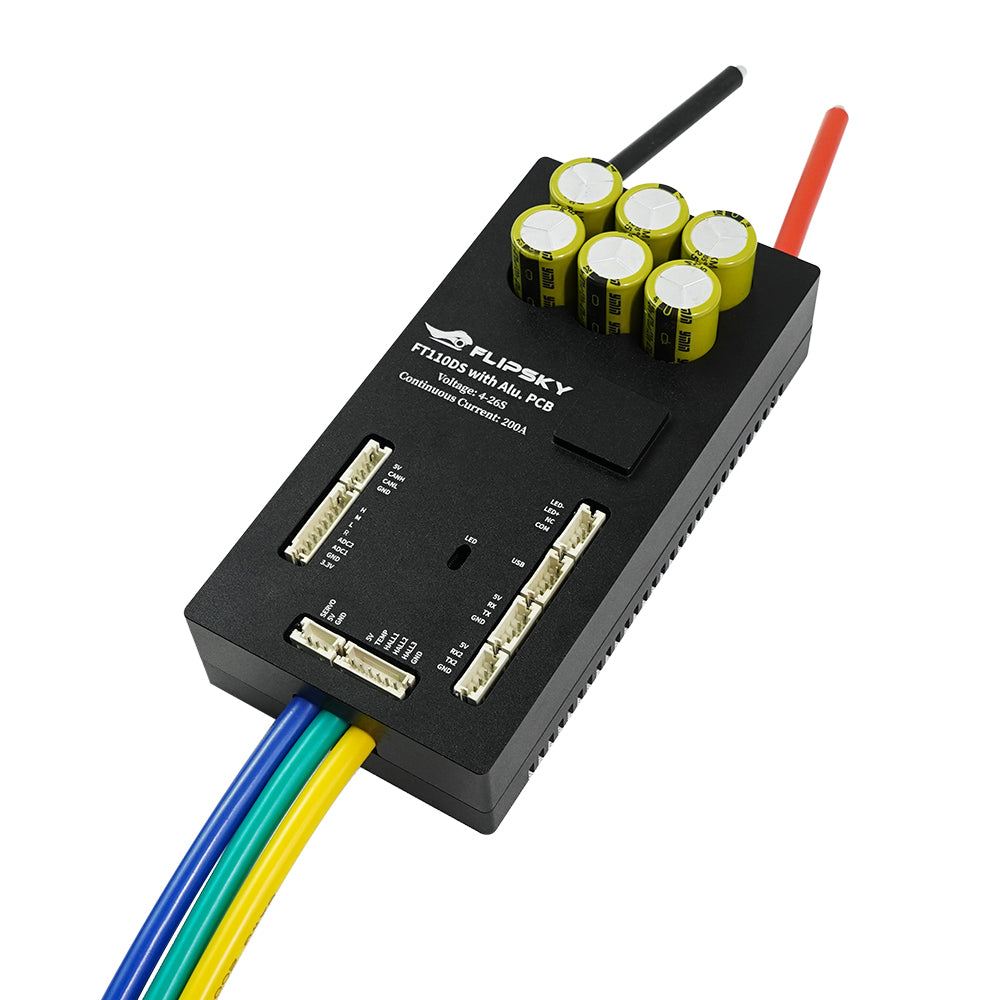

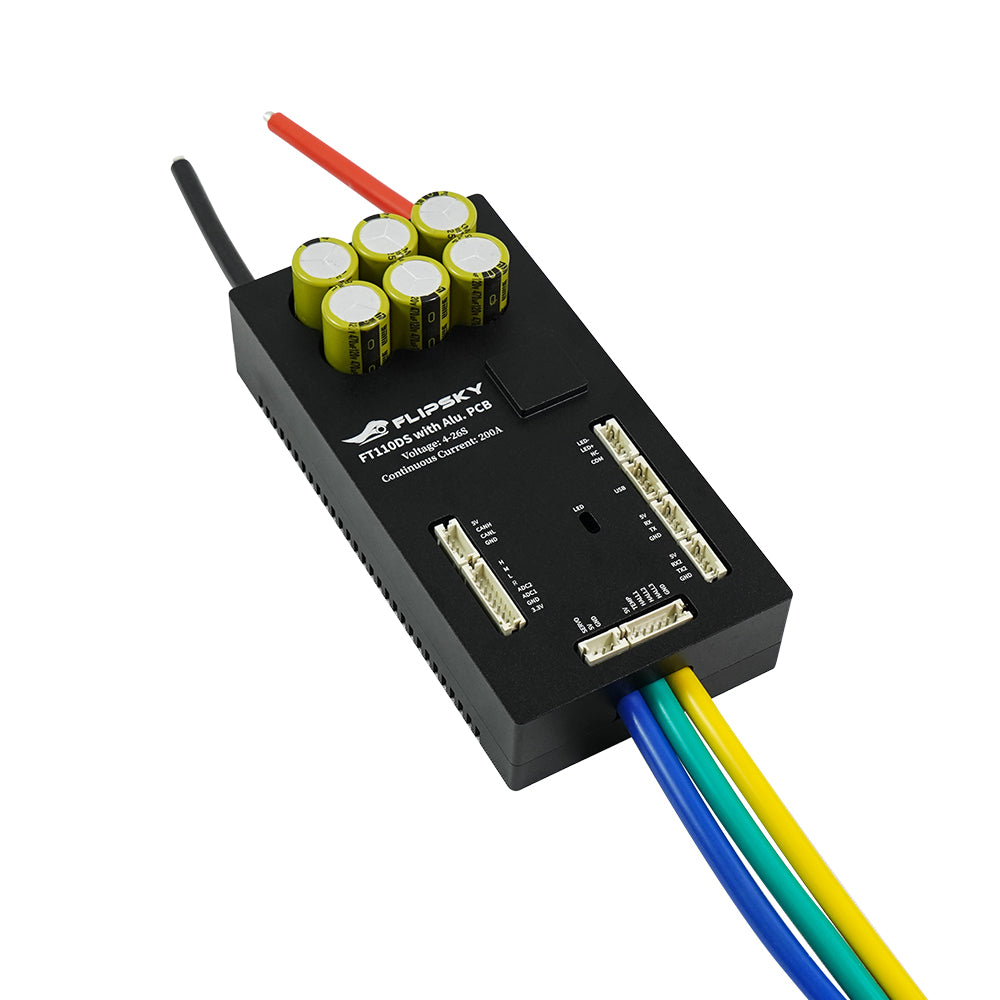

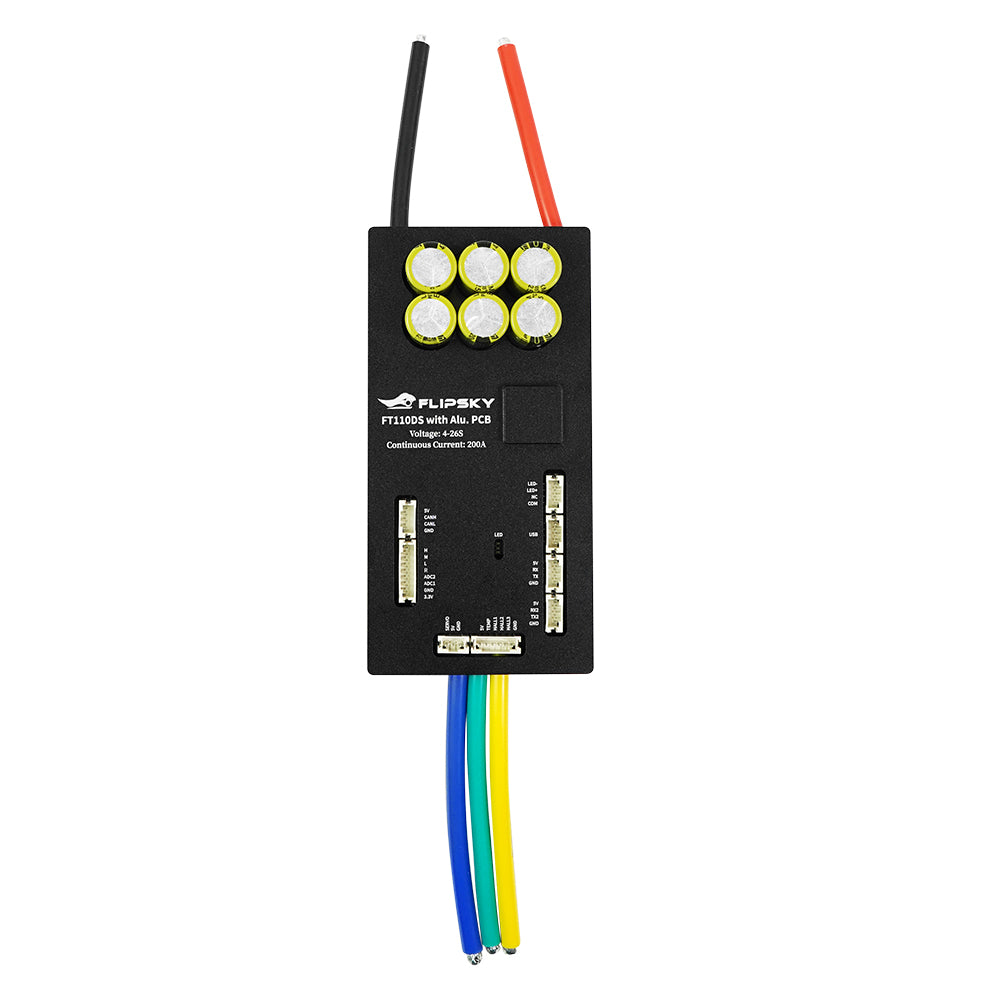

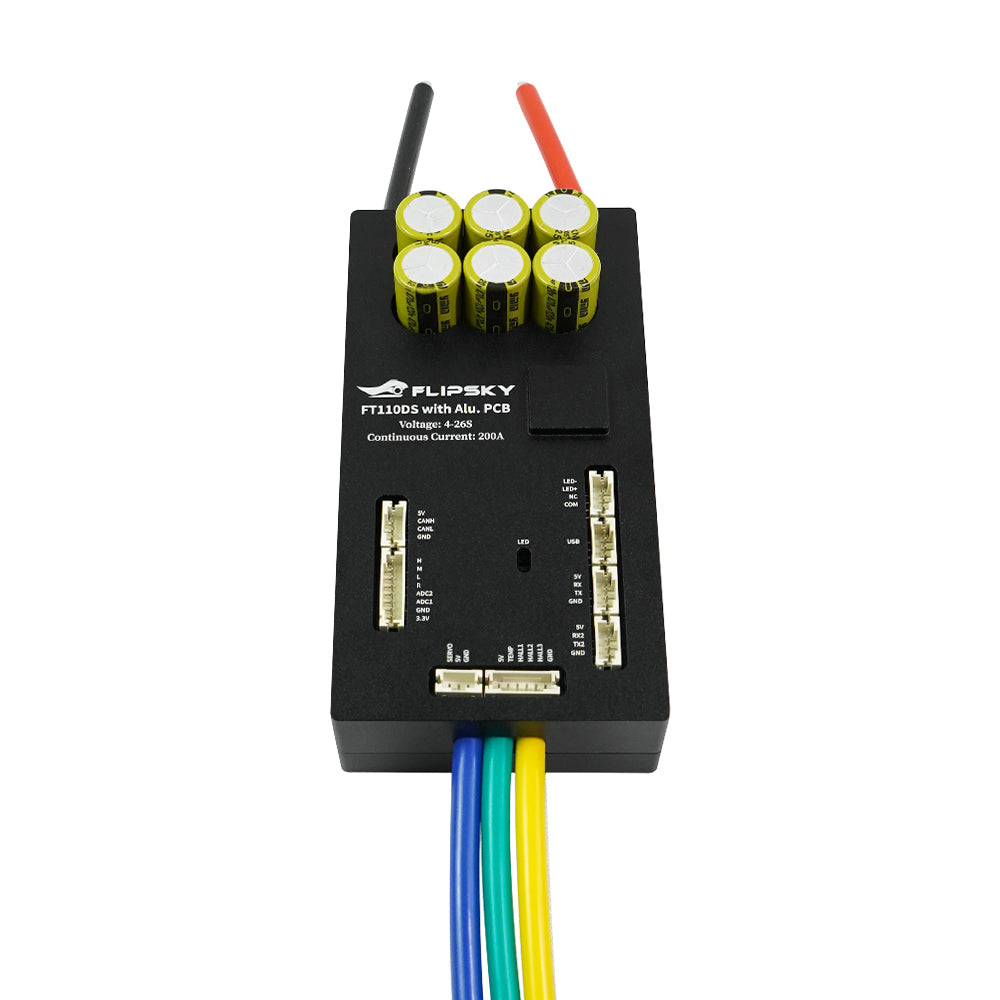

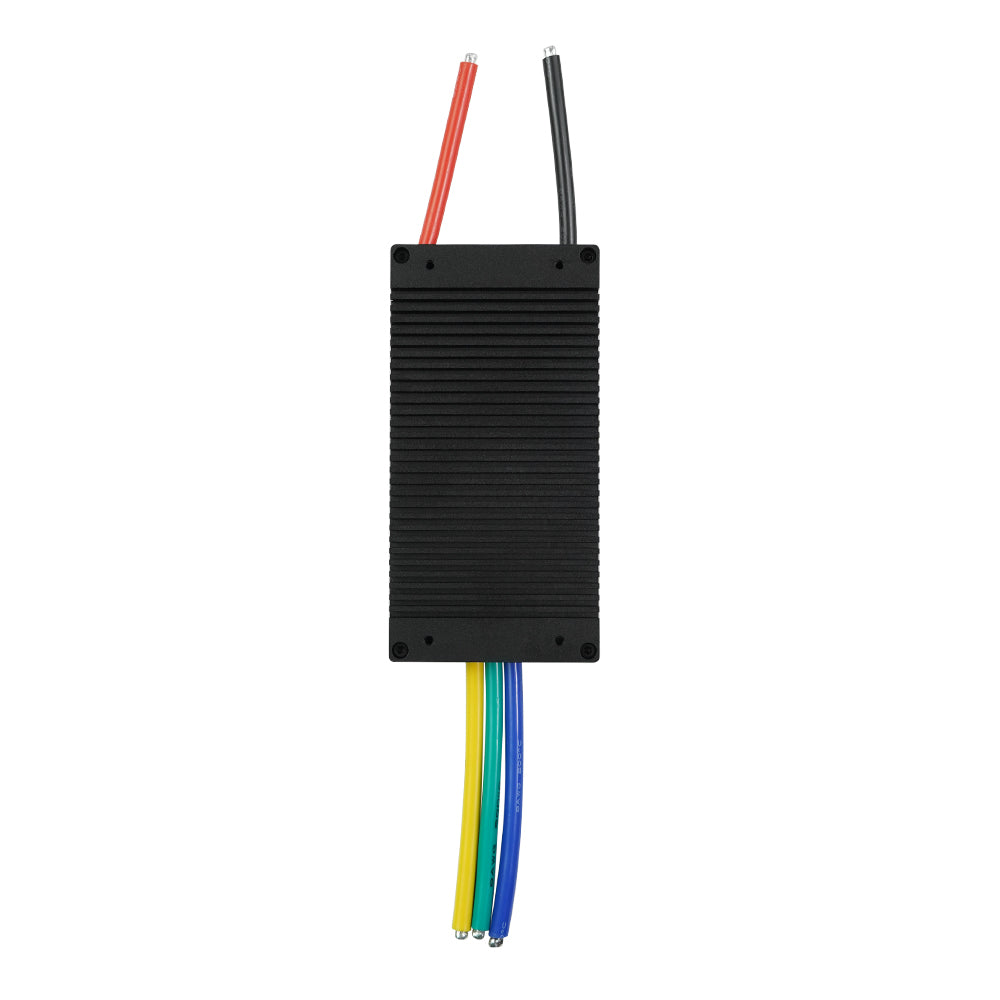

Flipsky FT110DS ESC 110V 200A With Aluminum Enclosure NON-VESC For Electric Skateboard /Ebike Speed Controller / Electric Scooter / Electric Motorcycle / Robotics

Specs:

• Firmware: V1.6 or above (firmware update via Flipsky ESC Tool supported)

• Voltage: 14-110V(safe for 4-26S)

• Continuous current: 200A (Values depend on the mounting, ambient temperature and air/water circulation around the device!)

• Peak Current: 400A

• Communication Ports: USB, CAN, UART, PPM, ADC/PAS

• Input Signals Support: PPM, ADC, PAS(Cadence Input Signal), UART (compatible with all Flipsky VX Series remotes)

• BEC: 5V@1A

• Programmable Tool: Flipsky ESC TOOL

• PWM Frequency Control: YES

• Multiple Speed Gear Limit Control: YES(UART&ADC)

• Regenerative Capacity: YES

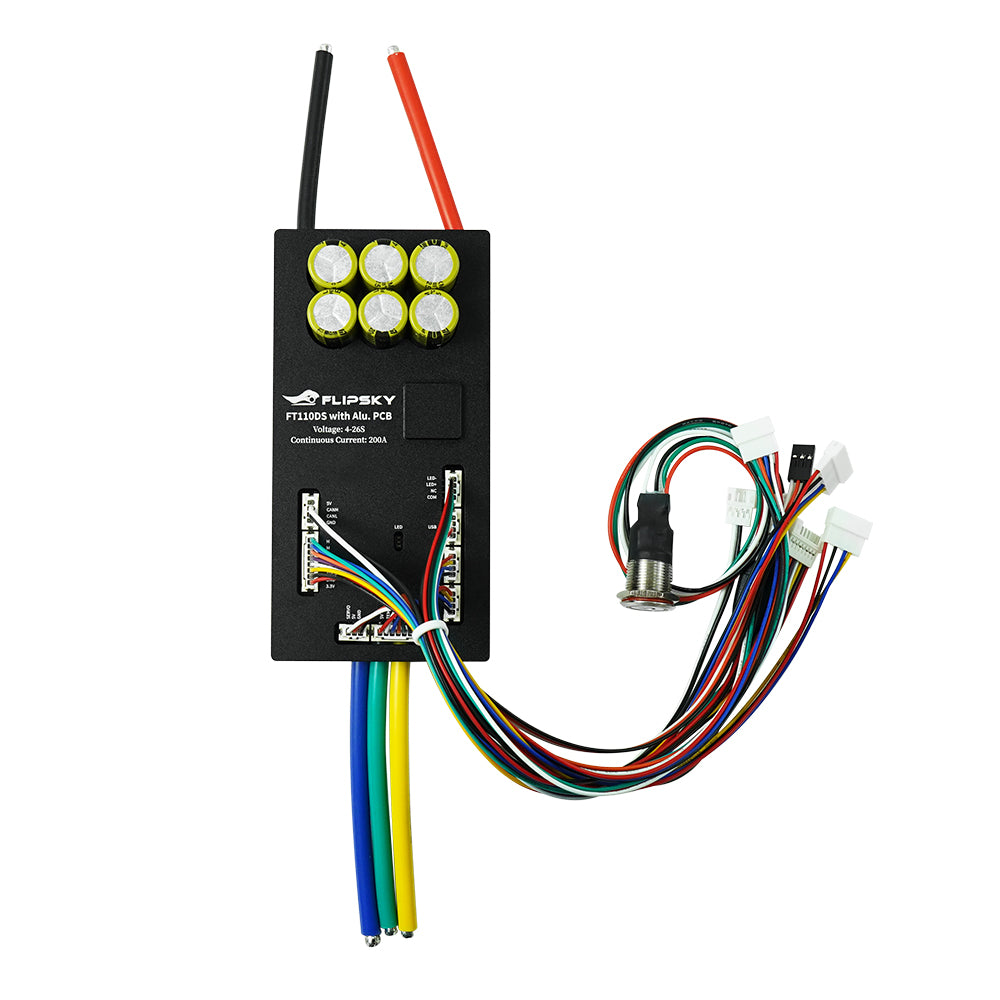

• Integrated Self-locking Switch: 16mm Red Button

• Motor/power wire size: 8AWG

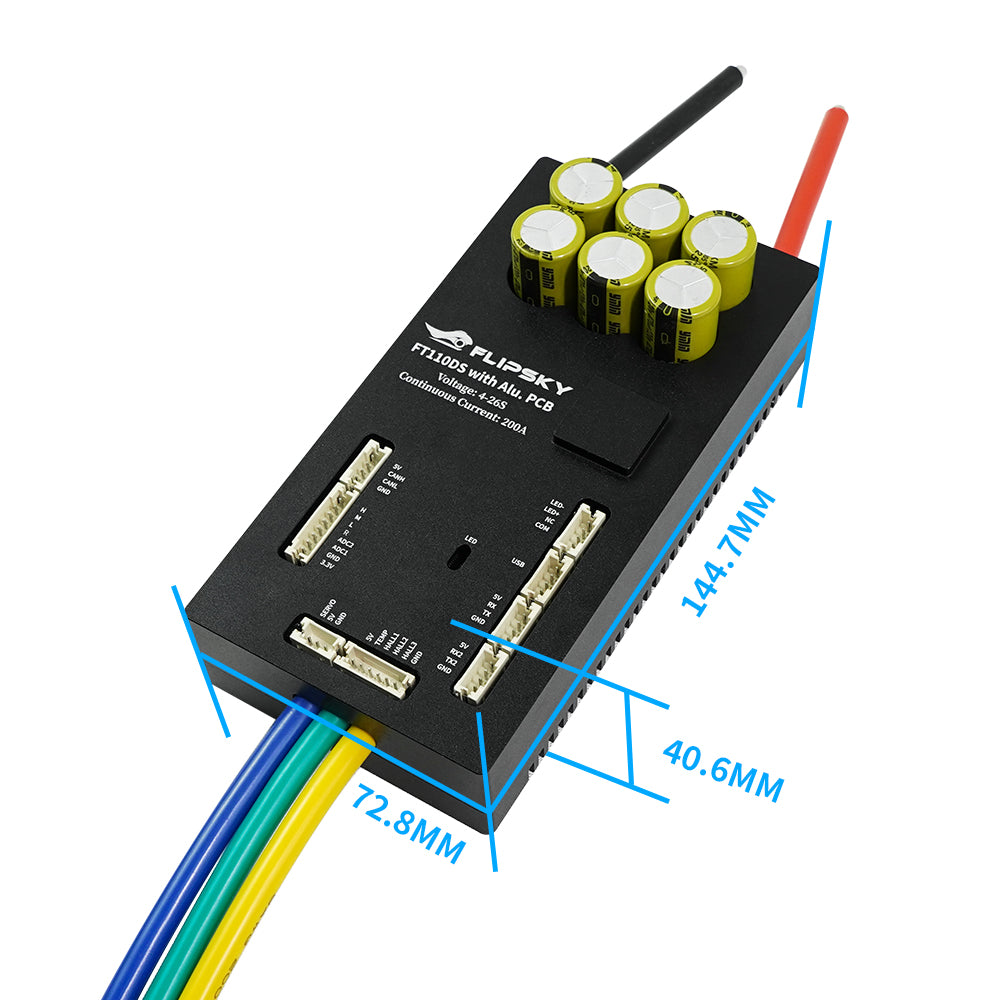

• Size: L144.7*W72.8*H40.6mm(Including Alu. Case)

Feature:

• Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.

• Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.

• Programmable via Flipsky VX4Pro remote(remote firmware version:VX4 Pro_V1.2 or above).

• Supporting motor FOC with low working noise and smooth starting.

• Supporting real-time data and fault alerts.

• Supporting adaptive variable PWM frequency control.

• Supporting save / load configuration files via ESC Tool.

• Supporting multiple speed levels: Level 1(Low), Level 2(Medium), Level 3(High), Level 4 (PAS Only), Level 5 (PAS Only).

• Supporting sensor mode(HALL, ENCODER) and sensorless mode(IPDS, HFPI, OPEN).

• Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER (such as ABI Encoder, AS5047 SPI, TLE5012 SPI, AS5600 IIC), OPEN (Sensorless Open-Loop Startup)

• Traction Control: YES

• Supporting control types: Current, Duty Cycle, Speed control, Position Control.

• Supporting PAS cadence sensor.

• Supporting emergency stop and shutdown.

• Support safe power-on protection (in PPM&ADC control modes only).
• Protection functions: low and high voltage protection, MOSFET over-temperature and over current protection, battery overcharge and discharge protection, motor over-temperature protection.

• Supporting multiple typed of motor temperature sensors such as NTC-10K-25℃ , NTC-10K-100℃ ,PT1000, PTC-1K-100℃ , KTY and so on.

Wiring diagram:

Flipsky_esc_tool software and manual download link
