Spec:

• Max power : 4200W
• Motor KV:110KV
• Max Current: 100A
• Voltage:6-18S
• Max torque : 9.5 N.M
• Internal resistance: 0.055ohm
• Motor structure: 12N/14P
• Diameter *Length (mm): 70*70
• Shaft (mm): 10mm/D-Shaft/Round Shaft
• Bullet Connector: 4mm
• Sensor: Yes

10MM D Shaft Motor Drawings：

8MM Round Shaft Motor Drawings：

Reference video:

Spec:

• Voltage range: 8-12S (33.6-50.4V)
• Max power: 3000W; Continuous power: 1500W
• Peak current: 70A; Continuous current: 30A
• Motor KV: 160KV
• Max spin speed(RPM): 8064
• Size: OD65*L111mm
• Shaft diameter: 10mm
• Motor pole: 6pcs; 3 pairs
• Motor stator slot: 12
• Waterproof rate: IP68
• Lead wires extension: 12AWGx1500mm

The thrust under the condition of reaching this voltage and current as below:

• 48.5V 2.7A 5KG
• 48.5V 8.2A 10KG
• 48.5V 18.2A 15KG
• 48.5V 20A 17KG
• 48.5V 25A 19KG
• 48.5V 30A 21KG
• 48.5V 35A 23KG

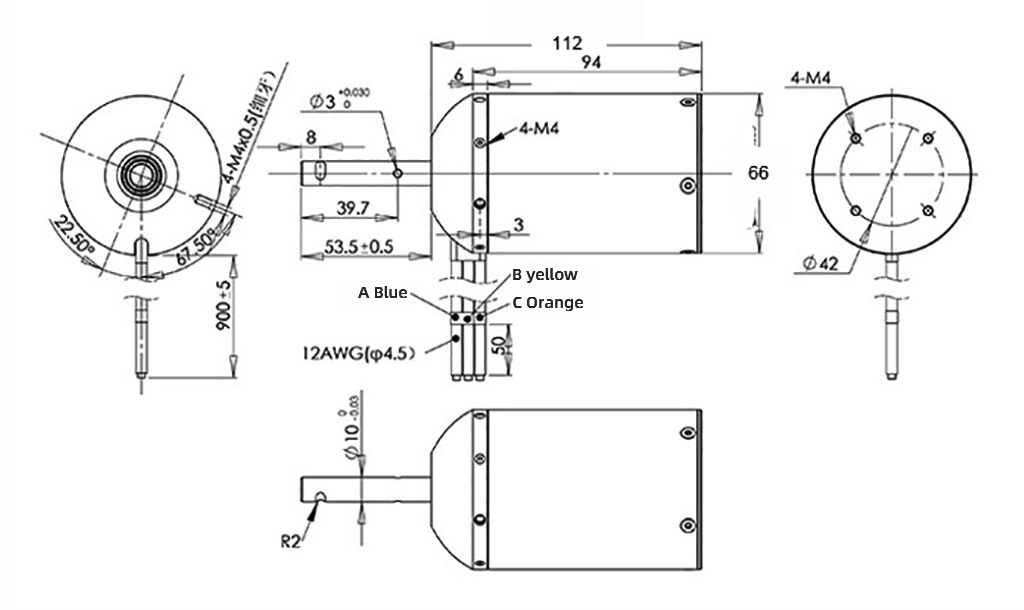

Drawing:

Spec:

• Voltage range: 10-14S (36-58.8V)
• Max power: 2000W;
• Peak current: 140A;
• Motor KV: 150KV
• Max torque : 3nm
• RPM/8.4v: 1156
• Size: OD66*L112mm
• Shaft diameter: 10mm
• Motor stator slot: 12
• Waterproof rate: IP68
• Lead wires extension: 900mm
• Shaft Extension Length: 41mm
• Insulation Voltage/Leak Current: 500V/1mA

The thrust under the condition of reaching this voltage and current as below:

48.5v 2.7A 5kg
48.5v 8.2A 10kg
48.5v 18.2A 15kg
48.5v 20A 17kg
48.5v 25A 19kg
48.5v 30A 21kg
48.5v 35A 23kg

Motor drawings：

Spec:

• Voltage range: 6-20S (25.2-84V)
• Max power: 3700W; Continuous power: 2000W
• Peak current: 100A;
• Motor KV: 130KV
• Size: OD65*L121mm
• Shaft diameter: 12mm*m8
• Max output torque:5.5N*M
• Waterproof rate: IP68
• Connectors:8mm plug
• Weight:1.62KG
• Structure:18N/P
• Lead wires extension: 8AWGx500mm

Motor drawings：

Spec:

• Weight: 0.84KG
• Max Power: 2700W
• Motor KV: 190
• Max current: 75A
• Battery type: 4-12S
• Recommend ESC: VESC6
• Max Torque: 7.5Nm
• Diameter(mm): 63
• Length(mm): 68
• Total length (mm):92mm
• Shaft(mm): 10mm Dshaft
• Bullet connector: 4mm

Wire configuration:

• Blue = U
• White = V
• Yellow = W
• BLDC Motor
• The number of pole: 14

Detail:

Drawing:

Spec:

• Weight: 1.4KG
• Max Power: 5500W
• Motor KV: 190/170/140KV
• Max. current: 100A
• Battery type: 4-12S
• Recommend ESC: VESC6
• Torque: 10Nm
• Diameter(mm): 63
• Length(mm): 100
• Total length (mm):130mm(including 8mm round shaft) / 125mm(including 10mm D shaft)
• Shaft(mm): 8mm/10mm
• Bullet connector: 4mm

Detail:

10MM D Shaft Motor Drawings：

8MM Round Shaft Motor Drawings：
