Flipsky BLDC Belt Motor Battle Hardened 6354 140KV 190KV 2450W for Electric Skateboard

Warm Tips: Support custom KV value, round shaft pulley will default come with 16T pulley/D shaft will come with 15T,please leave order notes if you have any requirements,thanks.

Specs:

• Max Power: 2450 Watts
• Max Current: 65 Amps
• Volts: 4-14S
• Max Torque: 7Nm
• Motor Resistance: 0.053Ohm
• Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
• Weight: 1.23 lb / 0.56 kg
• The motor length:54mm
• The motor diameter: 63mm

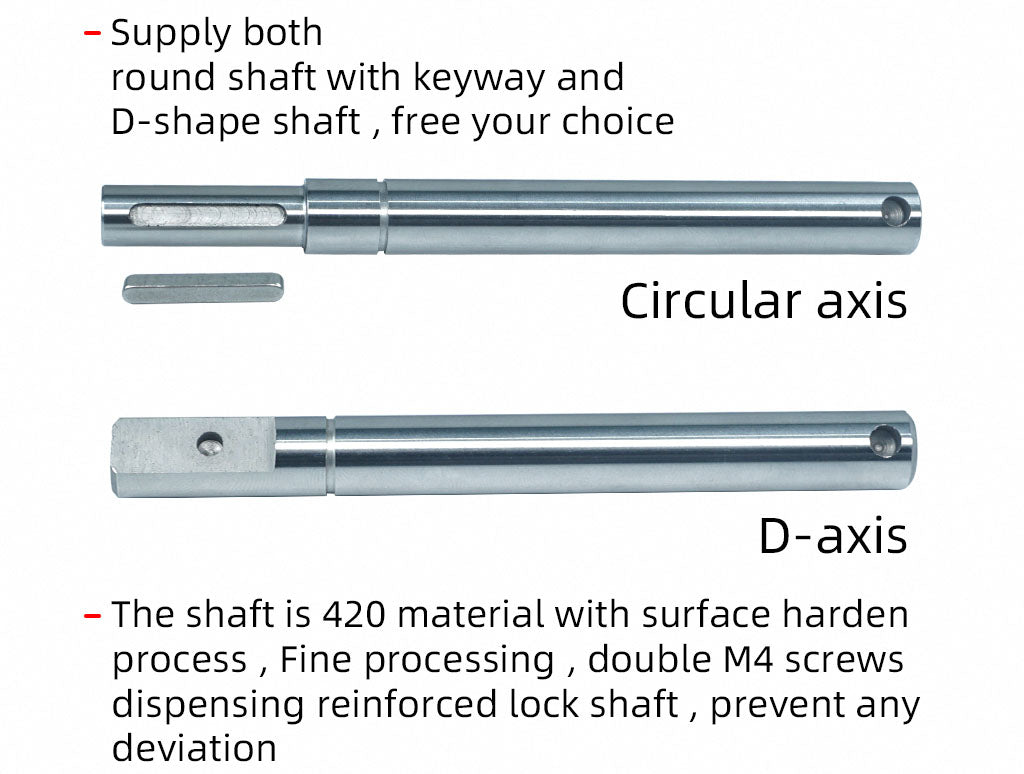

• Shaft diameter: 10mm D Shaft ,24mm length/8mm Round-short shaft,24mm length/8mm Round-long shaft,30mm length

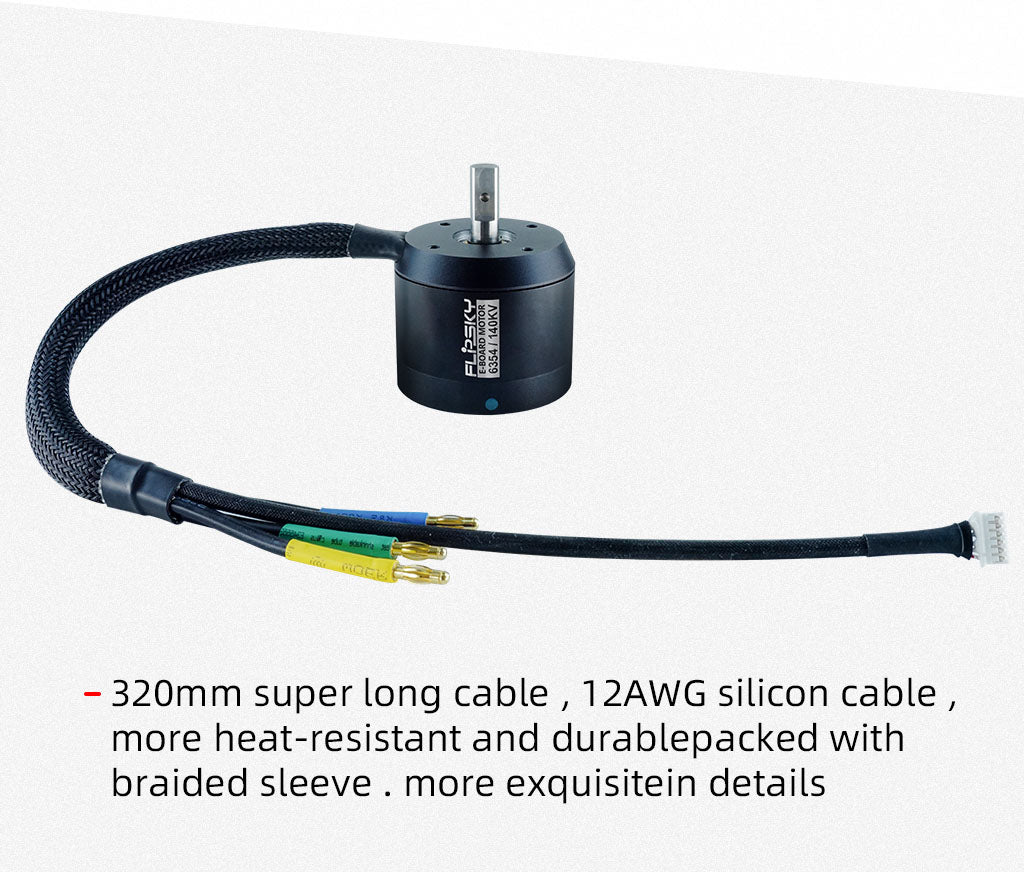

• Motor Wire: 320mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
  • Wire configuration:
    • Blue = A
    • Black = B
    • Yellow = C
• BLDC Motor
• The number of pole: 14

Reference Information:

• The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
• Screws to mount the motor are not included with the motor.

Difference Long Shaft and Short shaft ：

More Detail:

6354 10MM D Shaft Motor Drawing:

6354 8MM Round-Short Shaft Motor Drawing:

6354 8MM Round-Long Shaft Motor Drawing:
