High-Efficiency and Reliable Brushless DC Motors

What is a Brushless DC Motor?

A brushless DC (BLDC) motor is a type of DC motor that utilizes electronic commutation instead of mechanical commutation. Unlike traditional brushed motors, which rely on carbon brushes and a commutator to switch current, BLDC motors use an external controller—typically an ESC—to precisely control the current sequence in the stator windings, thereby driving the rotor to rotate. This design completely eliminates brush wear, significantly enhancing motor lifespan and operational stability.

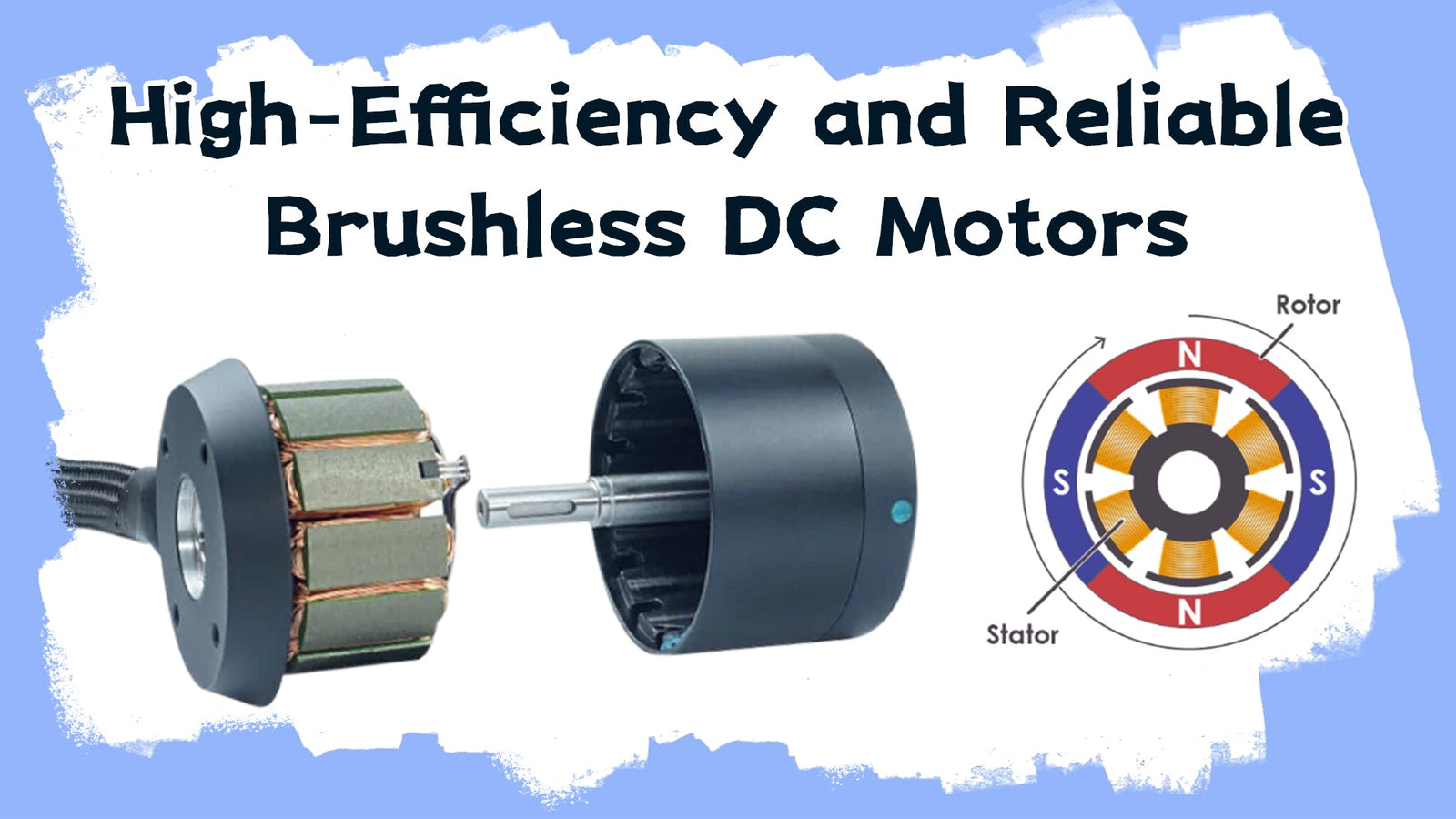

Structure and Working Principle

A brushless DC motor mainly consists of three parts:

Stator: Contains multiple sets of windings (usually three-phase) that generate a rotating magnetic field when energized.

Rotor: Typically made of permanent magnets (such as neodymium iron boron magnets) that rotate following the stator's magnetic field.

Position Sensor (or Sensorless Control): Used to detect the rotor position so that the controller can switch the current phase at the appropriate time. Some high-end motors use "sensorless" control, which estimates rotor position through back-EMF, simplifying the structure.

Its working principle is based on electromagnetic induction and Lorentz force: when the controller energizes the stator windings in a specific sequence, the resulting rotating magnetic field attracts or repels the permanent magnets on the rotor, driving the rotor to rotate continuously. The entire process is precisely regulated by a microcontroller, enabling efficient and smooth power output.

Features and Applications

Brushless DC motors also come in different specifications and characteristics. When selecting a motor, the following specifications can be considered:

KV Value: Indicates the motor's no-load speed in revolutions per minute per volt (RPM/V). A higher KV value means faster speed but lower torque.

Power and Voltage: Determine the motor's output capability and suitable voltage platform. Low-power motors are typically suitable for small household appliances, drones, and robots, while high-power motors are ideal for electric skateboards, electric vehicles, and heavy machinery.

Size and Weight: Affect installation space and overall system integration.

Efficiency: Typically ranges from 85% to 95%, far exceeding that of brushed motors.

At Flipsky, there is a wide variety of motor types and specifications. For example, non-waterproof motors such as 63100, 6374, and 6384 are used in high-performance electric skateboards, balancing high torque and moderate speed. The waterproof motors like 75133, 90165, and 65161 are suitable for water-based equipment such as efoils and eboats, offering strong power while ensuring waterproof performance. Different specifications and sizes also meet the needs of various application scenarios. Of course, if there are specific application requirements, Flipsky can also provide customized solutions.

Due to their high efficiency, low noise, and long lifespan, brushless DC motors are widely used in:

Personal Electric Mobility: Electric skateboards, electric scooters, electric bicycles, electric surfboards.

New Energy Vehicles: Electric vehicles, electric motorcycles.

Consumer Electronics: Drones, power tools, household fans, air conditioner compressors.

Industrial Automation: Robotic joints, CNC equipment, conveyor systems.

Advantages of Brushless Motors

High Efficiency: No mechanical friction losses, high energy conversion efficiency, extending battery life.

Low Maintenance: Brushless design requires almost no maintenance, with a lifespan far exceeding that of brushed motors.

High Responsiveness: Fast electronic commutation, quick start-stop, precise control.

Low Noise and Low Heat: Smooth operation, minimal heat generation, suitable for noise-sensitive scenarios.

Strong Programmability: Compatible with modern ESCs, supporting multiple control algorithms and safety protection features.

For more details, please review our official website and social channels.
