Having trouble using Flipsky bluetooth?

Once in a while we need to deal with troubleshooting like I connected bluetooth just as the diagram on your website, why isnt it working?  Or my phone is not reading the data of the ESC, whats wrong?

There are two things you need to check:  Wiring  &  Configuration

About wiring

1. You should know that bluetooth for V4 and V6 are actually the same module. The only main difference is the wire order.

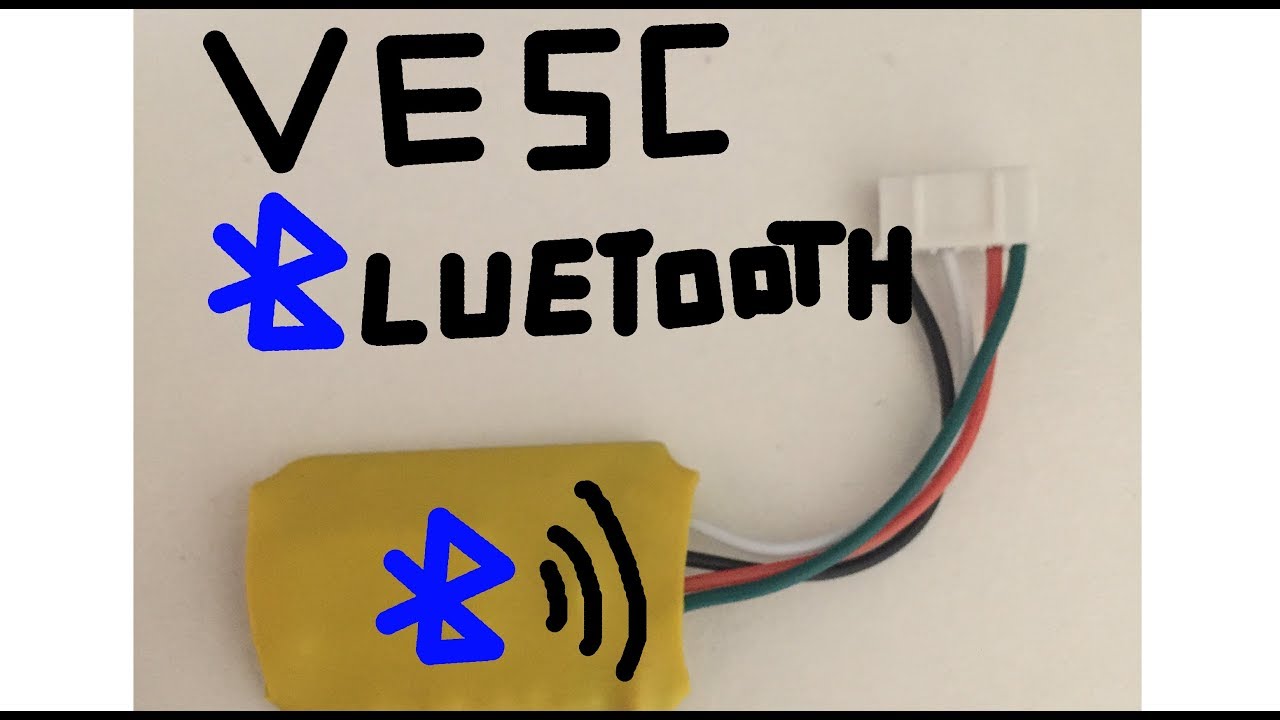

    flipsky bluetooth

    Bluetooth for V6 series is soldered to a 8 pin JST connector, cable order:VTX/VRX/GND/VIN

    Bluetooth for V4 series is soldered to a 7 pin JST connector, cable order:VRX/VTX/GND/VIN

    flipsky bluetooth V4 and V6 difference

    Generally, there are 4 pins from bluetooth, goes to the corresponding pins on a 2mm 7pin/8pin port on the vesc. To make it easy we do the wiring before shipping so you just need to plug in the JST connector, So make sure you order bluetooth with the correct wiring. However if  you order this bluetooth from somewhere else, you only get wiring for V4 series.

    2. The difference between non-vesc based bluetooth and Flipsky bluetooth (base on vesc)

      bluetooth module vs flipsky bluetooth module

    Generally, for the HM-10 Bluetooth BLE4.0 module, the TXD (transmit), should goes to RX on FSESC, and RXD (receive) to TX on FSESC . But for Bluetooth Module Based upon the nrf51_vesc project, VTX (receive), should goes to TX on FSESC, and VRX (transmit) to RX on FSESC.

    flipsky bluetooth collection

    Just make  sure you're doing correct collection of bluetooth module with FSESC.

    Notes:

    • If you’re using a Dual ESC, we suggest you plug in bluetooth module on the slave side that you set.
    • Flipsky bluetooth module can only support Android mobile device. Why? Because the master of vesc project Benjamin Vedder haven’t made APP for IOS. While HM-10 is compatiable with both Android & IOS.



    3. Some DIYers also use two bluetooth module in a dual FSESC, If you need to do so, just plug in the module to each single board on the Dual FSESC . (See picture)

    assemble two bluetooth in a dual FSESC



    About Configuration

    First thing first, Keep in mind that you do this on Androd devices .

    1.Before connecting to your phone, make sure you choose APP to Use as below, PPM and UART、ADC and UART、UART will all work.

    VESC APP Bluetooth interface

    2.If you’re using two bluetooth modules, same procedurewith the first one.

    And click “disconnect”, then scan for your second bluetooth to connect, see connected.

    two bluetooth collection with vesc

    3.Also, the default baudrate of this bluetooth is 115200 (others like HM-10 above might appear to be 9600).

    bonderate of vesc bluetooth



    About bluetooth in general

    BLE stands for Bluetooth Low Energy, Bluetooth Low Energy appeared in the market in 2011 as Bluetooth 4.0. When talking about Bluetooth Low Energy vs. Bluetooth, the key difference is in Bluetooth 4.0's low power consumption. With this applications can run on a small battery for four to five years. Although this isn’t ideal for talking on the phone, it is vital for applications that only need to exchange small amounts of data periodically, like esk8.

    Before bluetooth 4.0

    2.0  outdated

    2.1  we can still see a lot of these in the market,  mainly increases the standby time by more than 2 times compared to 2.0

    3.0  a new protocol is used,  transmission speed increase by 8 times, which make it possible for video transmission.

    Now 4.0  the dominant, Fast search, fast connection, ultra low power to keep connected and transmit data .

    (above information sourced from internet)

    Thanks for your reading, If you have any other questions or suggestion on this blog, just leave your comments below or email to us: flipsky-service@outlook.com
