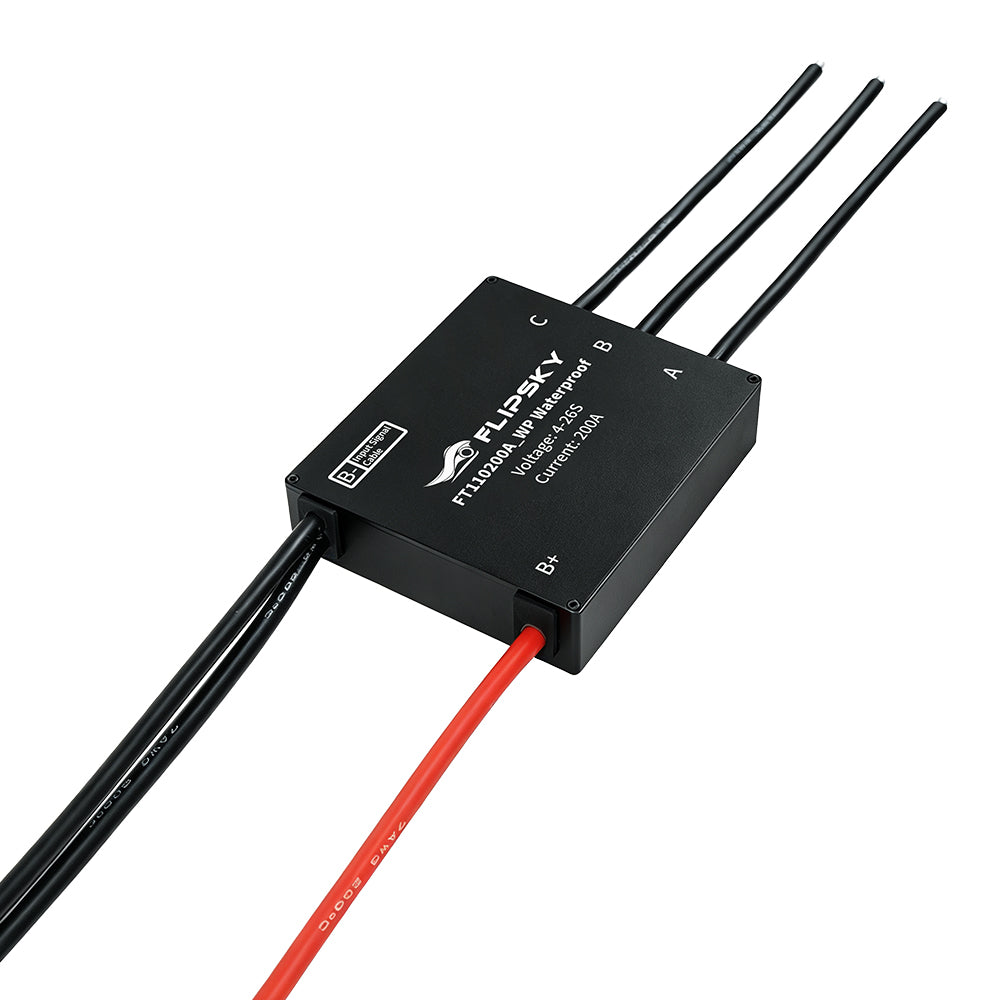

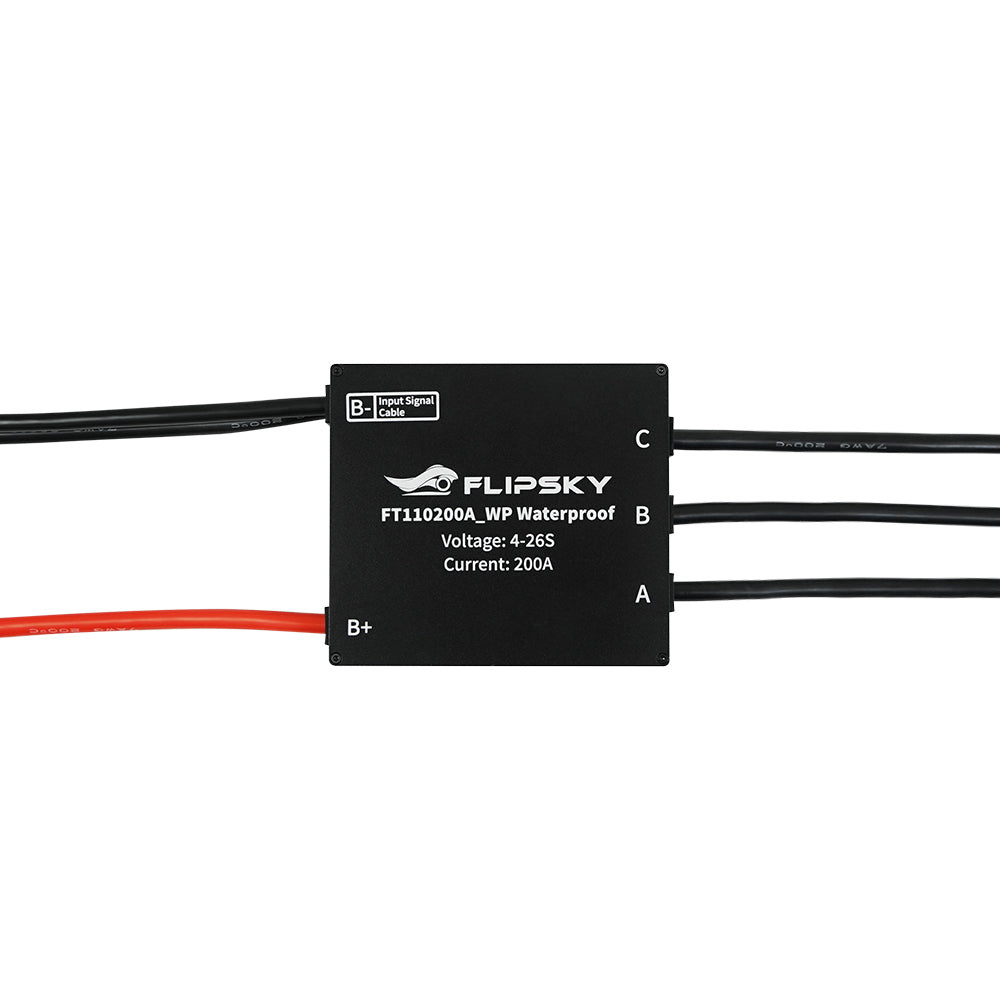

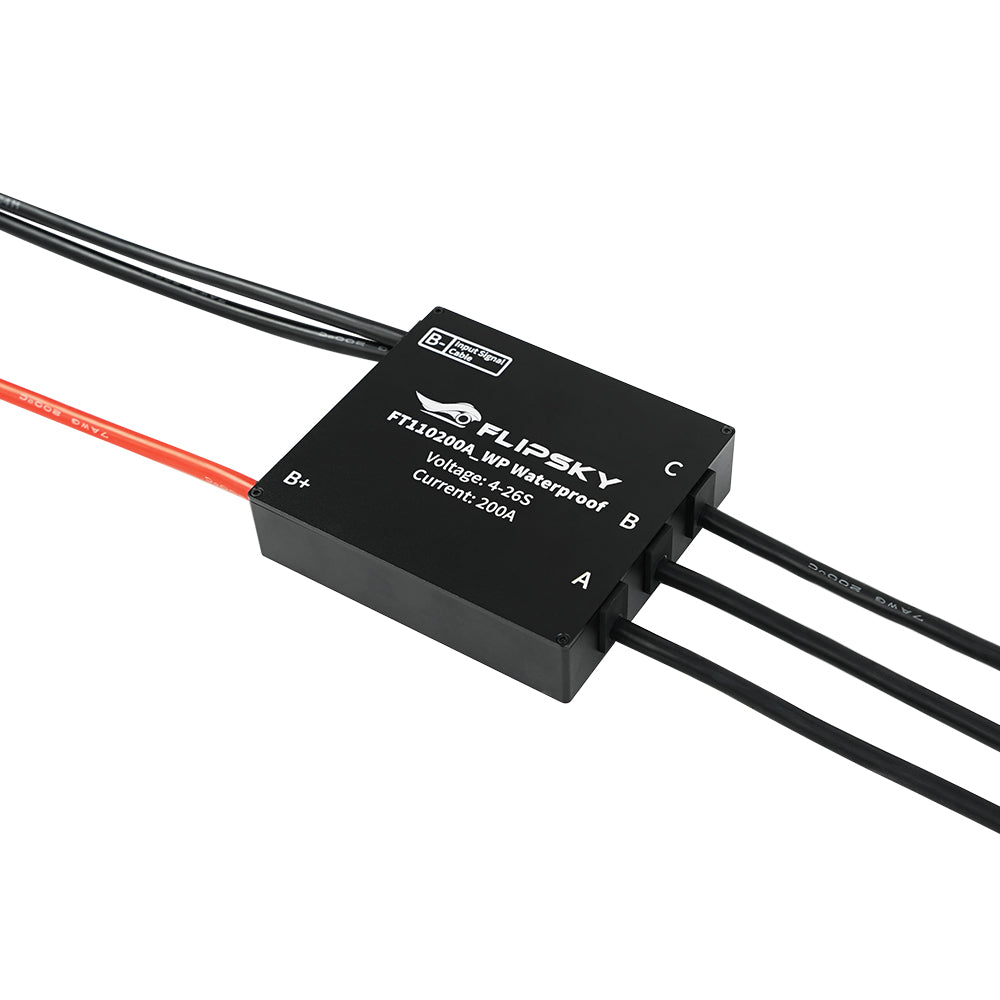

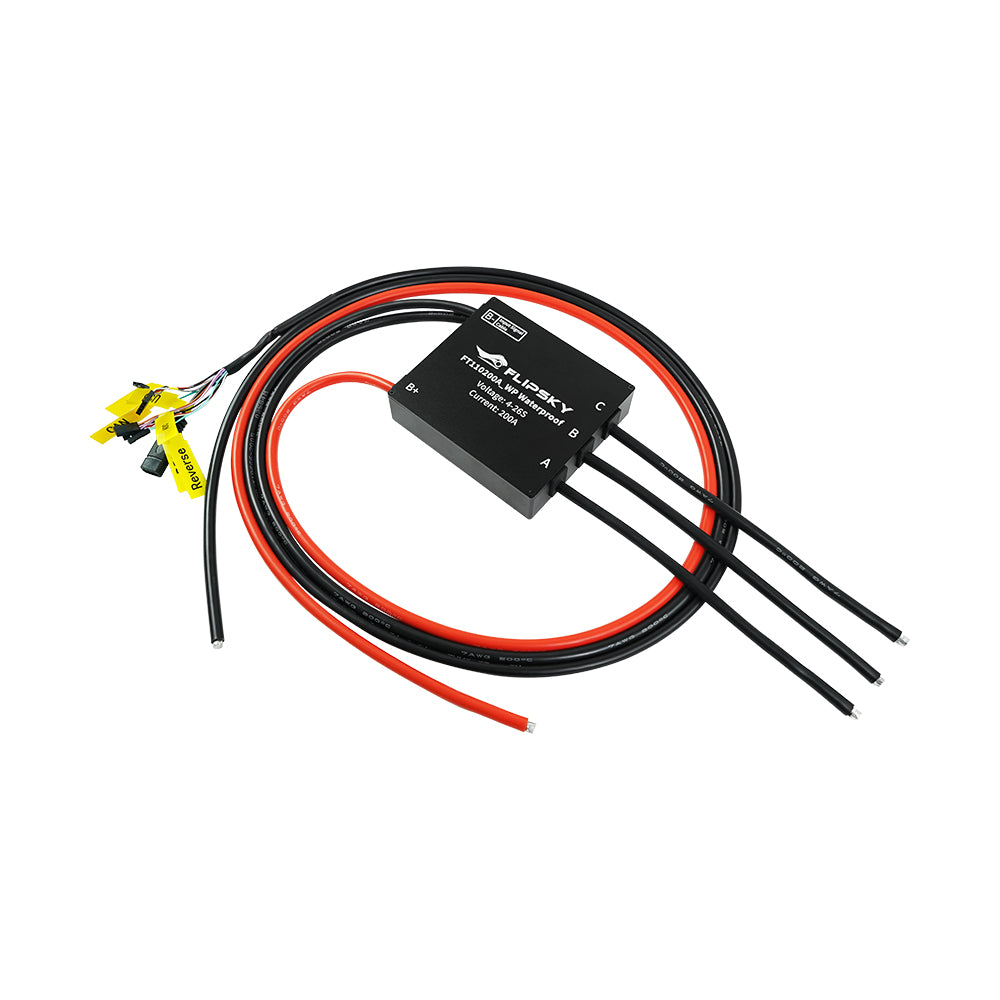

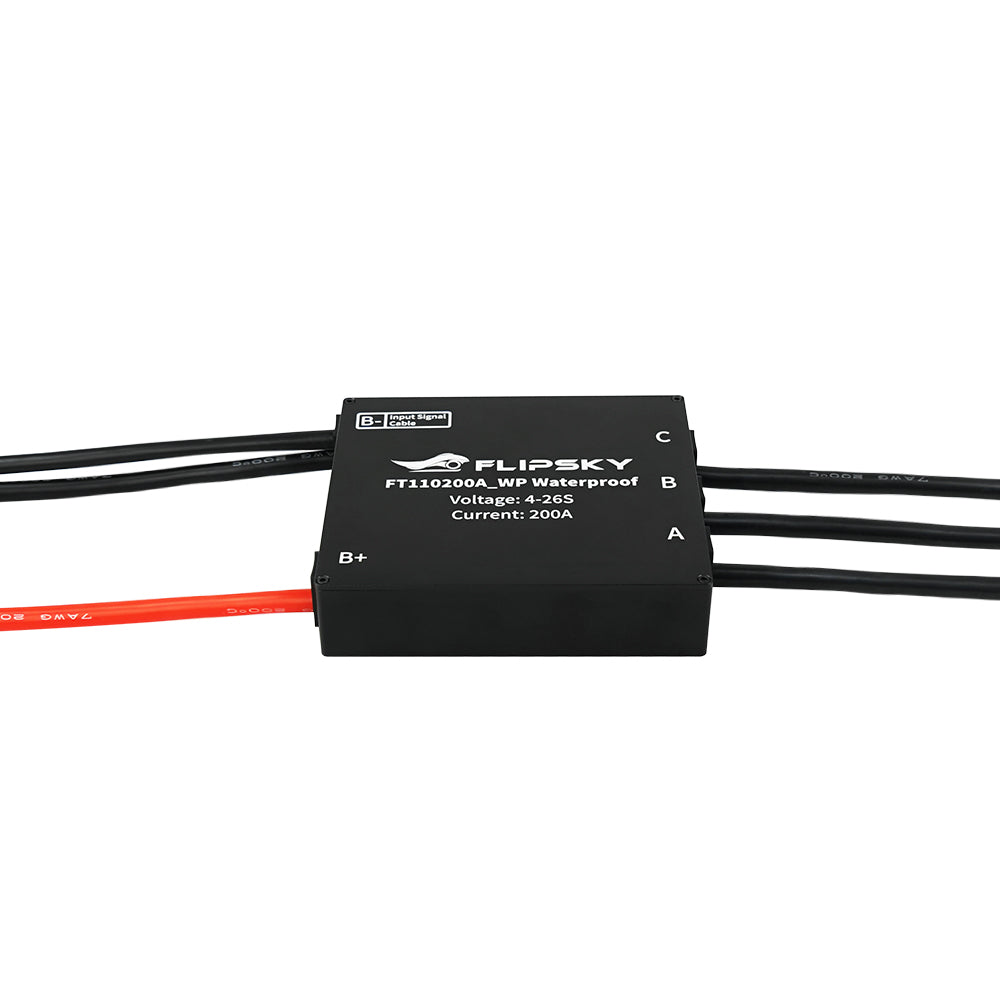

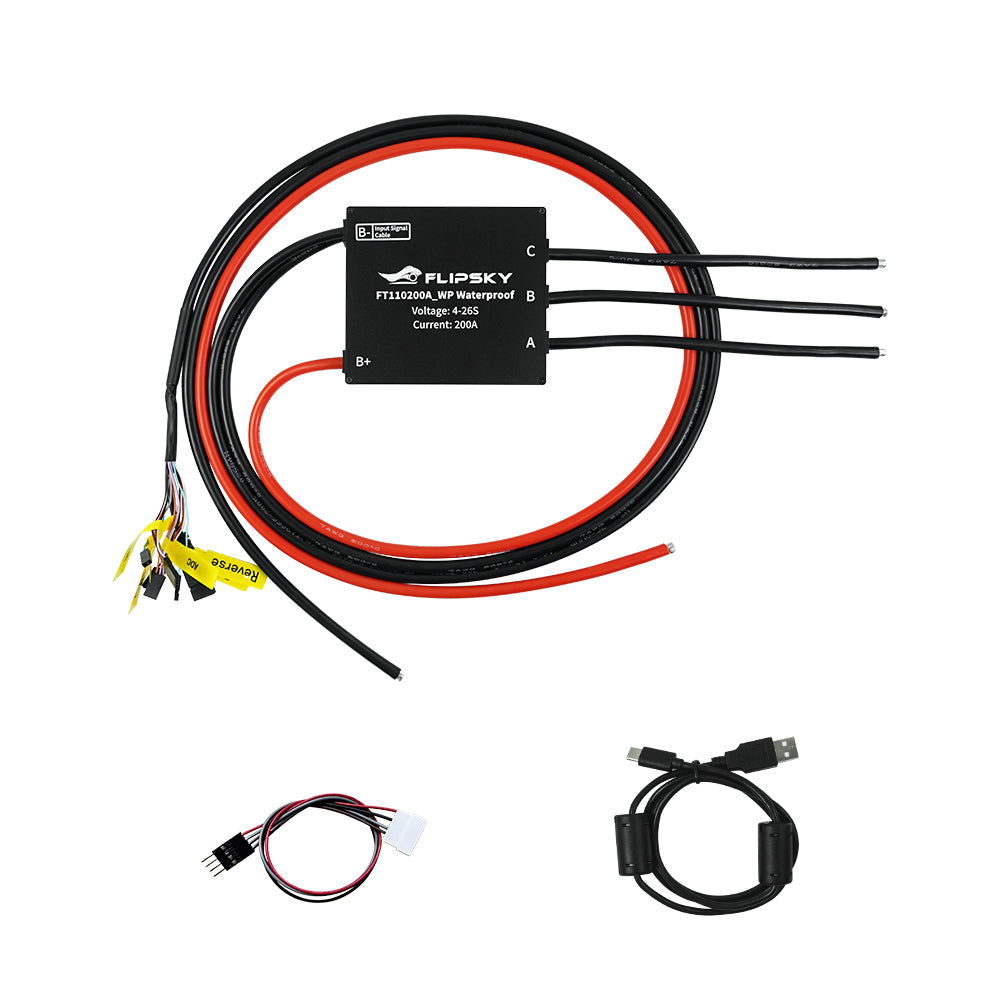

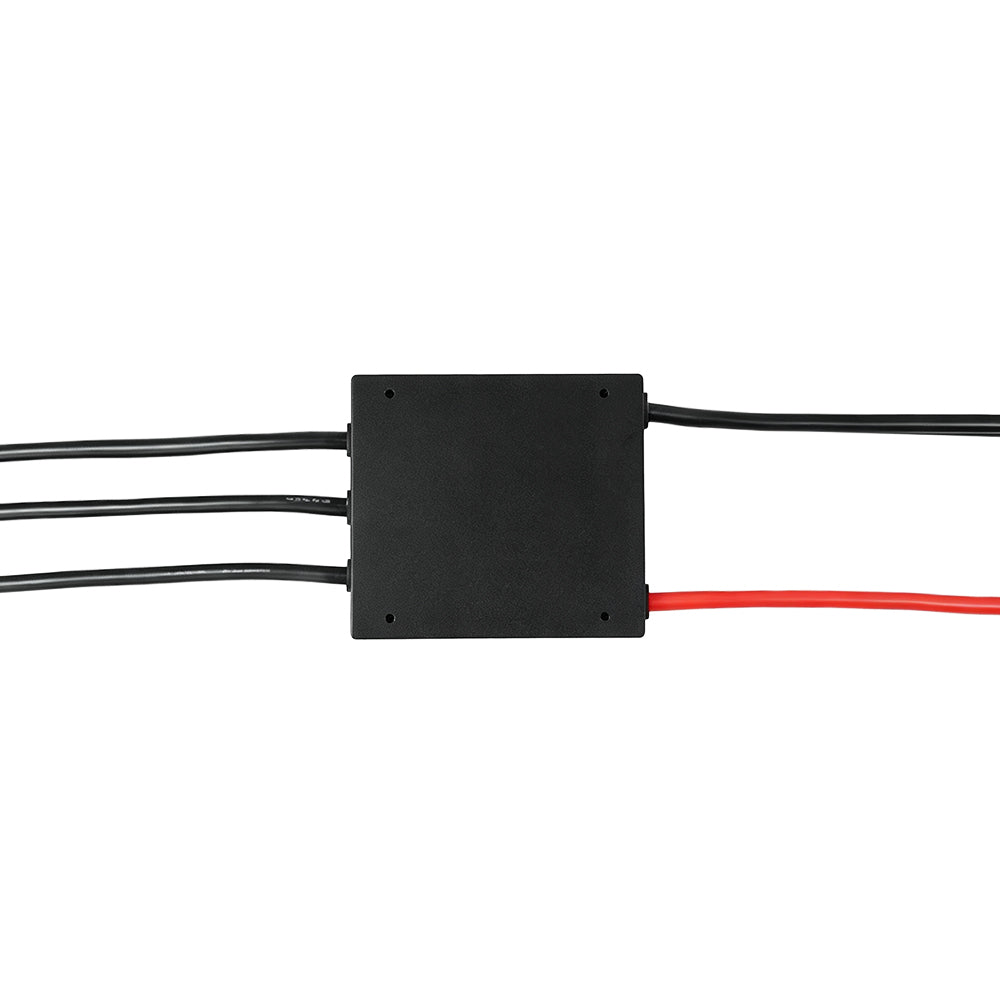

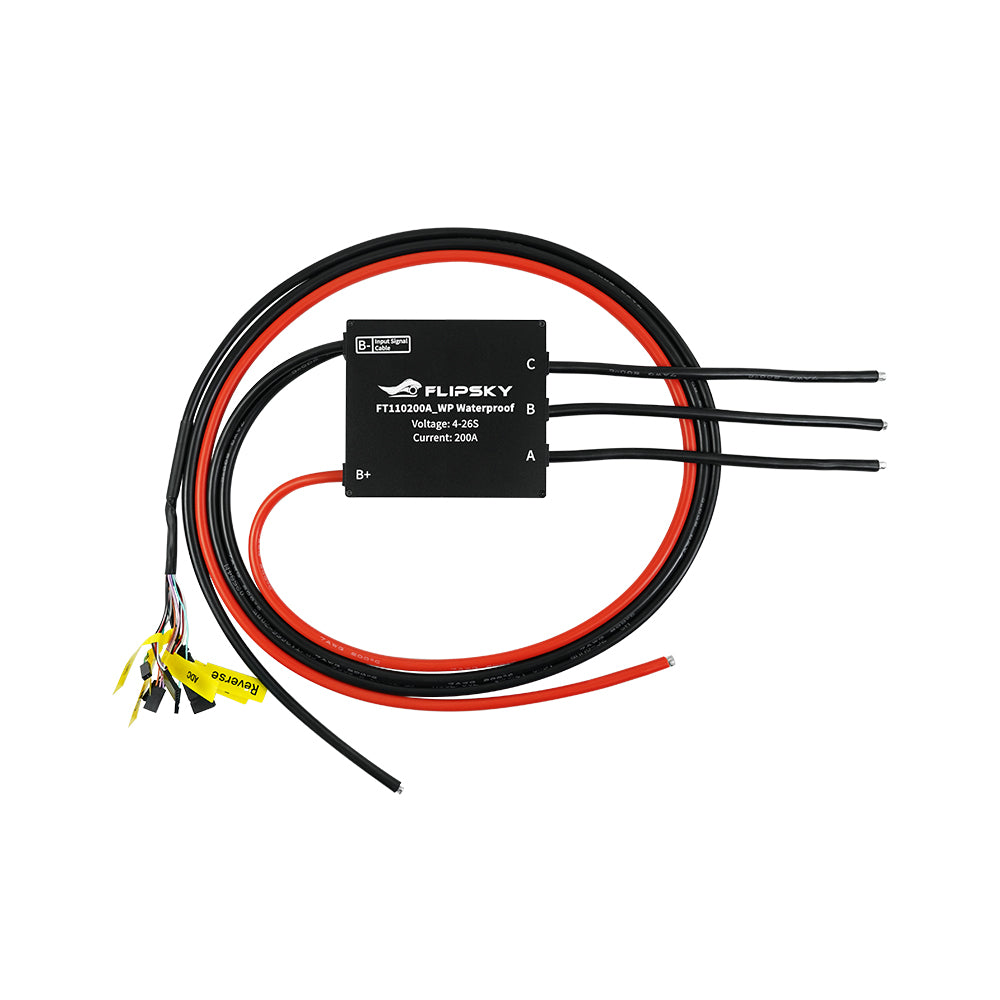

Flispky IP68 Waterproof FT110200A 110V 200A ESC With Aluminum Enclosure NON-VESC For Electric Skateboard /Ebike Speed Controller / Electric Scooter / Electric Motorcycle / Robotics

Specs:

• Firmware: V1.6 and above(firmware update via Flipsky ESC Tool supported)

• Voltage:14V-110V(safe for 4-26S)

• Continuous Current: 110V/200A(Values depend on the mounting, ambient temperature and air/water circulation around the device)

• Peak Current: 400A

• BEC:5V@3A

• Programmable Tool: Flipsky ESC TOOL
• PWM Frequency Control: YES

• Multiple Speed Gear Limit Control: YES(UART)

• Regenerative Capacity: YES

• Communication Ports: USB, CAN, UART, PPM, ADC

• Control Signals Support: PPM, ADC, UART(compatible with all Flipsky VX Series remotes)

• Power Cables:7 AWG(1200mm)

• Motor Cables: 7 AWG(198mm)

• Size:L115.7mm*W99.8mm*H27mm(with aluminum enclosure)

Feature:

• Fully sealed with lP68 water-proof rate.

• Adopting ARM Cortex-M4 structure with the max 240MHZ, improves PWM switching frequency and the motor RPM.

• Programmable via Flipsky ESC Tool to be compatible with multi-types of motor,different battery voltages and multiple control methods.

• Programmable via Flipsky remote controller VX4Pro(ESC firmware version: V1.5 or below).

• Supporting motor FOC with low working noise and smooth starting.

• Supporting save/load configuration files via ESC Tool.

• Supporting multiple speed levels: Level 1(Low), Level 2(Medium), Level 3(High).

• Supporting reverse gear speed and power configuration: the maximum speed and output power during reversing can be independently configured, with R gear(reverse gear).

• Supporting real-time data and fault alerts.

• Supporting adaptive variable PWM frequency control.

• Supporting Sensorless Mode: IPDS, HFPI, OPEN.

• Startup Modes Support: IPDS (sensorless), HFPI (sensorless), OPEN (Sensorless Open-Loop Startup)

• Traction Control: YES.

• Supporting control types: Current, Duty Cycle, Speed Control.

• Supporting emergency stop and shutdown.

• Support safe power-on protection (in PPM&ADC control modes only).

Wiring diagram:

Manual:

https://cdn.shopify.com/s/files/1/0011/4039/1996/files/FT110200A_WP_-_V1.6_20260902.pdf?v=1788940666
