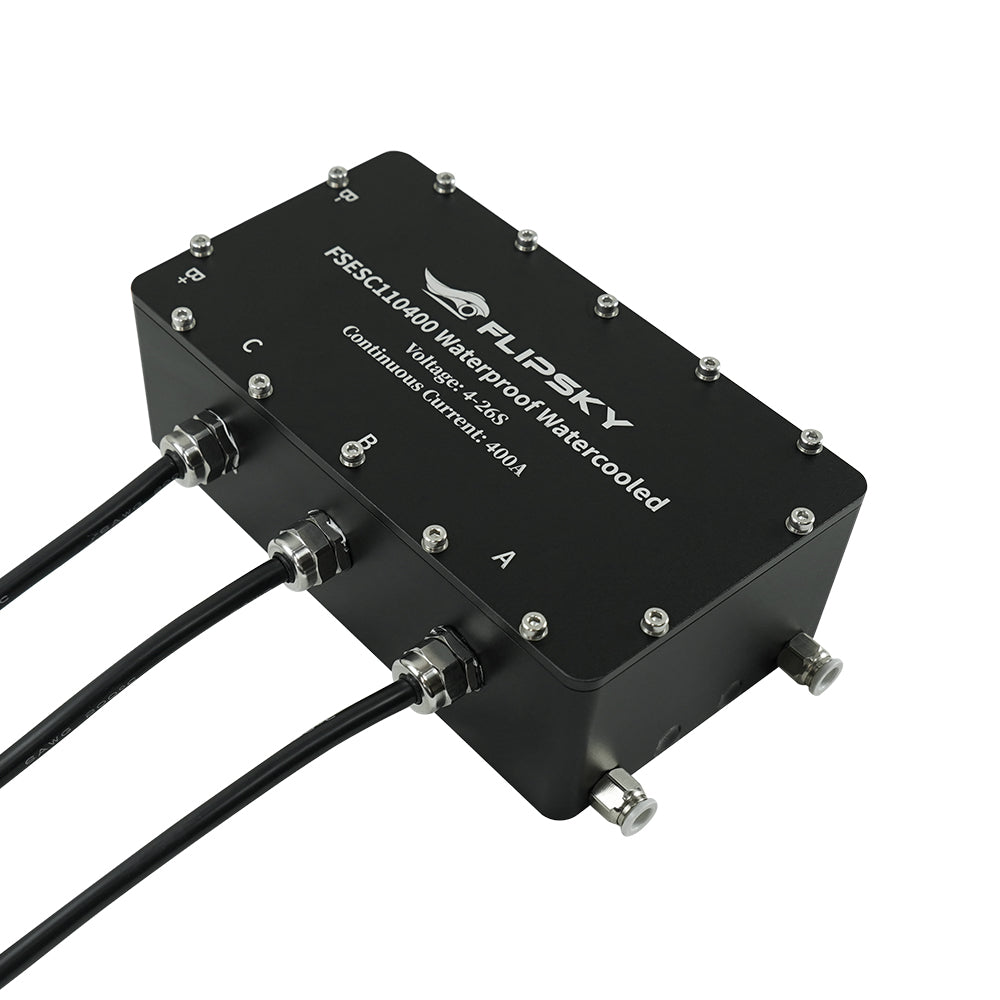

Flipsky FSESC 110400 High Voltage 110V High Current 400A Waterproof ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot/RC Boat

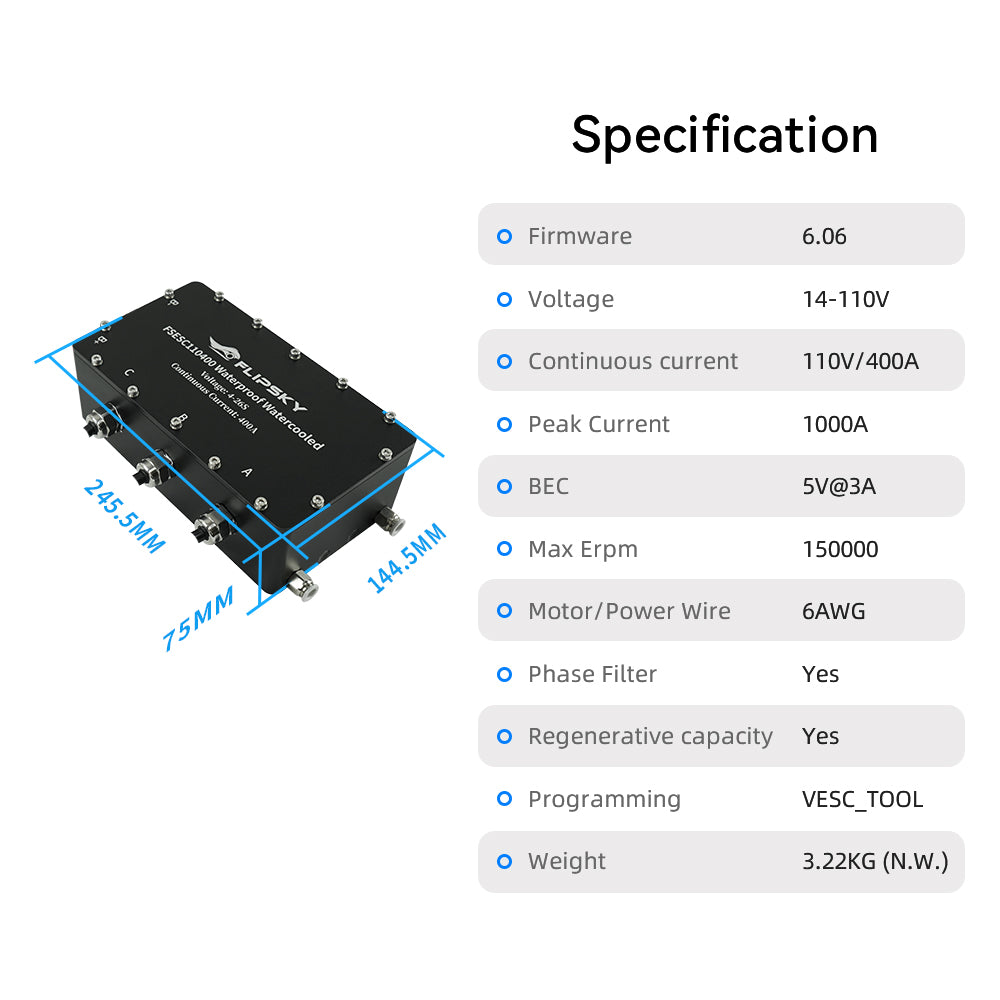

Specs:

• Firmware:6.06(Support 6.06 or above)

• Voltage:14-110V (safe for 4-26S)

• Continuous current: 110V/400A(Values depend on the mounting,ambient temperature and air/water circulation around the device);

• Peak Current: 1000A

• BEC: 5V@3A

• Programmable via VESC_TOOL: Yes

• Max Erpm:150000

• Communication Ports: USB, CAN, UART, SPI, IIC

• Input Source Support: PPM, ADC, NRF, UART

• Phase Filter: Yes

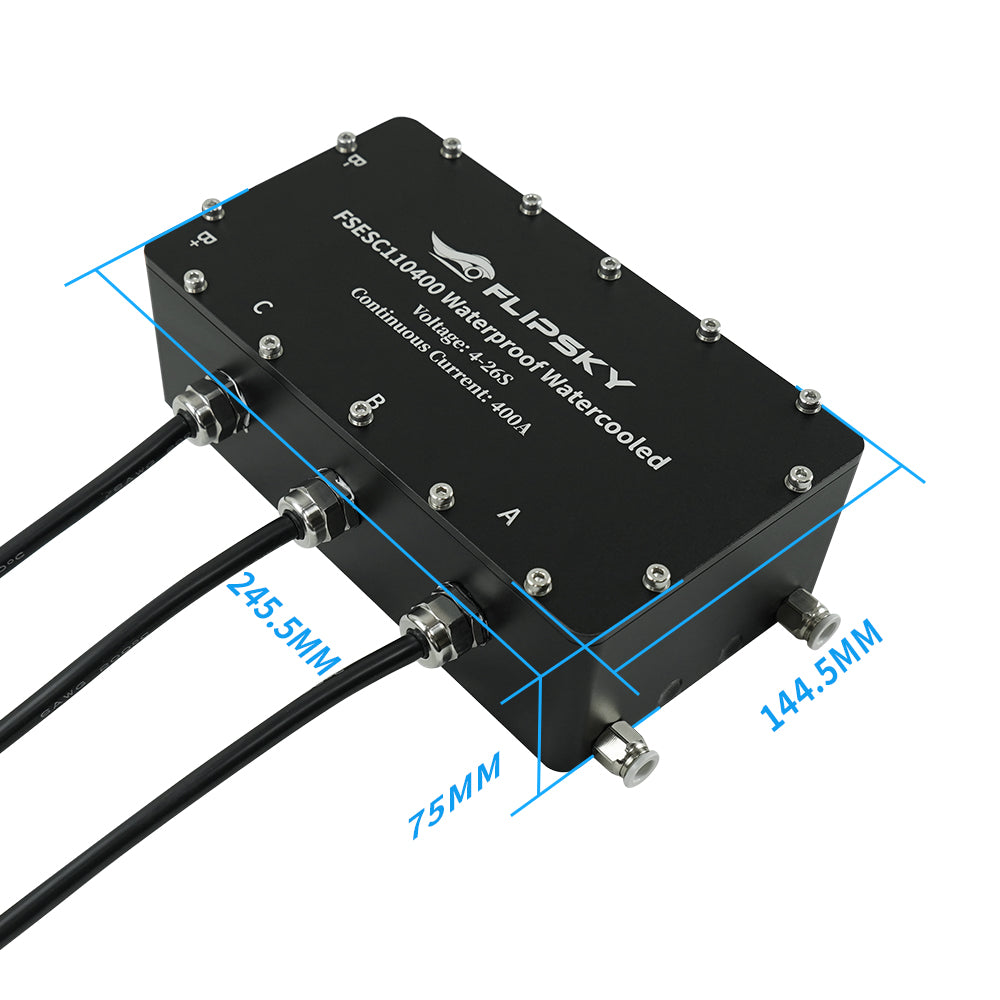

• Size: L245.5mm*W144.5mm*H75mm(with enclosure)

• Motor/Power Wire: 6AWG

• Power Switch Button: 16mm Self-lock Button(red light)
• Net Weight: 3.22kg

Features:

• Fully sealed with lP68 water-proof rate.

• CPU: SMT32F405 of Cortex-M4 with DSP function and frequency 168MHz

• Support Modes: BLDC, FOC (sinusoidal)

• Supported Sensors mode (ABI, HALL, AS5047, AS5048A) and sensorless mode

• Support various control modes: Current / Duty cycle / Speed / PID

• Adjustable protection against: low/high voltage protection, over current protection, MOSFET/ motor over temperature protection.

• Regenerative capacity: Yes

• Support dual ports(using Bluetooth and port control simultaneously)

• Design with Aluminum PCB with water-cooled system for good heat dissipation and expand life span

Wiring Diagram:

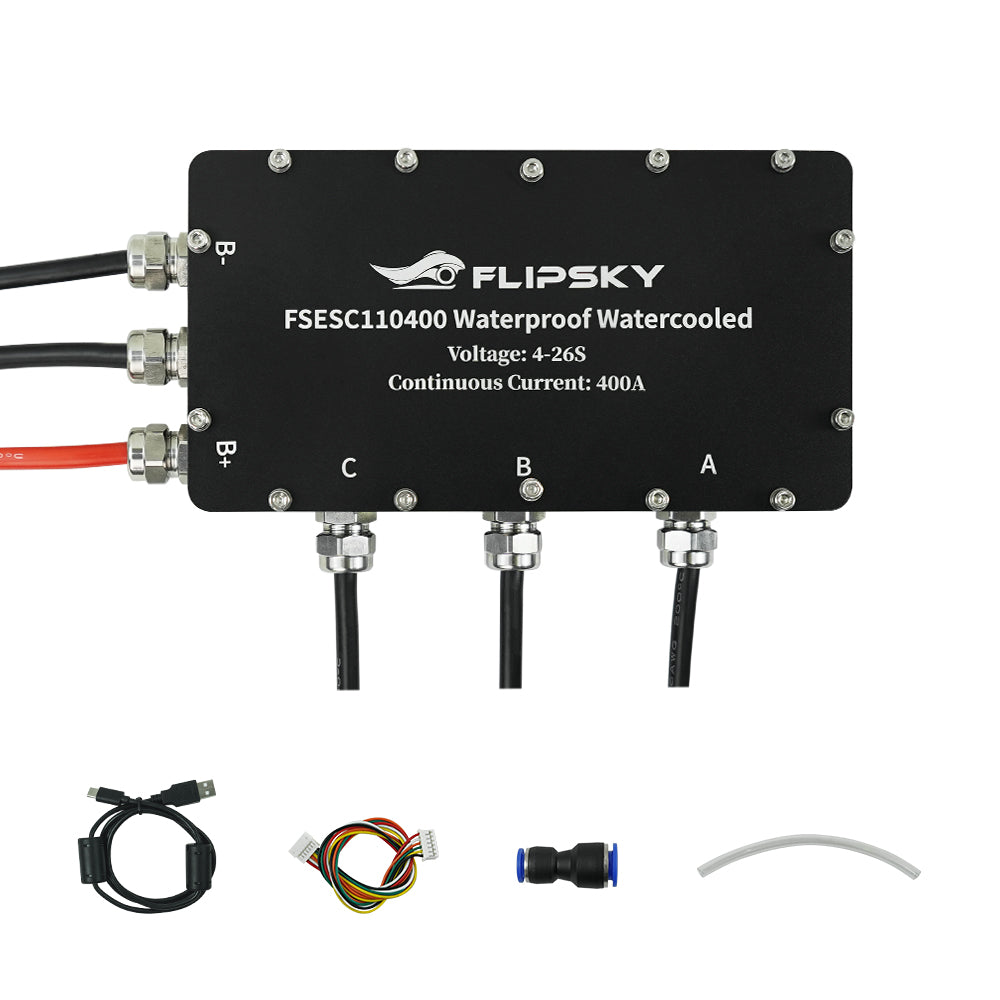

Shipped List:

• 1*FSESC 110400 Waterproof  Water-Cooled ESC
• 1*16mm Self-Lock Button (Red Light/110V)
• 1*USB Cable
• 1*Sensor Cable
• 1*USB Type-C (Dual Large Ferrite Ring) Cable
• 1*FSESC 110400 Waterproof Water-cooled ESC Manual

Dimensions:
