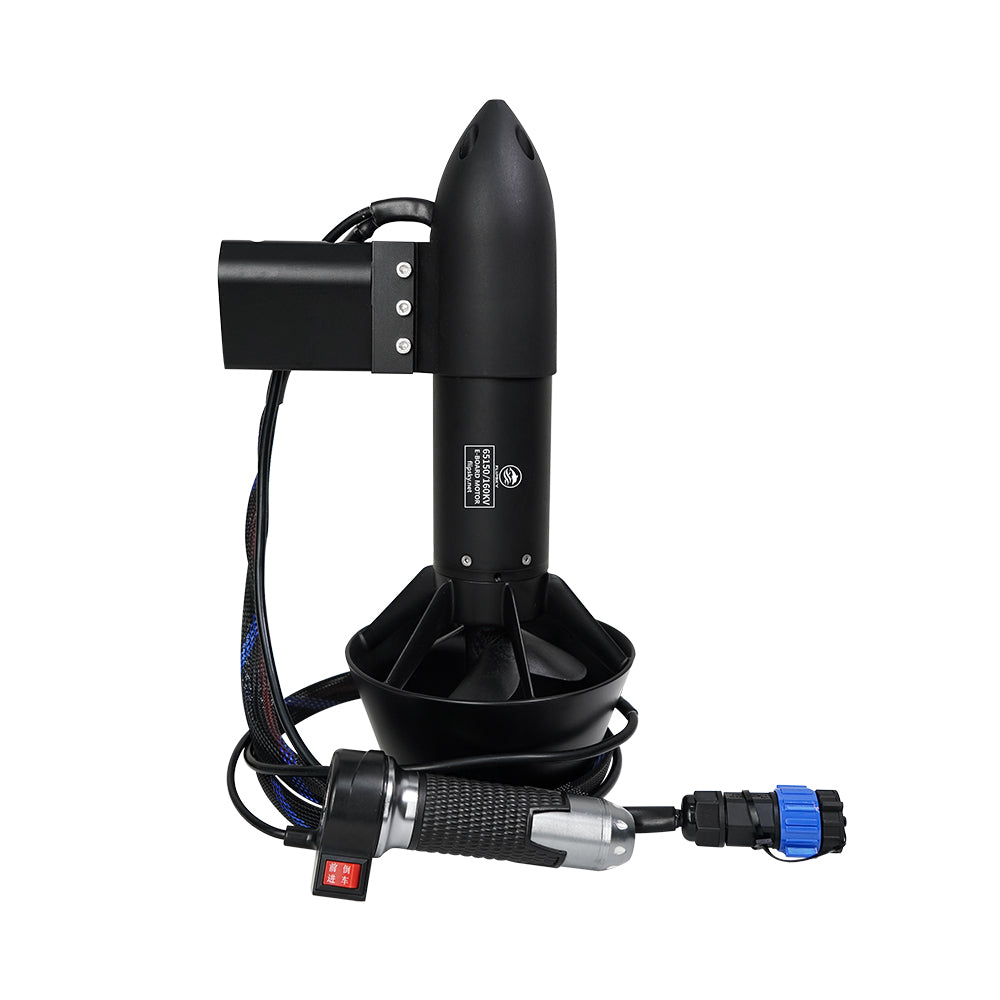

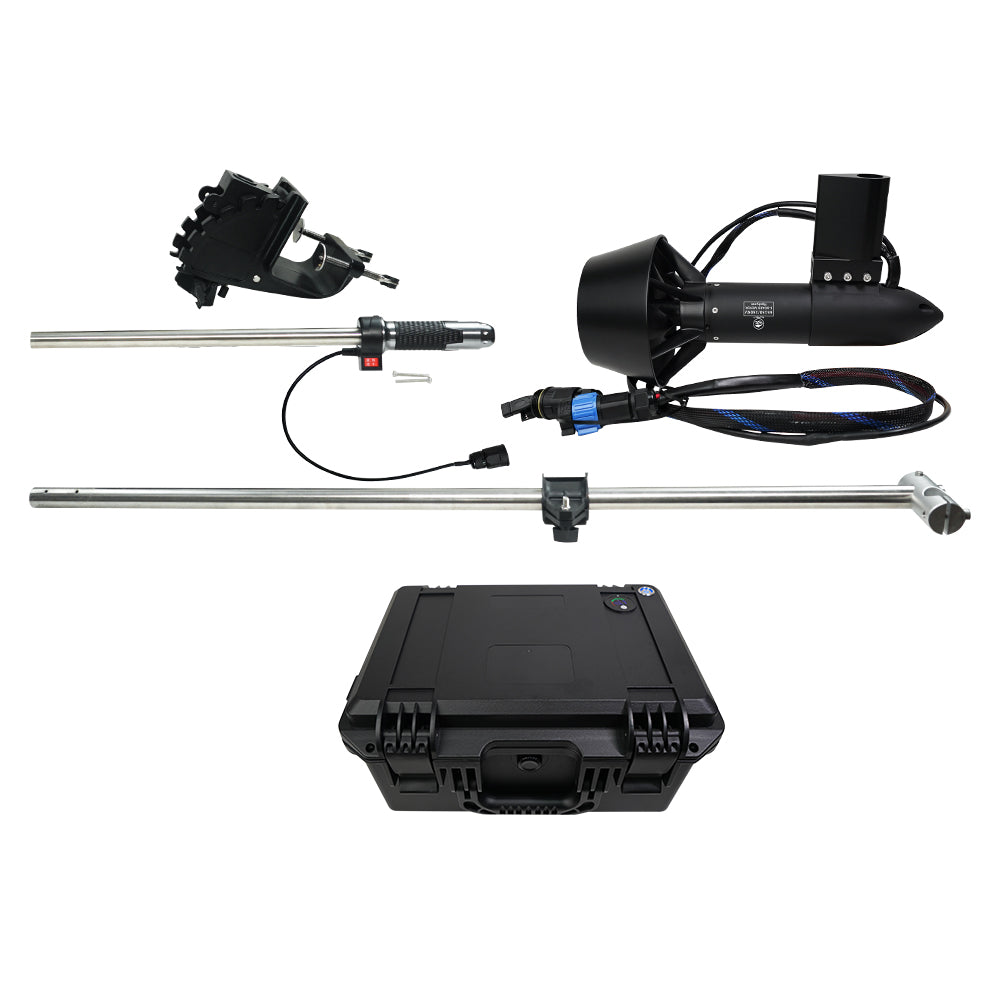

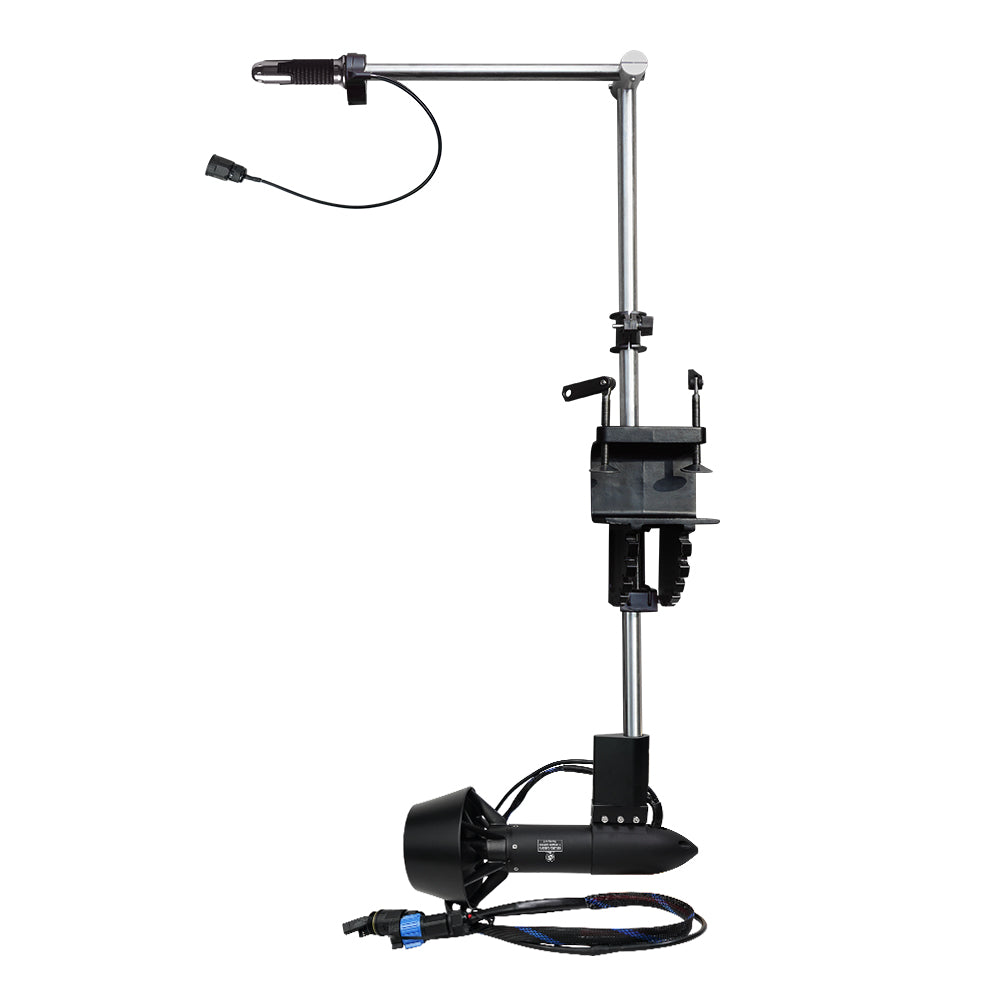

Flipsky Electric Outboard Motor 65150 3000W / ESC 2-in-1 Combo electric propeller outboard motor inflatable boat electric outboard

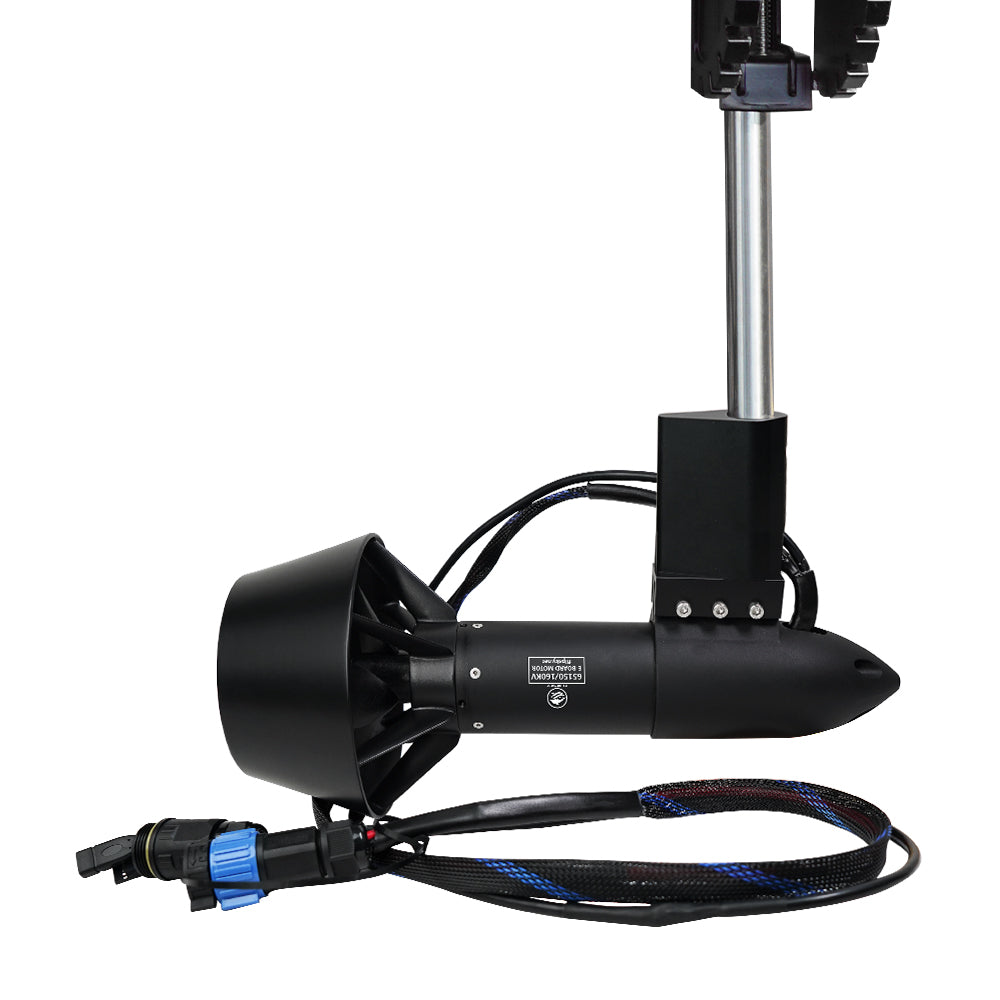

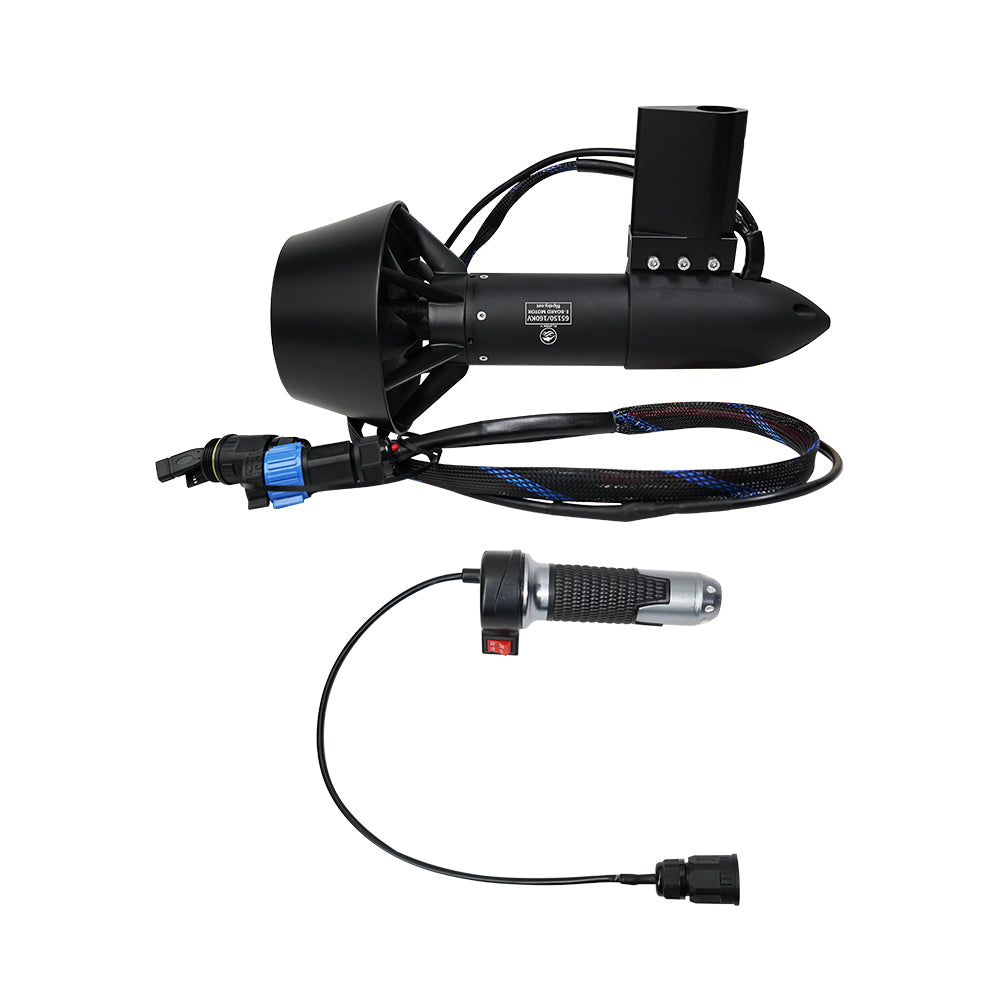

Motor 65150 Spec:

• Voltage range: 4-13S
• Rated current: 30A;Maximum current:70A
• Rated power:1500W;Maximum power:3000W
• Rated torque:2.3N.m;Maximum torque 4.5N.m
• Insulation current:AC500v/1ma/3s
• KV:160KV
• Internal structure:12N/10p
• ESC drive mode:PPM & UART
• Communication port: USB
• ESC driver firmware:5.2 vesc tool 3.00
• ESC support mode: BLDC/FOC
• Shaft specifications ∅ 12-0.005/-0.01
• Power cable: 2*12AWG(∅ 4.5mm*140)
• Power plug: XT90 male
• Weight:2.0kg

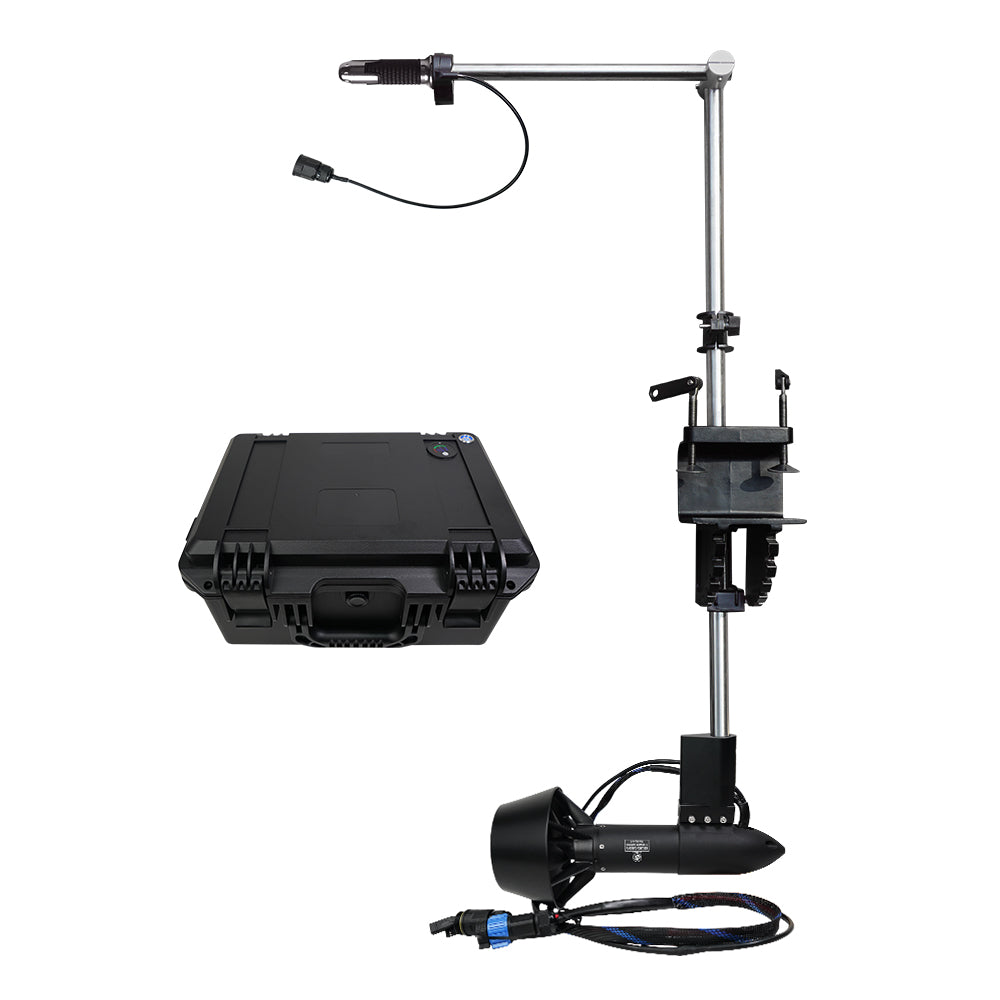

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 3 hours
• Operating time: 90-120 minutes (recommended cruising power: 500W)

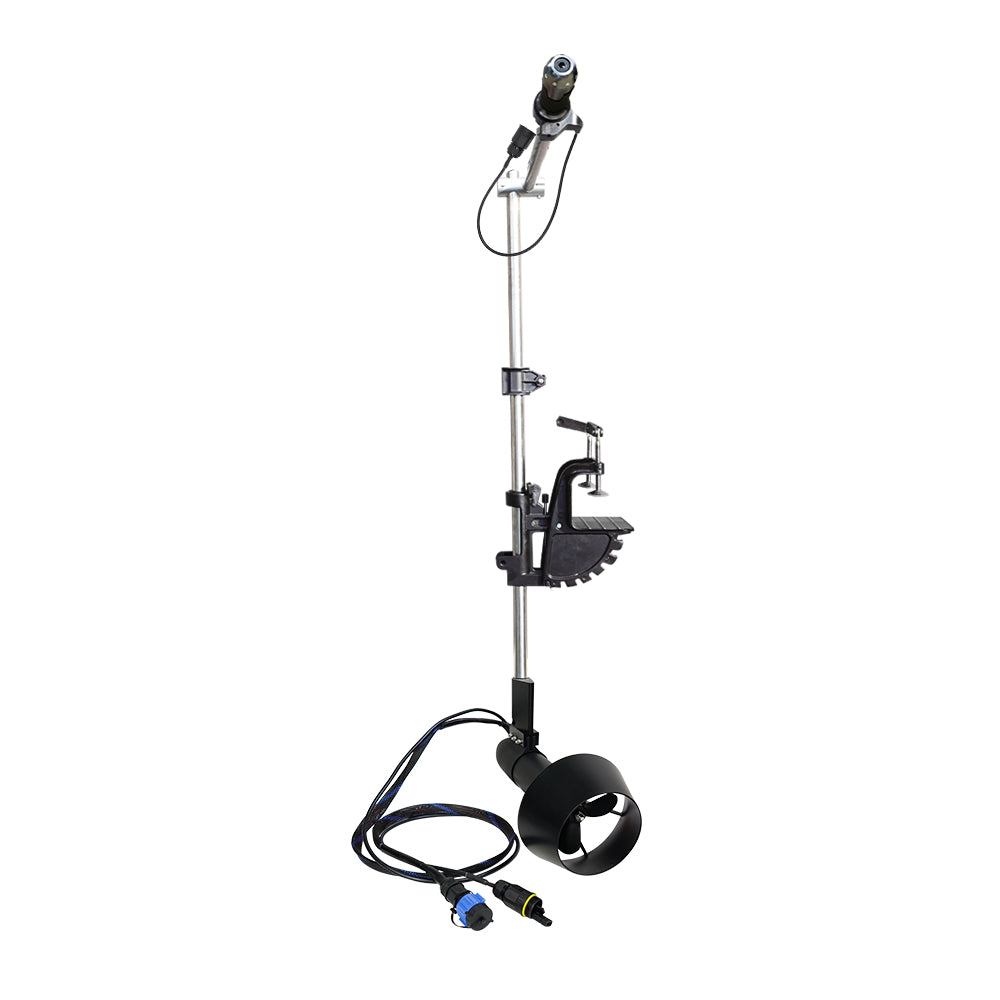

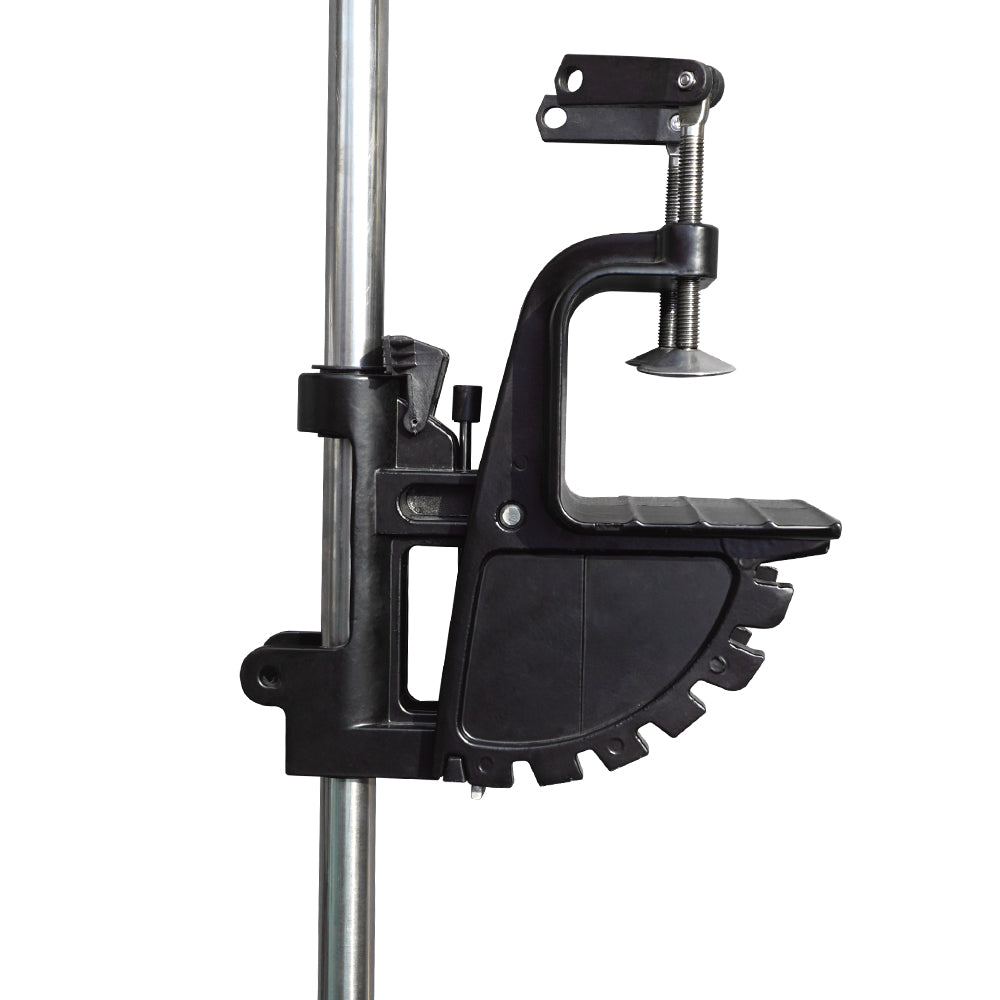

Outboard Motor Mount

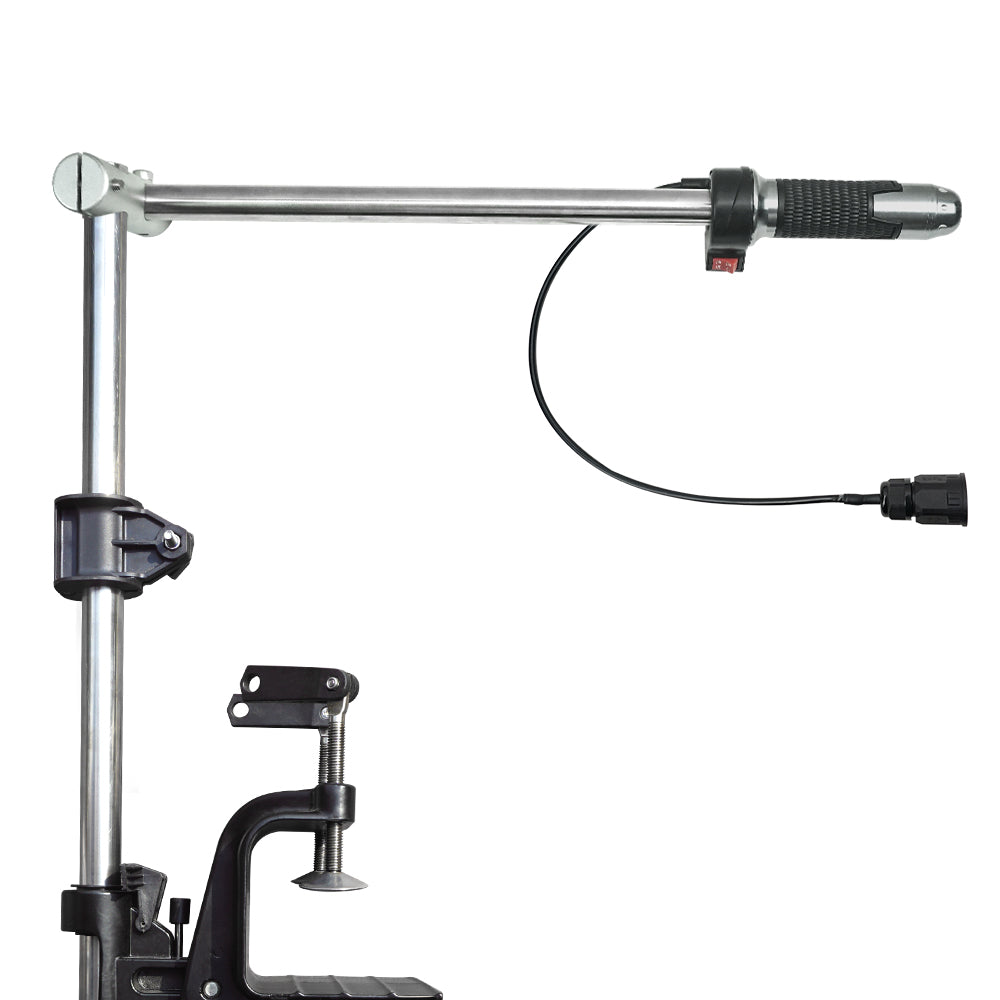

• Remote Control: Throttle Handle

• Control Mode: ADC

• Remote Range: Wired Control

• Waterproof Rating: IP58

• Gear Positions: Forward, Reverse
• Function: Control motor rotation direction

ESC integrated Spec:

• Firmware: Latest Version
• ESC type: Mini FSESC6.7 PRO
• Control Interface Ports:USB,CAN,UART, SPI, IIC
• Supported Sensors:ABI，HALL，AS5047，AS5048A

• Modes:DC, BLDC, FOC (sinusoidal)
• ESC Drive Mode: ADC, reserved PPM
