Specs:

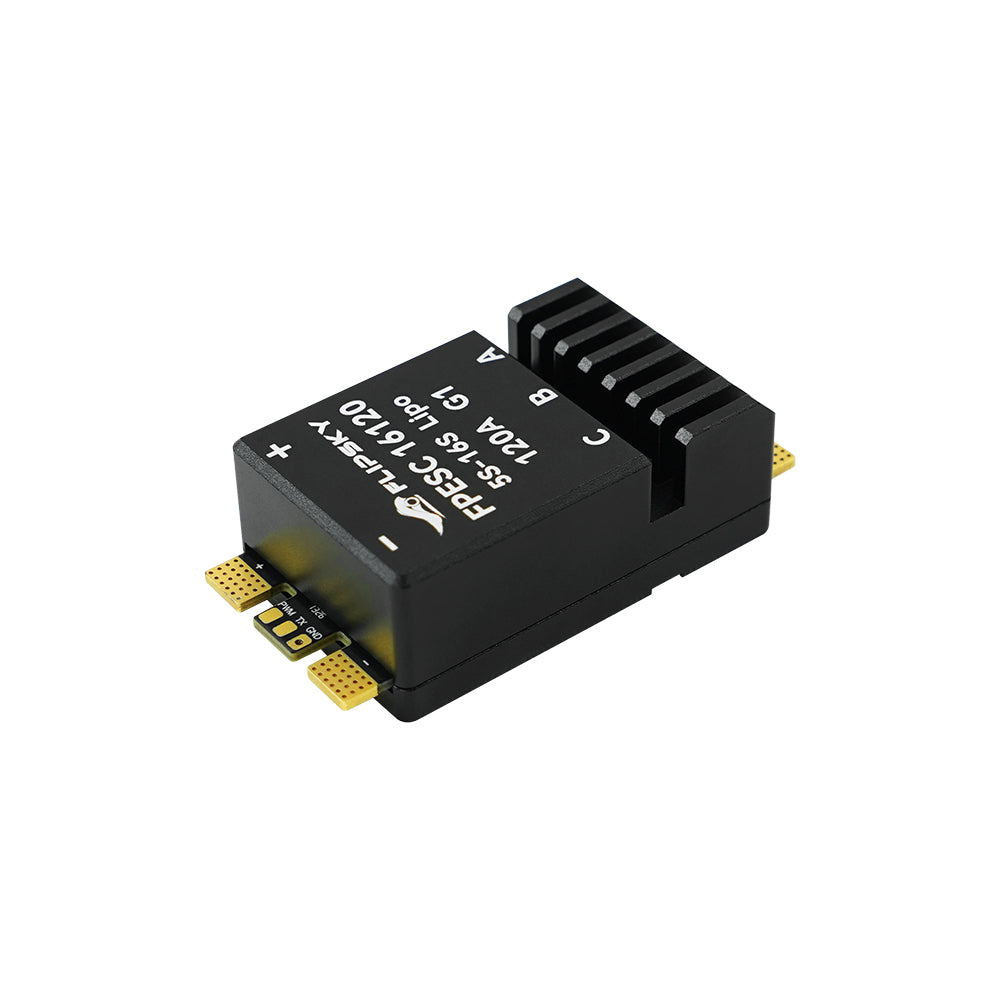

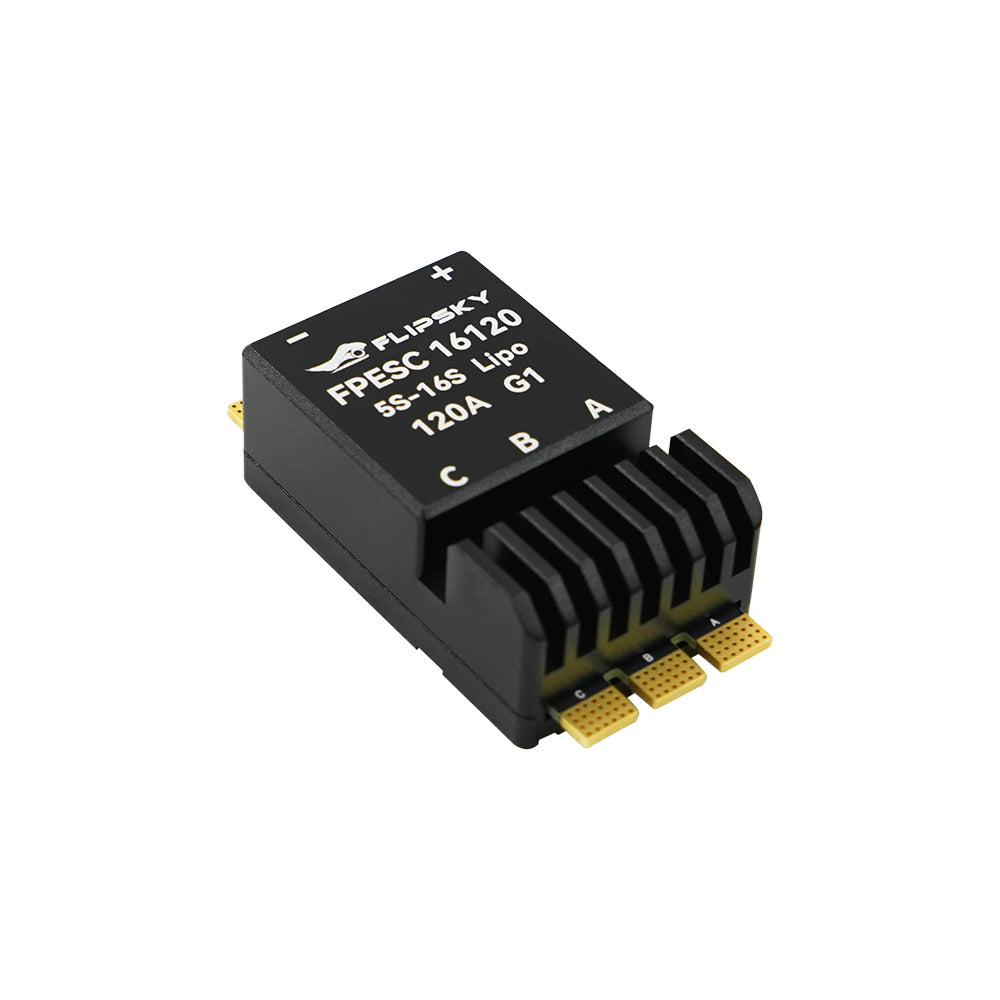

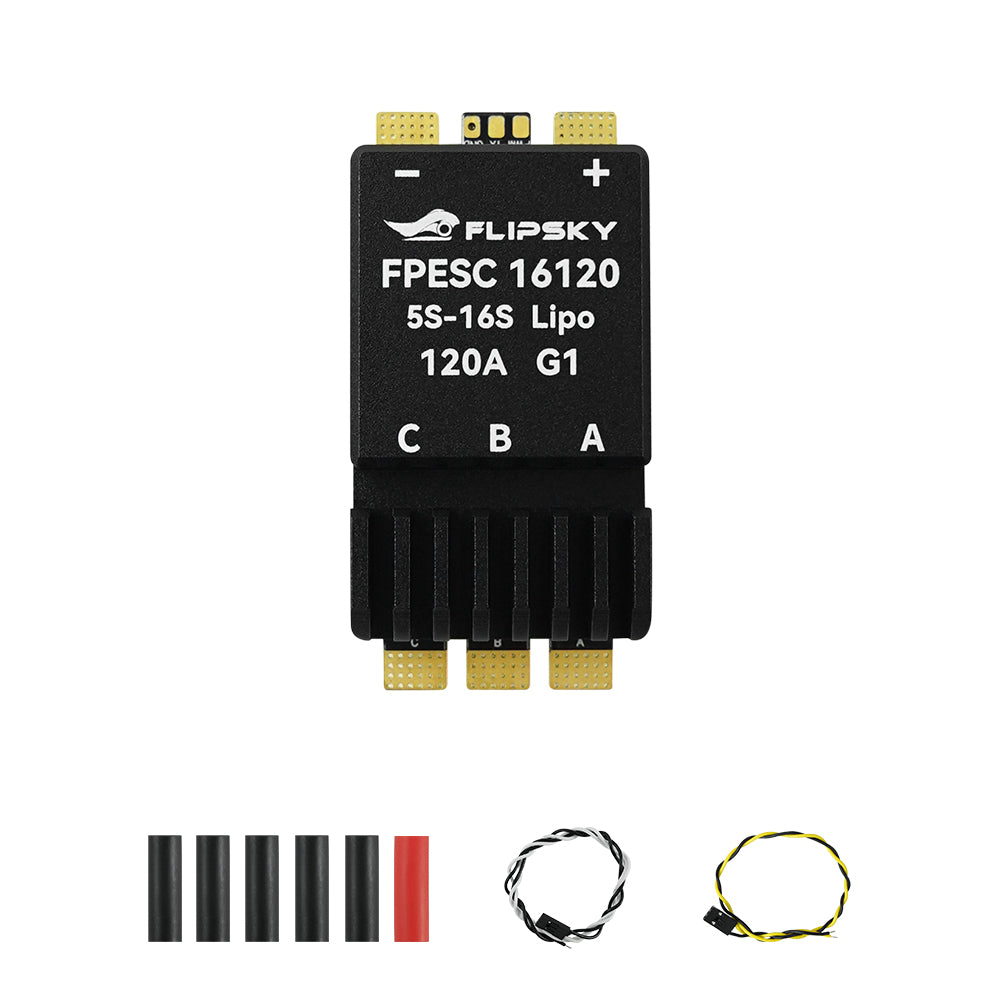

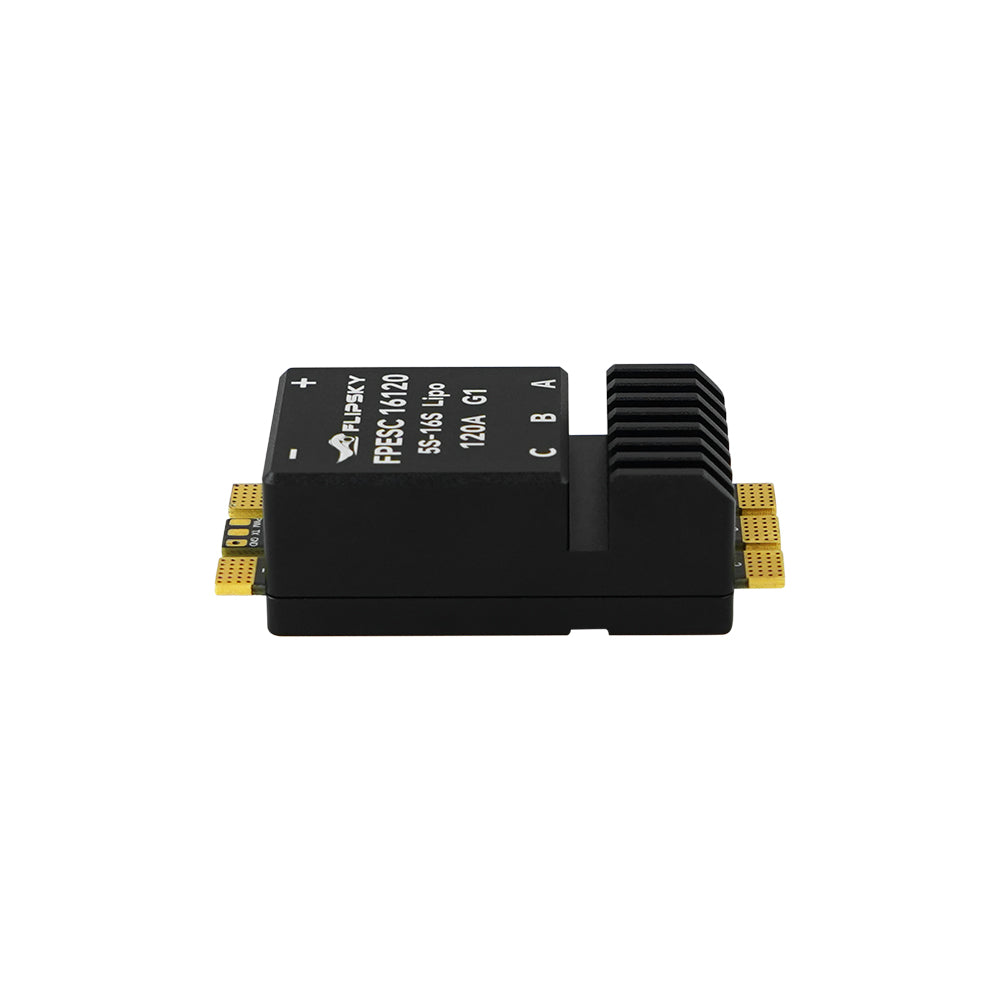

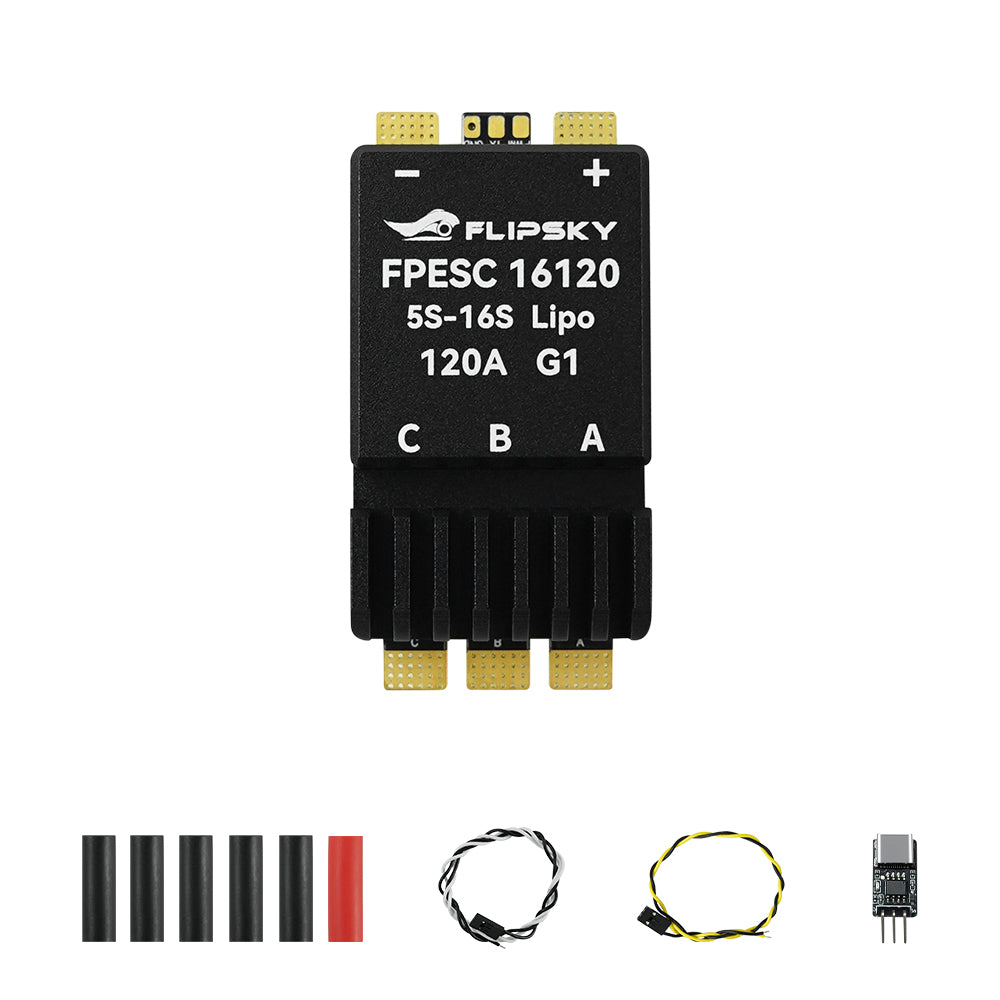

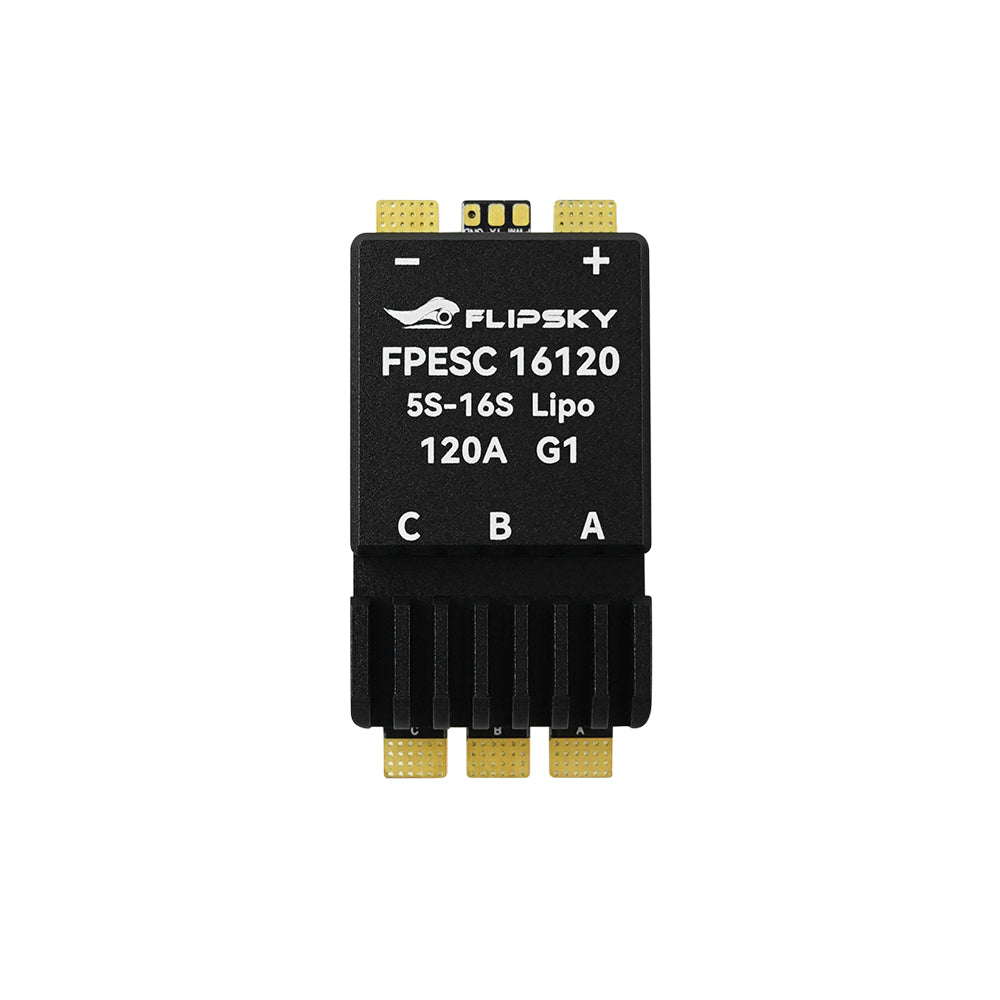

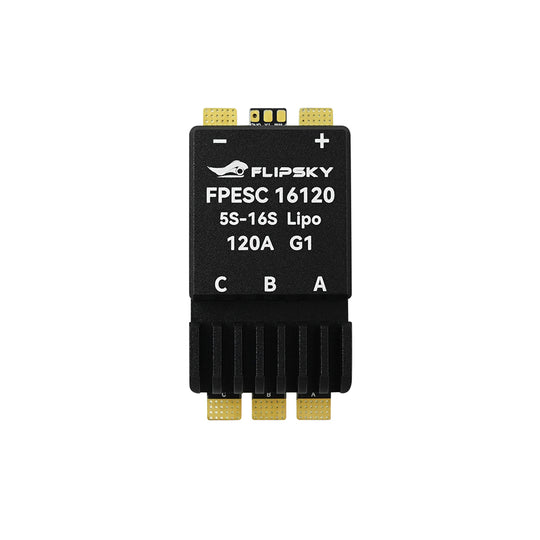

- Model: FPESC 16120 G1
- Firmware: AM32_FLIPSKY_16120G1_F421_2.19
- Voltage: 5S~16S Lipo
- Peak Current: 200A(3s);
- Continuous Current: 120A(45s); 60 A(3 mins, under good heat dissipation condition)
- BEC: No
- Programming Tool: ESC Config Tool
- Programming Link: https://am32.ca/
- Import Source Support: PWM/ Dshot300/ Dshot600
- Data Transmission: TX Port
- Startup: OPEN/ Sinusoidal Startup(sensorless)
- Size: L74*W36.4*H22.7mm(with pad); L60.4*W36.4*H22.7mm(without pad)
- Weight: 84g
Feature:
- High-performance CPU: core MCU: AT32F421K8U7, with high efficiency of 120MHZ.
- Adapt optimized AM32 with fast response and excellent performance.
- PCB structuring design: well-organized wiring and component layout, effectively separating the power terminals and signal terminals, enhancing the stability and utility of the ESC.Using a 6-layer design with a 3OZ thick copper layer as well as large-diameter copper strips on the main power lines, greatly increasing the current-carrying and heat dissipation capability.
- Wide voltage input: support 5~16S Li-po input, suitable for 10-20 inches medium and high-voltage drones with X-Class structure.
- Support multiple input source: once ESC was powered on, it will auto detect the throttle signal. Support Servo PWM, one-way and both-way Dshot(300,600).
- Variable PWM: switching PWM frequency according different rpm, highly improving motor working efficiency.
- Support sinusoidal sensorless startup: in some cases, this mode enables the motor to smoothly transit to the reverse electrical mode with heavy load.
- Support upgrade/parameters setup via ESC Config Tool/web.
- Compact layout with light weight, suitable for UAV with limited arm space.
- Support RPM square wave signal output, making it easier for customers to measure the motor rpm.
- Support WS2812 RGB light signal control, enabling customers to identify the working status of the motor controller easily.
- Built-in precise current and temperature sensor. Support trans back ESC working data via pin of TX port, monitoring core data such as temperature, voltage, current, and rpm.
- Adapt silicone twisted pair as signal wires, effectively reducing the signal interference during copper wire transmission process, enhancing the flight stability.
- Equipped with an aluminum alloy radiator, efficiently dissipating heat and improving working stability in a long term
Manual download link:
https://cdn.shopify.com/s/files/1/0011/4039/1996/files/FPESC_16120_G1_V1.0_AM32.pdf?v=1784530351
