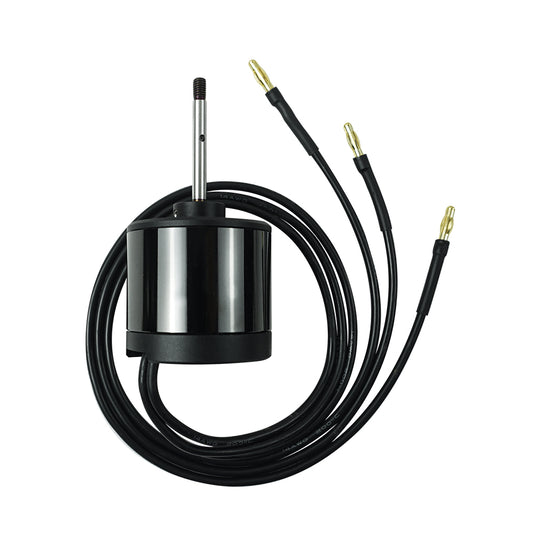

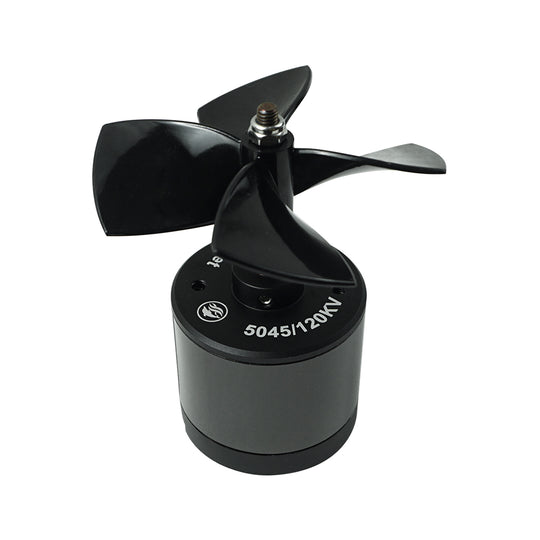

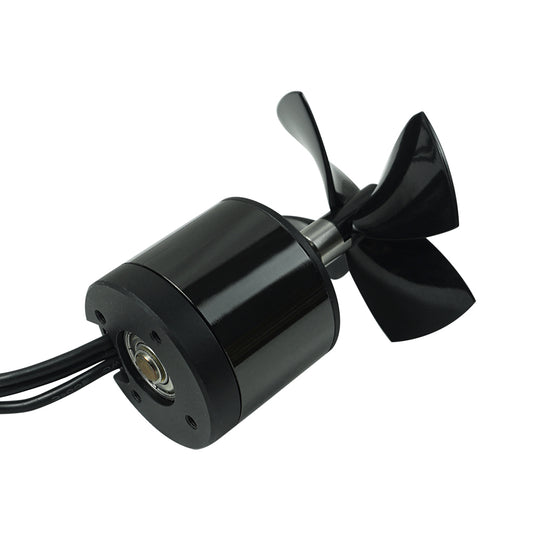

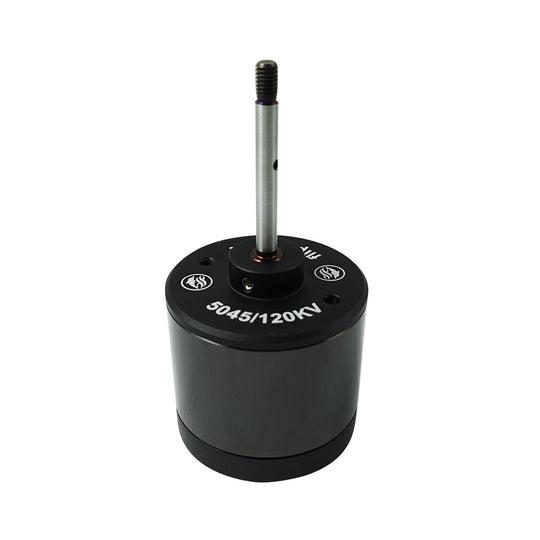

Flipsky Waterproof Brushless DC 5045 Motor 120KV 720W For ROV / Underwater robots / Sewage treatment / Mixers / Underwater thrusters / Submersibles
Product Spec:
- Voltage range：6～16s
- Rated power：500W
- Maximum power：720W
- Rated current：10.5
- Maximum current：15
- Coil resistance：0.34
- Coil inductance L/mH 0：0.43
- Protection grade ：ip58
- Shaft specifications： Φ5
- Number of slots & poles： 12N/14P
- Lead wire/AWG： 14
- Length of lead wire/mm： 500
- Connector ：4mm banana head
- Maximum operating temperature T/℃：120
- Weight：0.48kg
| KV | 90 | 105 | 120 | 160 |
|
voltage rang
|
6~20S | 6~18S | 6~16S | 6~12S |
|
Coil resistance R/Ω
|
0.62 | 0.46 | 0.34 | 0.20 |
|
Coil
inductance
L/mH
|
0.76 | 0.57 | 0.43 | 0.25 |
|
Rated
voltage
U/V
|
48 | 48 | 48 | 48 |
|
No load
current
I/A
|
0.2 | 0.2 | 0.3 | 0.4 |
|
Rated
current
I/A
|
8.5 | 9.5 | 10.5 | 13.5 |
|
Rated
power
P/W
|
400 | 450 | 500 | 650 |
|
Maximum
current
|
9.9 | 12.5 | 15 | 20 |
|
Maximum
powe
|
475 | 600 | 720 | 960 |
|
Maximum
thrust
|
5.6 | 6.4 | 7.1 | 8.1 |
Outline Drawing:
