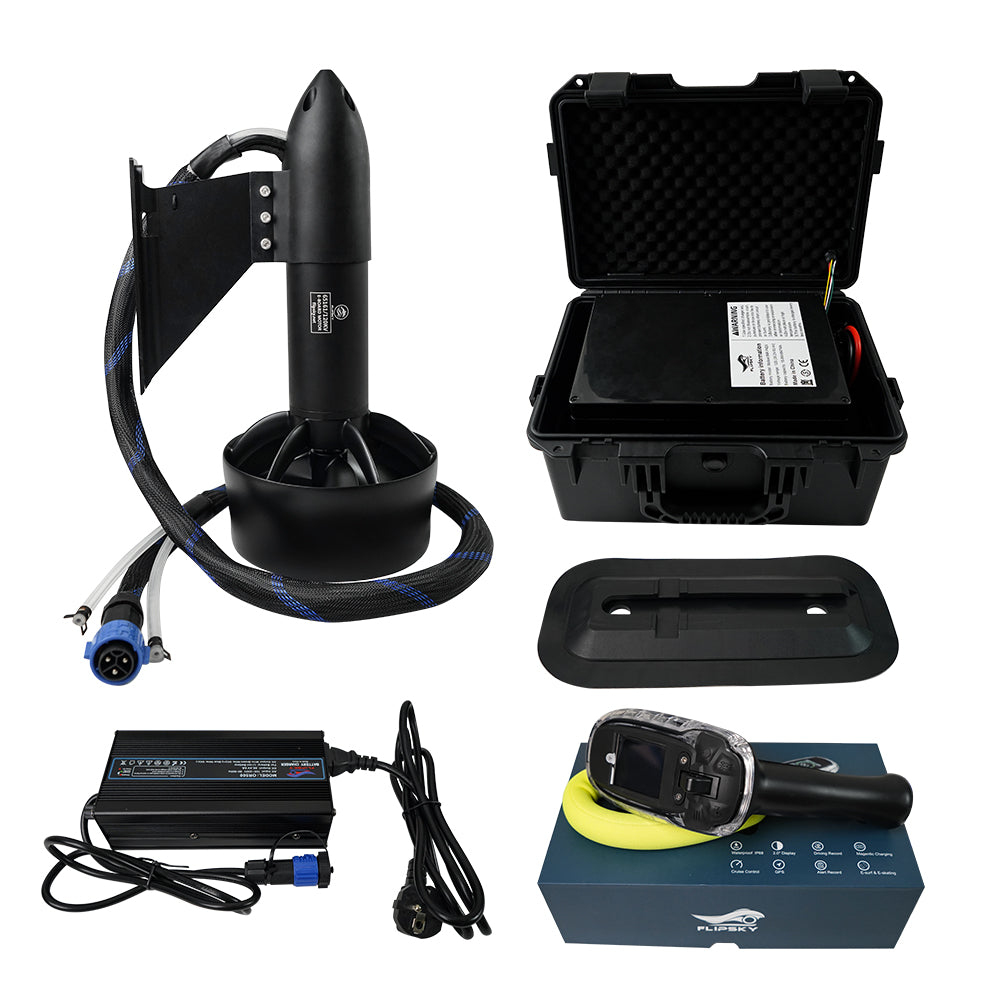

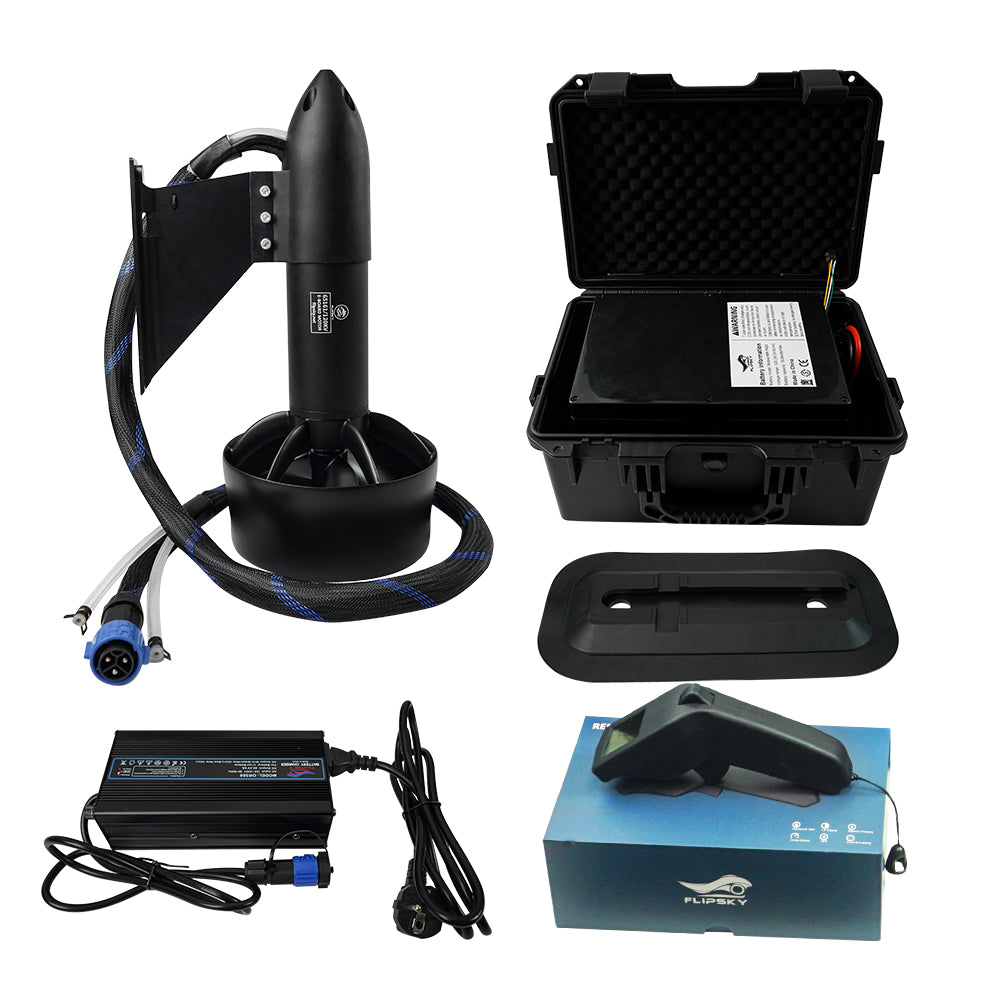

65161 Motor Spec:
- Voltage range: 6-20S (25.2-84V)
- Max Spin Speed(RPM): 16380
- KV(RPM/V): 120KV/100KV
- Max Power:6000W,rated power 3000W
- Peak current: 200A
- The number of pole: 6(please write 3 pairs when do setup)
Max torque at 60%:9NM - Demension: D65*L161mm
- Max working temperature: 120︒C
- Insulation voltage & leak current: AC500V/10MA/3S
- Lead wires extension: 8AWGx1300mm
- Waterproof level:IP68
- Weight:3kg
- Plug: 8.0mm
- Motor wire: 8AWG
Battery box parameters
- Battery outer box size: 371*269*186mm
- Waterproof grade: IP67
- Battery box material: ABS
- Voltage:50.4V
- Cell specifications: Molicel P42A 27100
- Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
- Environment: (-20 degrees Celsius + 50 degrees Celsius)
- Charger: 50.4V 5.5A
- Charging time: about 2.6 hours
ESC
- ESC model:75200 With Water Cooling Enclosure
- Voltage: 14-84V (safe for 4-20S)
- Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
- BEC: 5V@1A
- Support Modes: DC, BLDC, FOC (sinusoidal)
- ERPM: 150000
- Communication Ports: USB, CAN, UART, SPI, IIC
- Supported Sensors: ABI, HALL, AS5047, AS5048A
- Input Source Support: PPM, ADC, NRF, UART
- Supported Sensorless: Yes
- Regenerative capacity: Yes
- Programmable via VESC_TOOL: Yes
- 75200 Size:130x67.7x40.1mm(Including alu. case)
- Motor/power wire size: 8 AWG
Remote control
- remote control:VX3 Pro
- Control mode :UART
- Remote control distance: no interference, 25 meters in a straight line
- Waterproof grade:IP67
- There are 3 adjustable gears (L/M/H)
- Functions: Cruise control, GPS speed display, infinite throttle
