Warm tips: please do not remove the shrink to protect the pcb electronics components from impurites or metals which result in short circuit or esc burnt damage.

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

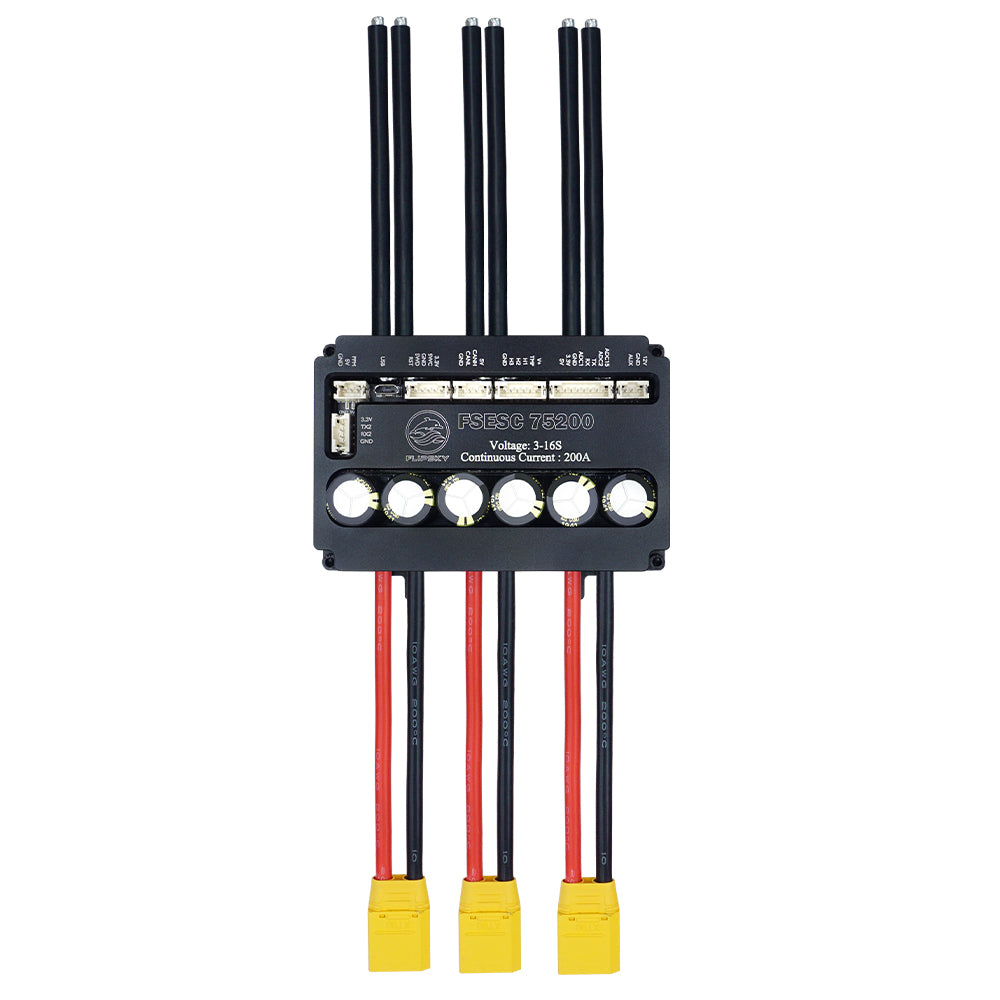

The Flipsky ESC is based upon the VESC Open Source Project, and compatible with VESC Software.

The Flipsky ESC is a highly modifiable electronic speed controller designed with DIY Electric Skateboards conversions in mind.

The Flipsky ESC allows you to use sensorless motors to achieve smooth start-up from a stop versus traditional RC ESC's which may have trouble starting from a complete stop. It also provides strong. reliable and progressive electric braking.

You can connect your ESC to your computer and modify them using the VESC BLDC Tool. Our ESC ships to you tested multiple times during the production cycle and are ready to use. The ESC will provide optimum performance when configured for your particular motor and battery voltage.

Specs:

The shipping package contains:

Click here for Frequently Asked Questions

Spec:

• Hardware Version:ODESC3.6 Dual Drive
• PCB layer Number:4 layer
• Applicable Voltage:8-56V
• Current Parameter:50A continuous/120A peak
• Support Encoder:Incremental Encoder, Absolute Encoder, Houle Sensor, AMT102, AMT103, TLB5012, AS5047
• Communication Interface:USB-Protocol Open Source (PC, Raspberry Pie, Ros) , UART (Embedded Devices) , PWM (RC Remote) ,STEP/DIRECTION（PLC）、GPIO、CAN、ANALOG INPUT
• Voltage Protection:Programmable Voltage Protection to Prevent Excessive Battery Discharge
• Movement Pattern:Speed Mode, Torque Mode, Current Mode, Position Mode, Trajectory Mode, etc.

Feature:

ODESC high-performance brushless drive is based on the open source project ODrive for hardware optimization and enhancement, stable performance and matching the original firmware of Odriver. The supporting USB connection to the PC terminal can realize motor debugging and complex multi-axis control. And it can realize FOC control for most brushless motors on the market.With the use of encoders, it can also achieve arbitrary torque, speed loop, position loop, current loop, and position control based on trajectory planning etc. It can be widely used in joint flexible robots, robotic arms, 3D printing, camera gimbals, Gimbal slide, CNC milling machine, ship model, car model and other DIY industrial and automation fields.

Reference video:

Spec:

• Hardware Version:ODESC4.0/4.1 Single Drive
• PCB layer Number:ODESC4.0/4.1 4 layer*2
• Applicable Voltage: ODESC4.0 8-24V;V4.1 8-56V
• Current Parameter:50A continuous/120A peak
• Support Encoder:Incremental Encoder, Absolute Encoder, Houle Sensor, AMT102, AMT103, TLB5012, AS5047
• Communication Interface:USB-Protocol Open Source (PC, Raspberry Pie, Ros) , UART (Embedded Devices) , PWM (RC Remote) ,STEP/DIRECTION（PLC）、GPIO、CAN、ANALOG INPUT
• Voltage Protection:Programmable Voltage Protection to Prevent Excessive Battery Discharge
• Movement Pattern:Speed Mode, Torque Mode, Current Mode, Position Mode, Trajectory Mode, etc.

Feature:

The ODESC high performance brushless driver is based on the open source project ODrive hardware optimization enhancement, stable performance, and match the original Odriver firmware. The USB connected PC terminal can realize motor debugging and complicated multi-axis control, and can realize FOC control for most brushless motors. With the use of encoder, it can also realize any torque, speed loop, position loop, current loop, and position control based on trajectory planning, can be widely used in flexible robot joints, robotic arms, 3D printing, camera universal joints, pan rail, CNC milling machines, ship models, car models and other DIY, industrial and automation fields.

Wiring Diagram:

ODESC4.0/4.1

Remark: Without strip option default ship 12V LED Strip Controller.

Specs:

• Voltage: 4.5V-5.5V
• Minimum current: 0.5A
• Operating temperature: -40-85°C
• Optimum humidity: 85%RH
• Connection method: WIFI radio
• ESC Compatible: VESC, FSESC, FOC
• LED Strip Support: APA102,WS2801,WS2811,WS2812,WS2813,WS2815 LED Strip
• RAM: standby status with 3 modes; running status with 8 modes; braking status with 8 modes
• LED2811: 60 leds/m, 5050 RGB,1meter
• LED2812: 144 leds/m,5050 RGB,1meter
• LED2813: 30 leds/m, 5050 RGB,1meter
• LED2815: 30 leds/m, 5050 RGB,1meter
• Color mode: custom available
• Size: 34mm x 39mm x 10mm
• N.W.: 11.8g

Features:

1. It’s designed for sports vehicles, compatible with vesc, fsesc, foc escs for esk8 electric skateboards, ebike, escooter etc.
2. Adopting high-speed single-chip microcomputer to process data without delay or intermittence.
3. With 3 different status: standby, braking and running status. Multiple modes choices: standby status*3 modes; running status*8 modes; braking status*8 modes
4. Mobile WiFi control available: customers can change status, strip colors and speed via mobile phone, convenient for customers control.
5. The led strip controller comes with a stop-down power module, which can reduce the vibration effects during the running process.

Wiring:

ESK8 Sport LED Strip Controller Manual

Reference video:

Spec:

• Size: 24x45mm (board size: 24 * 33mm)
• Rating voltage: 6V-14V (safe for 2 / 3S lithium battery)
• Output current: single channel 5A (single channel previous 13A)
• Control signal: PPM signal

Function Description:

1. There is a power-on prompt

You will hear a beep from the motor, prompting you to power on

2. Start at the centre position

Throttle channel 1 is 1500, you will hear the motor beep, and the ESC will start

3. Out of control protection

If the signal is lost, the throttle needs to be returned to the center and unlocked again for safety and motor protection.

The signal is abnormal : PPM1 signal is greater than 2.1MS or less than 0.9MS, abnormal signal is equivalent to signal loss.

4. Over current protection

130 degree overheat protection, and hardware over current protection

5. Power-off protection

Power supply voltage is lower than 4V, ESC restart protection

6. This ESC has three modes, choose it before before power on(toggle switch)

• Mixed control (differential speed) control mode by toggling switch inward

The two outputs are controlled by two PPM signals to achieve differential speed control, and a differential remote control is required.

• Two-way synchronous control mode (switch inward)

The output power of the two channels is the same (only connected to PPM1, not connected to PPM2), and also forward and reverse.

• Two independent control modes (switch extension)

MC1 is consistent with PPM1, and MC2 is consistent with PPM2.

Wiring diagram：

Spec:

• Hardware Version:ODESC3.6 Single Drive
• PCB layer Number:4 layer
• Applicable Voltage:8-24V
• Current Parameter:50A continuous/120A peak
• Support Encoder:Incremental Encoder, Absolute Encoder, Houle Sensor, AMT102, AMT103, TLB5012, AS5047
• Communication Interface:USB-Protocol Open Source (PC, Raspberry Pie, Ros) , UART (Embedded Devices) , PWM (RC Remote) ,STEP/DIRECTION（PLC）、GPIO、CAN、ANALOG INPUT
• Voltage Protection:Programmable Voltage Protection to Prevent Excessive Battery Discharge
• Movement Pattern:Speed Mode, Torque Mode, Current Mode, Position Mode, Trajectory Mode, etc.
