Name: Flash Deals Flipsky 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Brand: FLIPSKY
SKU: VA-75S-N-100
Price: 89.0 USD
Availability: InStock

Flash Deals Flipsky 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

Flipsky 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller - FLIPSKY

$89.00

Shipping calculated at checkout.

Quantity

Style

75100 With Aluminum Case

75100 With Water Cooling Enclosure

75100 Without Case/Water Cooling

In stock, ready to ship
Inventory on the way

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

New and old shells are shipped randomly

75100 With Water Cooling Enclosure Manual

Please be careful to limit the Absolute Maximum Current below 250A,setting page

Specs:

75100 Size:L103mm*W58mm*H18.5mm+5.9mm USB TYPE
Voltage:14-84V (4-20S)
Current:100A Continuous,burst 120A
BEC:5V@1.5A
Phase filter: No
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART
Wire Size: 12AWG(75100)
Programmable: Yes
Regenerative Capacity: Yes

Warm tips:

Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube：Click here
Blog：Click here

Detail:

Flipsky 75100

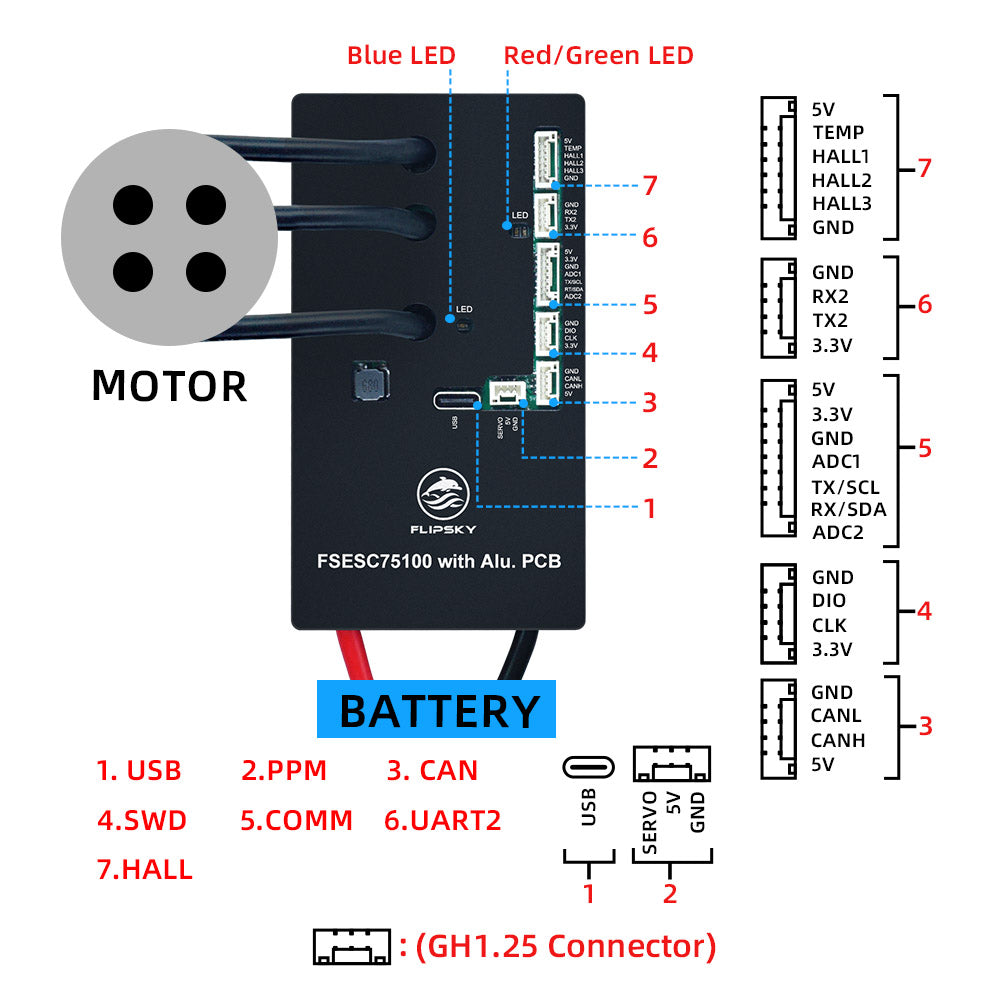

Wiring diagram：

75100 With Aluminum Case

75100 With Water Cooling Enclosure:
