Flipsky 75 Series Escs Comparison

Flipsky 75 Series Escs Comparison

As we have released three different 75 series fsescs, some customers are asked what's the difference performance between them. The follows are summerized:

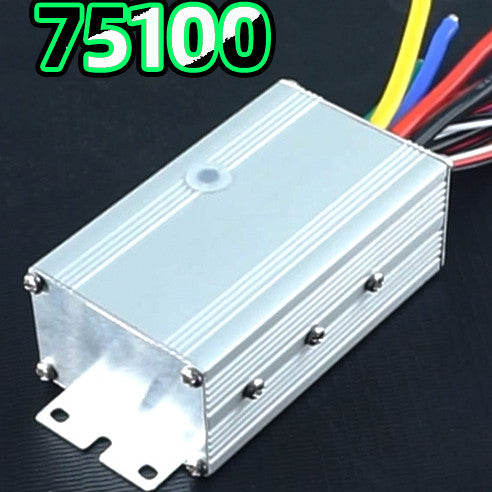

75100 75200 7550
ESC size 85*50.7*33.8mm 110*73*34mm 78*59*32.5mm
Voltage  14~84V(4~20S) 14~75V(3~16S) 14~75V(3~16S)
Continuous Current 100A 200A 50A
Serial control Dual Single

Control mode
 FOC sine wave mode,but not support BLDC square wave mode control  BLDC square wave mode control & FOC sine wave mode  BLDC square wave mode control & FOC sine wave mode
Firmware VESC_TOOL3.0(firmware5.2), firmware upload not available Support all versions of vesctool firmware Support all versions of vesctool firmware
Driver Using EG3112 series driver chip Using UCC272XX series driver chip Using UCC272XX series driver chip
Mosfet MagnaChip Semiconductor MDP10N027 Infineon 7769 Infineon 7769
Single/Dual drive Single/Dual Single Dual
Power cable A set of 12AWG cables Three groups of 10AWG cables A set of 12AWG cables
Motor cable 12AWG cable Each phase consists of 2 8AWG cables 12AWG cable
Waterproof level IP54 IP67 Not waterproof

Heat sink
Aluminum alloy heat dissipation case Aluminum alloy heat dissipation case, water cooling heat dissipation Aluminum alloy heat dissipation case
