How to Build 2WD and Multi CAN Devices for Flipsky 75100 V2.0 with Alu. PCB?

This time we will use the single-drive Flipsky 75100 V2.0 with Alu. PCB to build 2WD and Multi CAN Devices.
Items in the video:
1. 75100 V2.0 with Alu. PCB: https://tinyurl.com/2ksrm43v
2. Y Type Cable: https://tinyurl.com/3fbcbukw
3. 16MM Switch
4. 12S Battery

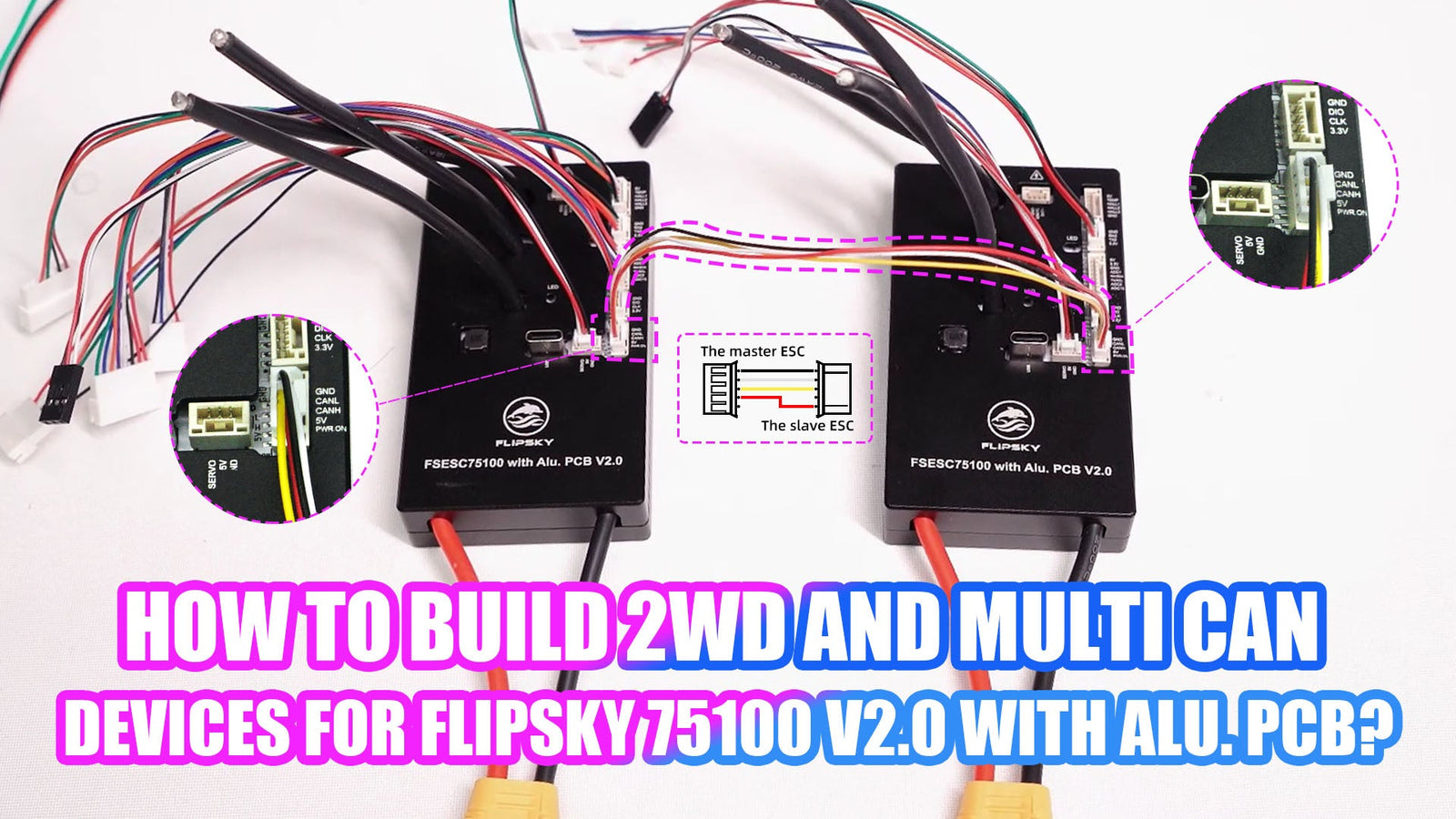

For the 2WD wiring:
1. Remove one of the esc’CAN&POWER wire.

2.Connect two ESCS by 1*CAN&POWER wire. Please make sure the right wiring.

3.Plug the switch button into the master ESC and make sure that it’s OFF before connecting the battery.

4.Connect two escs in parallel with a battery by using a Y-type cable.

5.Press the switch button to power on after all wiring connections done.

Note: the blue light means a successful connection.
