Warm tips:

Spec:

• Voltage:14-84V( safe for 3-20S)
• Continuous Current : 50V/350A,75V/250A
• Max Current :800A
• Supported sensors: ABI, HALL, AS5047,AS5048A

• EPRM:150000
• Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors)

Feature:

• Regenerative braking
• The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
• Sensored or sensorless operation + hybrid mode
• Configurable RPM-, current-, voltage- and power limits
• Input source: PPM, ADC, NRF,UART,PAS
• Communication ports: USB, CAN, UART,SPI,IIC
• Throttle curve and ramping for all input sources
• Seamless 4-quadrant operation
• Motor revolution, ampere hour, watt hour counting
• Real-time data analysis and readout through the communication port.
• Adjustable protection against:
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current (separate limits for the motor and the input)
• High RPM (separate limits for each direction)
• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
• Motor wire: 8AWG
• Power cable: 8AWG
• Waterproof level(with water cooling enclosure):IP67

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC

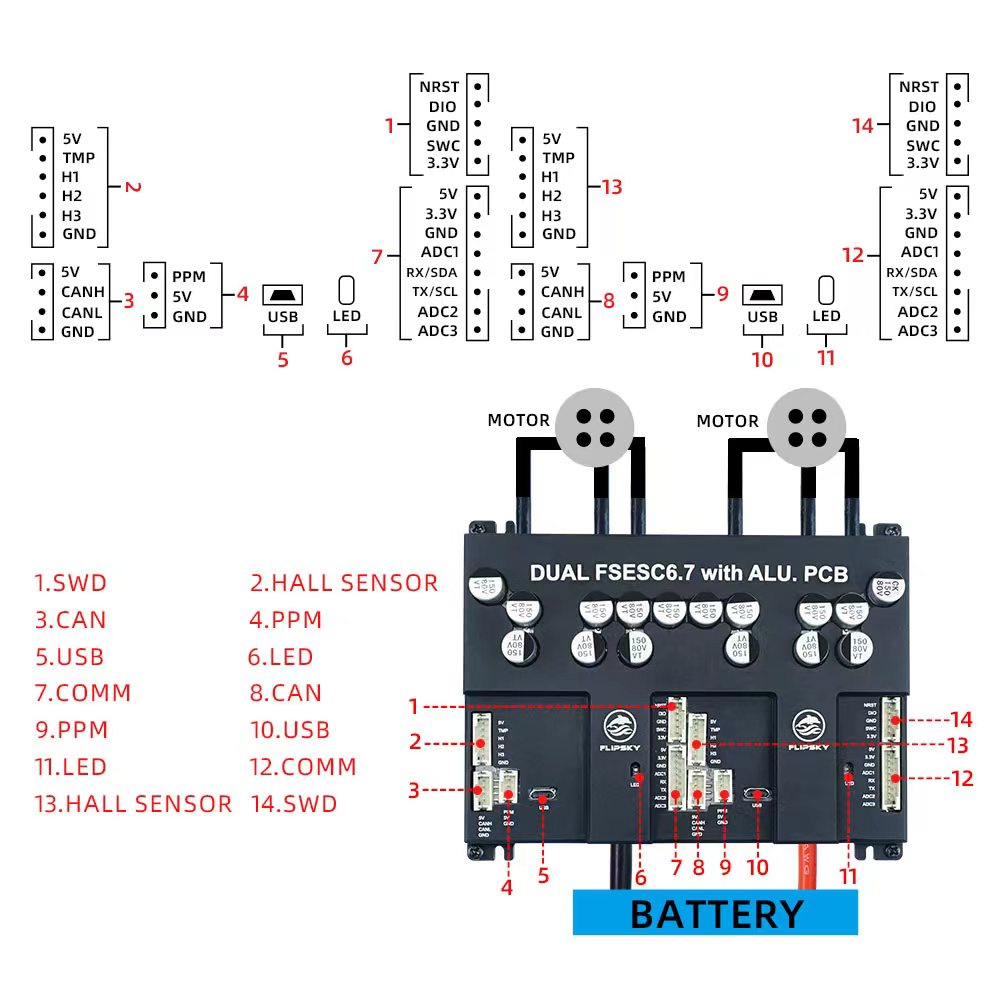

Specs:

• Firmware: Latest Version
• Continuous current: Continuous 100A single, total 200A ,  Instantaneous current 400A per single, total 800A for system instantaneous current. values depend on the mounting  and ambient temperature around the device!
• Voltage: 14V-60V(safe for 4S to 12S, voltage spikes may not exceed 60V! )
• BEC: 5V@1A,5V/1A output for external electronics
• ERPM: 150000
• Control Interface Ports:USB,CAN,UART
• Supported Sensors:ABI，HALL，AS5047，AS5048A
• Input Set Support:PPM, ADC, NRF, UART, SPI, IIC
• Modes:DC, BLDC, FOC (sinusoidal)
• Regenerative capacity: Yes
• Programmable: Yes
• Motor wire: 10AWG
• Power cable:8AWG
• Size:127.6x78.4x32.5mm(Including Alu case)

Specs:

• Material:Nylon
• Diameter: ∅120mm
• Pitch: 96mm
• Suitable For Flipsky 65111 motor

Spec:

• Max power : 1300W
• Motor KV:200KV
• Max Current: 36A
• Voltage:3-12S
• Rated torque:0.6N.M
• Max torque : 1.1N.M
• Internal resistance: 115mΩ
• Motor structure: 12N/14P
• Diameter *Length (mm): 50*48
• Shaft (mm): 8mm D-shaft
• Bullet Connector: 4mm
• Sensor: Yes

5048 Motor Drawing:

Product Spec:

• Voltage range: 10-24S
• KV(RPM/V): 120KV
• Max Power:8800W,rated power 4400W
• No-load current：3.2A
• Max load current: 150A
• The number of pole: 10(please write 5 pairs when do setup)
• Max torque :13.8NM
• Demension: D70*L165mm
• Max working temperature: 120︒C
• Insulation voltage & leak current: AC500V/10MA/3S
• Lead wires extension: 8AWGx1300mm
• Waterproof level:IP68
• Weight:3.06kg
• Plug: 8.0mm
• Motor wire: 8AWG

Motor drawings：

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Specs:

• Firmware: Latest Version
• Continuous current: 100A; instantaneous current: 200A
• Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
• BEC: 5V@1A
• ERPM: 150000
• Control Interface Ports:USB,CAN,UART
• Supported Sensors:ABI，HALL，AS5047，AS5048A
• Input Set Support:PPM, ADC, NRF, UART, SPI, IIC
• Modes:DC, BLDC, FOC (sinusoidal)
• Regenerative capacity: Yes
• Programmable: Yes
• Motor wire: 10AWG
• Power cable:8AWG
• Size:75.4x63.7x31.1mm(Including heatsink)

Feature:

1. Support four control modes: Current/Dutycycle/Speed /Position control mode.
2. Using 6pcs SFT01N10T high current MOSETS (100V 500A).
3. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
4. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.

Wiring diagram:
